ALTERNATOR

0001 112V 130A 0002 112V 130A 0003 112V 100A,130A,150A

1106

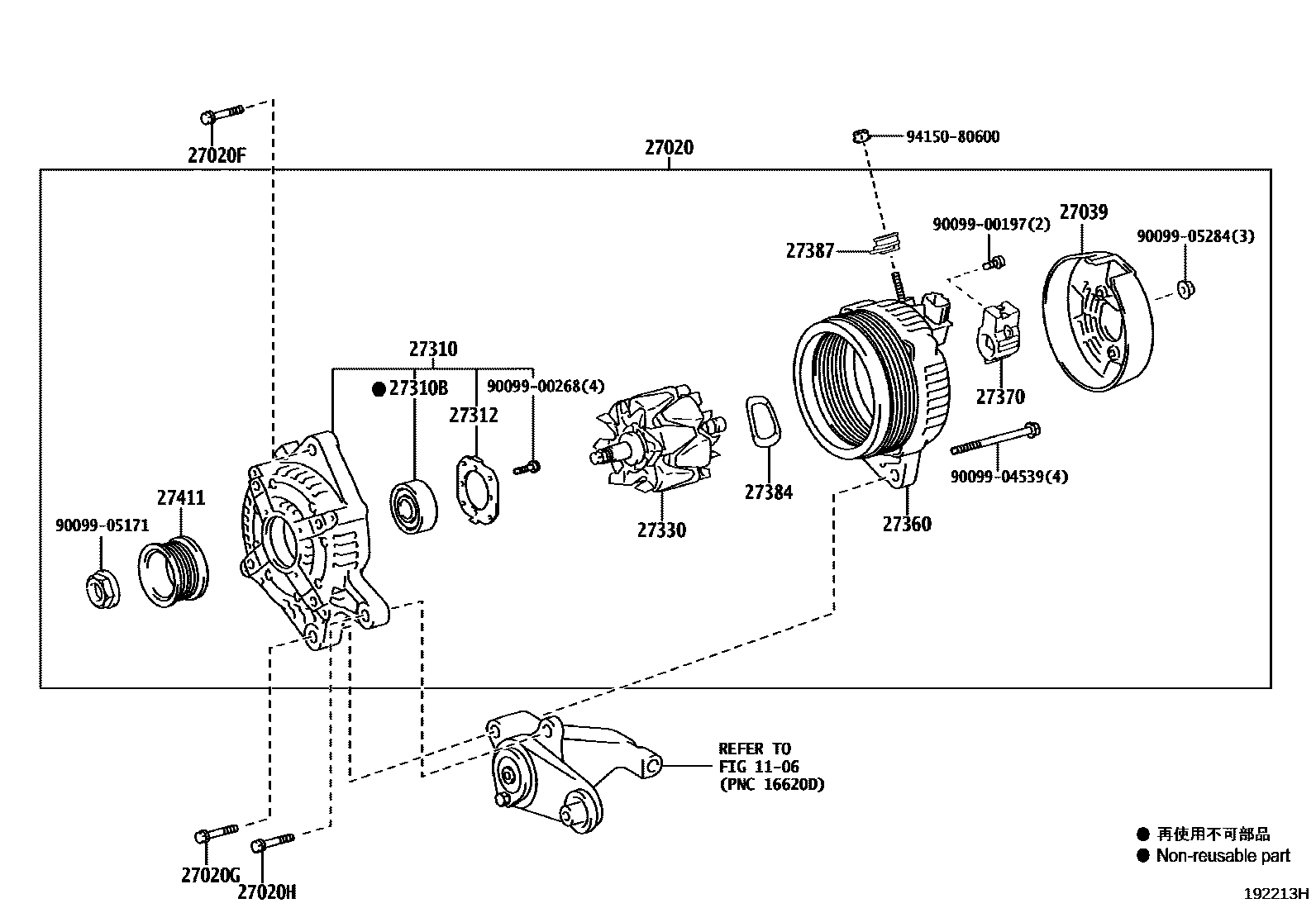

27020ALTERNATOR ASSY

main27060-30080i2KDFTV..KDH20#,220,225..DX..CBU200408-200604

sub27060-30130

main27060-30100i2KDFTV..KDH20#..IV5;2KDFTV..KDH20#,222,227..05S,15S200408-200604

sub27060-30140

main27060-30100i2KDFTV..KDH20#..IV5;2KDFTV..KDH20#,222,227..05S,15S200408-200604

sub27060-30140

main27060-30100i2KDFTV..KDH20#,220,225..SG..DX..CBU200408-200604

sub27060-30140

main27060-30100i2KDFTV..KDH20#,220,225..SG..DX..CBU200408-200604

sub27060-30140

main27060-30130i1KDFTV,2KDFTV..KDH20#,220,221,225..DX..CBU200604-201010

sub27060-30131

main27060-30140i1KDFTV,2KDFTV..KDH20#,220,221,225..DX..CBU200604-201010

sub27060-30141

main27060-30140i1KDFTV,2KDFTV..KDH20#,220,221,225..DX..CBU200604-201010

sub27060-30141

main27060-30140i1KDFTV,2KDFTV..KDH20#,220,221,225..DX..CBU200604-201010

sub27060-30141

main27060-30140i1KDFTV..KDH223..CBU;2KDFTV..KDH200,205..IV5;1KDFTV,2KDFTV..KDH20#,211,222,227..05S,15S200604-201010

sub27060-30141

main27060-30170i1KDFTV..KDH20#,223..IV5200709-201008

sub27060-30171

main27060-30171i1KDFTV..KDH20#,223..IV5201009-201312

main27060-30210i1KDFTV..KDH20#,221..DX..CBU201011-201312

main27060-30220i1KDFTV..KDH20#,221..DX..CBU201011-201312

main27060-30220i1KDFTV..KDH20#,221..DX..CBU201011-201312

main27060-30220i1KDFTV..KDH20#,221..DX..CBU201011-201312

main27060-30220i1KDFTV..KDH20#,221..DX..CBU201011-201312

main27060-30220i1KDFTV..KDH20#,221..SG..DX..CBU201011-201312

main27060-30220i1KDFTV..KDH20#,221..SG..DX..CBU201011-201312

main27060-30220i1KDFTV..KDH20#,221..SG..DX..CBU201011-201312

main27060-30220i1KDFTV..KDH20#,221..SG..DX..CBU201011-201312

main27060-75330i1TRFE..TRH200..5F200408-201312

main27060-75370i1TRFE,2TRFE..TRH200,21#,22#..4FC..CBU200408-200605

sub27060-75371

main27060-75371i1TRFE,2TRFE..TRH200,21#,22#..4FC..CBU200606-200807

sub27060-75372

main27060-75372i1TRFE,2TRFE..TRH200,21#,22#..4FC..CBU200808-201312

main27060-75470i1TRFE,2TRFE..TRH200,223,224,228,229..IV5200408-201008

sub27060-75471

main27060-75471i1TRFE,2TRFE..TRH200,223,224,228,229..IV5201009-201312

27020FBOLT, NO.1(FOR ALTERNATOR)

main91553-81040i1TRFE,2TRFE..TRH200,21#,22#200408-201312

27020GBOLT, NO.2(FOR ALTERNATOR)

main91553-81085i1TRFE,2TRFE..TRH200,21#,22#200408-201312

27020HBOLT, NO.3(FOR ALTERNATOR)

main91553-81060i1TRFE,2TRFE..TRH200,21#,22#200408-201312

27039COVER, ALTERNATOR REAR END

main27039-26170i1TRFE,2TRFE..TRH200,21#,22#..4FC..CBU200708-200906

main27039-27060i1TRFE,2TRFE..TRH200,21#,22#..4FC..CBU200408-200906

main27039-31390i2TRFE..TRH221,226..SHRF;1TRFE,2TRFE..TRH200,223,224,228,229..IV5200408-201312

main27039-50370i2KDFTV..KDH20#,22#200604-200707

main27039-50430i1KDFTV,2KDFTV..KDH20#,211,22#200708-201312

main27039-58460i2KDFTV..KDH20#,22#200408-200604

sub27039-50370

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-30080i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main27310-75270i1TRFE,2TRFE..TRH200,21#,22#200408-201312

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10142i2KDFTV,2TRFE..KDH20#,22#,TRH21#,221,226;1TRFE,2TRFE..TRH200,223,224,228,229..4FC..CBU200408-200611

sub90099-10223

main90099-10223i1TRFE..TRH200..SRF..4FC;1TRFE,2TRFE..TRH200,223,228..HRF..4D..4FC..CBU;2KDFTV,2TRFE..KDH200,205,220,222,225,227,TRH221,226..HRF,SRF;1TRFE,2TRFE..TRH200,214,219,224,200408-201312

27312PLATE, RETAINER

main27312-72100i1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22#200408-201312

27330ROTOR ASSY, ALTERNATOR

main27330-30070i1KDFTV,2KDFTV..KDH20#,220,221,225..DX..CBU200408-201312

main27330-33090i1KDFTV,2KDFTV..KDH20#,220,221,225..DX..CBU200408-201312

main27330-33090i1KDFTV,2KDFTV..KDH20#..SGL;1KDFTV,2KDFTV..KDH20#..IV5;1KDFTV,2KDFTV,1TRFE,2TRFE..KDH211,222,223,227,TRH200,21#,22#200408-201312

main27330-33090i1KDFTV,2KDFTV..KDH20#..SGL;1KDFTV,2KDFTV..KDH20#..IV5;1KDFTV,2KDFTV,1TRFE,2TRFE..KDH211,222,223,227,TRH200,21#,22#200408-201312

main27330-33090i1KDFTV,2KDFTV..KDH20#..SGL;1KDFTV,2KDFTV..KDH20#..IV5;1KDFTV,2KDFTV,1TRFE,2TRFE..KDH211,222,223,227,TRH200,21#,22#200408-201312

main27330-33090i1KDFTV,2KDFTV..KDH20#..SGL;1KDFTV,2KDFTV..KDH20#..IV5;1KDFTV,2KDFTV,1TRFE,2TRFE..KDH211,222,223,227,TRH200,21#,22#200408-201312

main27330-33090i1KDFTV,2KDFTV..KDH20#..SGL;1KDFTV,2KDFTV..KDH20#..IV5;1KDFTV,2KDFTV,1TRFE,2TRFE..KDH211,222,223,227,TRH200,21#,22#200408-201312

main27330-33090i1KDFTV,2KDFTV..KDH20#..SGL;1KDFTV,2KDFTV..KDH20#..IV5;1KDFTV,2KDFTV,1TRFE,2TRFE..KDH211,222,223,227,TRH200,21#,22#200408-201312

27360COIL ASSY, ALTERNATOR

main27360-30090i2KDFTV..KDH20#,220,225..DX..CBU200408-200604

main27360-30110i2KDFTV..KDH20#..IV5;2KDFTV..KDH20#,222,227..05S,15S200408-200604

main27360-30110i2KDFTV..KDH20#..IV5;2KDFTV..KDH20#,222,227..05S,15S200408-200604

main27360-30110i2KDFTV..KDH20#..IV5;2KDFTV..KDH20#,222,227..05S,15S200408-200604

main27360-30140i1KDFTV,2KDFTV..KDH20#,220,221,225..DX..CBU200604-201011

main27360-30150i1KDFTV,2KDFTV..KDH20#,220,221,225..DX..CBU200604-201011

main27360-30150i1KDFTV,2KDFTV..KDH20#,220,221,225..DX..CBU200604-201011

main27360-30150i1KDFTV..KDH223..CBU;2KDFTV..KDH200,205..IV5;1KDFTV,2KDFTV..KDH20#,211,222,227..05S,15S200604-201011

main27360-30180i1KDFTV..KDH20#,223..IV5200709-201009

sub27360-30181

main27360-30181i1KDFTV..KDH20#,223..IV5201009-201312

main27360-30220i1KDFTV..KDH20#,221..DX..CBU201011-201312

main27360-30230i1KDFTV..KDH20#,221..DX..CBU201011-201312

main27360-30230i1KDFTV..KDH20#,221..SG..DX..CBU201011-201312

main27360-30230i1KDFTV..KDH20#,221..SG..DX..CBU201011-201312

main27360-30230i1KDFTV..KDH20#,221..SG..DX..CBU201011-201312

main27360-30230i1KDFTV..KDH20#,221..SG..DX..CBU201011-201312

main27360-30230i1KDFTV..KDH20#,221..SG..DX..CBU201011-201312

main27360-30230i1KDFTV..KDH20#,221..SG..DX..CBU201011-201312

main27360-75280i1TRFE,2TRFE..TRH200,21#,22#..CBU200408-201312

main27360-75360i1TRFE,2TRFE..TRH200,223,224,228,229..IV5200408-201009

main27360-75420i1TRFE,2TRFE..TRH200,223,224,228,229..IV5201009-201312

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-58460i1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22#200408-201312

27384WASHER

main27384-50030i1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22#200408-201312

27387INSULATOR, TERMINAL

main27387-20130i1KDFTV,2KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22#200408-201312

27411PULLEY, ALTERNATOR

main27411-31210i1TRFE..TRH200..5F200408-201312

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905171

main90099-05171

9009905284

main90099-05284

9415080600

main94150-80600
