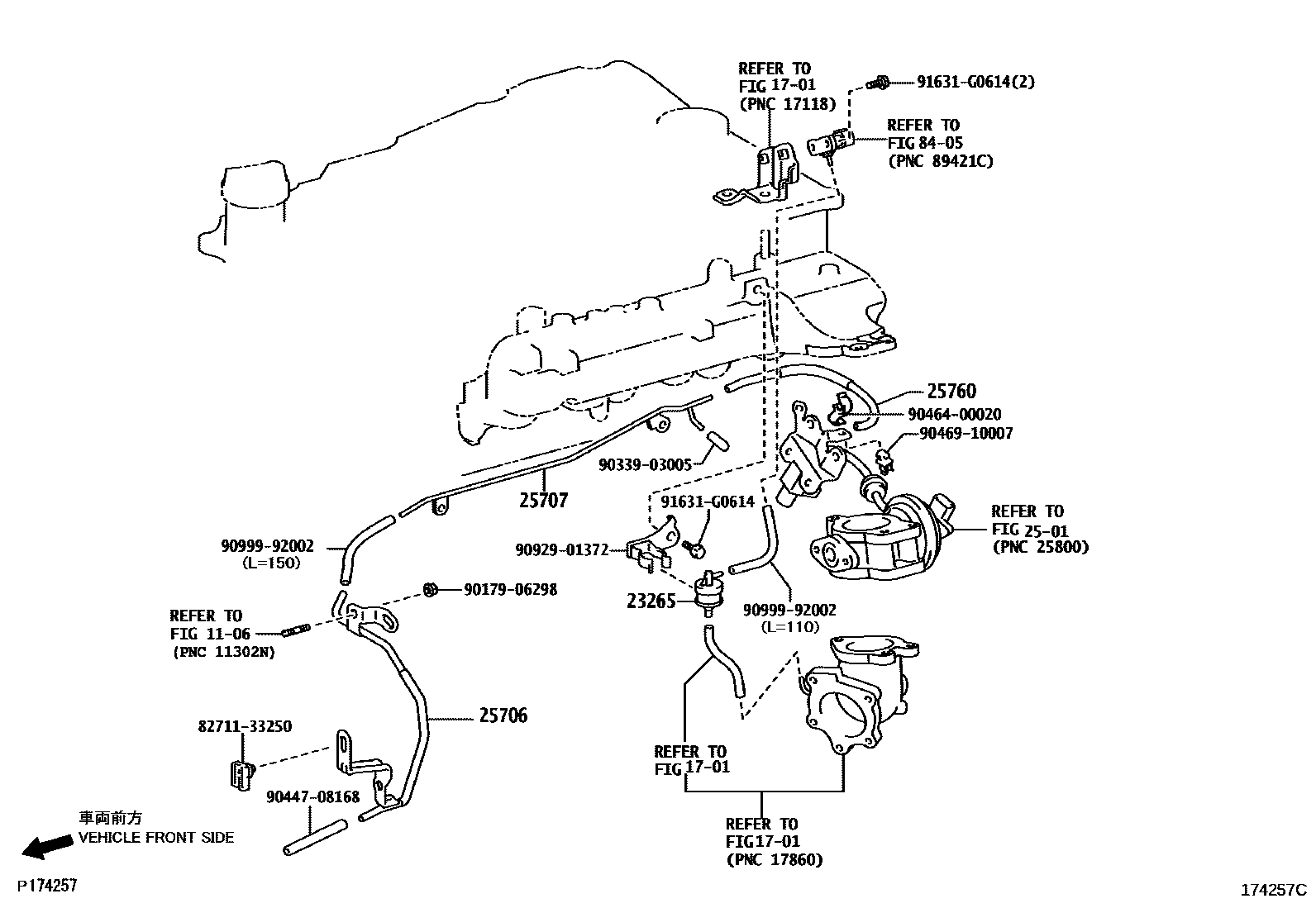

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1701MANIFOLD

→ Go to FIG 17-01

23265FILTER, GAS, NO.1

main90917-11038i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1

main25706-30040i1KDFTV,2KDFTV..KDH20#,211,22#200408-200908

main25706-30041i1KDFTV..KDH20#,211,22#200908-201008

main25706-30050i1KDFTV..KDH20#,211,22#201008-201312

25707PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2

main25707-30030i1KDFTV..KDH20#,211,22#200709-201008

main25707-30040i1KDFTV..KDH20#,211,22#201008-201312

main25707-67011i2KDFTV..KDH20#,22#200408-200709

25760HOSE ASSY, VACUUM TRANSMITTING

main25760-30050i2KDFTV..KDH20#,22#200408-200709

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

8271133250WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33250

9017906298

main90179-06298

9033903005

main90339-03005

9044708168

main90447-08168

9046400020

main90464-00020

9046910007

main90469-10007

9092901372

main90929-01372

9099992002

main90999-92002

91631G0614

main91631-G0614

17 parts on this diagram · 6 diagrams in section
