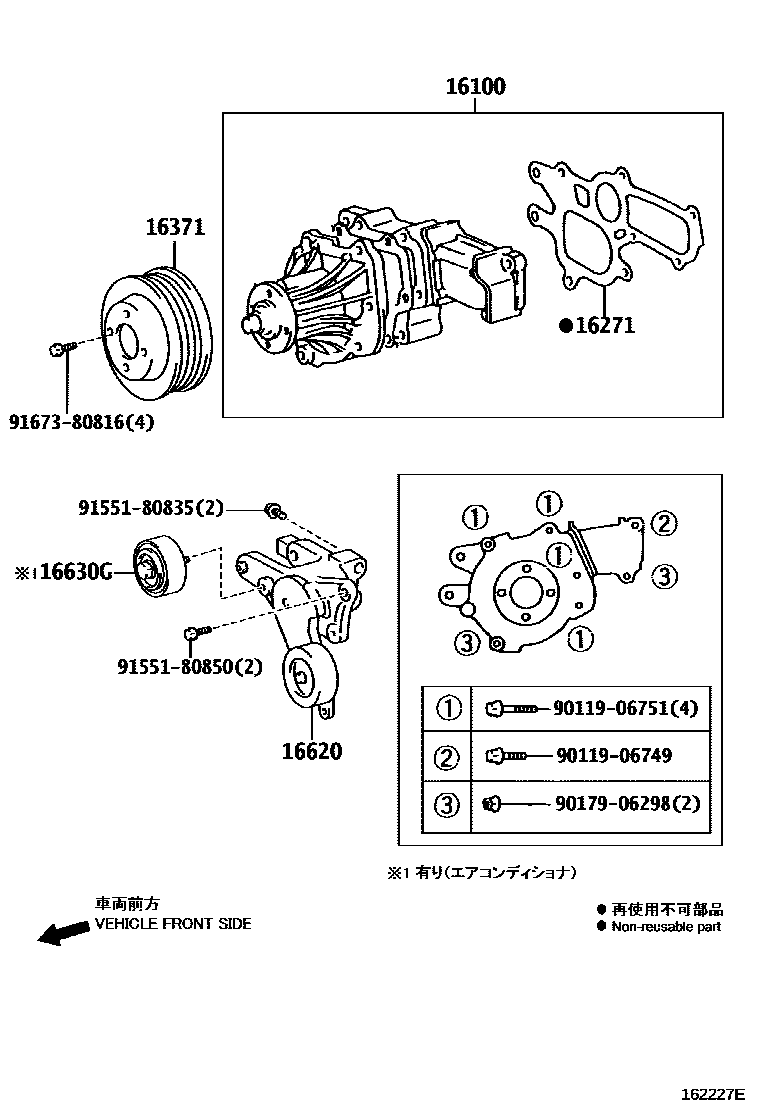

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-39425i1KDFTV,2KDFTV..KDH20#,211,22#200408

main16100-79445i1TRFE,2TRFE..TRH200,21#,22#200408-201312

16271GASKET, WATER PUMP

main16271-67020i1KDFTV,2KDFTV..KDH20#,211,22#200408

16371PULLEY, FAN

main16371-30020i1KDFTV,2KDFTV..KDH20#,211,22#200408

main16371-75040i1TRFE,2TRFE..TRH200,21#,22#200408-201312

16620TENSIONER ASSY, V-RIBBED BELT

main16620-30031i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

16630GPULLEY ASSY, IDLER

main88440-35130i1KDFTV,2KDFTV..KDH20#,211,22#; 1KDFTV,2KDFTV..KDH20#..SP200408-201312

9011906749

main90119-06749

9011906751

main90119-06751

9017906298

main90179-06298

9155180835

main91551-80835

9155180850

main91551-80850

9167380816

main91673-80816

11 parts on this diagram · 2 diagrams in section
