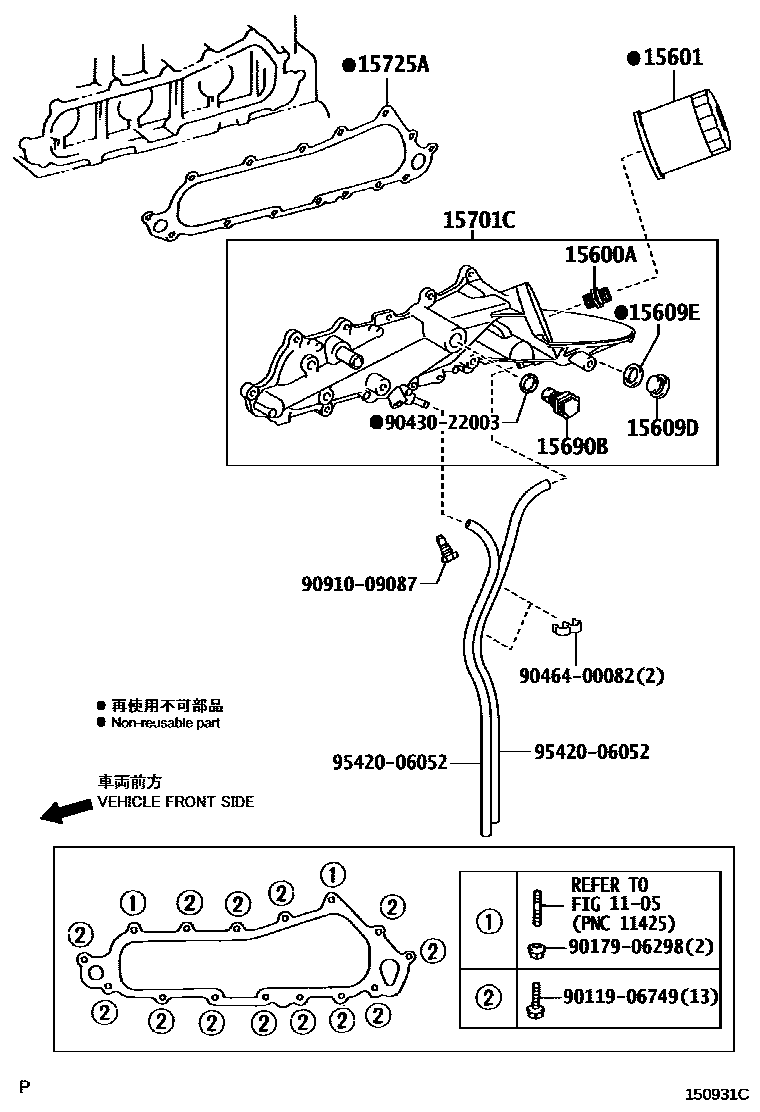

OIL FILTER

0001 1 0002 1 0003 1 0004 1

1105

15600AUNION(FOR OIL FILTER)

main90404-19002i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

15601FILTER SUB-ASSY, OIL

main90915-20003i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

sub90915-20005

15609BRACKET SUB-ASSY, OIL FILTER

main15609-75080i1TRFE..TRH200200408-201312

main15609-75100i2TRFE..TRH21#,22#200408-201312

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-16023i1TRFE..TRH200200408-201312

main90341-20002i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main90341-22002i2TRFE..TRH21#,22#200408-201312

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main15134-67020i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main90430-16009i1TRFE..TRH200200408-201312

main90430-22011i2TRFE..TRH21#,22#200408-201312

15690BVALVE ASSY, OIL COOLER RELIEF

main15690-64010i1KDFTV,2KDFTV..KDH20#,211,22#200408-201101

sub15690-64011

main15690-64011i1KDFTV..KDH20#,211,22#201101-201312

15701CCOVER SUB-ASSY, OIL COOLER

main15701-30060i2KDFTV..KDH20#,22#200408-200709

main15701-30100i1KDFTV..KDH20#,211,22#200709-201008

main15701-30110i1KDFTV..KDH20#,211,22#201008-201312

sub15701-30111

15725AGASKET, OIL COOLER COVER

main15725-67010i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

9011906749

main90119-06749

9017906298

main90179-06298

9043022003

main90430-22003

9046400082

main90464-00082

9091009087

main90910-09087

9542006052

main95420-06052

15 parts on this diagram · 4 diagrams in section
