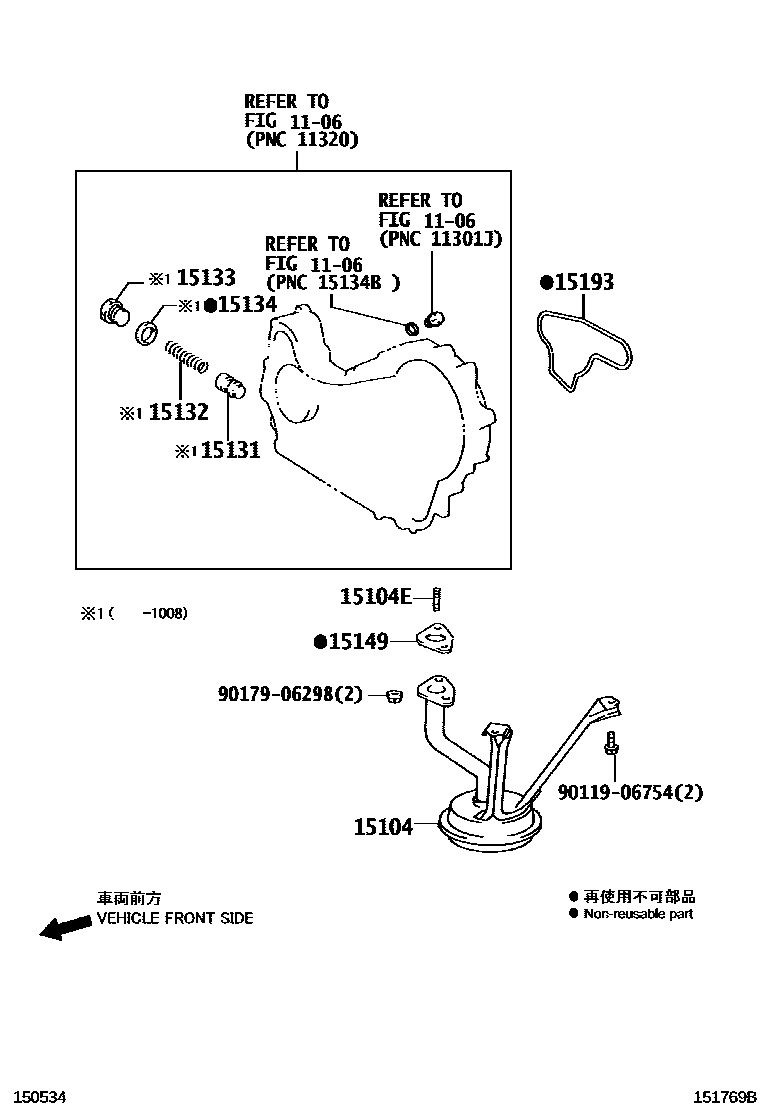

ENGINE OIL PUMP

0001 1 0002 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15104STRAINER SUB-ASSY, OIL

main15104-67060i1KDFTV,2KDFTV..KDH20#,211,22#200408

main15104-75111i1TRFE,2TRFE..TRH200,21#,22#200408-201312

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06140×2i1KDFTV,2KDFTV..KDH20#,211,22#200408

main90126-08037×2i1TRFE,2TRFE..TRH200,21#,22#200408-201108

main90126-08052×2i2TRFE..TRH229..CBU;2TRFE..TRH21#,221,223,224,226,228201108-201312

15131VALVE, OIL PUMP RELIEF

main15131-46040i1TRFE,2TRFE..TRH200,21#,22#200408-201312

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i1KDFTV,2KDFTV..KDH20#,211,22#200408-201008

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1KDFTV,2KDFTV..KDH20#,211,22#200408-201008

15134GASKET, OIL PUMP RELIEF VALVE

main15134-67020i1KDFTV,2KDFTV..KDH20#,211,22#200408-201008

15149GASKET, OIL STRAINER FLANGE

main15149-67010i1KDFTV,2KDFTV..KDH20#,211,22#200408

15193GASKET, OIL PUMP

main15193-67011i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

9011906754

main90119-06754

9017906298

main90179-06298

11 parts on this diagram · 2 diagrams in section
