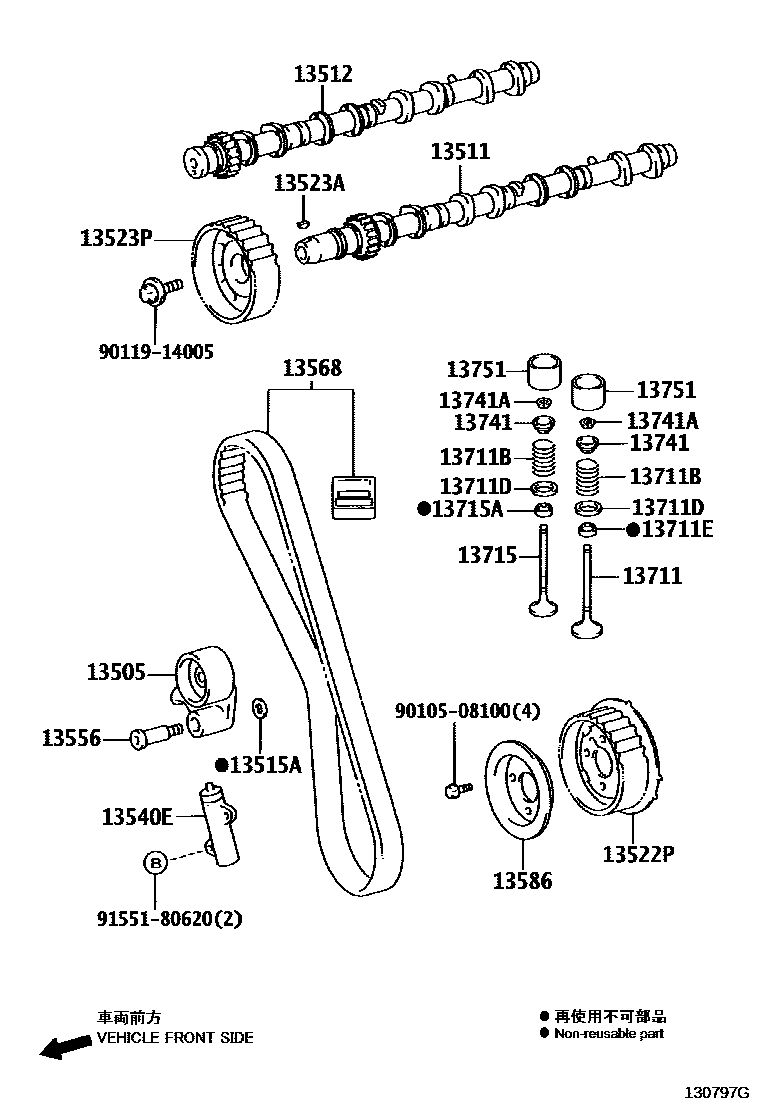

CAMSHAFT & VALVE

0001 1 0002 1 0003 1

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-67041i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

13511CAMSHAFT

main13501-30020i1KDFTV..KDH20#,211,22#200709-201008

main13501-30030i2KDFTV..KDH20#,22#200408-200709

main13501-30060i1KDFTV..KDH20#,211,22#201008-201312

main13501-75060i2TRFE..TRH21#,22#201102-201312

main13501-75070i1TRFE,2TRFE..TRH200,21#,22#200810-201312

13512CAMSHAFT, NO.2

main13502-30010i1KDFTV..KDH20#,211,22#200709-201008

main13502-30020i2KDFTV..KDH20#,22#200408-200709

main13502-30050i1KDFTV..KDH20#,211,22#201008-201312

main13502-75050i2TRFE..TRH21#,22#200408-201003

main13502-75060i1TRFE,2TRFE..TRH200,21#,22#200810-201312

13515AWASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR)

main90201-10124i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

13522PPULLEY, PUMP DRIVE SHAFT

main13524-30010i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-75030i1TRFE,2TRFE..TRH200,21#,22#200408-201312

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05004i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

13523PPULLEY, CAMSHAFT TIMING

main13523-17010i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

13540TENSIONER ASSY, CHAIN, NO.1

main13540-75030i1TRFE,2TRFE..TRH200,21#,22#200408-201312

13540ETENSIONER ASSY, TIMING BELT

main13540-30010i1KDFTV..KDH20#,211,22#200809-201312

main13540-67020i1KDFTV,2KDFTV..KDH20#,211,22#200408-200809

13556SHAFT, TIMING BELT IDLER

main13556-67010i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

13568BELT, TIMING

main13568-39015i1KDFTV,2KDFTV..KDH20#,211,22#200408-201003

main13568-39016i1KDFTV..KDH20#,211,22#201003-201312

13586FLANGE, CAMSHAFT TIMING PULLEY, NO.2

main13586-17020i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

13711VALVE, INTAKE

main13711-30030×8i1KDFTV..KDH20#,211,22#200709-201312

main13711-30040×8i2KDFTV..KDH20#,22#200408-200709

main13711-75100×8i1TRFE..TRH200200408-201312

main13711-75110×8i2TRFE..TRH21#,22#200408-201312

13711BSPRING, COMPRESSION(FOR INNER)

main90501-28040×16i1KDFTV..KDH20#,211,22#201008-201312

main90501-32055×16i1TRFE..TRH200;2TRFE..TRH229..IV5200408-201312

main90905-01077×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201008

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-16023×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

13711ESEAL, INTAKE VALVE STEM OIL

main90913-02121×8i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

13715VALVE, EXHAUST

main13715-30030×8i1KDFTV..KDH20#,211,22#200709-201312

main13715-30040×8i2KDFTV..KDH20#,22#200408-200709

main13715-75090×8i1TRFE..TRH200200408-201312

main13715-75100×8i2TRFE..TRH21#,22#200408-201304

main13715-75140×8i2TRFE..TRH21#,22#201304-201312

13715ASEAL, EXHAUST VALVE STEM OIL

main90913-02121×8i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

13741RETAINER, VALVE SPRING

main13741-15020×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13741-20020×16i1TRFE,2TRFE..TRH200,21#,22#200408-200508

main13741-20021×16i1TRFE,2TRFE..TRH200,21#,22#200508-201312

13741ALOCK, VALVE SPRING RETAINER

main90913-03021×32i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main90913-03028×32i1TRFE,2TRFE..TRH200,21#,22#200408-201312

13751LIFTER, VALVE

main13751-46030×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46040×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46050×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46060×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46070×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46080×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46090×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46100×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46110×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46120×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46130×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46140×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46150×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46160×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46170×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46180×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46190×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46200×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46210×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46220×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46230×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46240×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46250×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46260×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46270×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46280×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46290×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46300×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46310×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46320×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46330×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46340×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46350×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46360×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main13751-46370×16i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

9010508100

main90105-08100

9011914005

main90119-14005

9155180620

main91551-80620

25 parts on this diagram · 3 diagrams in section
