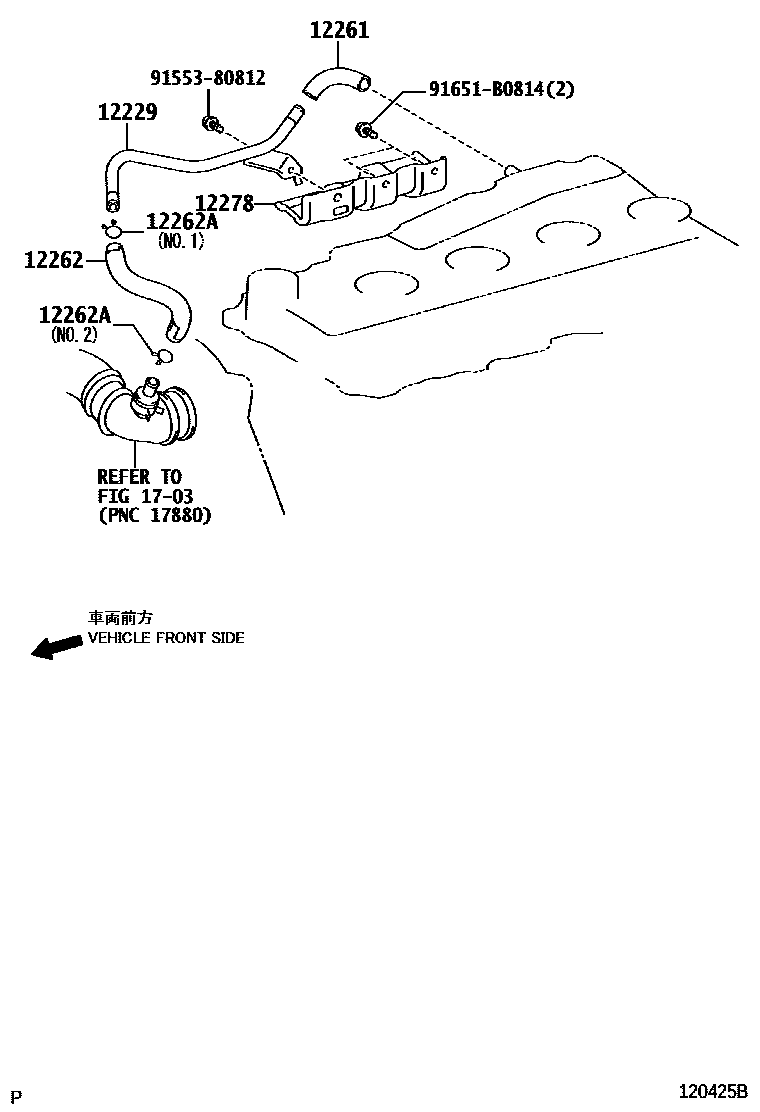

VENTILATION HOSE

0001 1 0002 1 0003 1

12229PIPE, VENTILATION

main12229-30030i2KDFTV..KDH20#,22#200408-200709

main12229-30100i1KDFTV..KDH20#,211,22#200709

main12229-75030i1TRFE,2TRFE..TRH200,21#,22#200408

12261HOSE, VENTILATION

main12261-30040i1KDFTV,2KDFTV..KDH20#,211,22#200408

main12261-75090i1TRFE,2TRFE..TRH200,21#,22#200408

12262HOSE, VENTILATION, NO.2

main12262-30020i2KDFTV..KDH20#,22#200408-200709

main12262-30060i1KDFTV..KDH20#,211,22#200709

main12262-75210i1TRFE,2TRFE..TRH200,21#,22#200408-201312

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004i1TRFE,2TRFE..TRH200,21#,22#200408-201312

main90467-22010i2KDFTV..KDH20#,22#200603-200709

main90467-23002×2i2KDFTV..KDH20#,22#200408-200603

main90467-24038i1TRFE,2TRFE..TRH200,21#,22#200408-201312

12278INSULATOR, VENTILATION HOSE HEAT

main12278-30040i2KDFTV..KDH20#,22#200408-200709

1703AIR CLEANER

→ Go to FIG 17-03

9155380812

main91553-80812

91651B0814

main91651-B0814

8 parts on this diagram · 3 diagrams in section
