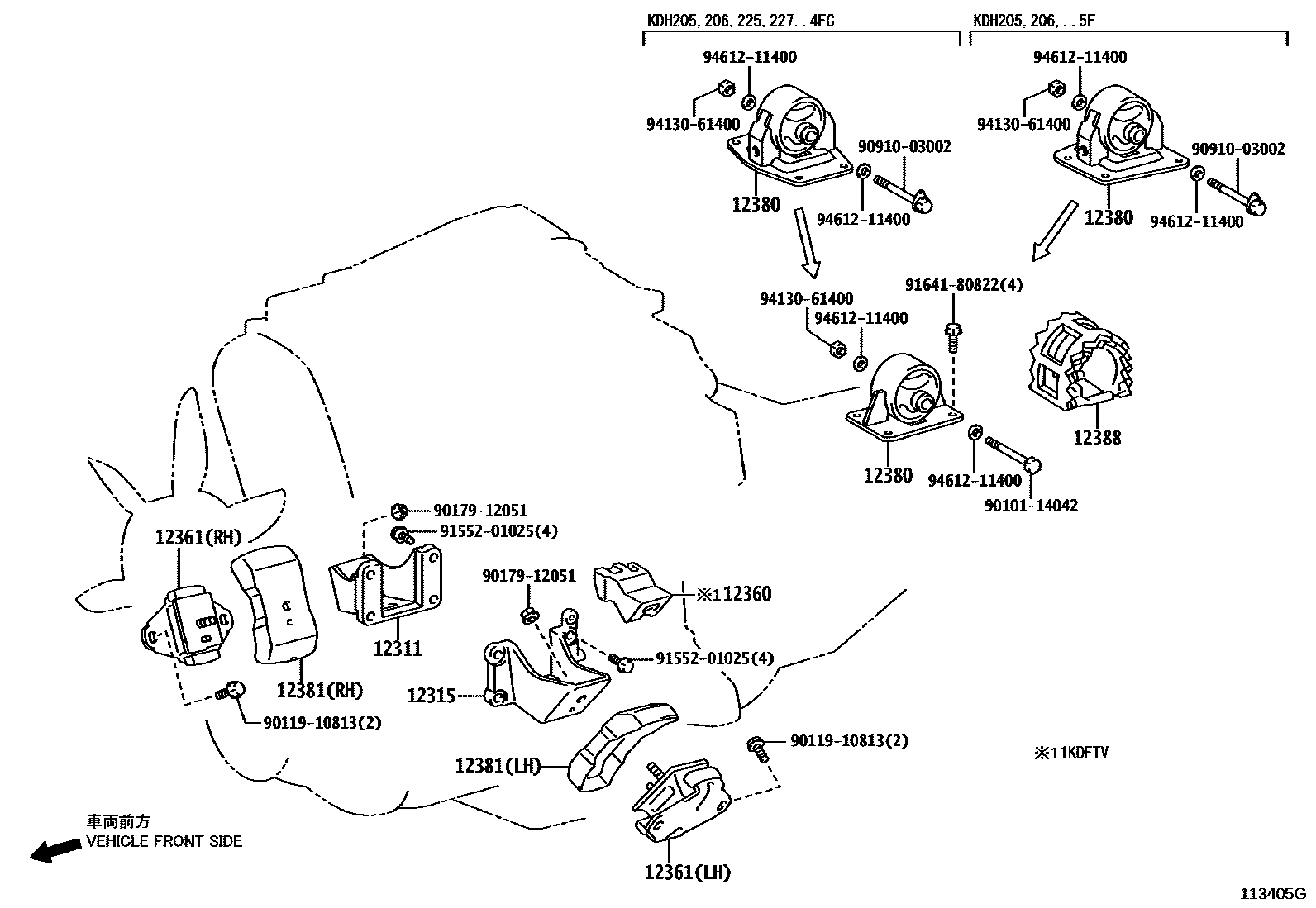

MOUNTING

0001 1 0002 1 0003 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-30070i2KDFTV..KDH20#,22#200408-200708

main12311-30071i1KDFTV,2KDFTV..KDH20#,211,22#200708-201312

main12311-75101i1TRFE,2TRFE..TRH200,21#,22#200408-201312

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-30060i2KDFTV..KDH200,220,222200408-200708

main12315-30061i1KDFTV,2KDFTV..KDH200,201,211,220,221,222,223200708-201312

main12315-30070i2KDFTV..KDH205,225,227200408-200708

main12315-30071i1KDFTV,2KDFTV..KDH205,206,225,227200708-201312

main12315-75110i1TRFE,2TRFE..TRH200,211,214,221,223,224200408-201312

main12315-75120i2TRFE..TRH216,219,226,228,229200408-201312

12360INSULATOR ASSY, ENGINE MOUNTING, FRONT

main12361-30070i1KDFTV..KDH20#,211,22#200709-201312

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-30060×2i2KDFTV..KDH20#,22#200408-200605

main12361-30090i2KDFTV..KDH20#,22#200605-200708

main12361-30100i1KDFTV..KDH20#,211,22#200709-201312

main12361-75080i1TRFE..TRH200200408-201312

main12361-75100i2TRFE..TRH21#,22#200408-201312

12380INSULATOR ASSY, ENGINE MOUNTING, REAR

main12380-30010i1TRFE,2TRFE..TRH200,211,214,221,223,224..4FC200408-201312

main12380-30020i2TRFE..TRH216,219,226,228,229200408-201312

main12380-30030i1KDFTV,2KDFTV..KDH205,206..5F200408

main12380-75020i1TRFE..TRH200..5F200408-201312

12381STABILIZER, ENGINE MOUNTING

main12381-30030i2KDFTV..KDH20#,22#200604-200708

main12381-30040i1KDFTV..KDH20#,211,22#200709-201312

main12381-67010i1KDFTV,2KDFTV..KDH20#,211,22#200604-201312

main12381-75030i1TRFE..TRH200200408-201312

main12381-75080i2TRFE..TRH21#,22#200501-201312

12388STOPPER, ENGINE MOUNTING BRACKET, REAR

main12388-67011i1TRFE,2TRFE..TRH200,21#,22#200408-201312

9010114042

main90101-14042

9011910813

main90119-10813

9017912051

main90179-12051

9091003002

main90910-03002

9155201025

main91552-01025

9164180822

main91641-80822

9413061400

main94130-61400

9461211400

main94612-11400

15 parts on this diagram · 3 diagrams in section
