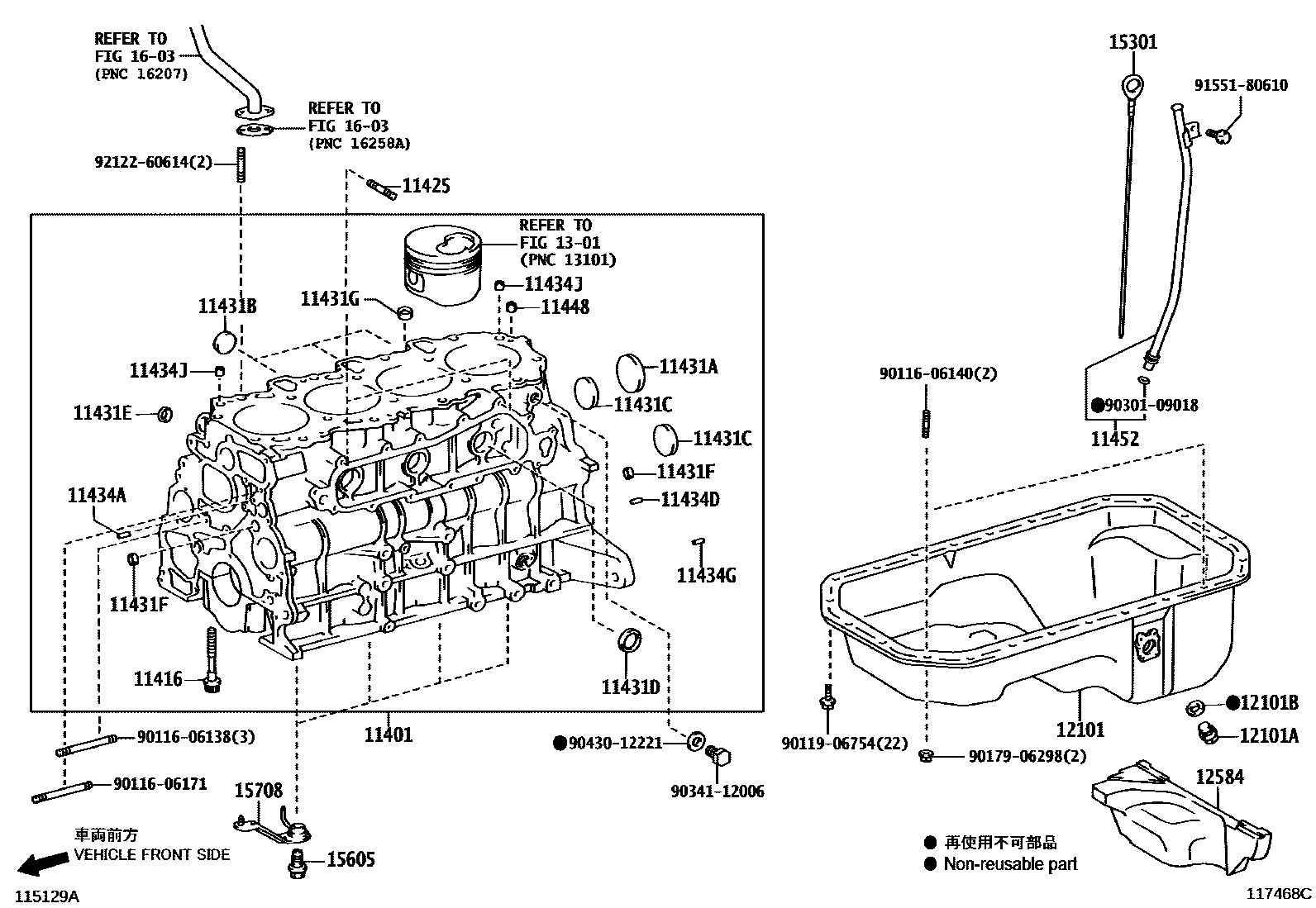

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-39745i2KDFTV..KDH20#,22#200408-200709

main11401-80741i2TRFE..TRH21#,22#200408-201003

main11401-80749i1TRFE..TRH200200801-201312

main11401-80769i1KDFTV..KDH20#,211,22#200709-200904

main11401-80772i2TRFE..TRH21#,22#201003-201312

main11401-80773i1TRFE..TRH200201003-201108

main11401-80783i1KDFTV..KDH20#,211,22#200904-201008

main11401-80798i1KDFTV..KDH20#,211,22#201008-201312

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02092×10i1TRFE,2TRFE..TRH200,21#,22#200408-201005

main90910-02113×10i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main90910-02179×10i1TRFE,2TRFE..TRH200,21#,22#201005-201312

11425BOLT, STUD(FOR OIL FILTER)

main90116-06171×2i1KDFTV,2KDFTV..KDH20#,211,22#200408

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-63000i1TRFE,2TRFE..TRH200,21#,22#200408-201312

main96411-64500i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-63500×3i1KDFTV,2KDFTV..KDH20#,211,22#; 1TRFE,2TRFE..TRH200,21#,22#200408-201312

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-64000i1KDFTV,2KDFTV..KDH20#,211,22#; 1TRFE..TRH200; 2TRFE..TRH21#,22#200408-201312

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main90331-35004×3i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main96411-62000i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

11431FPLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)

main96411-61800×2i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

11431GPLUG, TIGHT

main90331-14006i1KDFTV,2KDFTV..KDH20#,211,22#200408

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120×2i1KDFTV,2KDFTV..KDH20#,211,22#200408

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003×2i1TRFE,2TRFE..TRH200,21#,22#200408-201312

main90250-06068×2i1KDFTV,2KDFTV..KDH20#,211,22#200408

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10192×2i1KDFTV,2KDFTV..KDH20#,211,22#200408

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-15001×2i1TRFE,2TRFE..TRH200,21#,22#200408-201312

main90253-15016×2i1KDFTV,2KDFTV..KDH20#,211,22#200408

11448ORIFICE, CYLINDER BLOCK OIL

main11448-67010i1KDFTV,2KDFTV..KDH20#,211,22#200408

11452GUIDE, OIL LEVEL GAGE

main11409-30010i2KDFTV..KDH20#,22#200408-200709

main11409-30080i1KDFTV..KDH20#,211,22#200709-201008

main11409-30100i1KDFTV..KDH20#,211,22#201008-201312

main11409-75071i1TRFE,2TRFE..TRH200,21#,22#200408-201312

12101PAN SUB-ASSY, OIL

main12101-30110i1KDFTV..KDH20#,211,22#200709-201008

main12101-30120i1KDFTV..KDH20#,211,22#201008-201312

main12101-67092i2KDFTV..KDH20#,22#200408-200709

main12101-75140i1TRFE,2TRFE..TRH200,21#,22#200408-201312

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1KDFTV,2KDFTV..KDH20#,211,22#200408

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1KDFTV,2KDFTV..KDH20#,211,22#; 1TRFE,2TRFE..TRH200,21#,22#200408-201312

12584INSULATOR, CYLINDER BROCK, NO.4

main12584-67030i1KDFTV,2KDFTV..KDH20#,211,22#200408

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-30050i2KDFTV..KDH20#,22#200408-200709

main15301-30080i1KDFTV..KDH20#,211,22#200709-201008

main15301-67031i1KDFTV..KDH20#,211,22#201008-201312

main15301-75091i1TRFE,2TRFE..TRH200,21#,22#200408-201312

15605VALVE SUB-ASSY, OIL CHECK

main15605-17030×4i1KDFTV..KDH20#,211,22#201008-201312

main15605-30030×4i1KDFTV..KDH20#,211,22#200709-201008

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-30011×4i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main15708-75010×4i1TRFE,2TRFE..TRH200,21#,22#200408-201301

main15708-75020×4i1TRFE,2TRFE..TRH200,21#,22#201301-201312

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

9011606138

main90116-06138

9011606140

main90116-06140

9011606171

main90116-06171

9011906754

main90119-06754

9017906298

main90179-06298

9030109018

main90301-09018

9034112006

main90341-12006

9043012221

main90430-12221

9155180610

main91551-80610

9212260614

main92122-60614

35 parts on this diagram · 4 diagrams in section
