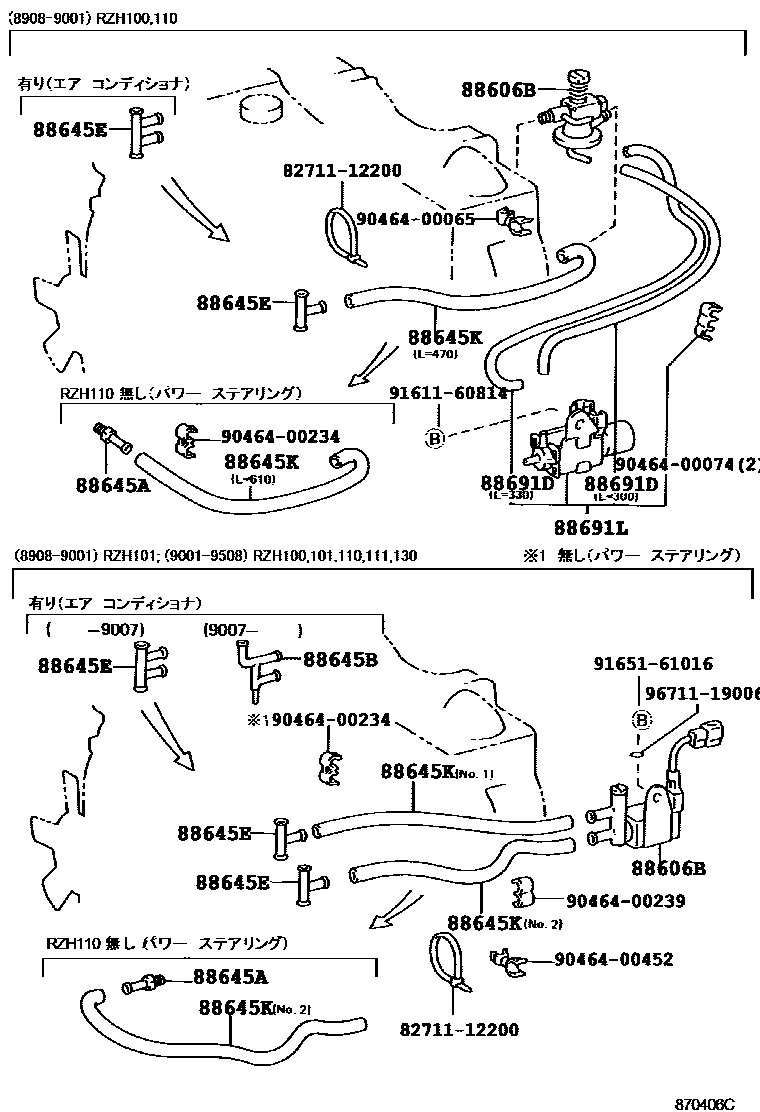

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1HEATER IDLE UP 0004 1HEATER IDLE UP 0005 1COOLER IDLE UP(DEALER OPT) 0006 1COOLER IDLE UP(DEALER OPT) 0007 1COOLER IDOL UP(DEALER OPT) AT0008 1COOLER IDOL UP(DEALER OPT) MT0009 1COOLER IDLE UP(DEALER OPT) 0010 1COOLER IDLE UP(DEALER OPT) 0011 1COOLER IDLE UP(MAKER OPT) 0012 1COOLER IDLE UP(MAKER OPT) 0013 1COOLER BOX IDLE UP(DEALER OPT0014 1COOL BOX IDLE UP(MAKER OPTION

88606BDIAPHRAGM SUB-ASSY, COOLER

main88606-28010iRZH100,110198908-198911

main88606-95J00iRZH101..07S,08S; RZH102,11#,124..(DX,GL)..EFI198911-199508

88645AUNION (FOR IDLE UP DEVICE)

main90404-51319iRZH110198911-199205

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main88894-12120iRZH100,101,110198908-198910

main88894-26010iRZH100,101; RZH102,112199308-199508

main90413-04004iRZH102,112,12#198908-199308

main90413-04008iLH113..09S..DX;LH100..4FC..SCMM..TD;LH102,113,140..GL,SGL,SW;LH100,110,115,120,123,125..(08S,09S,10S,15S)..5F..(DSL,TD)198908-199207

88645EJOINT, NO.2 (FOR IDLE UP DEVICE)

main88892-20290iRZH100,101,110..DX,SCM,SCMM; RZH100,101..MRF,SMRF198908-198910

main88894-12120×2iRZH100,101,110..08S,09S,10S198911-199308

88645KHOSE (FOR IDLE UP DEVICE)

main87233-26010iRZH110198911-199007

main87233-26020iRZH110199007-199205

main87233-95J00iRZH101198908-198911

main87233-95J01iRZH101198908-198911

main87233-95J02iRZH100,110198908-198911

main90445-10019iRZH110198908-198911

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main25860-75130iRZH102,133..DX;RZH112..SRF..06S199808-199907

main88690-26030iLH107199010-199308

main88690-26031iLH119..05S199311-199508

main88690-90K02iRZH102,112199308-199508

main88690-95J38iRZH102,112,12#198908-199308

main88690-95J39iLH123..4FC;LH123..09S;LH103,113,125199308-199508

main88690-95J40iLH178..CD,DX;LH107,109,117,119,129,168,186,188..SG198908-199907

main88690-95J41iLH100..SCL..TD198908-199308

main88691-26010iLH178..DX;LH16#,172,18#..CD,DX,GL199808-199907

main88691-90K02iRZH100,101,110198908-198910

88691DHOSE, VACUUM (FOR IDLE UP DIVICE), NO.2

main90999-92002iRZH102,112,12#..DX,GL199010-199308

main90999-92003iRZH102,112..850K; RZH102,112..850K;RZH102,112,12#..DX,GL198908-199010

main95411-10038iRZH102,112,12#..DX,GL199010-199308

main95411-11355iRZH102,112..850K;RZH102,112,12#..DX,GL198908-199010

88691LVALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-95J35iRZH102,112..850K;RZH102,112,12#..DX,GL198908-199010

main88690-95J36iRZH102,112..850K198908-199010

main88690-95J37iRZH100,110198908-198911

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9046400065

main90464-00065

9046400074

main90464-00074

9046400234

main90464-00234

9046400239

main90464-00239

9046400452

main90464-00452

9161160814

main91611-60814

9165161016

main91651-61016

9671119006

main96711-19006

17 parts on this diagram · 12 diagrams in section
