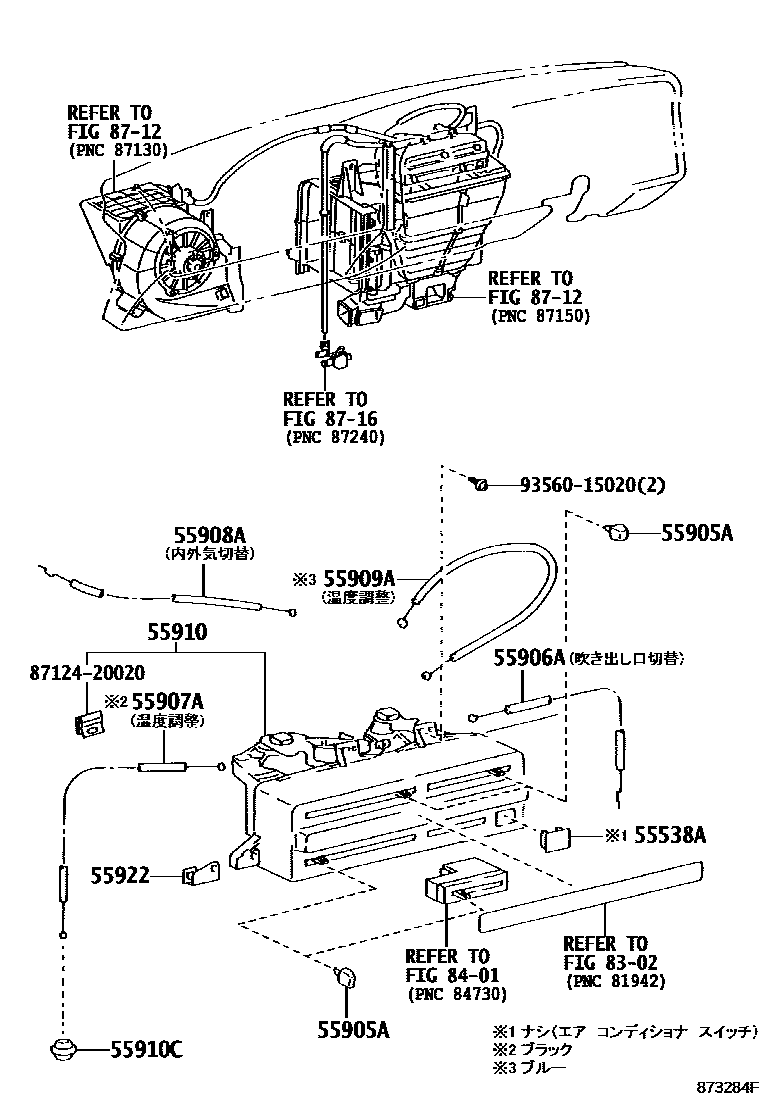

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1��������-�(���-����) 0003 1��������-�(���������) 0004 1��������-�(���������) 0005 1��������-�(���������) 0006 1��������-�(���������) 0007 1��������-�(���������) 0008 1������-� 0010 1������-� 0011 1������-� 0012 1�������� 0014 1���-� ���� 0015 1���-� ���� 0016 1���-� ����(���-�-������) 0017 1���-� ����(���-�-������) 0018 1���-� ����(���-�-������) 0019 1���-� ����(�-�-������) 0020 1���-� ����(�-�-������) 0021 1���-� ���� 0022 1���-� ���� 0023 1���-� ���� ��(����) 0024 1���-� ���� 0025 1���-� ���� 0026 1���-� ���� 0027 1���-� ���� 0028 1�-����� ���

55538ACOVER, COOLER SWITCH HOLE

main55538-22060iLH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S198908-199308

55905AKNOB, HEATER CONTROL

main55905-22250iLH162,17#,RZH102,112..SGL200108-200408

main55905-22260×2iLH162,17#,RZH102,112..SGL; TRH102,112..SGL200108-200408

main55905-22280×2iKZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S198908-199608

main55905-30270iKZH10#,RZH101..4FC..SCMM199508-199607

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-26010iKZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..HRF,SMRF,SRF199608-199907

main55906-26050iKZH10#,11#,120,13#,RZH101,111..HRF,SMRF,SRF199907-200408

main55906-95J03iLH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL198908-198911

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-26090iKZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..HRF,SMRF,SRF199608-199907

main55907-26160iKZH10#,11#,120,13#,RZH101,111..HRF,SMRF,SRF199907-200408

main55907-26170iLH162,17#,RZH102,112..SGL199907-200108

main55907-26200iLH162,17#,RZH102,112,TRH102,112..SGL200108-200408

main55907-95J09iKZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S198908-199502

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-26040iKZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..HRF,SMRF,SRF199608-199907

main55908-26090iKZH10#,11#,120,13#,RZH101,111..HRF,SMRF,SRF199907-200408

main55908-26100iLH16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#..CD,DX,GL,SGLE199907-200501

main55908-95J01iKZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S198908-199608

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-26090iLH162,17#,RZH102,112,TRH102,112..SGL200109-200408

main55909-26100iKZH10#,11#,120,13#,RZH101,111..HRF,SMRF,SRF199907-200408

main55909-95J01iLH162,17#..SGL; RZH102,112..SGL199907-200108

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-26050iKZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..HRF,SMRF,SRF199608-199907

main55910-26080iLH16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#..CD,DX,GL,SGLE199907-200501

main55910-26120iKZH10#,11#,120,13#,RZH101,111..HRF,SMRF,SRF199907-200408

main55910-26140iLH162,17#,RZH102,112..SGL200108-200408

main55910-26150iTRH102,112..SGL200308-200408

main55910-95J09iKZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S198908-199502

main55910-95J13iKZH10#,RZH101..4FC..SCMM199504-199507

55910CGROMMET(FOR HEATER CONTROL CABLE)

main90480-13013iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#..HRF,SMRF,SRF199907-200501

55922BRACKET, HEATER CONTROL BASE

main55922-95J01iKZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12#198908-199508

8302INDICATOR

→ Go to FIG 83-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8712HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

→ Go to FIG 87-12

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

8712420020CLAMP, HEATER

main87124-20020

9356015020

main93560-15020

15 parts on this diagram · 25 diagrams in section
