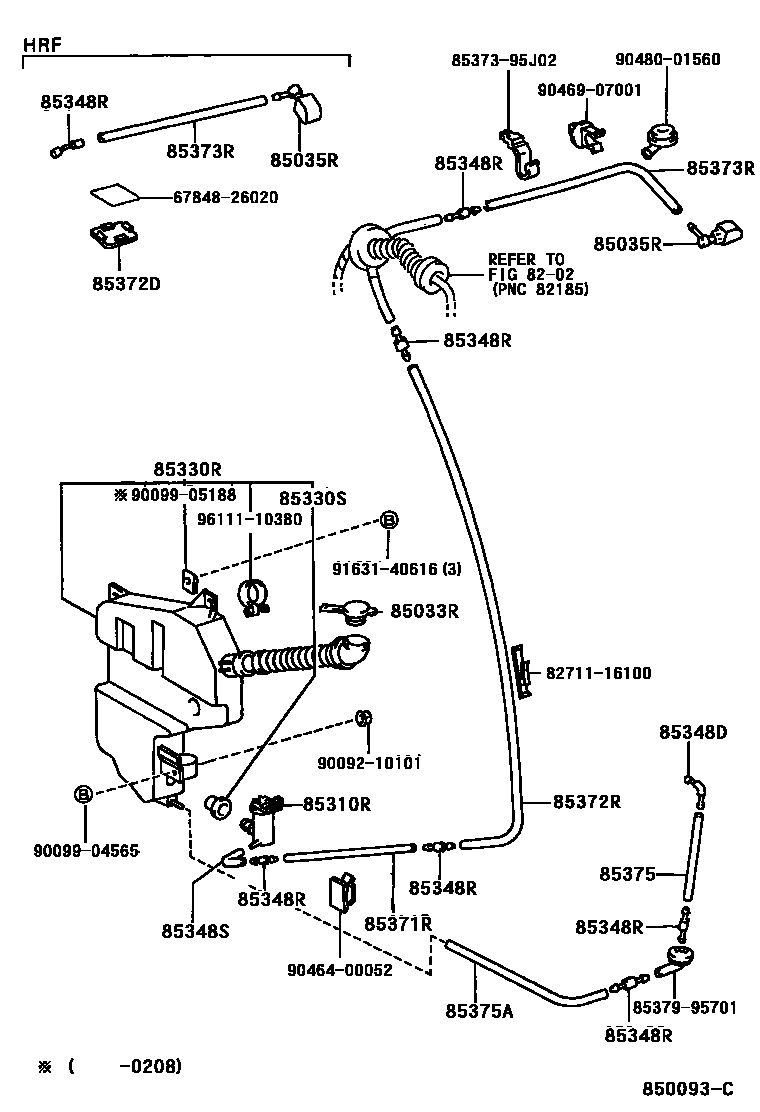

REAR WASHER

8202WIRING & CLAMP

→ Go to FIG 82-02

85033RCAP ASSY, REAR WASHER

main85332-95J03iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#199907-200501

85035RNOZZLE SUB-ASSY, REAR WASHER

main85035-95J08iKZH10#,11#,LH10#,11#,140,16#,17#,RZH10#,11#..MRF,SMRF,SRF198908-199907

main85035-95J09iKZH12#,13#,LH113,12#,172,18#,RZH112,12#,133..HRF198908-199907

85310RMOTOR ASSY, REAR WASHER

main85310-22080iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#199907-200501

85330RJAR ASSY, REAR WASHER

main85330-95J08iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

85330SBUSH, REAR WASHER JAR

main90099-32089iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122×5iLH10#,11#,140,RZH10#,11#..MRF,SMRF,SRF; LH113,12#,RZH112,12#..HRF198908-199308

main85355-32020iKZH12#,13#,LH125,RZH124,133199308-199808

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299iLH10#,11#,12#,140,RZH10#,11#,12#199010-199308

main90446-06013iKZH10#,11#,12#,13#,LH10#,11#,123,129,RZH10#,11#199508-199808

85372DGROMMET, REAR WASHER HOSE

main90950-01724-08iLH120198908-199205

IVORY,TRIM3#

main90950-01724-B0iKZH13#,LH113,123,129,RZH112..HRF199308-199608

LI. GRAY,TRIM1#

main90950-01724-B1iKZH13#,LH113,123,129,172,18#,RZH112..HRF..DX199608-199907

LT.BLUISH GRAY,TRIM1#

main90950-01724-E0iLH113,12#,RZH112..HRF..DX199308-199508

LI. ANTELOPE,TRIM4#

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90446-06006iKZH12#,13#,LH125,RZH124,133199308-199808

main90446-06013iLH10#,11#,140,RZH10#,11#..MRF,SMRF,SRF198908-199308

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iKZH10#,11#,LH10#,11#,140,16#,17#,RZH10#,11#..MRF,SMRF,SRF; KZH12#,13#,LH113,12#,172,18#,RZH112,12#,133..HRF198908-199907

85375HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main90446-06013iLH10#,11#,12#,140,RZH10#,11#,12#198908-199308

85375AHOSE, WINDSHIELD WASHER, NO.2(FOR LEVEL GAGE)

main90099-33299iKZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133199808-199907

main90446-06013iKZH10#,11#,LH10#,11#,123,129,RZH10#,11#; KZH12#,13#199308-199808

6784826020COVER, BACK DOOR SERVICE HOLE, LH

main67848-26020

8271116100WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16100

8537395J02HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-95J02

8537995701JOINT

main85379-95701

9009210101

main90092-10101

9009904565

main90099-04565

9009905188

main90099-05188

9046400052

main90464-00052

9046907001

main90469-07001

9048001560

main90480-01560

9163140616

main91631-40616

9611110380

main96111-10380

27 parts on this diagram · 1 diagram in section
