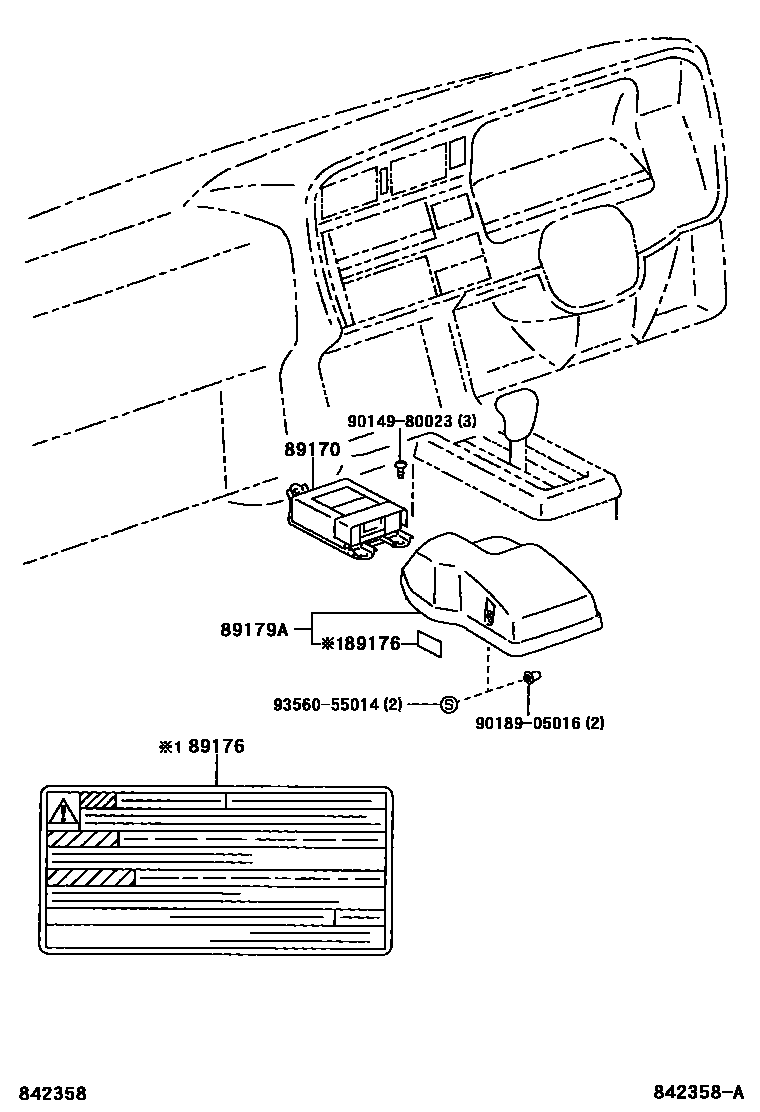

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-26010iKZH10#,12#,RZH100,101..07S,08S,10S199308-199608

main89170-26040iKZH10#,11#,12#,13#,RZH101,111,133199808-199907

main89170-26050iKZH116..4FC;KZH110,13#,RZH133199808-199907

main89170-26120iKZH10#,11#,120,13#,RZH101,111199907-200408

main89170-26130iKZH11#199907-200408

main89170-26140iLH16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#199907-200501

main89170-26150iLH16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#199907-200501

89176LABEL, AIRBAG SENSOR COVER CAUTION

main89176-26030iLH16#,17#,18#,RZH102,112,12#199808-199907

89179ACOVER, AIRBAG SENSOR

main89179-26070-B0iTRH12#199907-200501

BLUISH GRAY,TRIM1#

main89179-26080-B0iLH168,178,186,188..CD,DX,GL,SGLE199907-200408

9014980023

main90149-80023

9018905016

main90189-05016

9356055014

main93560-55014

6 parts on this diagram · 1 diagram in section
