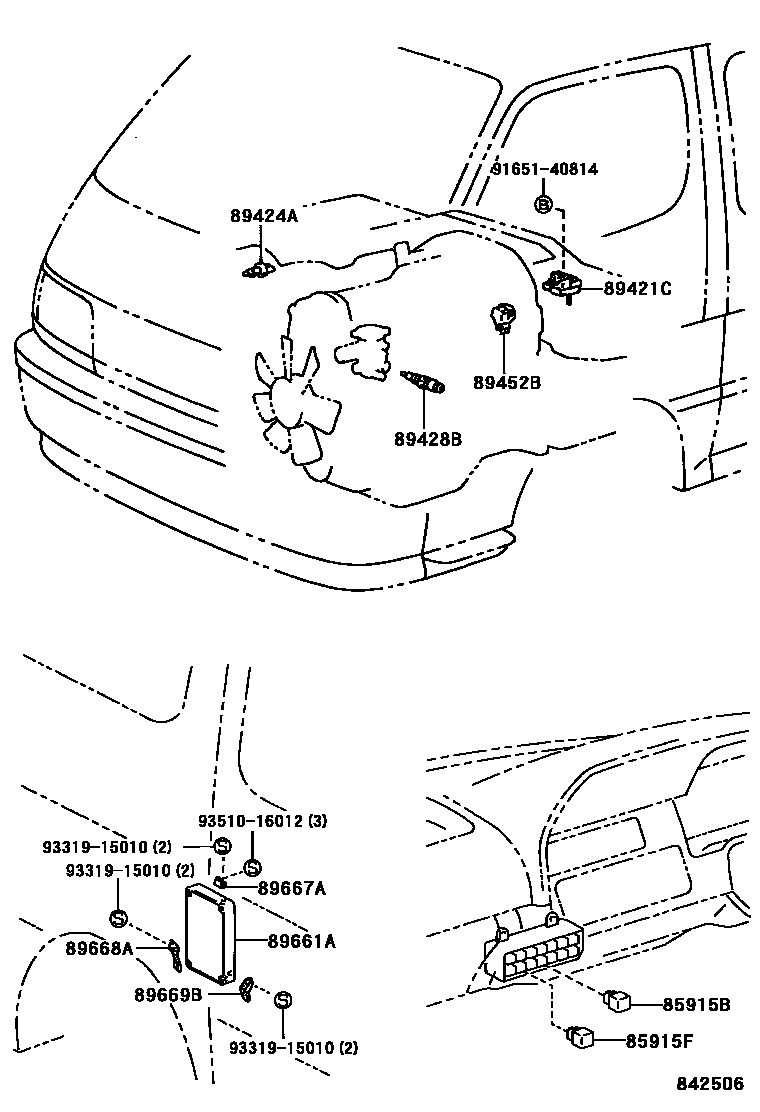

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

85915BRELAY, MAIN (FOR DIESEL TURBO)

main85915-26010iKZH10#,11#,120,13#199907-200408

main85915-30050iLH100,120..TDE199010-199308

main90987-02009iKZH10#,11#,12#199308-199408

85915FRELAY, SPILL VALVE

main85915-26010iKZH10#,11#,12#,13#199408-199907

main85915-30050iLH100,120..TDE199010-199308

main90987-02009iKZH10#,11#,12#199308-199408

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89420-26040iLH100,120..TDE199010-199308

main89421-60030iKZH10#,11#,12#,13#199308-199907

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-12010iKZH10#,11#,12#,13#,LH100,120..TDE199010-199907

main89424-60010iKZH10#,11#,120,13#199907-200408

89428BSWITCH, TEMPERATURE

main89428-30090iLH100,120..TDE199010-199308

89452BSENSOR, THROTTLE POSITION

main89452-12040iLH100,120..TDE199010-199308

main89452-22090iKZH10#,11#,12#,13#199308-199907

89661ACOMPUTER, ENGINE CONTROL

main89661-26060iLH100,120..5F..TDE199010-199205

main89661-26070iLH100,120..4FC199010-199205

main89661-26140iLH100,120..5F..TDE199205-199308

main89661-26150iLH100,120..4FC199205-199308

main89661-26160iKZH10#,11#,12#..5F199308-199403

main89661-26161iKZH10#,11#,12#..5F199403-199608

main89661-26170iKZH100,110,120,132..4FC199308-199608

main89661-26180iKZH106,116,138..4FC199308-199608

main89661-26390iKZH10#,11#,126..5F199608-199907

main89661-26400iKZH100,110,120,132..4FC199608-199907

main89661-26410iKZH106,116,138..4FC199608-199907

main89661-26630iKZH100,110,120,132..2WD199907-200408

main89661-26640iKZH106,116,120,138..4WD199907-200408

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-26010iLH100..TDE;KZH100,11#,12#,13#,LH120..HRF,SRF199010-199608

main89667-26030iKZH10#..MRF,SMRF199308-199608

main89667-26060iKZH10#,11#,12#,13#199608-199808

main89667-26080iKZH10#,11#,12#,13#199808-199907

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-26010iLH100..TDE;KZH100,11#,12#,13#,LH120..HRF,SRF199010-199608

main89668-26030iKZH10#..MRF,SMRF199308-199608

main89668-26050iKZH10#,11#,12#,13#199608-199808

main89668-26080iKZH10#,11#,12#,13#199808-199907

main89668-26110iKZH10#,11#,120,13#199907-200408

89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-26010iLH100..TDE;KZH100,11#,12#,13#,LH120..HRF,SRF199010-199608

main89669-26020iKZH10#..MRF,SMRF199308-199608

main89669-26040iKZH10#,11#,12#,13#199608-199808

main89669-26060iKZH10#,11#,12#,13#199808-199907

9165140814

main91651-40814

9331915010

main93319-15010

9351016012

main93510-16012

13 parts on this diagram · 6 diagrams in section
