INDICATOR

81850LAMP ASSY, INDICATOR

main81850-95J00iLH120;LH10#,113,119,125,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL198908-199005

main82285-26010iKZH10#,12#,RZH100,101..07S,08S,10S199308-199608

main82285-26011iKZH10#,11#,12#,13#,RZH101,111,133199808-199907

81850BBULB, INDICATOR LAMP

main90981-11014iKZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL199308-199907

81850RCAP BULB

main84998-10530iKZH10#,12#,RZH100,101..07S,08S,10S199308-199608

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-26010-B0iKZH10#..08S199907-200408

GRAY,TRIM1#

main81930-26010-D0iLH100,107,RZH100,101..07S,08S199205-199308

NEW MAROON,TRIM3#

main81930-26010-E0iRZH101199907-200208

ANTELOPE,TRIM4#

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11018iRZH101199907-200208

81933BODY,HEATER CONTROL

main81933-26010iLH100,107,RZH100,101..SCL199205-199308

main81933-26010-B0iRZH101..08S199907-200208

GRAY,TRIM1#

main81933-26010-E0iKZH10#,RZH101199708-199907

ANTELOPE,TRIM4#

81942SHEET, HEATER CONTROL NAME

main81942-22040iLH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S198908-199205

main81942-26010iKZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S199205-199608

main81942-26130iKZH10#,11#,120,13#,RZH101,111..HRF,SMRF,SRF199907-200408

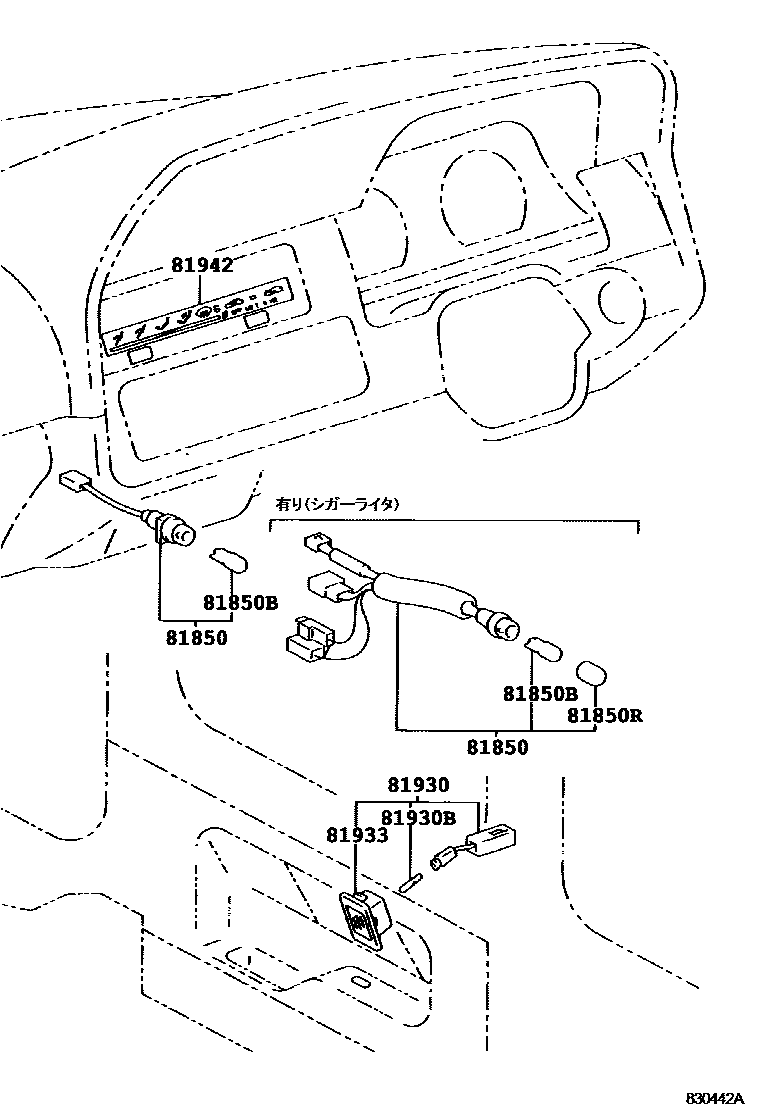

7 parts on this diagram · 1 diagram in section
