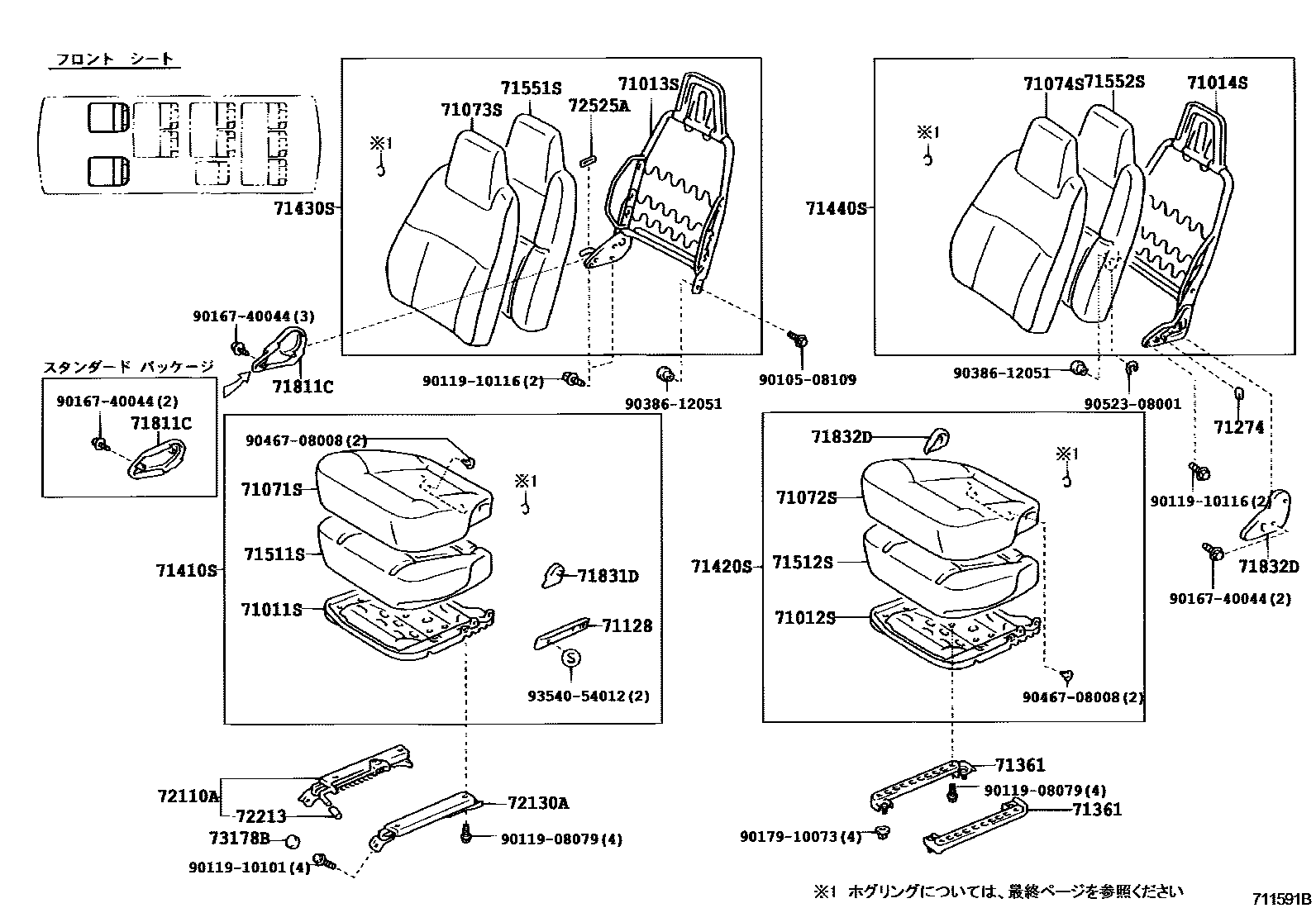

SEAT & SEAT TRACK
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71128PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH
71274KNOB, FRONT SEAT HINGE
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71811CCOVER, RECLINING ADJUSTER, RH
71831DCOVER, FRONT SEAT HINGE, RH
71832DCOVER, FRONT SEAT HINGE, LH
72110ATRACK ASSY, FRONT SEAT, OUTER RH
72130ATRACK ASSY, FRONT SEAT, INNER RH
72213KNOB, SEAT TRACK ADJUSTING HANDLE
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
73178BCAP, SEAT BELT ANCHOR COVER
9010508109
main90105-08109
9011908079
main90119-08079
9011910101
main90119-10101
9011910116
main90119-10116
9016740044
main90167-40044
9017910073
main90179-10073
9038612051
main90386-12051
9046708008
main90467-08008
9052308001
main90523-08001
9354054012
main93540-54012
37 parts on this diagram · 117 diagrams in section
