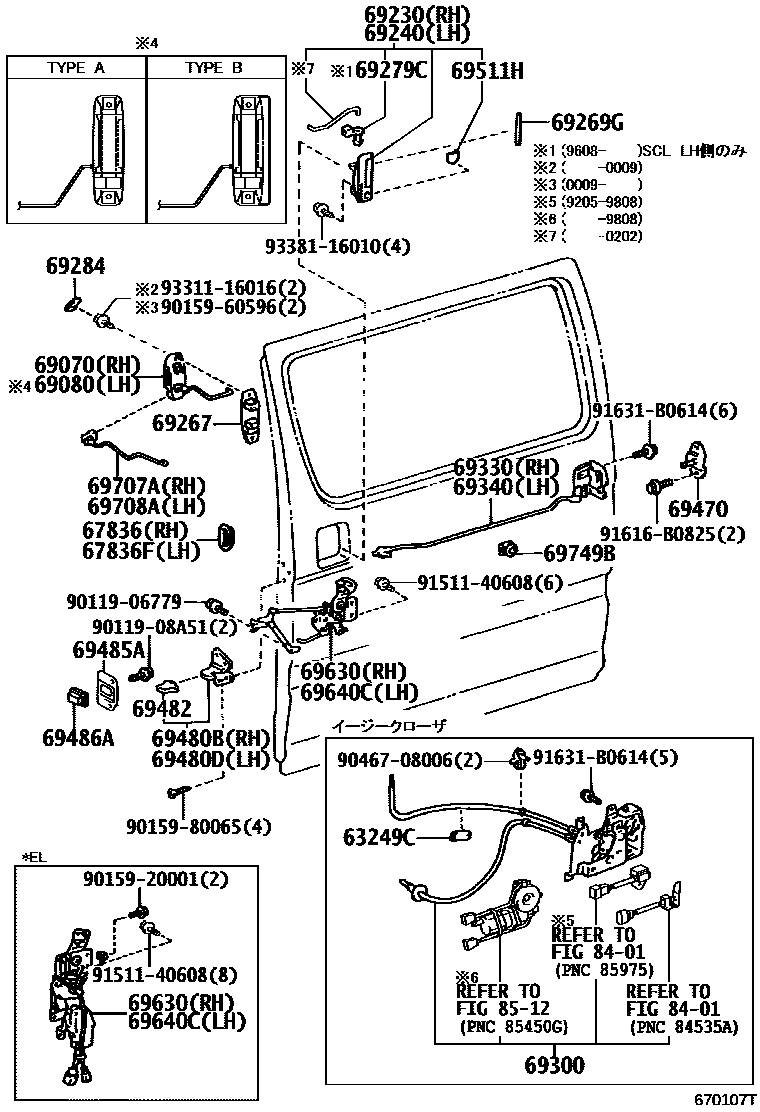

REAR DOOR LOCK & HANDLE

63249CSUPPORT, SLIDE ROOF RAIN CHANNEL HOSE

main63249-95700×3iLH100,102,107,113,119,RZH100,101..05S,07S,08S198908-199005

main82817-95J55×2iKZH10#,12#,LH125,RZH100,101,124..07S,08S,10S,15S; LH123,129..06S;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);KZH10#,12#,LH103,119,RZH100,101..05S,07S,08S,10S199308-199312

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-26030iLH16#,17#,TRH102,112..5D199907-200408

67836FCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-26030iRZH101,111199907-200208

69070HANDLE ASSY, SLIDE DOOR, INSIDE, RH

main69070-26030-B0iLH10#,11#,16#,17#,RZH102,112..5D199608-199907

BLUISH GRAY,TRIM1#

main69070-26030-B2iLH16#,17#,RZH102,112,TRH102,112..5D199907-200408

SHADOW GRAY,TRIM1#

main69070-95J03-03iLH102,109,113,119,RZH102,112..5D198908-199308

GRAY,TRIM1#

main69070-95J03-B0iLH10#,11#,RZH102,112..5D199308-199608

BLUISH GRAY,TRIM1#

69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH

main69080-26030-B0iKZH11#,LH10#,11#,12#,RZH102,11#,124,133..CD,DX199608-199708

main69080-26030-B2iKZH11#,13#,LH16#,17#,18#,RZH102,11#,12#,18#,TRH102,112,12#..CD,DX,SGLE199907-200501

main69080-26030-E0iKZH13#199808-199907

main69080-26040-B0iKZH11#..4FC;LH125,184,186,RZH125..GL;KZH10#,13#,LH103,11#,162,17#,RZH10#,112..(03S,05S,08S)..(DX,SCM,SCMM,SGL)199608-199907

main69080-26040-B1iLH184,186,RZH125,TRH124..GL;KZH10#,11#,LH162,17#,RZH10#,112,TRH102,112..(05S,08S,10S)..(DX,SCM,SCMM,SGL)199907-200501

main69080-26040-E0iKZH10#,12#,13#,RZH101199608-199907

main69080-26040-E1iKZH10#,120,RZH101199907-200408

main69080-95J03-02iLH110,115,117,120,125,RZH110,124..DX199205-199207

main69080-95J03-03iLH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,06S,09S)198908-199308

main69080-95J03-B0iKZH100,LH10#,11#,123,129,RZH100,102,112..CD,DX,GL199308-199508

main69080-95J03-E0iLH113,RZH112..HRF;KZH11#,LH12#,RZH124..DX199308-199508

main69080-95J05-02iLH120,125..GCGE,GCGN,GL;LH100,107,110,117,RZH100,101..07S,08S,10S199205-199308

main69080-95J05-03iLH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,102,107,119,RZH100,101..CTM,SCM,SCMM,SGL199005-199308

main69080-95J05-B0iLH123,129..06S;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);KZH10#,LH103,119,RZH100,101..CTM,SCM,SCMM,SGL199308-199508

main69080-95J05-E0iKZH10#,12#,RZH101..07S,08S,10S199508-199608

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-26020iLH10#,11#,16#,17#,RZH102,112..5D199608-199907

main69230-26050iLH16#,17#,RZH102,112,TRH102,112..5D200202-200408

main69230-95J01iLH102,103,109,113,119,RZH102,112..5D198908-199608

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-26040iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#..03S,05S,06S,08S,09S,10S,15S199907-200202

main69240-26050-A1iKZH10#,RZH101..4FC..SCMM199808-199907

main69240-26050-A2iKZH10#,RZH101..SCL199907-200202

WHITE PM.,2GC

main69240-26050-B0iKZH10#,RZH101..SCL199608-199907

WARM GRAY PEARL ME.,2BY

main69240-26050-E0iKZH10#,RZH101..SCL199608-199907

FLAXEN MM,2AX

main69240-26060iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#..03S,05S,06S,08S,09S,10S,15S200202-200501

main69240-26070-A0iKZH10#,RZH101..SCL200202-200408

WHITE PM.,2GC

main69240-26070-B0iKZH10#,RZH101..SCL200202-200408

WARM GRAY PEARL ME.,2BY

main69240-95J01iKZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133198908-199608

69267SEAL, SLIDE DOOR INSIDE HANDLE, NO.1

main69267-26010iLH10#,11#,16#,17#,RZH102,112..5D199308-199907

main69267-95J01iLH102,109,113,119,RZH102,112..5D198908-199308

main69268-95J00iLH10#,11#,12#,140,RZH10#,11#,12#198908-199308

main69268-95J01iKZH11#,13#,LH10#,11#,12#,RZH102,11#,124,133..CD,DX199708-199808

69269GSEAL, DOOR INSIDE HANDLE

main69268-95J01iKZH11#,LH113..(05S,10S)..4FC;LH119,125..(05S,08S,15S)..(GL,SGL);KZH10#,12#,13#,LH103,RZH101..(03S,05S,07S,08S,09S,10S)..(CTM,DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)199508-199808

main69269-95J01iLH120;LH125..GL;LH100,102,107,113,119,RZH100,101..CTM,SCL,SCM,SCMM,SGL198908-198910

69279CSNAP, SLIDE DOOR INSIDE HANDLE LINK, RH

main69279-10010iKZH10#,RZH101..SCL199608-199907

69284PLUG, SLIDE DOOR INSIDE HANDLE

main69284-95J00-02×2iLH100,107,110,115,125,RZH100,101,110,124..07S,08S,10S,15S; LH120198908-198910

NEW MAROON; NEW MAROON,TRIM3#

main69284-95J00-03×2iLH10#,113,119,123,129,RZH10#,112,122..03S,05S,06S,08S,09S198908-198910

GRAY,TRIM1#

main69284-95J00-B0×2iKZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..CD,CTM,DX,GL,SCM,SCMM,SGL199508-199907

BLUISH GRAY,TRIM1#

main69284-95J00-B3×2iKZH10#,11#,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#..CD,DX,GL,SCM,SCMM,SGL,SGLE199907-200501

SHADOW GRAY,TRIM1#

main69284-95J00-E1×2iKZH10#,12#,13#,RZH101199608-199907

ANTELOPE,TRIM4#

main69284-95J00-E3×2iKZH10#,120,RZH101199907-200408

ORCHID BROWN,TRIM4#

69300LOCK ASSY, POWER SLIDE DOOR, LH

main69300-26010iKZH10#,12#,LH125,RZH100,101,124..07S,08S,10S,15S199308-199508

main69300-26011iRZH124..4FC199608-199808

main69300-26020iLH123,129..06S;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);KZH10#,12#,LH103,119,RZH100,101..05S,07S,08S,10S199308-199508

main69300-26021iKZH11#..4FC;KZH10#,12#,13#,LH103,11#,RZH101..(03S,05S,07S,08S,10S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)199508-199808

main69300-26100iTRH124200208-200501

main69300-26110iRZH101199907-200208

main69300-95J00iLH100,107,110,115,117,125,RZH100,101,110,124..CTM,DX,GL,SCL,SCM,SCMM198908-199205

main69300-95J01iLH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,102,107,119,RZH100,101..05S,07S,08S199005-199205

69330LOCK ASSY, REAR DOOR, RH

main69330-95J00iLH102,103,109,113,119,16#,17#,RZH102,112..5D198908-199907

69340LOCK ASSY, REAR DOOR, LH

main69340-95J01iKZH10#,11#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..CD,CTM,DX,GL199308-199907

main69340-95J03iLH100,110,117,140,RZH100,101,110..CTM,DX,SW198908-199205

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-26010×2iKZH10#,11#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..4D..(CD,CTM,DX,GL); LH10#,11#,16#,17#,RZH102,112..5D199506-199907

main69470-95D00×2iKZH10#,11#,LH100,102,103,109,11#,12#,140,RZH100,102,11#,12#..4D..(CD,CTM,DX,GL,SW); LH102,103,109,113,119,RZH102,112..5D199205-199506

main69470-95J02iLH119..SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,102,107,110,115,117,125,RZH100,101,110,124..(05S,07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SGL)199005-199205

69480BHOOK ASSY, SLIDE DOOR FRONT LOCK

main69480-26020iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#..SG199907-200501

69480DHOOK ASSY, SLIDE DOOR FRONT LOCK

main69480-26020iRZH102,112..850K;RZH102,112..4D..CD..EFI;KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL,SW199205-199907

69482COVER, SLIDE DOOR FRONT LOCK HOOK

main69482-26010iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#..SG199907-200501

69485ABRACKET, SLIDE DOOR FRONT LOCK STRIKER

main69485-26010iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#..SG199907-200501

69486ACOVER, SLIDE DOOR FRONT LOCK STRIKER

main69486-95701iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#..SG199907-200501

69511HRETAINER, FRONT DOOR LOCK CYLINDER

main69511-16010iKZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133198908-199608

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-26030iLH16#,17#,RZH102,112..5D..DX199907-200202

main69630-26040iLH16#,17#,RZH102,112..5D..DX199907-200202

main69630-26070iLH16#,17#,RZH102,112..5D..DX199907-200202

main69630-26080iLH16#,17#,RZH102,112..5D199808-199907

main69630-26130iLH16#,17#,RZH102,112,TRH102,112..5D..DX200202-200408

main69630-26140iLH16#,17#,RZH102,112,TRH102,112..5D..DX200202-200408

main69630-26150iLH16#,17#,RZH102,112,TRH102,112..5D..DX200202-200408

main69630-26160iLH16#,17#,RZH102,112,TRH102,112..5D200202-200408

main69630-95J03iLH102,103,109,113,119,RZH102,112..5D..(CD,DX)198908-199608

main69630-95J04iLH102,109,113,119,RZH102,112..5D..GL198908-199308

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-26010iLH100,110,115,117,120,125,RZH100,110,124..DX199205-199308

main69640-26020iLH110,117..DX; LH113..V1..SRF..4D..06S..DX; LH125..GL;LH100,102,107,113,119,120,RZH100,101..CTM,GCGE,GCGN,SCM,SCMM,SGL199205-199308

main69640-26030iKZH10#,RZH101..4FC..SCMM199504-199507

main69640-26070iKZH11#,LH10#,11#,123,129,16#,17#,182,188,RZH102,11#,133..DX199608-199907

main69640-26080iLH162,17#,182,188,RZH102,112,183..SGLE200108-200202

main69640-26090iKZH10#,120,13#,LH162,17#,RZH10#,112..(03S,05S,07S,08S,10S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL); KZH11#199907-200202

main69640-26100iKZH10#,RZH101..4FC..SCMM199808-199907

main69640-26140iKZH12#..GCGN; LH184,186,RZH12#199608-199907

main69640-26150iLH16#,17#,18#,RZH102,112,12#,18#..(03S,06S,15S)..(CD,DX)199907-200202

main69640-26160iLH103,11#,125,RZH102,112,124..03S,15S199608-199808

main69640-26240iLH16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#..(03S,06S,15S)..(CD,DX)200202-200501

main69640-26250iLH16#,17#,182,188,RZH102,112,18#,TRH102,112,122..06S..DX; LH162,17#,184,186,RZH102,112,12#,TRH102,112,124..(03S,15S)..(CD,DX); LH184,186,RZH125,TRH124..GL200202-200501

main69640-26260iKZH11#,LH16#,17#,182,188,RZH102,11#,18#,TRH102,112,122..DX200202-200501

main69640-26270iKZH11#,LH16#,17#,182,188,RZH102,11#,18#,TRH102,112,122..DX; LH162,17#,182,188,RZH102,112,183,TRH102,112,122..SGLE200202-200501

main69640-26280iKZH11#200208-200408

main69640-26290iLH184,186,RZH12#,TRH124..DX; LH184,186,RZH125,TRH124..GL200202-200501

main69640-95J05iKZH100,11#,LH100,102,103,109,11#,12#,140,RZH100,102,11#,12#,133..CD,DX,SW199205-199608

main69640-95J06iKZH11#,LH10#,11#,RZH102,11#..CD,DX,GL;KZH10#,LH12#,RZH100,101,124,133..(HRF,SMRF)..(CTM,DX,GL)199308-199608

main69640-95J08iLH100,110,115,117,125,RZH100,110,124..DX198908-199205

main69640-95J09iLH100,102,107,119,125,RZH100,101..(05S,08S,09S,15S)..(CTM,GL,SCM,SCMM,SGL); LH113..V1..SRF..4D..(05S,06S)..(DX,SGL)199005-199205

main69640-95J10iLH100,107,RZH100,101..SCL198908-199205

69707AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, RH

main69707-95J01-03iLH102,109,113,119,RZH102,112..5D198908-199308

GRAY,TRIM1#

main69707-95J01-B0×2iLH103,113,RZH102..5D..CD199608-199808

BLUISH GRAY,TRIM1#

main69707-95J01-B2iLH16#,17#,RZH102,112,TRH102,112..5D199907-200408

SHADOW GRAY,TRIM1#

main69707-95J01-E0iLH113,RZH112..HRF..5D199308-199508

ANTELOPE,TRIM4#

69708AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH

main69708-95J01-02iLH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S198908-199205

NEW MAROON,TRIM3#

main69708-95J01-03iLH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S198908-199308

GRAY,TRIM1#

main69708-95J01-B0iKZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124199308-199508

BLUISH GRAY,TRIM1#

main69708-95J01-B2iKZH10#,11#,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#..CD,DX,GL,SCM,SCMM,SGL,SGLE199907-200501

SHADOW GRAY,TRIM1#

main69708-95J01-E0iKZH10#,12#,13#,RZH101199608-199907

ANTELOPE,TRIM4#

main69708-95J01-E1iKZH10#,120,RZH101199907-200408

ORCHID BROWN,TRIM4#

69749BCLAMP, REAR DOOR LOCK LINK

main69749-95J00iKZH11#,LH16#,17#,18#,RZH102,11#,12#,18#,TRH102,112,12#..CD,DX,GL,SGLE199907-200501

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8512AUTOMATIC DOOR

→ Go to FIG 85-12

9011906779

main90119-06779

9011908A51

main90119-08A51

9015920001

main90159-20001

9015960596

main90159-60596

9015980065

main90159-80065

9046708006

main90467-08006

9151140608

main91511-40608

91616B0825

main91616-B0825

91631B0614

main91631-B0614

9331116016

main93311-16016

9338116010

main93381-16010

39 parts on this diagram · 1 diagram in section
