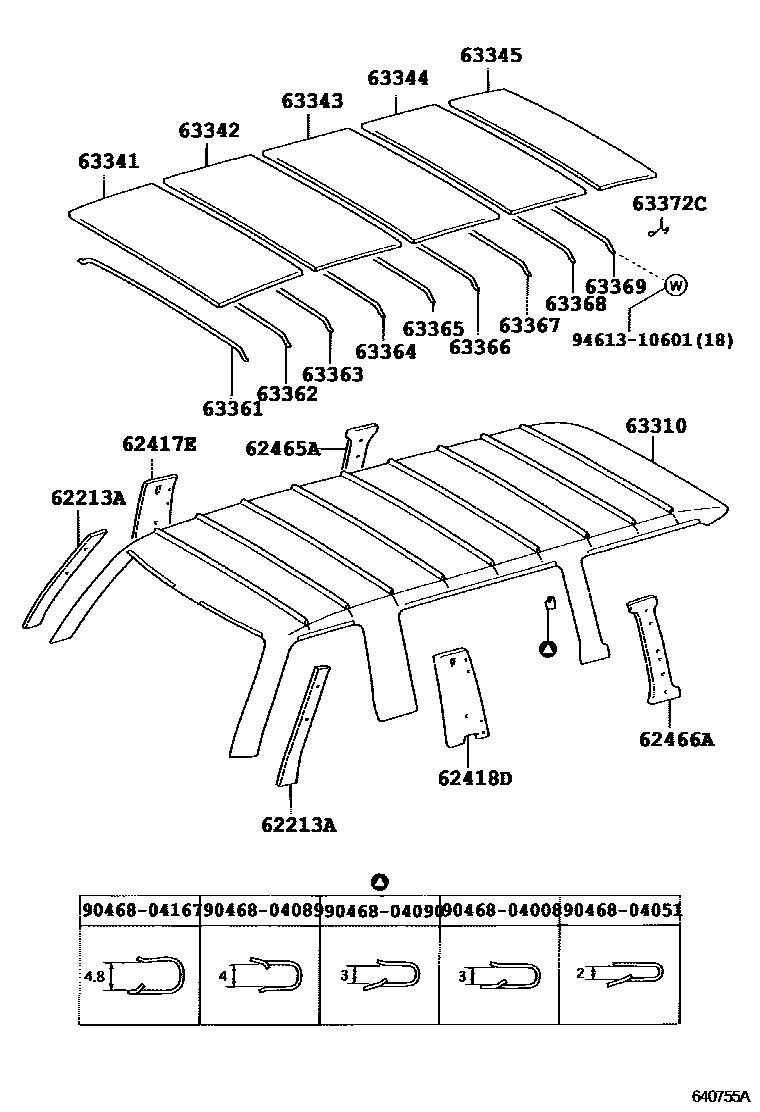

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1��(�-� �-�) 0003 1 0004 1 0005 1 0006 1 0007 1 0010 1��(�-� �-�) 0013 1 0014 1 0015 1 0017 1 0018 1�������� �- : ��-����� ����� 0020 1 0021 1 0022 1 0023 1

62213APAD, FRONT PILLAR GARNISH

main62213-95J01iLH178..08S;KZH11#,LH103,113..(05S,10S)..4FC;LH119,125,184,186,RZH125..(05S,08S,15S)..(GL,SGL)198908-200501

62417EPAD, CENTER PILLAR GARNISH, NO.1

main62417-95J02iLH178..08S;KZH11#,120,LH103,113..(05S,10S)..4FC;KZH126,LH119,125,184,186,RZH125..(05S,08S,10S,15S)..(GCGN,GL,SGL)198908-200501

62418DPAD, CENTER PILLAR GARNISH, NO.2

main62418-95J02iLH125..GL;LH100,102,113,119,RZH100,101..CTM,SGL198908-200501

62465APAD, QUARTER LOCK PILLAR, RH

main62465-26010iKZH11#199907-200408

main62465-26010iLH162,17#,RZH102,112..SGL199808-199907

main62465-95J01iLH119..SGL;KZH11#,LH103,113..(05S,10S)..4FC198908-200501

62466APAD, QUARTER LOCK PILLAR, LH

main62466-26010iKZH11#199907-200408

main62466-26010iLH162,17#,RZH102,112..SGL199808-199907

main62466-95J01iKZH120,LH184,186,RZH125,TRH124..GCGE,GCGN,GL198908-200501

63310HEADLINING ASSY, ROOF

main63310-26010-08iLH119..05S;LH113..V1..SRF..4D..06S..DX199005-199308

sub63310-26011

main63310-26010-B0iLH119..05S;LH113..V1..SRF..4D..06S..DX199308-199508

sub63310-26011

main63310-26010-B0iKZH11#..4FC199508-199608

sub63310-26011

main63310-26010-B2iKZH11#..4FC199608-199907

sub63310-26011

main63310-26011-B3iKZH11#199907-200108

main63310-26030-B0iKZH10#,RZH100,101..CTM199308-199608

LI. GRAY,TRIM1#

main63310-26040-B0iKZH10#,RZH100,101..SCM199308-199608

LI. GRAY,TRIM1#

sub63310-26040

main63310-26040-B1iKZH10#,RZH101..SCM199608-200408

LT. BL. GRAY,TRIM1#

sub63310-26040

main63310-26040-E0iKZH10#,RZH100,101..SCM199308-200408

LI. ANTELOPE,TRIM4#

sub63310-26040

main63310-26050-B0iKZH10#,RZH100,101..SCMM199308-199508

LI. GRAY,TRIM1#

main63310-26050-E0iKZH10#,RZH100,101..MRF199308-199508

LI. ANTELOPE,TRIM4#

main63310-26060-B0iKZH10#,RZH100,101..SCMM199308-199508

main63310-26060-E0iKZH10#,RZH100,101..MRF199308-199508

main63310-26070-B0iKZH10#,RZH100,101..SCM199308-199608

main63310-26070-B1iKZH10#,RZH101..SCM199608-200108

main63310-26070-E0iKZH10#,RZH100,101..SCM199308-200108

main63310-26080-B0iKZH10#,RZH100,101..SCMM199308-199508

main63310-26080-E0iKZH10#,RZH100,101..MRF199308-199508

main63310-26090-B0iKZH10#,RZH100,101..SCMM199308-199508

main63310-26090-E0iKZH10#,RZH100,101..MRF199308-199508

main63310-26190-B0iKZH10#,RZH101..SCMM199508-199608

LT. GRAY,TRIM1#

main63310-26190-E0iKZH10#,RZH101..MRF199508-199608

LT. ANTELOPE,TRIM4#

main63310-26200-B0iKZH10#,RZH101..SCMM199508-199608

main63310-26200-E0iKZH10#,RZH101..MRF199508-199608

main63310-26210-B0iKZH10#,RZH101..SCMM199508-199608

main63310-26210-E0iKZH10#,RZH101..MRF199508-199608

main63310-26220-B0iKZH10#,RZH101..SCMM199508-199608

main63310-26220-E0iKZH10#,RZH101..MRF199508-199608

main63310-26230-B0iKZH10#,RZH101..SCMM199608-200408

main63310-26230-E0iKZH10#,RZH101..MRF199608-200408

main63310-26240-B0iKZH10#,RZH101..SCMM199608-200108

main63310-26240-E0iKZH10#,RZH101..MRF199608-200108

main63310-26250-B0iKZH10#,RZH101..SCMM199608-200108

main63310-26250-E0iKZH10#,RZH101..MRF199608-200108

main63310-26260-B0iKZH10#,RZH101..SCMM199608-200408

main63310-26260-E0iKZH10#,RZH101..MRF199608-200408

main63310-26270-B0iLH178..08S;KZH11#..4FC199608-199907

LT. BLUISH GRAY,TRIM1#

sub63310-26271

main63310-26271-B1iLH178..08S199907-200108

LT. BLUISH GRAY,TRIM1#

main63310-26271-B1iKZH11#199907-200408

main63310-26280-B0iLH125,184,186,RZH12#..DX199608-200501

LT. BLUISH GRAY,TRIM1#

main63310-26290-B0iLH184,186,RZH125,TRH124..GL199608-200501

LT. BLUISH GRAY,TRIM1#

main63310-26590-B0iLH162,17#,RZH102,112..05S199808-200008

LT. BL. GRAY,TRIM1#

sub63310-26790

main63310-26600-B0iLH178..08S199808-199907

sub63310-26601

main63310-26601-B1iLH178..08S199907-200108

main63310-26630-B0iLH184,186,RZH125..GL199808-200501

main63310-26640-B0iLH184,186,RZH12#..DX199907-200408

main63310-26640-B0iTRH124..DX199808-200501

main63310-26680-B0iLH162,17#,RZH102,112..05S199808-200008

sub63310-26800

main63310-26760-E0iKZH120199907-200408

ANTELOPE,TRIM4#

main63310-26790-B0iLH162,17#,RZH102,112..05S200008-200108

LT. BL. GRAY,TRIM1#

main63310-26800-B0iLH162,17#,RZH102,112..05S200008-200108

main63310-26810-B0iLH178..08S200108-200408

LT. BLUISH GRAY,TRIM1#

main63310-26820-B0iLH178..08S200108-200408

main63310-26830-B0iLH162,17#,RZH102,112,TRH102,112..05S..SGL200108-200408

LT. BL. GRAY,TRIM1#

main63310-26840-B0iLH162,17#,RZH102,112..05S..SGL200108-200408

main63310-26840-B0iTRH102,112..SGL200308-200408

main63310-95J18-03iLH102..SGL198908-199308

sub63310-95J18

main63310-95J18-13iLH103..SGL199308-199608

sub63310-95J18

main63310-95J18-B0iLH103..SGL199608-199808

sub63310-95J18

main63310-95J19-03iLH102..SGL198908-199308

LIGHT GRAY,TRIM1#

sub63310-95J19

main63310-95J19-13iLH103..SGL199308-199608

LI. GRAY,TRIM1#

sub63310-95J19

main63310-95J19-B0iLH103..SGL199608-199808

LT. BLUISH GRAY,TRIM1#

sub63310-95J19

main63310-95J20-03iLH113,119..SGL198908-199308

sub63310-95J20

main63310-95J20-13iLH11#..SGL199308-199608

sub63310-95J20

main63310-95J20-B1iLH11#..SGL199608-199808

sub63310-95J20

main63310-95J21-03iLH113,119..SGL198908-199308

LIGHT GRAY,TRIM1#

sub63310-95J21

main63310-95J21-13iKZH11#199308-199508

*104,LI. GRAY,TRIM4#

sub63310-95J21

main63310-95J21-13iLH119..SGL;KZH11#,LH113..(05S,10S)..4FC199308-199608

LI. GRAY,TRIM1#

sub63310-95J21

main63310-95J21-B1iLH11#..SGL199608-199808

LT. BLUISH GRAY,TRIM1#

sub63310-95J21

main63310-95J21-E0iKZH11#199308-199508

*106,LI. ANTELOPE,TRIM4#

sub63310-95J21

main63310-95J22-03iLH100,RZH100,101..CTM198908-199308

LIGHT GRAY,TRIM1#

main63310-95J23-03iLH107..SCMM198908-199308

LIGHT GRAY,TRIM1#

main63310-95J23-06iLH107..SCMM198908-199308

LIGHT SABLE,TRIM3#

main63310-95J24-03iLH100,107,RZH100,101..SCM198908-199308

LIGHT GRAY,TRIM1#

main63310-95J24-06iLH100,107,RZH100,101..SCM198908-199308

LIGHT SABLE,TRIM3#

main63310-95J25-08iLH120,125,RZH124..DX198908-199308

IVORY,TRIM3#

sub63310-26280

main63310-95J25-12iLH125,RZH124..DX199508-199608

LI. GRAY,TRIM1#

sub63310-26280

main63310-95J25-E1iLH125,RZH124..DX199308-199508

LI. ANTELOPE,TRIM4#

sub63310-26280

main63310-95J26-06iLH100,107,RZH100,101..SCL198908-199308

LIGHT SABLE,TRIM3#

main63310-95J28-03iLH100,RZH100,101..SCMM198908-199308

LIGHT GRAY,TRIM1#

main63310-95J28-06iLH100,RZH100,101..SCMM198908-199308

LIGHT SABLE,TRIM3#

main63310-95J29-03iLH100,RZH100,101..SCMM198908-199308

main63310-95J29-06iLH100,RZH100,101..SCMM198908-199308

main63310-95J31-08iLH125..GL198908-199308

IVORY,TRIM3#

main63310-95J31-B0iLH125..GL199508-199608

LIGHT GRAY,TRIM1#

main63310-95J31-E0iLH125..GL199308-199508

LI. ANTELOPE,TRIM4#

mainC575095B03A1iLH120..GCGE,GCGN199205-199308

IVORY,TRIM3#

sub63310-26760

mainC575095B03E0iKZH12#199308-199907

LI. ANTELOPE,TRIM4#

sub63310-26760

63341PAD, ROOF SILENCER, NO.1

main63341-26010iLH113..V1..SRF..4D..06S..DX199005-199103

sub63341-26050

main63341-26010iLH119..05S;LH113..V1..SRF..4D..06S..DX199103-199308

sub63341-26050

main63341-26020iKZH120,LH184,186,RZH12#,TRH124199312-200501

main63341-26020iKZH12#,LH125,RZH124199308-199312

main63341-26030iRZH124..5F;KZH12#,LH125,184,186,RZH125199312-200501

main63341-26040iKZH11#;KZH10#,LH11#,RZH100,101..CTM,SCM,SGL199308-200408

main63341-26050iLH119..05S;LH113..V1..SRF..4D..06S..DX199308-199508

main63341-26050iKZH11#199508-200108

main63341-95J02iLH125,RZH124198908-199308

sub63341-26020

sub63341-26030

main63341-95J03iLH103..SGL198908-199508

sub63341-26040

main63344-26020iLH178..08S199308-200408

main63344-95J01iLH102,107,113,119..SCMM,SGL198908-199508

sub63344-26020

63342PAD, ROOF SILENCER, NO.2

main63341-26010iLH119..05S;LH113..V1..SRF..4D..06S..DX199103-199308

sub63341-26050

main63341-26010iLH113..V1..SRF..4D..06S..DX199005-199103

sub63341-26050

main63341-26040iKZH11#..4FC;KZH10#,LH103,11#,162,17#,RZH10#,112..CTM,SCM,SGL199308-200408

main63341-26050iKZH11#..4FC199508-200108

main63341-26050iLH119..05S;LH113..V1..SRF..4D..06S..DX199308-199508

main63341-26060iLH103,11#,162,17#,RZH102,112..SGL199308-200408

main63341-95J03iLH100,102,107,113,119,RZH100,101..CTM,SCM,SGL198908-199508

sub63341-26040

main63341-95J05iLH102,113,119..SGL198908-199308

sub63341-26060

main63342-26030iKZH12#,LH125,184,186,RZH12#199308-200501

main63342-95J02iLH120,125,RZH124198908-199308

sub63342-26030

main63343-95J03iLH107..SCMM198908-199308

sub63343-26020

63343PAD, ROOF SILENCER, NO.3

main63341-26010iLH113..V1..SRF..4D..06S..DX199005-199103

sub63341-26050

main63341-26010iLH119..05S;LH113..V1..SRF..4D..06S..DX199103-199308

sub63341-26050

main63341-26040iKZH11#..4FC;KZH10#,LH103,11#,162,17#,RZH10#,112..CTM,SCM,SGL199308-200408

main63341-26040iLH17#,RZH112,TRH112..05S..SGL200008-200408

main63341-26050iKZH11#199508-200108

main63341-26050iLH119..05S;LH113..V1..SRF..4D..06S..DX199308-199508

main63341-26060iLH178..08S199907-200108

main63341-95J03iLH103,11#..SGL199308-199508

sub63341-26040

main63341-95J03iLH100,102,107,113,119,RZH100,101..CTM,SCM,SGL198908-199308

sub63341-26040

main63342-26030iKZH120,LH184,186,RZH12#,TRH124199308-200501

main63342-95J02iLH120,125,RZH124198908-199308

sub63342-26030

main63342-95J05iLH107..SCMM198908-199308

63344PAD, ROOF SILENCER, NO.4

main63341-26040iKZH11#,LH17#,RZH112,TRH112..(05S,08S,10S)..(DX,SGL)199308-200408

main63341-95J03iLH113,119..SGL198908-199308

sub63341-26040

main63342-26020iLH119..05S;LH113..V1..SRF..4D..06S..DX199103-199308

sub63342-26040

main63342-26020iLH113..V1..SRF..4D..06S..DX199010-199103

sub63342-26040

main63342-26040iKZH11#..4FC199508-200108

main63342-26040iLH119..05S;LH113..V1..SRF..4D..06S..DX199308-199508

main63342-95J04iLH107..SCMM198908-199308

main63343-26010iKZH120,LH184,186,RZH12#,TRH124199308-200501

main63343-26020iKZH10#,LH103,162,RZH10#..CTM,SCM,SGL199308-200408

main63343-95J02iLH125,RZH124198908-199308

sub63343-26010

main63343-95J03iLH100,102,107,RZH100,101..CTM,SCM,SGL198908-199508

sub63343-26020

63345PAD, ROOF SILENCER, NO.5

main63342-26050iLH119,178..SGL;KZH11#,LH113,172,RZH112..(05S,10S)..4FC199308-200408

main63342-95J03iLH113,119..SGL198908-199508

sub63342-26050

main63343-26010iKZH12#,LH125,184,186,RZH12#199308-200501

main63343-26020iKZH10#,LH103,162,RZH10#..CTM,SCM,SGL199308-200408

main63343-95J02iLH125,RZH124198908-199308

sub63343-26010

main63343-95J03iLH100,102,107,RZH100,101..CTM,SCM,SGL198908-199508

sub63343-26020

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-95J03iKZH11#,LH102,103,113,119..05S,08S,10S198908-200408

main63361-95J04iLH100,107,RZH100,101..CTM,SCM198908-199308

main63361-95J04iLH119..05S;LH113..V1..SRF..4D..06S..DX199103-199508

main63361-95J04iKZH11#..4FC199508-200108

main63361-95J05iKZH12#,LH120,125,184,186,RZH124,125198908-200501

main63361-95J06iLH178..08S198908-200408

main63363-95J02iLH102..SGL198908-199108

sub63361-95J03

63362SUPPORT, ROOF HEADLINING, NO.2

main63361-95J03iKZH11#,LH178..08S,10S198908-200408

main63362-95J02iLH125,RZH124198908-200501

main63362-95J03iKZH11#..4FC199508-200108

main63362-95J03iLH100,107,RZH100,101..CTM,SCM198908-199308

main63362-95J03iLH119..05S;LH113..V1..SRF..4D..06S..DX199103-199508

main63362-95J04iLH178..08S;LH102,103,107,113,119..SCMM,SGL198908-200108

63363SUPPORT, ROOF HEADLINING, NO.3

main63361-95J03iKZH11#,LH178..08S,10S198908-200408

main63363-95J00iLH125,RZH124198908-200501

main63363-95J01iKZH11#..4FC199508-200108

main63363-95J01iLH113..V1..SRF..4D..06S..DX;LH100,107,RZH100,101..CTM,SCM198908-199308

main63363-95J01iLH119..05S;LH113..V1..SRF..4D..06S..DX199103-199508

main63363-95J03iLH107..SCMM198908-199308

63364SUPPORT, ROOF HEADLINING, NO.4

main63361-95J03iLH119..SGL;LH178..08S;KZH11#,LH103,113..(05S,10S)..4FC198908-200408

main63363-95J01iLH113..V1..SRF..4D..06S..DX199005-199103

main63363-95J01iLH119..05S;LH113..V1..SRF..4D..06S..DX199103-199508

main63363-95J01iKZH11#199508-200108

main63363-95J03iLH100,107,RZH100,101..CTM,SCM198908-199308

main63364-95J01iKZH12#,LH120,125,184,186,RZH124,125198908-200501

main63364-95J02iLH107..SCMM198908-199308

63365SUPPORT, ROOF HEADLINING, NO.5

main63361-95J03iLH119..SGL;LH178..08S;KZH11#,LH103,113..(05S,10S)..4FC198908-200408

main63362-95J03iLH113..V1..SRF..4D..06S..DX199005-199103

main63362-95J03iKZH11#..4FC199508-200108

main63362-95J03iLH119..05S;LH113..V1..SRF..4D..06S..DX199103-199508

main63363-95J03iLH100,107,RZH100,101..CTM,SCM198908-199308

main63364-95J02iLH107..SCMM198908-199308

main63365-95J00iLH125,RZH124198908-200501

63366SUPPORT, ROOF HEADLINING, NO.6

main63361-95J03iKZH11#,LH178..08S,10S198908-200408

main63362-95J03iLH119..05S;LH113..V1..SRF..4D..06S..DX199103-199508

main63362-95J03iLH113..V1..SRF..4D..06S..DX199005-199103

main63362-95J03iKZH11#..4FC199508-200108

main63363-95J03iLH100,107,RZH100,101..CTM,SCM198908-199308

main63364-95J02iLH107..SCMM198908-199308

main63366-95J00iKZH12#,LH120,125,184,186,RZH124,125198908-200501

63367SUPPORT, ROOF HEADLINING, NO.7

main63361-95J03iLH119..SGL;LH178..08S;KZH11#,LH103,113..(05S,10S)..4FC198908-200408

main63363-95J03iLH100,107,RZH100,101..CTM,SCM198908-199308

main63366-95J00iKZH12#,LH120,125,184,186,RZH124,125198908-200501

63368SUPPORT, ROOF HEADLINING, NO.8

main63361-95J03iKZH11#,LH178..08S,10S198908-200408

main63363-95J01iLH100,107,RZH100,101..CTM,SCM198908-199308

main63366-95J00iLH125,RZH124198908-200501

63369SUPPORT, ROOF HEADLINING, NO.9

main63361-95J03iKZH11#,LH178..08S,10S198908-200408

main63362-95J03iLH100,107,RZH100,101..CTM,SCM198908-199308

main63366-95J00iKZH12#,LH120,125,184,186,RZH124,125198908-200501

63372CHOOK, ROOF HEADLINING SUPPORT

main63372-95J01iKZH12#,LH120,125,184,186,RZH124,125198908-200501

main63372-95J02iLH103..SGL198908-199808

main63372-95J03iKZH11#,LH119..05S,08S,10S;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL)198908-200408

main63372-95J04iLH107..SCMM198908-199308

9046804008

main90468-04008

9046804051

main90468-04051

9046804089

main90468-04089

9046804090

main90468-04090

9046804167

main90468-04167

9461310601

main94613-10601

27 parts on this diagram · 17 diagrams in section
