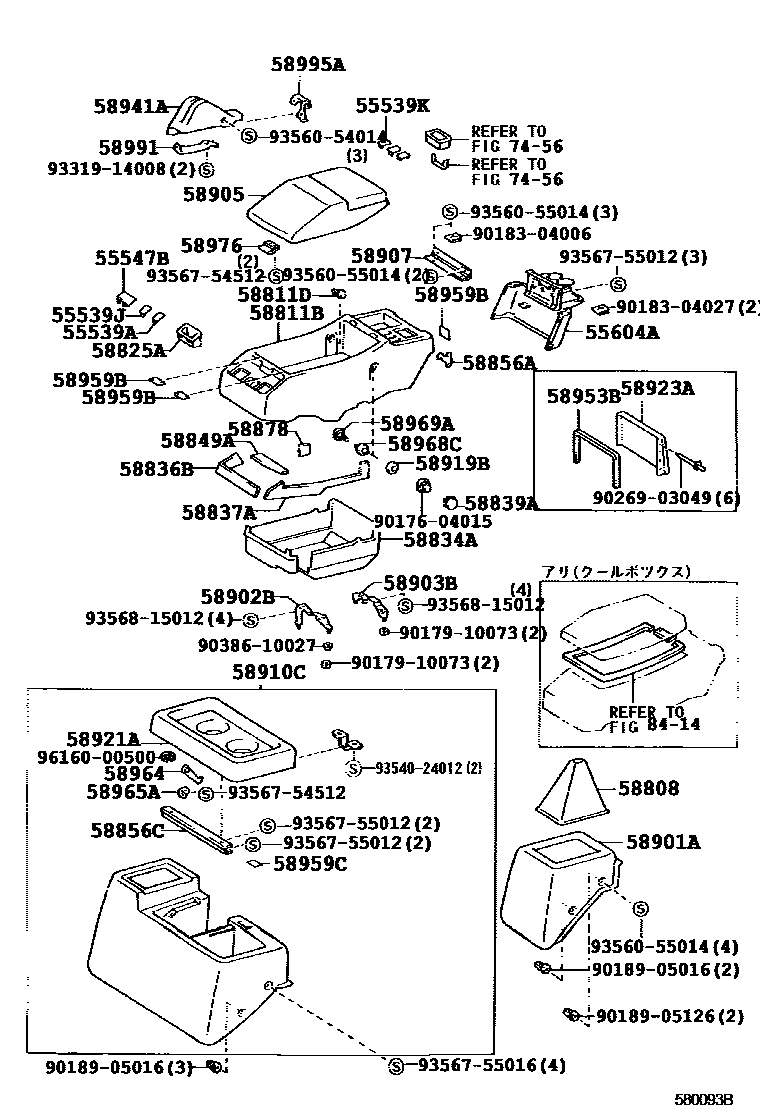

CONSOLE BOX & BRACKET

0001 1 0002 1�-����� ���� 0003 1��� ���-� 0004 1���-���-� ����� (TYPE B) 0005 1���-���-� ����� (TYPE A) 0006 1

55539ACOVER, SPARE SWITCH HOLE

main55539-32010-11iLH100,107,110,117,125,RZH100,101,110..(07S,10S,15S)..(DX,SCL)199205-199308

BLACK,TRIM3#

sub55539-32030

main55539-32010-B0iLH123,129..06S;LH103,11#,125..(05S,08S,15S)..(DX,SGL)199508-199608

BLUISH GRAY,TRIM1#

sub55539-32030

main55539-32010-C0iKZH13#199907-200008

sub55539-32030

main55539-32010-E2iKZH10#,11#,LH125,129,RZH100,101..(06S,07S,08S,10S,15S)..(DX,SCL,SCM,SCMM)199308-199401

ANTELOPE,TRIM4#

sub55539-32030

55539JCOVER, SPARE SWITCH HOLE

main55539-32010-11iLH110,117,120,125,RZH110..5F..(DX,GCGN)198908-199308

BLACK,TRIM3#

sub55539-32030

main55539-32010-B0iLH129;LH103,11#..SGL;KZH10#..08S..5F199308-199401

BLUISH GRAY,TRIM1#

sub55539-32030

main55539-32010-C0iLH103,11#..SGL199308-199508

BLACK,TRIM4#

sub55539-32030

main55539-32010-E2iLH129;KZH10#,11#,12#,LH125..(08S,10S,15S)..5F..(DX,GCGN,SCM,SCMM)199308-199401

ANTELOPE,TRIM4#

sub55539-32030

55539KCOVER, SPARE SWITCH HOLE

main55539-20030-23×3iLH129;LH119..05S;LH100,102,107,113,RZH100,101..05S,08S199205-199308

GRAY,TRIM1#

main55539-20030-32×3iLH100,107,110,117,120,125,RZH100,101,110..(08S,10S,15S)..(DX,GCGE,GCGN,SCM,SCMM)198908-199308

NEW MAROON,TRIM3#

main55539-20030-B1×2iKZH10#,RZH101..08S199608-199907

BLUISH GRAY,TRIM1#

main55539-20030-E2iKZH10#,11#,12#,LH125,RZH100,101..(07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM)199308-199408

ANTELOPE,TRIM4#

55547BCOVER, REMOTE CONTROL MIRROR HOLE

main55547-95J00iLH102,110,113,117,119,120,125,RZH110..(05S,08S,10S,15S)..(DX,SGL)198908-199205

main55547-95J00-C0iLH123,129..06S;KZH11#,LH103,11#,125,RZH111..(05S,08S,10S,15S)..(DX,SGL)199608-199808

BLACK,TRIM4#

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-26010-E0iKZH11#,12#199308-199508

ANTELOPE,TRIM4#

main55604-26020-B0iKZH10#,RZH100,101..08S199308-199907

main55604-26020-E0iKZH10#,RZH100,101..07S,08S199308-199907

main55604-26040iKZH10#,11#,12#,13#,LH162,17#,184,186,RZH10#,11#,133..(03S,05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)199808-199907

main55604-95J00-02iLH110,117,120,125,RZH110..DX,GCGE,GCGN198908-199308

NEW MAROON,TRIM3#

main55604-95J00-03iLH102,113,119..05S198908-199308

GRAY,TRIM1#

main55604-95J00-B0iLH123..06S;LH103,11#..05S199408-199508

BLUISH GRAY,TRIM1#

main55604-95J00-E0iLH123,125..(06S,15S)..DX199408-199508

ANTELOPE,TRIM4#

main55604-95J01-02iLH100,107,RZH100,101..07S,08S198908-199308

NEW MAROON,TRIM3#

main55604-95J01-03iLH100,107,RZH100,101..08S198908-199308

GRAY,TRIM1#

58808COVER SUB-ASSY, SHIFTING HOLE

main58840-26020-B0iKZH10#,11#..5F199608-199907

BLUISH GRAY,TRIM1#

main58840-26020-E0iKZH10#,12#..(08S,10S)..5F199308-199907

ANTELOPE,TRIM4#

main58840-95J03-02iLH100,107,110,117,120,RZH100,110..(08S,10S)..5F198908-199308

NEW MAROON,TRIM3#

main58840-95J03-03iLH119..5F..SGL;LH100,107,129,RZH100..(06S,08S)..5F199205-199308

GRAY,TRIM1#

main58840-95J03-B0iLH184,186..5F..DX199907-200108

main58840-95J03-E0iLH123..06S..5F199408-199508

main58840-95J04-02iLH115,125,RZH124198908-199308

NEW MAROON,TRIM3#

main58840-95J04-03iLH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(03S,06S,09S)..5F198908-199205

GRAY,TRIM1#

main58840-95J04-B0iKZH10#,LH10#,11#,123,RZH100,102,112..(03S,06S,09S)..5F199308-199508

BLUISH GRAY,TRIM1#

main58840-95J04-E0iLH113,123,125,RZH112,124..HRF..5F199308-199508

ANTELOPE,TRIM4#

main58840-95J06-03iLH102,113,RZH102,112..CD198908-199308

58811BBOX, CONSOLE

main58811-26020-B0iKZH10#,RZH100,101..08S199308-199508

BLUISH GRAY,TRIM1#

main58811-26020-E0iKZH10#,11#,12#,RZH100,101..07S,08S,10S199308-199508

ANTELOPE,TRIM4#

main58811-26030-B0iKZH10#,RZH100,101..08S199308-199608

main58811-26030-E0iKZH10#,RZH100,101..07S,08S199308-199608

main58811-26031-B0iKZH10#,RZH101..08S199608-199907

main58811-26031-E0iKZH10#,RZH101199608-199907

main58811-26040-B0iTRH112..SGL,SGLE;LH184,TRH124..5F..DX;KZH10#,11#,13#,LH162,17#,182,188,RZH10#,11#,183,TRH102,122..SG..(03S,05S,08S,10S)199907-200501

BLUISH GRAY,TRIM1#

main58811-26040-E0iKZH13#199907-200008

ANTELOPE,TRIM4#

main58811-95J04-02iLH123..4FC;LH115,125,RZH124199207-199308

main58811-95J04-03iLH100,102,109,110,113,119,123,129,140,RZH10#,112,122..03S,06S,09S198908-199205

GRAY,TRIM1#

main58811-95J04-B0iLH16#,17#,18#,RZH102,112,12#..CD,DX,GL199808-199907

main58811-95J04-E0iLH125,RZH124199308-199508

main58811-95J05-02iLH100,107,110,117,120,125,RZH100,101,110..(07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM)198908-199308

NEW MAROON,TRIM3#

main58811-95J05-03iLH119..05S;LH100,102,107,113,RZH100,101..05S,08S198908-199308

GRAY,TRIM1#

main58811-95J05-B0iLH123,129..06S;LH103,11#,125..(05S,15S)..(DX,SGL)199508-199808

BLUISH GRAY,TRIM1#

main58811-95J05-E0iLH123,125..(06S,15S)..DX199408-199508

ANTELOPE,TRIM4#

main58811-95J06-02iLH100,107,RZH100,101..SCL198908-199308

main58811-95J07-03iLH129;LH119..08S199205-199308

GRAY,TRIM1#

main58811-95J07-B0iLH119..08S199508-199808

BLUISH GRAY,TRIM1#

main58811-95J07-E0iLH129199308-199508

ANTELOPE,TRIM4#

58811DCLIP(FOR CONSOLE BOX)

main90467-11066-02×2iLH100,107,RZH100,101..SCL198908-199308

NEW MAROON,TRIM3#

main90467-11066-B0×2iKZH10#,RZH100,101..08S199308-199907

BLUISH GRAY,TRIM1#

main90467-11066-E0×2iKZH10#,RZH100,101..07S,08S199308-199907

ANTELOPE,TRIM4#

58825APOCKET, CONSOLE BOX

main55440-26050iLH186..DX;LH184..4FC199907-200108

main55441-26010iKZH10#,11#,13#,RZH101,111..DX,SCL,SCMM199508-199802

main58825-95J00iLH100,102,107,110,113,117,119,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,SCL,SCM,SCMM,SGL)198908-199205

58834ACOVER, CONSOLE, LOWER

main58834-26010iLH129;LH102,103,110,113,117,119,120,125,RZH110..(05S,08S,10S,15S)..(DX,GCGE,GCGN,SGL)199205-199408

main58834-26030iKZH10#,RZH100,101..07S,08S199308-199907

main58834-26050-B0iRZH102,112,183..05S199907-200308

main58834-26050-E0iKZH10#,12#,13#,RZH101199608-199907

main58834-95J00iLH100,102,107,110,113,119,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,SCL,SCM,SCMM,SGL)198908-199006

58836BPAD, CONSOLE BOX SILENCER, NO.1

main58836-26010iLH100,107,RZH100,101..SCL199009-199308

58837APAD, CONSOLE BOX SILENCER, NO.2

main58837-26010iLH100,107,RZH100,101..SCL199009-199308

58839ACOVER, CONSOLE BOX HOLE

main58839-95J00-02×2iLH100,107,110,117,120,125,RZH100,101,110..(07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM)198908-199308

NEW MAROON,TRIM3#

main58839-95J00-03×2iLH100,102,107,113,119,RZH100,101..05S,08S198908-199205

GRAY,TRIM1#

main58839-95J00-B0×2iLH186..DX;LH184..4FC199907-200108

BLUISH GRAY,TRIM1#

main58839-95J00-E0×2iKZH10#,12#,RZH101..07S,08S,10S199508-199608

ANTELOPE,TRIM4#

58849APAD, CONSOLE BOX SILENCER, NO.3

main58849-26010iLH100,107,RZH100,101..SCL199009-199308

58856AHOLDER, CONSOLE BOX

main58856-95J05×2iLH119..05S;LH100,102,107,110,113,117,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)198908-199308

58856CHOLDER, CONSOLE

main58856-95J04-02iLH100,107,110,117,120,RZH100,101,110..07S,08S,10S199001-199308

NEW MAROON,TRIM3#

main58856-95J04-03iLH100,102,107,113,119,RZH100,101..05S,08S199001-199205

GRAY,TRIM1#

main58856-95J04-B0iLH129;LH103,11#..SGL199308-199408

BLUISH GRAY,TRIM1#

main58856-95J04-C0iLH184,186..DX199907-200108

BLACK,TRIM1#

main58856-95J04-E0iKZH11#,LH129199308-199408

ANTELOPE,TRIM4#

58878PAD, CONSOLE BOX SILENCER, NO.4

main58878-26010iLH100,107,RZH100,101..SCL199009-199308

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-95J03-02iLH123..4FC199207-199308

NEW MAROON,TRIM3#

main58911-95J03-03iLH102,113..4FC..(DX,GL);LH100,119,123,RZH100,102,112..(05S,06S,09S)..4FC199103-199308

GRAY,TRIM1#

main58911-95J03-B0iLH103,113..4FC..(CD,DX,GL);KZH10#,LH119,123,RZH100,102,112..(05S,06S,09S)..4FC199308-199508

BLUISH GRAY,TRIM1#

main58911-95J03-E0iLH123..4FC199308-199508

ANTELOPE,TRIM4#

main58911-95J04-02iLH115,125,RZH124198908-199308

NEW MAROON,TRIM3#

main58911-95J04-03iLH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(03S,06S,09S)..5F198908-199103

GRAY,TRIM1#

main58911-95J04-B0iKZH10#,LH10#,11#,12#,16#,17#,18#,RZH102,112,124..5F..(CD,CTM,DX,GL)199508-199907

BLUISH GRAY,TRIM1#

main58911-95J04-E0iLH113,123,125,RZH112,124..HRF..5F199308-199508

ANTELOPE,TRIM4#

58902BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1

main58902-26010iLH184..5F..DX;TRH112..SGL,SGLE;KZH10#,11#,120,13#,LH162,17#,182,188,TRH102..SG..(03S,05S,07S,08S,10S)199907-200408

main58902-95J03iLH129;LH100,102,107,110,113,117,119,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)199205-199308

58903BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.2

main58903-26010iKZH10#,RZH101..07S,08S199508-199907

main58903-26020iRZH102,112,183..05S199907-200308

main58903-95J02iLH129;LH100,102,107,110,113,117,119,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)199205-199308

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-26010-E0iKZH10#,RZH101..SCL199308-199508

ANTELOPE,TRIM4#

main58905-26020-E0iKZH10#,RZH101..SCL199308-199508

main58905-26030-B0iKZH10#,RZH100,101..08S199308-199907

main58905-26030-E0iKZH10#,RZH100,101..08S199308-199907

main58905-26080-E0iKZH10#,RZH101..SCL199508-199608

main58905-26090-B0iKZH10#,11#,13#,LH162,17#,184,186,RZH10#,11#,133..(03S,05S,08S,10S,15S)..(DX,SCM,SCMM,SGL)199808-199907

BLUISH GRAY,TRIM1#

main58905-26090-E1iKZH10#,12#,RZH101..08S,10S199508-199608

ANTELOPE,TRIM4#

main58905-26100-E1iKZH10#,RZH101..SCL199508-199907

ANTELOPE,TRIM4#

main58905-26101-E2iKZH10#..SCL199907-200408

ANTELOPE,TRIM4#

main58905-26110-B0iKZH10#,RZH101..SCMM199608-199708

main58905-26110-E0iKZH10#,RZH101..SCMM199608-199708

main58905-26120-E0iKZH10#,RZH101..SCL199608-199907

main58905-95J03-02iLH100,107,110,117,120,125,RZH100,101,110..(08S,10S,15S)..(DX,GCGE,GCGN,SCM,SCMM)198908-199308

NEW MAROON,TRIM3#

main58905-95J03-03iLH100,102,107,113,119,RZH100,101..05S,08S198908-199205

GRAY,TRIM1#

main58905-95J03-B0iLH123,129..06S;LH103,11#,125..(05S,08S,15S)..(DX,SGL)199508-199808

BLUISH GRAY,TRIM1#

main58905-95J03-E0iKZH10#,11#,12#,LH125,129,RZH100,101..(06S,08S,10S,15S)..(DX,GCGE,GCGN,SCM,SCMM)199308-199408

ANTELOPE,TRIM4#

main58905-95J04-02iLH100,107,RZH100,101..SCL198908-199308

NEW MAROON,TRIM3#

main58905-95J05-02iLH100,107,RZH100,101..SCL198908-199308

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-95J04-02iLH100,107,110,117,120,125,RZH100,101,110..(07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM)198908-199308

NEW MAROON,TRIM3#

main58907-95J04-03iLH129;LH100,102,107,113,119,RZH100,101..05S,08S199205-199308

GRAY,TRIM1#

main58907-95J04-B0iLH129;KZH10#,LH103,11#,RZH100,101..05S,08S199308-199408

BLUISH GRAY,TRIM1#

main58907-95J04-E0iKZH10#,11#,12#,LH125,129,RZH100,101..(06S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM)199308-199408

ANTELOPE,TRIM4#

58910CBOX ASSY, CONSOLE, REAR

main58910-26060-B0iKZH10#..08S..5F199308-199608

BLUISH GRAY,TRIM1#

sub58910-26061

main58910-26060-E0iKZH10#,12#..(08S,10S)..5F199308-199907

ANTELOPE,TRIM4#

sub58910-26061

main58910-26070-B0iKZH10#,11#,13#,RZH101,111,133..4FC..(DX,SCM,SCMM)199808-199907

BLUISH GRAY,TRIM1#

main58910-26070-E0iKZH10#,120,RZH100,101..(07S,08S,10S)..4FC199308-199608

ANTELOPE,TRIM4#

main58910-26071-B0iKZH11#199911-200408

main58910-26071-E0iKZH13#199907-200008

ANTELOPE,TRIM4#

main58910-95J01-02iLH100,107,110,117,120,RZH100,101,110..07S,08S,10S198908-199308

NEW MAROON,TRIM3#

main58910-95J01-03iLH129;LH100,102,107,113,119,RZH100,101..05S,08S199205-199308

GRAY,TRIM1#

main58910-95J01-B0iLH123,129..06S;LH103,11#,162,17#,184,186,RZH102,112..(05S,08S,15S)..(DX,SGL)199608-199907

BLUISH GRAY,TRIM1#

main58910-95J01-E0iKZH11#,LH123,129..06S,10S199408-199508

ANTELOPE,TRIM4#

58919BPLATE, CONSOLE BOX

main58919-32030×2iKZH10#,11#,12#,13#,LH162,17#,184,186,RZH10#,11#,133..(03S,05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)199808-199907

main58919-95J01-02iLH115,125,RZH124198908-199207

NEW MAROON,TRIM3#

main58919-95J01-03iLH100,102,109,110,113,119,123,140,RZH100,102,112,122..03S,06S,09S199205-199308

GRAY,TRIM1#

main58919-95J01-B0iLH119..05S,06S,09S;KZH10#,LH10#,113,RZH100,102,112..(SMRF,SRF)..(03S,06S,09S)199308-199508

BLUISH GRAY,TRIM1#

main58919-95J01-E0iLH125,RZH124199308-199508

ANTELOPE,TRIM4#

58921APANEL, REAR CONSOLE, UPPER

main58905-95J06iLH100,RZH100,101..SCL..(EFI,TD)198908-199308

main58921-26010-B0iKZH10#,13#,RZH101,111,133..DX,SCM,SCMM199808-199907

BLUISH GRAY,TRIM1#

main58921-26010-E0iKZH10#,120199907-200408

ANTELOPE,TRIM4#

main58921-95J00-02iLH100,107,110,117,120,RZH100,101,110..07S,08S,10S198908-199308

NEW MAROON,TRIM3#

main58921-95J00-03iLH129;LH100,102,107,113,119,RZH100,101..05S,08S199205-199308

GRAY,TRIM1#

main58921-95J00-B0iRZH111199907-200208

BLUISH GRAY,TRIM1#

main58921-95J00-E0iKZH11#,LH129199308-199408

ANTELOPE,TRIM4#

58923APANEL, CONSOLE REAR END

main58923-95J00iLH119..08S198908-199205

58941ACOVER, PARKING BRAKE HOLE

main58904-26020-B0iKZH10#,11#,13#,RZH101,111,133..CTM,DX,SCM,SCMM199508-199808

BLUISH GRAY,TRIM1#

main58904-26020-E0iKZH10#,12#,RZH101..07S,08S,10S199508-199608

ANTELOPE,TRIM4#

main58904-95J02-02iLH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S199207-199308

NEW MAROON,TRIM3#

main58904-95J02-03iLH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S198908-199201

GRAY,TRIM1#

main58904-95J02-B0iLH10#,11#,12#,RZH102,112,124199508-199808

BLUISH GRAY,TRIM1#

main58904-95J02-E0iLH113,12#,RZH112,124..HRF199308-199508

ANTELOPE,TRIM4#

58953BPACKING, BOX PANEL

main58953-95J02iLH119..08S198908-199205

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-95J00×4iLH100,102,107,110,113,119,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,SCL,SCM,SCMM,SGL)198908-199001

58959CCUSHION, CONSOLE COMPARTMENT DOOR

main58959-26010×2iLH123,129..06S;KZH10#,11#,13#,LH103,11#,125,RZH101,111..(03S,05S,07S,08S,10S,15S)..(DX,SCL,SCM,SCMM,SGL)199508-199608

main58959-95J00×2iLH100,102,107,110,113,119,120,RZH100,101,110..05S,07S,08S,10S198908-199010

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-20020iLH100,102,107,110,113,117,119,120,RZH100,101,110..05S,07S,08S,10S198908-199205

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-95J06iRZH102,112,183..05S199907-200308

58968CSHIM, CONSOLE COMPARTMENT DOOR STOPPER

main58968-26010×2iTRH124..5F;TRH122..SGLE199907-200501

main58968-32020×2iLH123,129..06S;KZH10#,11#,12#,LH103,11#,125,RZH100,101..(05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)199408-199508

58969ARETAINER, CONSOLE COMPARTMENT DOOR STOPPER

main58969-20010×2iLH186..DX;LH184..4FC199907-200108

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-20020iKZH10#,11#,12#,LH129..06S,07S,08S,10S;LH100,102,103,107,110,113,117,119,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)199205-199408

main58976-22020iLH100,102,107,110,113,117,119,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,SCL,SCM,SCMM,SGL)198908-199205

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-95J03iLH10#,11#,12#,140,RZH10#,11#,12#198908-199201

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-95J02iLH10#,11#,12#,140,RZH10#,11#,12#198908-199201

7456

8414

9017604015

main90176-04015

9017910073

main90179-10073

9018304006

main90183-04006

9018304027

main90183-04027

9018905016

main90189-05016

9018905126

main90189-05126

9026903049

main90269-03049

9038610027

main90386-10027

9331914008

main93319-14008

9356054014

main93560-54014

9356055014

main93560-55014

9356754512

main93567-54512

9356755012

main93567-55012

9356755016

main93567-55016

9356815012

main93568-15012

9616000500

main96160-00500

55 parts on this diagram · 6 diagrams in section
