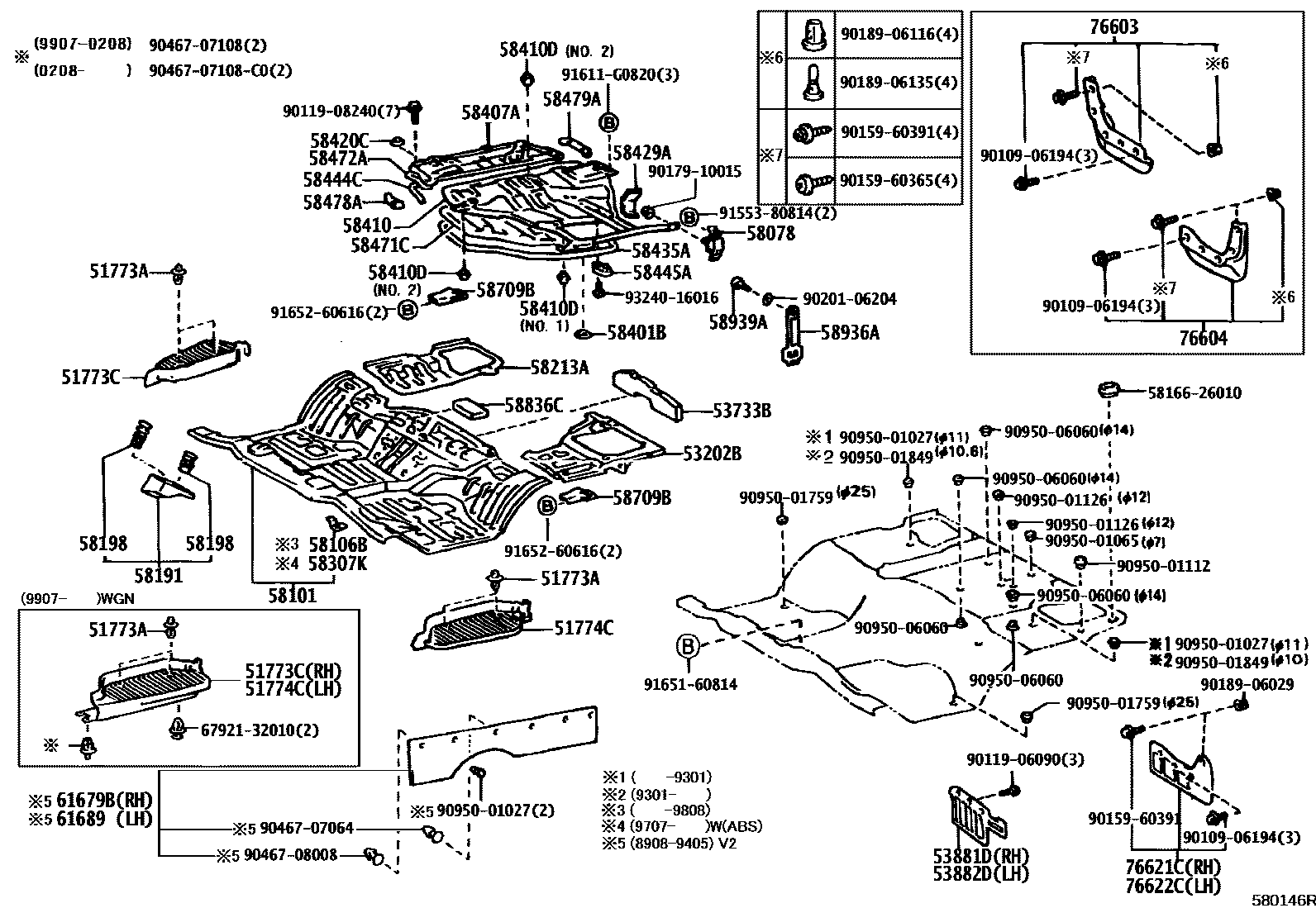

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1

51773ACLIP, STEP PLATE COVER

main90467-07041-C0×4iLH184,186..DX; RZH102,112..SGL199907-200108

BLACK,058 ,1A5 ,2BY ,6L1 ,6P2; BLACK,058 ,2BZ ,6L1 ,6P2

main90467-09013×4iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

51773CCOVER, STEP PLATE, RH

main51773-26010-A0iKZH11#; KZH120,13#,RZH111199907-200408

main51773-26010-B0iKZH10#,11#,RZH101..08S,10S199907-200408

main51773-26010-B1iKZH10#,11#,120,13#,RZH101..03S,08S,10S199907-200408

main51773-26010-C0iKZH10#,RZH101..08S; KZH10#,RZH101..SCL; KZH11#; KZH120; KZH13#199907-200408

main51773-26010-E0iKZH10#,RZH101..SCL199907-200408

BEIGE M.M.,2GC

main51773-26010-G0iKZH10#,11#,13#,RZH101..DX,SCM,SCMM199907-200408

main51773-26010-G1iKZH10#,11#,RZH101..08S,10S199907-200408

main51773-26010-G2iKZH10#,11#,13#,RZH101..DX,SCM,SCMM199907-200408

main51773-26010-K0iKZH10#,11#,120,13#,RZH101199907-200408

main51773-95J01iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

51774CCOVER, STEP PLATE, LH

main51774-26010-A0iKZH11#; KZH120,13#,RZH111199907-200408

main51774-26010-B0iKZH10#,11#,RZH101..08S,10S199907-200408

main51774-26010-B1iKZH10#,11#,120,13#,RZH101..03S,08S,10S199907-200408

main51774-26010-C0iKZH10#,RZH101..08S; KZH10#,RZH101..SCL; KZH11#; KZH120; KZH13#199907-200408

main51774-26010-E0iKZH10#,RZH101..SCMM199907

main51774-26010-G0iKZH10#,11#,13#,RZH101..DX,SCM,SCMM199907-200408

main51774-26010-G1iKZH10#,11#,RZH101..08S,10S199907-200408

main51774-26010-G2iKZH10#,11#,13#,RZH101..DX,SCM,SCMM199907-200408

main51774-26010-K0iKZH10#,11#,120,13#,RZH101199907-200408

main51774-95J01iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

53202BPANEL SUB-ASSY, SEAT FLOOR, LH

main58202-26040iRZH112..SRF;KZH10#,11#,120,13#,RZH10#,111199907-200006

main58202-95J00iKZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133198908-199808

main58202-95J01iRZH112..SRF;KZH10#,11#,12#,13#,RZH10#,111,133199808-199907

53733BSHUTTER, HOT AIR SIDE, A RH

main53733-26010iKZH10#,11#,120,13#,LH100,107,120,RZH100,101,111,133..4FC199010-199808

53881DMUDGUARD, FRONT RH

main53881-95J02iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#199907-200501

53882DMUDGUARD, FRONT LH

main53881-95J02iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

main88415-95J01iLH100,107,RZH101..08S198908-198911

58078BALANCER SUB-ASSY, ENGINE SERVICE HOLE COVER

main58078-26010iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#200205-200501

main58078-95J04iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

58101PAN SUB-ASSY, FRONT FLOOR

main58101-26010iLH117199010-199205

main58101-26011iLH129199308-199508

main58101-26020iLH107..SCL199010-199308

main58101-26040iLH100,RZH100..4FC..CTM199010-199308

main58101-26041iKZH10#,RZH100,101,133..4FC..(CTM,DX)199308-199705

main58101-26043iRZH133199705-199808

main58101-26050iLH100,RZH100,101..08S..4FC199010-199308

main58101-26051iKZH120..4FC199308-199608

main58101-26060iLH120..4FC199010-199205

main58101-26070iLH100,120,RZH100,101..(07S,08S,10S)..4FC199010-199308

main58101-26071iKZH10#,RZH100,101..(07S,08S)..4FC199308-199508

main58101-26080iLH107..08S..4FC199010-199308

main58101-26090iLH107..4FC199010-199308

main58101-26100iLH100,RZH100,101..SCL199010-199308

main58101-26110iLH100,102,110,113,115,123,125,140,RZH100,102,112,12#..(03S,06S,09S,15S)..(CD,DX,SW)199205-199308

main58101-26111iLH103,113,123,125,RZH102,112,124..CD,DX199308-199508

main58101-26180iLH103,113,125,RZH102,112..GL; LH123..06S;LH113..V1..SRF..4D..06S..DX199308-199508

main58101-26190iLH123,129..06S199508-199608

main58101-26200iLH109,119..DX199308-199508

main58101-26210iLH109,119..GL; LH119..05S199308-199508

main58101-26220iLH119..SGL; LH129199308-199508

main58101-26290iKZH100,RZH100..DX199308-199508

main58101-26300iKZH10#,RZH100..5F..CTM199308-199608

main58101-26310iKZH10#..08S..5F199308-199508

main58101-26320iKZH11#..5F199308-199608

main58101-26321iKZH11#..5F199608-199808

main58101-26330iKZH12#..5F199308-199608

main58101-26340iKZH12#..5F199308-199608

main58101-26350iKZH11#,13#..4FC; KZH120199608-199808

main58101-26351iKZH120,13#199907-200408

main58101-26360iKZH10#..08S..5F199308-199508

main58101-26370iKZH10#,RZH101..07S,08S199508-199808

main58101-26371iKZH10#,RZH101199907-200408

main58101-26760iKZH11#,RZH111..4FC199508-199608

main58101-26761iKZH11#,RZH111..4FC199608-199808

main58101-26762iKZH11#199911-200408

main58101-26770iKZH11#..4FC; KZH13#199508-199608

main58101-26A10iTRH102,112..SRF..(CD,DX)200308-200408

main58101-26A30iTRH102,112..SRF..(CD,DX)200308-200408

main58101-26A40iTRH124..GL200308-200501

main58101-26A50iTRH122..SGLE200308-200501

main58101-26A60iTRH124..GL200308-200501

main58101-26A70iTRH102,112..SGL200308-200408

main58101-26A80iTRH112,12#..HRF..DX200308-200501

main58101-26A90iTRH102,112..SGLE200308-200408

main58101-2F430iLH16#,17#,RZH102,112..SRF..(CD,DX)199808-199907

main58101-2F460iLH168,178..CD,DX199808-199907

main58101-2F470iLH16#,17#,RZH102,112..SRF..(CD,DX); LH172,18#,RZH112,12#..HRF..DX199808-199907

main58101-2F480iLH184,186,RZH125..GL199907-200408

main58101-2F490iLH184,186..DX199808-199907

main58101-2F520iLH184,186,RZH125..GL199907-200408

main58101-2F530iLH162,17#,RZH102,112..SGL; LH184,186..DX199808-199907

main58101-2F660iLH172,18#,RZH112,12#..HRF..DX199808-199907

main58101-2F680iKZH11#,RZH111199907-200408

main58101-2F690iKZH11#199907-199911

main58101-2F870iLH178..SGLE200108-200408

main58101-2F890iLH162,17#,RZH102,112..SGLE200108-200408

main58101-95J49iLH100,102,110,113,115,123,125,140,RZH100,102,112,12#..(03S,06S,09S,15S)..(CD,DX,SW)198908-199205

main58101-95J50iLH113..5D..GL;LH113..V1..SRF..4D..06S;LH113,RZH100..09S..5F..(CTM,GL);LH100,102,125,RZH102,112..(CTM,GL)..(CBR,DSL); LH113..V1..SRF..4D..06S..DX199010-199308

main58101-95J51iLH110,RZH110..DX; LH120..5F..DX198908-199308

main58101-95J52iLH100,102,113,RZH100,101..05S,08S198908-199010

main58101-95J53iLH109,119,129..DX198908-199205

main58101-95J54iLH119..05S199103-199308

main58101-95J55iLH107,119..05S,08S198908-199010

main58101-95J58iLH120..5F199010-199205

main58101-95J60iLH107198908-199010

main58101-95J62iLH100,RZH100,101..SCL198908-199010

58106BBRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2

main58106-95A00iLH10#,11#,12#,RZH102,112,124199308-199808

58191FOOTREST, FRONT FLOOR

main58191-95J02iTRH12#..GL,SGLE199907-200501

58198CLIP, FOOTREST

main58198-20030iLH120;LH10#,113,119,125,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL198908-199005

main58198-95J00iLH123..06S;KZH11#,LH162,172..(05S,10S)..4FC;KZH10#,12#,13#,LH129,184,186,RZH101,133;LH10#,11#,125,178,RZH102,112,125..GL,SGL199508-199907

58213APANEL, SEAT FLOOR, RH

main58201-26030iKZH10#,RZH101199907-200408

main58201-26040iKZH10#,RZH100,101..07S,08S199308-199907

main58201-26110iTRH102,112,12#200308-200501

main58201-95J01iKZH11#; LH10#,11#,RZH100,102,112..CTM,DX,GL,SGL;KZH10#,12#,LH12#,RZH124..(HRF,SMRF)..(06S,09S,10S,15S); LH123,129..06S;LH113..V1..SRF..4D..06S..DX199308-199508

main58201-95J02iLH100,107,RZH100,101..SCL198908-199308

main58201-95J03iLH102..4D..(CD,DX);LH102,113..V2..5D..DX;LH113..V1..5D..5F..GL;LH113..4D..06S..5F..DX;LH102..5D..5F..(CD,GL);LH113..(03S,05S,09S)..(CD,DX,SGL);LH100,109,110,115,117,119,12#,140,RZH100,102,112,12#..CD,DX,SW198908-199308

58307KBRACKET SUB-ASSY, BRAKE TUBE CONN, NO.1

main58307-95701iTRH124;KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,122..CD,DX,GCGE,GCGN,SCL,SCM,SCMM,SGL,SGLE199907-200501

58401BCLIP(FOR DECK BOARD NO.1)

main90467-09103×5iLH10#,11#,12#,140,RZH10#,11#,12#198908-199211

main90467-09123×8iKZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133199211-199608

main90904-67033×7iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#199909-200408

58407ACOVER SUB-ASSY, ENGINE SERVICE HOLE SUB

main58407-26050iLH16#,17#,18#,RZH102,112,12#,18#199907-200408

main58407-26060iKZH10#,RZH101..SCL199308-199907

main58407-26110iKZH10#,11#,120,13#,RZH101,111..03S,08S,10S199907-200408

main58407-26120iKZH10#,RZH101..SCL199907-200408

main58407-26130iTRH102,112,12#200308-200501

main58407-95J09iLH10#,11#,12#,RZH102,112,124199308-199808

58410COVER, ENGINE SERVICE HOLE

main59208-26010iLH100,RZH100..CTM199010-199308

main59208-26011iLH16#,17#,18#,RZH102,112,12#..CD,DX,GL199808-199907

main59208-26020iLH100,120..07S,08S,10S199010-199308

main59208-26021iKZH10#,11#,12#,13#,RZH100,101,111..03S,07S,08S,10S199308-199808

main59208-26100iLH162,17#,RZH102,112..SGL; LH184..5F..DX; LH186..DX;LH184..4FC199808-199907

main59208-26110iKZH10#,11#,120,13#,RZH101,111199907-200408

main59208-26120iLH162,172..V1..5D..5F200108-200408

main59208-95J14iLH125..DX198908-199808

main59208-95J17iLH103,11#..SGL; LH123,129..06S199408-199808

main59208-95J20iLH100,102,109,113,115,119,123,125,129,RZH10#,112,12#..CD,CTM,DX,GL198908-199010

58410DCUSHION, NO.1

main90541-09028iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

main90541-09126×2iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#199907-200501

58420CCLIP, ENGINE SERVICE HOLE COVER

main90467-09123×4iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#199907-199909

main90904-67033×4iTRH102,112,12#200309-200501

58429APROTECTOR, ENGINE MAIN COVER HINGE

main58429-26010-B0iRZH111199907-200208

BLUISH GRAY,TRIM1#

main58429-26010-C0iKZH100,LH10#,11#,RZH100,102,112..SRF; KZH11#,LH125,RZH124; LH113,123,129,RZH112..HRF199308-199506

BLACK,TRIM1#; BLACK,TRIM1#,4#; BLACK,TRIM4#

main58429-26010-E0iKZH13#199907-200008

ANTELOPE,TRIM4#

main58429-95J02-02iLH123..4FC;LH110,115,117,120,125,RZH110,124..10S,15S199207-199308

NEW MAROON,TRIM3#

main58429-95J02-03iLH100,102,109,110,113,119,123,129,140,RZH10#,112,122..(03S,05S,06S,08S,09S)..(CD,CTM,DX,GL,SGL,SW)198908-199308

GRAY,TRIM1#

58435APACKING, ENGINE MAIN COVER

main58435-95J02iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

58444CPACKING, ENGINE SUB COVER, NO.1

main58444-95J01iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

58445ACUSHION, ENGINE SERVICE HOLE COVER

main58445-95400iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

58471CSILENCER, ENGINE MAIN COVER

main58471-26010iRZH100..CTM;LH100,120..HRF,MRF,SMRF199010-199308

main58471-26011iKZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133199808-199907

main58471-26030iLH162,172..V1..5D..5F200108-200408

main58471-95J09iLH10#,11#,12#,RZH102,112,124199308-199808

58472ASILENCER, ENGINE SUB COVER

main58472-26020iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#199907-200408

main58472-26030iTRH102,112,12#200309-200501

main58472-95J03iLH10#,11#,12#,140,RZH10#,11#,12#198908-199308

58478APACKING, ENGINE SUB COVER, NO.2

main58478-95J01iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

58479APACKING, ENGINE SUB COVER, NO.3

main58479-95J02iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

58709BCATCH SUB-ASSY, ENGINE SERVICE COVER

main58709-26010iKZH10#,11#,12#,13#,RZH100,101,111..03S,07S,08S,10S199308-199907

main58709-95J01iKZH10#,LH100,102,103,109,110,113,115,119,123,125,140,RZH100,102,112,12#..03S,06S,09S,15S199205-199508

main58709-95J02iLH103,11#,162,17#,RZH102,112..SGL; LH184..4FC;LH123,129,186..(06S,15S)..DX199408-199907

main71902-95J01iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#199907-200501

58836CPAD, CONSOLE BOX SILENCER, NO.1

main58836-26030iLH100..TDE;KZH10#,11#..CTM,DX199010-199311

58936ABAND, ENGINE SERVICE HOLE COVER SUPPORT

main58936-95J01-02iLH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S199207-199212

NEW MAROON,TRIM3#

main58936-95J01-03iLH119..05S,06S,09S;LH10#,110,113,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S198908-199212

GRAY,TRIM1#

main58936-95J01-C0iKZH10#,11#,12#,LH125,RZH101,124..07S,10S,15S; KZH10#,LH10#,11#,RZH100,102,112..(SMRF,SRF)..(03S,05S,06S,09S); KZH10#,LH113,123,129,RZH100,101,112..(HRF,MRF,SMRF)..(DX,SCM,SCMM)199308-199508

BLACK,TRIM1#; BLACK,TRIM1#,4#; BLACK,TRIM4#

main58936-95J02-03iLH119..08S198908-199301

GRAY,TRIM1#

main58936-95J02-C0iLH184,186,RZH125,TRH124..GL;KZH11#,LH178,RZH111..08S,10S199907-200501

BLACK,TRIM1#

58939ASCREW, ENGINE SERVICE HOLE COVER SUPPORT BAND

main58939-95J00iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

main90149-60112iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#200001-200501

61679BSEAL, QUARTER WHEEL HOUSE

main61679-95J01iLH102,103,113,RZH112..V2198908-199405

61689SEAL, QUARTER WHEEL HOUSE, LH

main61689-95J01iLH102,103,113,RZH112..V2198908-199405

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-29185iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S198908-199907

main76603-29195iLH100,107,RZH100,101..SCL199010-199308

main76603-29215iLH100,107,RZH100,101..SCL199010-199308

main76603-29305iLH100,107,RZH101..4FC..SCMM199210-199211

main76603-29315iLH100,107,RZH101..4FC..SCMM199304-199307

21X

main76603-29415-B0iKZH10#,RZH101..SCL199508-199907

LT.GRAIGE ME,2AX

main76603-29415-E0iKZH10#,RZH101..4FC..SCMM199508-199607

main76603-29415-E1iKZH10#,RZH101..SCL199308-199508

LI.BEIGE ME,27W

main76603-29415-E2iKZH10#,RZH101..4FC..SCMM199808-199907

main76603-29415-E3iKZH10#,RZH101..SCMM199907

main76603-29415-H0iKZH10#,RZH101..SCMM199608-199708

DK.TEAL GREEN MC.,2AY

main76603-29415-K0iKZH10#,RZH101..SCL199907-200408

GRAYISH PURPLE ME.,2BY

main76603-29425iKZH10#,RZH101..4FC..SCMM199409-199412

main76603-29435iKZH10#,RZH101..4FC..SCMM199701-199808

main76603-29445iKZH10#,RZH101..4FC..SCMM199608-199907

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-29185iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#..03S,05S,06S,08S,09S,10S,15S199907-200501

main76604-29195iLH100,107,RZH100,101..SCL199010-199308

main76604-29215iLH100,107,RZH100,101..SCL199010-199308

main76604-29305iLH100,107,RZH101..4FC..SCMM199210-199211

main76604-29315iLH100,107,RZH101..4FC..SCMM199304-199307

21X

main76604-29415-B0iKZH10#,RZH101..SCL199508-199907

LT.GRAIGE ME,2AX

main76604-29415-E0iKZH10#,RZH101..SCL199308-199608

RE.BROWN ME,21T

main76604-29415-E1iKZH10#,RZH101..SCL199308-199508

LI.BEIGE ME,27W

main76604-29415-E2iKZH10#,RZH101..4FC..SCMM199808-199907

main76604-29415-E3iKZH10#,RZH101..SCMM199907

main76604-29415-H0iKZH10#,RZH101..SCMM199608-199708

DK.TEAL GREEN MC.,2AY

main76604-29415-K0iKZH10#,RZH101..SCL199708-199907

GRAYISH PURPLE ME.,2BY

main76604-29425iKZH10#,RZH101..4FC..SCMM199409-199412

main76604-29435iKZH10#,RZH101..4FC..SCMM199701-199808

main76604-29445iKZH10#,RZH101..SCMM199907

76621CMUDGUAD, FRONT FENDER, RH

main76621-29085iKZH11#,13#,LH10#,11#,12#,16#,17#,18#,RZH102,11#,12#,133199608-199907

76622CMUDGUARD, FRONT FENDER, LH

main76622-29085iLH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GL,SGL,SW198908-199205

5816626010COVER, FRONT FLOOR, LH

main58166-26010

6792132010RETAINER, FRONT DOOR SCUFF PLATE

main67921-32010

9010906194

main90109-06194

9011906090

main90119-06090

9011908240

main90119-08240

9015960365

main90159-60365

9015960391

main90159-60391

9017910015

main90179-10015

9018906029

main90189-06029

9018906116

main90189-06116

9018906135

main90189-06135

9020106204

main90201-06204

9046707064

main90467-07064

9046707108

main90467-07108

9046707108C0

main90467-07108C0

9046708008

main90467-08008

9095001027

main90950-01027

9095001065

main90950-01065

9095001112

main90950-01112

9095001126

main90950-01126

9095001759

main90950-01759

9095001849

main90950-01849

9095006060

main90950-06060

9155380814

main91553-80814

91611G0820

main91611-G0820

9165160814

main91651-60814

9165260616

main91652-60616

9324016016

main93240-16016

65 parts on this diagram · 4 diagrams in section
