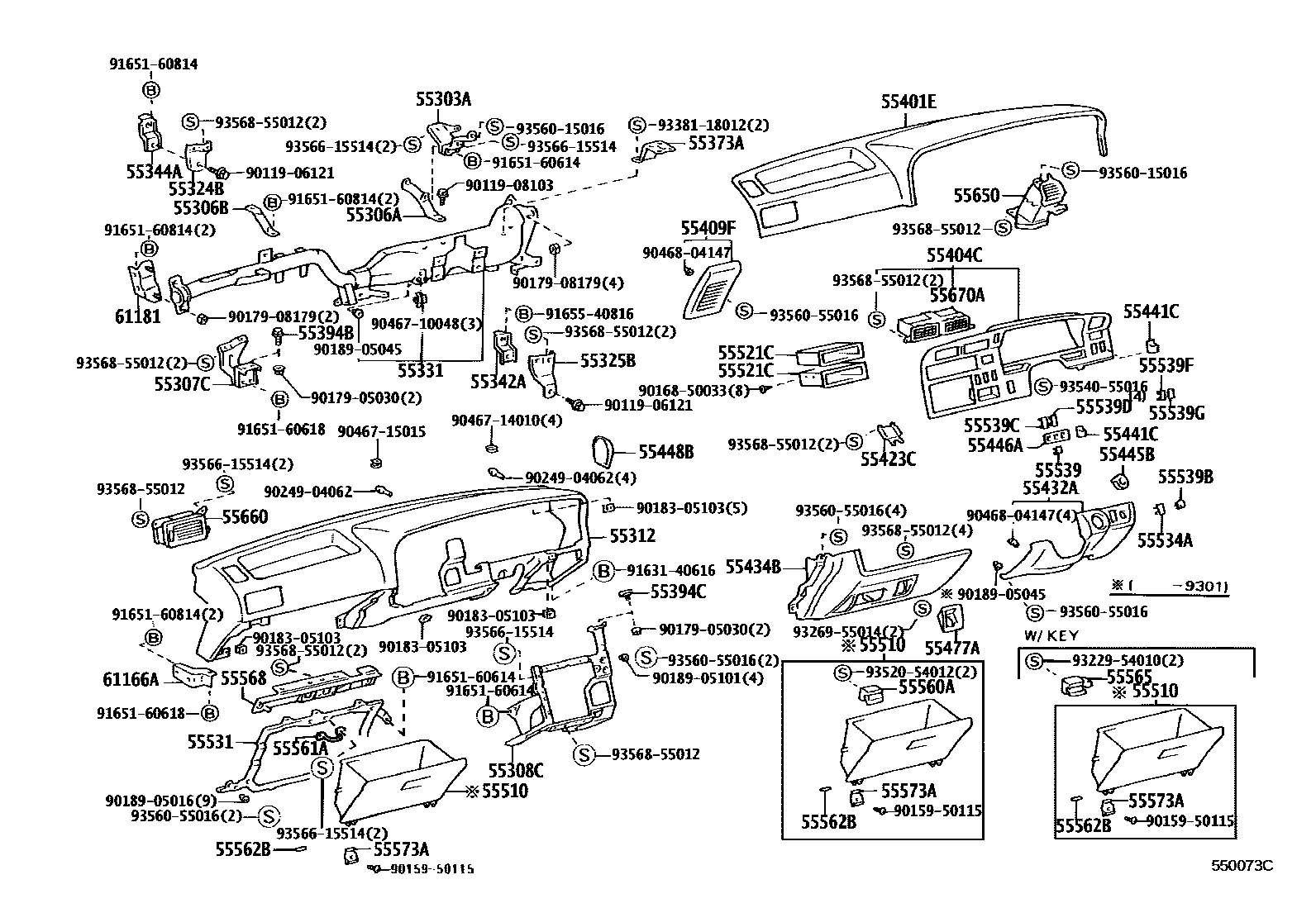

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0005 1 0007 1KZH11#,RZH111;������� �������0009 1 0010 1 0011 1 0012 1 0013 1

55303ASTAY SUB-ASSY, INSTRUMENT PANEL

main55303-26010iKZH10#,12#,RZH100,101..HRF,MRF,SMRF199308-199608

main55303-95J04iLH110,120198908-198910

main55303-95J05iLH16#,17#,18#,RZH102,112,12#199808-199907

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-95J01iTRH12#199907-200501

55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL

main55306-26060iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#199907-200501

main55306-95J02iLH125..DX;LH102,109,110,113,115,119,123,129,RZH102,112,12#..CD,DX,GL,SGL198908-199205

main55306-95J03iLH117,120,RZH110;LH100,107,110,140,RZH100,101..06S,07S,08S,09S198908-199201

main55341-26010iKZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133199508-199907

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-95J04iLH110,120198908-198910

main55307-95J05iLH16#,17#,18#,RZH102,112,12#199808-199907

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-26020iLH10#,11#,12#,RZH102,112,124,133199608-199808

main55308-26021iLH16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#199907-200501

main55308-26031iKZH10#,11#,120,13#,RZH101,111199907-200408

main55308-26040iKZH10#,12#,RZH100,101..07S,08S,10S199308-199508

main55308-26041iKZH10#,12#,RZH101..07S,08S,10S199508-199608

main55308-26050iKZH10#,11#,12#,13#,RZH101,111,133199905-199907

main55308-95J01iLH10#,11#,12#,140,RZH10#,11#,12#198908-199308

55312PANEL, INSTRUMENT, LOWER

main55312-26020iLH100,107,RZH101..4FC..SCMM199210-199211

main55312-26030-E0iKZH10#,RZH101..4FC..SCMM199508-199607

main55312-26040-B0iKZH10#,11#,RZH101,111..DX,SCM; KZH13#199608-199901

main55312-26040-E0iKZH10#,12#,RZH101..HRF,SMRF; KZH13#199608-199901

main55312-26041-B0iKZH10#,11#,RZH101,111..DX,SCM; KZH13#,RZH133199901-199905

main55312-26041-E0iKZH10#,12#,13#,RZH101..HRF,SMRF199901-199905

ANTELOPE,TRIM4#

main55312-26042-B0iKZH11#199911-200408

main55312-26042-E0iKZH10#,120,RZH101..HRF,SMRF199907-200408

ANTELOPE,TRIM4#

main55312-26050-B0iKZH10#,RZH101..SCMM199608-199901

BLUISH GRAY,TRIM1#

main55312-26050-E0iKZH10#,RZH101..SCMM199608-199901

ANTELOPE,TRIM4#

main55312-26051-B0iKZH10#,RZH101..SCMM199901-199905

BLUISH GRAY,TRIM1#

main55312-26051-E0iKZH10#,RZH101..SCMM199901-199905

ANTELOPE,TRIM4#

main55312-26052-B0iKZH10#,RZH101..SCMM199905-199907

BLUISH GRAY,TRIM1#

main55312-26052-E0iKZH10#,RZH101..SCMM199907-200408

ANTELOPE,TRIM4#

main55312-26060-E0iKZH10#,RZH101..SCL199608-199901

ANTELOPE,TRIM4#

main55312-26061-E0iKZH10#,RZH101..SCL199901-199905

ANTELOPE,TRIM4#

main55312-26062-E0iKZH10#,RZH101..SCL199907-200408

ANTELOPE,TRIM4#

main55312-26070-B0iLH16#,17#,18#,RZH102,112,12#199808-199901

main55312-26071-B0iLH16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#199907-200501

main55312-26090-B0iKZH110;KZH116..4FC; KZH13#,RZH133199901-199905

main55312-26091-B0iKZH110;KZH116..4FC; KZH13#,RZH133199905-199907

main55312-26100-B0iKZH11#,RZH111199907-200408

BLUISH GRAY,TRIM1#

main55312-26110-B0iLH16#,17#,18#,RZH102,112,12#199901-199907

BLUISH GRAY,TRIM1#

main55312-26120-B0iKZH11#199907-200408

main55312-95J09-02iLH123..4FC;LH110,115,117,125,RZH110,124..DX,GL199207-199308

NEW MAROON,TRIM3#

main55312-95J09-03iLH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S)198908-199308

GRAY,TRIM1#

main55312-95J09-B0iLH16#,17#,18#,RZH102,112,12#199808-199901

BLUISH GRAY,TRIM1#

main55312-95J09-E0iLH113,RZH112..HRF;KZH11#,LH12#,RZH124199308-199508

ANTELOPE,TRIM4#

main55312-95J10-02iLH100,107,120,RZH100,101..GCGE,GCGN,SCM,SCMM198908-199308

NEW MAROON,TRIM3#

main55312-95J10-03iLH119..05S;LH113..V1..SRF..4D..06S..DX199103-199308

main55312-95J10-B0iKZH10#,RZH100,101..(MRF,SMRF)..(08S,09S)199308-199608

BLUISH GRAY,TRIM1#

main55312-95J10-E0iKZH10#,12#,RZH100,101..08S,10S199308-199608

ANTELOPE,TRIM4#

main55312-95J11-02iLH100,107,RZH100,101..SCL198908-199308

NEW MAROON,TRIM3#

main55312-95J11-E0iKZH10#,RZH101..SCL199308-199608

ANTELOPE,TRIM4#

55324BBRACKET, INSTRUMENT PANEL, NO.4

main55324-95J03iRZH101199907-200208

55325BBRACKET, INSTRUMENT PANEL, NO.5

main55325-95J03iLH110;LH100,107,120,RZH100,101..HRF,MRF,SMRF198908-198910

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-26030iKZH10#,12#,RZH100,101..07S,08S,10S199308-199508

main55330-26031iKZH10#,12#,RZH101..07S,08S,10S199508-199608

main55330-26032iKZH10#,11#,12#,13#,RZH101,111,133199808-199907

main55330-26040iKZH10#,11#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GL,SGL199308-199508

main55330-26041iLH16#,17#,18#,RZH102,112,12#..CD,DX,GL199808-199907

main55330-26042iLH16#,17#,18#,RZH102,112,12#,18#..CD,DX,GL,SGLE199907-200208

main55330-26043iLH16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#..CD,DX,GL,SGLE200208-200501

main55330-26140iLH16#,17#,18#,RZH102,112,12#199808-199907

main55330-26141iLH16#,17#,18#,RZH102,112,12#,18#199907-200208

main55330-26142iLH16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#200208-200501

main55330-26160iKZH11#199911-200408

main55330-26171iKZH11#,RZH111199907-200408

main55330-95J01iLH100,107,110,120,RZH100,101,110;LH102,109,113,119,125,RZH102,112..GL,SGL198908-199005

main55330-95J02iLH102,109,113,115,119,123,125,129,RZH102,112,12#..CD,DX198908-199010

55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2

main55342-95J01iRZH101199907-200208

55344ABRACE, INSTRUMENT PANEL TO COWL, NO.3

main55344-95J00iLH110;LH100,107,120,RZH100,101..HRF,MRF,SMRF198908-198910

55373ABRACKET, OIL RESERVOIR TANK

main55373-95J01iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

55394BBOLT, INSTRUMENT PANEL

main55394-95J00×2iKZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133198908-199608

55394CBOLT, INSTRUMENT PANEL

main55394-95J00×2iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-26020-B0iKZH10#,11#,RZH101,111..08S,10S; KZH13#199608-199907

main55401-26020-E0iKZH10#,12#,RZH101; KZH13#199608-199907

main55401-95J13-02iLH100,107,120,RZH100,101..GCGE,GCGN,SCL,SCM,SCMM199205-199308

NEW MAROON,TRIM3#

main55401-95J13-03iLH100,107,RZH100,101..(MRF,SMRF)..(08S,09S)198908-199005

GRAY,TRIM1#

main55401-95J13-B0iKZH13#,RZH133199808-199907

BLUISH GRAY,TRIM1#

main55401-95J13-E0iKZH10#,12#,RZH100,101..07S,08S,10S199308-199608

ANTELOPE,TRIM4#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-26110iKZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124199308-199405

main55404-26260iLH16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#..CD,DX,GL,SGLE199907-200501

main55404-26320iKZH10#,RZH101..SCL199608-199907

main55404-26321iKZH10#,RZH101..SCMM199907

main55404-26330iKZH10#,11#,120,13#,RZH101,111..03S,08S,10S199907-200408

main55404-26360iLH162,17#,RZH102,112,TRH102,112..SGL200108-200408

main55404-95J00iLH125..DX;LH109,110,119,120,129;LH100,102,107,113,RZH10#,112..GL,SCL,SCM,SCMM,SGL198908-198910

main55404-95J01iLH100..5F;RZH122..06S;RZH100..5F..CTM;LH100..4FC..SCMM;LH102,110,113,115,123,125,140,RZH10#,11#,124..CD,DX,GL,SCM,SCMM,SGL,SW199201-199308

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-26010-B0iKZH10#,11#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..CD,DX,GL,SCM,SCMM,SGL199905-199907

BLUISH GRAY,TRIM1#

main55473-26010-E0iKZH10#,12#,13#,RZH101199905-199907

ANTELOPE,TRIM4#

main55473-95J01-02iLH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S198908-199201

NEW MAROON,TRIM3#

main55473-95J01-03iLH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S198908-199201

GRAY,TRIM1#

main55473-95J01-B0iKZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..CD,DX,GL,SCM,SCMM,SGL199608-199905

BLUISH GRAY,TRIM1#

main55473-95J01-E0iKZH10#,12#,RZH101..07S,08S,10S199508-199608

ANTELOPE,TRIM4#

55423CCOVER, CLOCK OPENING

main55423-95J03iLH117199205-199308

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-26020-B0iKZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..CD,DX,GL,SCM,SCMM,SGL199608-199905

BLUISH GRAY,TRIM1#

main55432-26020-E0iLH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,08S,10S,15S199405-199508

ANTELOPE,TRIM4#

main55432-26021-B0iKZH10#,11#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..CD,DX,GL,SCM,SCMM,SGL199905-199907

BLUISH GRAY,TRIM1#

main55432-26021-E0iKZH13#199907-200008

ANTELOPE,TRIM4#

main55432-26030-E0iKZH10#,RZH101..SCL199405-199608

ANTELOPE,TRIM4#

main55432-95J02-02iLH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..08S,10S,15S199207-199308

NEW MAROON,TRIM3#

main55432-95J02-03iLH10#,110,113,119,123,129,140,RZH10#,112,122..05S,06S,08S,09S198908-199201

GRAY,TRIM1#

main55432-95J02-B0iKZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S199308-199405

BLUISH GRAY,TRIM1#

main55432-95J02-E0iLH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,08S,10S,15S199308-199405

ANTELOPE,TRIM4#

main55432-95J03-02iLH110,RZH110..DX199010-199108

main55432-95J03-03iLH102,113,RZH102,112..CD199201-199212

GRAY,TRIM1#

main55432-95J05-02iLH100,107,RZH100,101..SCL198908-199308

NEW MAROON,TRIM3#

main55432-95J05-E0iKZH10#,RZH101..SCL199308-199405

ANTELOPE,TRIM4#

main55480-26090-E0iKZH10#,RZH101..SCL199608-199905

ANTELOPE,TRIM4#

main55480-26092-E0iKZH10#,RZH101..SCL199907-200408

ANTELOPE,TRIM4#

main55480-26093-E0iKZH10#,RZH101..SCL199905-199907

ANTELOPE,TRIM4#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-26020-B0iKZH10#,RZH100,101..08S199308-199608

BLUISH GRAY,TRIM1#

main55434-26020-E0iKZH10#,12#,13#,RZH101199608-199905

ANTELOPE,TRIM4#

main55434-26021-B0iKZH10#,13#,RZH101..03S,08S199907-200408

BLUISH GRAY,TRIM1#

main55434-26021-E0iKZH10#,120,RZH101199907-200408

ANTELOPE,TRIM4#

main55434-26030-B0iLH10#,11#,12#,RZH102,112,124,133199608-199808

BLUISH GRAY,TRIM1#

main55434-26030-E0iLH113,RZH112..HRF;KZH11#,LH12#,RZH124199408-199508

ANTELOPE,TRIM4#

main55434-26031-B0iLH16#,17#,18#,RZH102,112,12#199905-199907

BLUISH GRAY,TRIM1#

main55434-26032-B0iKZH11#,LH16#,17#,18#,RZH102,11#,12#,18#,TRH102,112,12#199907-200501

BLUISH GRAY,TRIM1#

main55434-95J01-02iLH120..GCGE,GCGN;LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S199205-199207

NEW MAROON,TRIM3#

main55434-95J01-03iLH109..5D;LH109,RZH122..4D..06S..DX;LH100,102,107,110,113,119,123,129,140,RZH10#,112..03S,05S,06S,08S,09S199201-199308

GRAY,TRIM1#

main55434-95J01-B0iKZH10#,LH10#,11#,123,129,RZH100,102,112..CD,CTM,DX,GL,SGL199308-199408

BLUISH GRAY,TRIM1#

main55434-95J01-E0iLH113,RZH112..HRF;KZH11#,LH12#,RZH124199308-199408

ANTELOPE,TRIM4#

55441BOX, INSTRUMENT PANEL

main55440-26050×2iKZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124199802-199808

main55441-26010iKZH10#,RZH100..5F..CTM;KZH10#,11#,LH103,113,123,125,RZH10#,112,124..CD,DX,GL,SCM,SCMM,SGL199308-199508

55441CBOX, INSTRUMENT PANEL COIN

main55441-20140-11iLH123..4FC;LH100,107,RZH100,101..08S; LH123..5F;LH100,102,109,110,113,119,129,140,RZH100,102,112,122..(03S,05S,06S,08S,09S)..(CD,CTM,DX,GL,SGL,SW)199207-199308

BLACK,TRIM1#; BLACK,TRIM1#,3#

main55441-20140-C0iKZH10#,RZH101..SCL; KZH10#,RZH101..SCMM199907-200408

BLACK,TRIM1#,4#; BLACK,TRIM4#

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-95J00iLH109..5D;LH120..GCGE,GCGN;LH109,120,RZH122..4D..(06S,10S)..5F..DX;KZH10#,11#,12#,13#,LH100,102,103,107,11#,123,125,129,140,16#,17#,18#,RZH10#,11#,124,125,133199201-199907

55446ABASE, SWITCH HOLE, NO.1

main55446-26010iLH184..4FC;LH162,17#,186,TRH102,112..(05S,08S,15S)..(DX,SGL)199907-200408

main55446-95J00iKZH10#,12#,13#,LH16#,17#,18#,RZH10#,112,12#,133..CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM199808-199907

55448BCOVER, OIL RESERVOIR TANK, RH

main55448-95J00-02iLH100..5F;LH109..5D;LH100..MRF..4FC;LH109,RZH122..4D..06S..DX;LH102,107,11#,12#,RZH10#,11#,124..COM,V1,WG198908-198910

NEW MAROON,TRIM3#

main55448-95J00-03iRZH110;LH100,107..(MRF,SMRF)..(08S,09S)198908-199005

GRAY,TRIM1#

main55448-95J00-B0iKZH11#199911-200408

BLUISH GRAY,TRIM1#

main55448-95J00-E0iKZH10#,12#,13#,RZH101199608-199907

ANTELOPE,TRIM4#

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-95J00iRZH110198908-199010

main55477-95J01iLH10#,11#,12#,140,RZH10#,11#,12#198908-199308

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-26010-B0iKZH10#,11#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..CD,DX,GL,SCM,SCMM,SGL199905-199907

BLUISH GRAY,TRIM1#

main55501-26010-E0iKZH10#,120,RZH101199907-200408

ANTELOPE,TRIM4#

main55501-95J04-02iLH100,107,120,RZH100,101..GCGE,GCGN,SCL,SCM,SCMM198908-199308

NEW MAROON,TRIM3#

main55501-95J04-03iLH119..05S;LH113..V1..SRF..4D..06S..DX199103-199308

main55501-95J04-B0iKZH10#,RZH100,101..08S199308-199408

BLUISH GRAY,TRIM1#

main55501-95J04-E0iKZH10#,12#,RZH100,101..07S,08S,10S199308-199408

ANTELOPE,TRIM4#

main55501-95J05-02iLH123..4FC;LH110,115,117,120,125,RZH110,124..DX,GL199207-199308

NEW MAROON,TRIM3#

main55501-95J05-03iLH100,102,109,110,113,119,123,129,140,RZH10#,112,122..(03S,05S,06S,08S,09S)..(CD,CTM,DX,GL,SGL,SW)198908-199308

GRAY,TRIM1#

main55501-95J05-B0iKZH10#,LH10#,11#,123,129,RZH100,102,112..CD,CTM,DX,GL,SGL199308-199408

BLUISH GRAY,TRIM1#

main55501-95J05-E0iKZH10#,12#,13#,RZH101199608-199905

ANTELOPE,TRIM4#

55521CCOVER, STEREO OPENING

main55521-16030iLH16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#199907-200501

main55521-52020iKZH10#,11#,120,13#,RZH101,111199907-200408

main55522-26020iKZH10#,120,RZH101..(HRF,MRF)..(08S,10S)199907-200408

55531PANEL, GLOVE COMPARTMENT

main55305-26040iKZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133199508-199907

main55305-95J03iLH109..5D;LH109..4D..DX;KZH10#,11#,12#,LH100,102,103,107,11#,12#,140,RZH10#,11#,12#199201-199508

55534ACOVER, ILLUMINATION LAMP HOLE

main55534-95J00iLH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GL,SGL,SW198908-199201

main84656-26020iKZH10#,RZH101..MRF199907-200108

55539COVER, SPARE SWITCH HOLE

main55539-32010-11iLH100..09S;RZH100..09S..5F;LH109,119..GL,SGL; LH109,119,129..DX;LH102,113,RZH102,112..GL,SGL198908-198910

BLACK,TRIM1#

main55539-32010-B0iKZH10#,LH10#,11#,123,129,RZH10#,112..CD,DX,GL,SCM,SCMM,SGL; KZH100..4FC..CTM199308-199401

BLUISH GRAY,TRIM1#

main55539-32010-C0×2iKZH10#,RZH101..08S; RZH112..HRF..5F;RZH102,112..V1..CD;RZH102,112..V2..SRF;RZH112..HRF..4D..4FC;LH16#,17#,18#,RZH125,18#..CD,DX,GL199907-200408

main55539-32010-E2×2iKZH10#,12#,RZH101..07S,08S,10S199508-199608

ANTELOPE,TRIM4#

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-26050iKZH10#,RZH101..SCL199608-199907

main55539-26051iKZH10#,RZH101..SCL199907-200408

main55539-95J02iLH100,RZH100,101..SCL198908-199308

main55539-95J02-C0iKZH10#,13#,RZH101..03S,08S; KZH11#,LH10#,11#,12#,16#,17#,18#,RZH102,11#,12#,133; KZH12#199608-199907

BLACK,TRIM1#; BLACK,TRIM1#,4#; BLACK,TRIM4#

55539CCOVER, SPARE SWITCH HOLE

main55539-32010-11iLH102..V2;LH109,119..4D..06S..DX;LH102,113,RZH102,112..CD198908-199308

BLACK,TRIM1#

main55539-32010-B0iLH103,11#,RZH102,112..CD199508-199608

BLUISH GRAY,TRIM1#

main55539-32010-C0iLH103,113,RZH102,112..CD;LH109,119..4D..06S..5F..DX199408-199508

BLACK,TRIM1#

55539DCOVER, SPARE SWITCH HOLE

main55539-32010-11iLH110,115,117,120,125,RZH110,124..DX198908-199205

BLACK,TRIM3#

main55539-32010-B0iKZH100,LH10#,11#,123,129,RZH100,102,112..CD,DX,GL199308-199401

BLUISH GRAY,TRIM1#

main55539-32010-C0iKZH10#,RZH101..08S; LH125..DX;KZH11#,13#,LH10#,11#,123,129,RZH102,11#,124..CD,DX,GL199508-199608

main55539-32010-E2iKZH10#,RZH101..08S199508-199608

ANTELOPE,TRIM4#

55539FCOVER, SPARE SWITCH HOLE

main55539-26040×2iKZH10#,RZH101..SCL199608-199907

main55539-26041×5iKZH10#,RZH101..SCL199907-200408

main55539-26070×2iLH162,17#,RZH102,112,TRH102,112..SGL200108-200408

main55539-32010-11iLH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(03S,05S,06S,08S,09S)..(CD,CTM,DX,GL,SGL,SW); LH110,117,120,RZH110..DX198908-199201

BLACK,TRIM1#; BLACK,TRIM3#

main55539-32010-B0iKZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S199308-199401

BLUISH GRAY,TRIM1#

main55539-32010-C0iKZH10#,11#,12#,RZH101..07S,10S; KZH10#,LH10#,11#,RZH100,102,112..(SMRF,SRF)..(CD,CTM,DX,GL,SGL); KZH10#,LH113,123,129,RZH100,101,112..(HRF,MRF,SMRF)..(DX,SCM,SCMM)199308-199508

main55539-32010-E2iKZH10#,12#,RZH101..07S,08S,10S199508-199608

ANTELOPE,TRIM4#

55539GCOVER, SPARE SWITCH HOLE

main55539-26040iKZH10#,RZH101..SCL199608-199808

main55539-32010-11iLH100,102,109,110,113,119,123,129,140,RZH10#,112,122..(03S,05S,06S,08S,09S)..(CD,CTM,DX,GL,SGL,SW); LH100,107,RZH100,101..08S198908-199207

BLACK,TRIM1#; BLACK,TRIM1#,3#

main55539-32010-B0iKZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S199308-199401

BLUISH GRAY,TRIM1#

main55539-32010-C0iKZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL; KZH10#,12#,RZH101..07S,10S; KZH10#,RZH101..08S199508-199608

main55539-32010-E2iLH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,07S,08S,10S,15S199308-199401

ANTELOPE,TRIM4#

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-26010-B0iKZH10#,11#,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#..CD,DX,GL,SCM,SCMM,SGL,SGLE199907-200501

BLUISH GRAY,TRIM1#

main55560-26010-E0iKZH10#,12#,13#,RZH101199608-199907

ANTELOPE,TRIM4#

main55560-95J00-02iLH123..4FC;LH110,115,117,120,125,RZH110,124..DX,GL199207-199308

NEW MAROON,TRIM3#

main55560-95J00-03iLH100,102,109,110,113,119,123,129,140,RZH10#,112,122..(03S,05S,06S,08S,09S)..(CD,CTM,DX,GL,SGL,SW)198908-199308

GRAY,TRIM1#

main55560-95J00-B0iKZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S199408-199410

BLUISH GRAY,TRIM1#

main55560-95J00-E1iLH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,07S,08S,10S,15S199408-199410

ANTELOPE,TRIM4#

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-95J01iLH10#,11#,12#,140,RZH10#,11#,12#198908-199201

55562BPIN, GLOVE COMPARTMENT DOOR LOCK

main55562-95J00×2iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-20040-22iLH120198908-199201

main55565-20040-23iLH100,107,113,RZH100,101..(V1,WG)..(MRF,SMRF,SRF)..4D..(06S,08S)..(DX,SCM,SCMM)199005-199103

GRAY,TRIM1#

main55565-20040-B0iKZH10#,RZH100,101..08S199308-199408

BLUISH GRAY,TRIM1#

main55565-20040-E0iKZH10#,12#,RZH100,101..07S,08S,10S199308-199408

ANTELOPE,TRIM4#

55568PLATE, GLOVE COMPARTMENT DOOR PAD

main55568-26010iKZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133199508-199907

main55568-95J01-02iLH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S198908-199207

NEW MAROON,TRIM3#

main55568-95J01-03iLH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S198908-199201

GRAY,TRIM1#

main55568-95J01-C0iKZH10#,11#,12#,LH125,RZH101,124..07S,10S,15S; KZH10#,LH10#,11#,RZH100,102,112..(SMRF,SRF)..(CD,CTM,DX,GL,SGL); KZH10#,LH113,123,129,RZH100,101,112..(HRF,MRF,SMRF)..(DX,SCM,SCMM)199308-199508

BLACK,TRIM1#; BLACK,TRIM1#,4#; BLACK,TRIM4#

55573AHINGE, GLOVE COMPARTMENT DOOR

main55573-95J00×2iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#199907-200501

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-95J08iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-26010-B0iLH10#,11#,12#,RZH102,112,124,133199608-199808

BLUISH GRAY,TRIM1#

main55660-26010-E0iLH129,RZH112..HRF;LH103,113,125,RZH124..COM,V2199308-199508

ANTELOPE,TRIM4#

main55660-26050-B0iKZH11#..4FC199508-199907

main55660-26050-E0iKZH10#,120,RZH101199907-200408

ANTELOPE,TRIM4#

main55660-95J13-02iLH110,115,117,120,125,RZH110,124..DX,GL198908-199207

NEW MAROON,TRIM3#

main55660-95J13-03iLH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S)198908-199201

GRAY,TRIM1#

main55660-95J16-02iLH110,120198908-198910

main55660-95J16-03iLH113..V1..SRF..4D..06S..DX199005-199103

55670AREGISTER ASSY, INSTRUMENT PANEL, CENTER

main55670-95J03iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133199201-199907

61166ABRACKET, INSTRUMENT PANEL TO COWL SIDE, LH

main61166-95J00iKZH10#,11#,120,13#,LH16#,17#,18#,TRH102,112199907-200408

61181BRACKET, INSTRUMENT PANEL SIDE

main61181-95J04iTRH12#199907-200501

9011906121

main90119-06121

9011908103

main90119-08103

9015950115

main90159-50115

9016850033

main90168-50033

9017905030

main90179-05030

9017908179

main90179-08179

9018305103

main90183-05103

9018905016

main90189-05016

9018905045

main90189-05045

9018905101

main90189-05101

9024904062

main90249-04062

9046710048

main90467-10048

9046714010

main90467-14010

9046715015

main90467-15015

9046804147

main90468-04147

9163140616

main91631-40616

9165160614

main91651-60614

9165160618

main91651-60618

9165160814

main91651-60814

9165540816

main91655-40816

9322954010

main93229-54010

9326955014

main93269-55014

9338118012

main93381-18012

9352054012

main93520-54012

9354055016

main93540-55016

9356015016

main93560-15016

9356055016

main93560-55016

9356615514

main93566-15514

9356855012

main93568-55012

76 parts on this diagram · 9 diagrams in section
