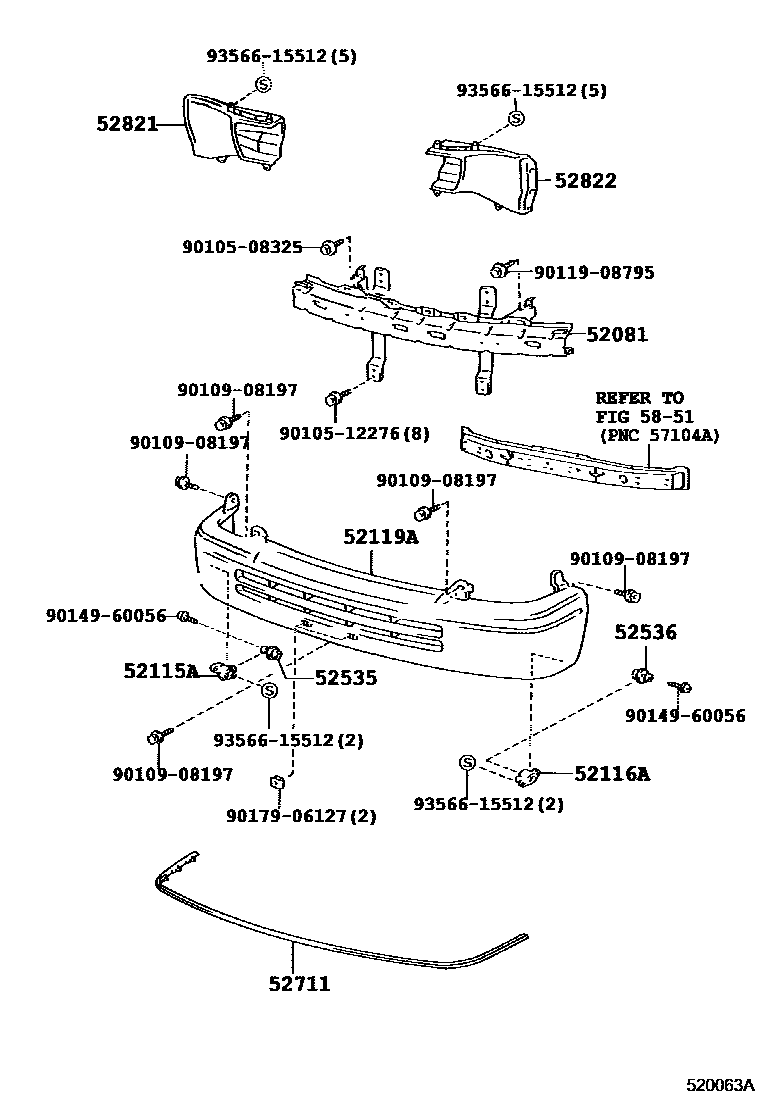

FRONT BUMPER & BUMPER STAY

0001 1 0003 1 0005 1LH123,129(���������-) 0007 1 0008 1 0009 1

52081STAY SUB-ASSY, FRONT BUMPER

main52081-26040iLH100,107,120,RZH100,101..HRF,MRF,SMRF199205-199308

main52081-26041iKZH10#,11#,12#,13#,RZH100,101,111,133199308-199608

main52081-26100iLH123,129..06S199308-199608

main52081-95J04iLH100,107,RZH100,101..MRF,SMRF198908-199205

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-26010iKZH10#,11#,12#,13#,RZH100,101,111,133; LH123,129..06S199308-199608

main52115-26030iLH16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#199907-200501

main52115-26050iKZH10#,11#,120,13#,RZH101,111199907-200408

main52115-95J02iLH10#,11#,12#,RZH102,112,124199308-199808

main52115-95J04iLH100,107,RZH100,101..MRF,SMRF198908-199205

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-95J02iLH10#,11#,12#,RZH102,112,124199308-199808

main52116-26010iKZH10#,11#,12#,13#,RZH100,101,111,133; LH123,129..06S199308-199608

main52116-26030iKZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133199808-199907

main52116-26040iKZH10#,11#,120,13#,RZH101,111199907-200408

main52116-95J02iLH100,107,RZH100,101..MRF,SMRF198908-199205

52119ACOVER, FRONT BUMPER

main52119-26050-B0iLH100,107,RZH101..4FC..SCMM199210-199211

main52119-26050-E0iLH100,107,RZH101..4FC..SCMM199304-199307

main52119-26060iLH123,129..06S199308-199608

main52119-26070-A1iKZH120..4FC;KZH11#,126,13#; LH123,129..06S199408-199608

main52119-26070-E2iKZH11#199308-199508

main52119-26070-E3iLH123,129..06S199508-199608

main52119-26070-G1iKZH11#..4FC;KZH10#,13#,RZH101..CTM,DX199508-199608

LIGHT GREEN,6L1

main52119-26070-H0iKZH10#,RZH101..08S199508-199608

DK.TEAL GREEN MC.,2AY

main52119-26070-J1iKZH116199408-199508

main52119-26080-B0iKZH10#,RZH101..SCL199508-199608

LT.GRAIGE ME.,2AX

main52119-26080-E2iKZH10#,RZH101..SCL199308-199608

RE.BROWN ME,21T

main52119-26080-E3iKZH10#,RZH101..SCL199308-199508

LIGHT BEIGE ME,27W

main52119-26080-E5iKZH10#,RZH101..4FC..SCMM199504-199608

main52119-26090-E2iKZH11#..4FC;KZH10#,12#,13#,RZH100,101..03S,08S,10S199308-199608

main52119-26090-E3iKZH10#,12#,13#,RZH100,101..03S,08S,10S199308-199608

main52119-26090-G1iKZH13#199508-199608

main52119-26090-H0iKZH10#,RZH101..08S199508-199608

main52119-26090-J1iKZH10#,13#,RZH101..03S,08S199508-199608

main52119-26100-B0iKZH10#,RZH101..SCL199508-199608

main52119-26100-E2iKZH10#,RZH101..SCL199308-199608

main52119-26100-E3iKZH10#,RZH101..SCL199308-199508

main52119-26140iKZH10#,RZH101..4FC..SCMM199409-199412

main52119-26200iKZH10#,11#,12#,13#,RZH101,111,133..03S,08S,10S199608-199907

main52119-26210-A0iKZH11#..4FC; KZH12#,13#199608-199808

main52119-26210-A1iKZH11#..4FC; KZH12#,13#199808-199907

main52119-26210-B0iKZH11#..4FC;KZH10#,12#,13#,RZH101..03S,08S,10S199608-199907

WARM GRAY PEARL ME.,1A5

main52119-26210-B1iKZH10#,RZH101..08S199608-199706

BLUISH SILVER ME,2BZ

main52119-26210-G0iKZH11#..4FC;KZH10#,13#,RZH101..03S,08S199608-199907

LT GREEN M.,6L1 ,9E7 ,9F5

main52119-26210-H0iKZH13#199608-199907

DK.TEAL GREEN MC.,751

main52119-26210-K0iKZH10#,12#,13#,RZH101..03S,08S,10S199608-199706

GRAYISH PURPLE ME.,2BY

main52119-26220-B0iKZH10#,RZH101..SCL199608-199907

LT.GRAIGE ME.,2AX

main52119-26220-B3iKZH10#,RZH101..4FC..SCMM199608-199907

main52119-26220-E0iKZH10#,RZH101..4FC..SCMM199701-199808

main52119-26220-H0iKZH10#,RZH101..SCMM199608-199708

main52119-26220-K0iKZH10#,RZH101..SCL199708-199907

main52119-26230-A0iKZH11#..4FC199708-199808

main52119-26230-A1iKZH11#..4FC; KZH12#,13#199808-199907

main52119-26230-B0iKZH10#,12#,13#,RZH101..03S,08S,10S; KZH11#..4FC199608-199907

main52119-26230-B1iKZH11#..4FC199706-199907

main52119-26230-G0iKZH10#,13#,RZH101..03S,08S; KZH11#..4FC199608-199907

main52119-26230-H0iKZH11#..4FC;KZH10#,RZH101..08S; KZH13#199808-199907

main52119-26230-K0iKZH10#,12#,13#,RZH101..03S,08S,10S199608-199706

main52119-26240-B0iKZH10#,RZH101..SCL199608-199907

main52119-26240-H0iKZH10#,RZH101..SCMM199608-199708

main52119-26240-K0iKZH10#,RZH101..SCL199708-199907

main52119-26300iLH16#,17#,18#,RZH102,112,12#..CD,DX,GL199808-199907

main52119-26310-A0iLH162,17#,RZH102,112..SGL199808-199907

WHITE,058

main52119-26310-B0iLH162,17#,182,188,RZH102,112,183,TRH102,112,12#..GL,SGL,SGLE199907-200501

BLUISH SILVER ME.,2BZ

main52119-26310-G0iLH162,17#,RZH102,112..SGL199808-199907

LT GREEN M,6L1

main52119-26310-G1iLH162,17#,182,188,RZH102,112,183,TRH102,112,122..SGL,SGLE199907-200501

DK.GREEN M.M.,6P2

main52119-26310-G2iLH162,17#,RZH102,112,TRH102,112..SGL199907-200408

GRAYISH GREEN M.M.,2FJ

main52119-26310-H0iLH162,17#,RZH102,112..SGL199808-199907

DK.TEAL GREEN MC.,751

main52119-26320-C0iRZH111199907-200208

main52119-26330-A0iKZH11#; KZH120,13#199907-200408

main52119-26330-B0iKZH10#,11#,120,13#,RZH101..03S,08S,10S199907-200408

main52119-26330-B1iKZH10#,11#,RZH101..08S,10S199907-200408

main52119-26330-G0iKZH10#,11#,13#,RZH101..DX,SCM,SCMM199907-200408

main52119-26330-G1iKZH10#,11#,13#,RZH101..DX,SCM,SCMM199907-200408

main52119-26330-G2iKZH10#,11#,RZH101..08S,10S199907-200408

main52119-26330-K0iRZH101..SCM;KZH10#,11#,120,13#..03S,08S,10S199907-200408

main52119-26340-E0iKZH10#,RZH101..SCMM199907

main52119-26340-K0iKZH10#,RZH101..SCL199907-200408

main52119-26350-A0iKZH11#199907-200108

main52119-26350-B0iKZH10#,120,13#,RZH101..(HRF,MRF)..(03S,08S,10S); KZH10#,RZH101..SCM199907-200408

main52119-26350-B1iKZH10#,RZH101..SCM; KZH10#,RZH101..SCMM199907-200408

main52119-26350-G0iKZH10#,13#,RZH101..03S,08S199907-200408

main52119-26350-G1iKZH11#199907-200108

main52119-26350-G2iKZH10#,RZH101..SCM; KZH10#,RZH101..SCMM199907-200408

main52119-26350-K0iKZH11#199907-200108

main52119-26350-K1iKZH10#,120,13#..03S,08S,10S199907-200408

main52119-26360-E0iKZH10#,RZH101..SCL199907-200408

main52119-26360-K0iKZH10#,RZH101..SCL199907-200408

main52119-95J21iLH10#,11#,12#,RZH102,112,124..CD,DX,GL199308-199808

main52119-95J23-04iLH102,113,119..SGL198908-199308

LIGHT BLUE M.,8E8

main52119-95J23-07iLH102,113,119..SGL198908-199308

LIGHT GREEN M.,29M

main52119-95J23-08iLH102,110,113,117,119..05S,08S,10S198908-199308

WHITE,045

main52119-95J23-14iLH102,113,119..SGL198908-199308

GRAYISH BLUE M.,8G8

main52119-95J23-A1iLH103,11#..SGL199308-199808

WHITE,045

main52119-95J23-B0iLH103,11#..SGL199608-199808

BLUISH SILVER ME.,2BZ

main52119-95J23-E0iLH11#..05S199508-199608

BEIGE ME,4K1

main52119-95J23-G1iLH103,11#..SGL199608-199808

LIGHT GREEN,6L1

main52119-95J23-H0iLH103,11#..SGL199608-199808

DK.TEAL GREEN MC.,751

main52119-95J23-J2iLH103,11#..SGL199308-199608

GRAYISH BLUE MM,8G8

main52119-95J24iLH100,RZH100,101..CTM198908-199205

main52119-95J26-04iLH100,107,RZH100,101..08S198908-199308

main52119-95J26-06iLH100,107,RZH100,101..08S198908-199308

main52119-95J26-07iLH100,107,RZH100,101..08S198908-199308

main52119-95J26-14iLH100,107,RZH100,101..08S198908-199308

main52119-95J26-A0iLH120..GCGE,GCGN199205-199308

main52119-95J26-E0iLH120..GCGE,GCGN199205-199308

main52119-95J26-E1iLH120..GCGE,GCGN199205-199308

main52119-95J27-04iLH100,107,RZH100,101..08S198908-199308

LIGHT BLUE M.,8E8

main52119-95J27-06iLH100,107,RZH100,101..08S198908-199308

LIGHT BROWN M.,21N ,4K6

main52119-95J27-07iLH100,107,RZH100,101..08S198908-199308

LIGHT GREEN M.,29M ,9D5

main52119-95J27-14iLH100,107,RZH100,101..08S198908-199308

GRAYISH BLUE M.,20N ,8G8

main52119-95J27-A0iLH120..GCGE,GCGN199205-199308

WHITE,045

main52119-95J27-E0iLH120..GCGE,GCGN199205-199308

BEIGE M,4K1

main52119-95J27-E1iLH120..GCGE,GCGN199205-199308

DARK REDDISH BROWN,26U

main52119-95J28-06iLH100,RZH100,101..SCL; LH107..SCL199010-199308

main52119-95J28-08iLH107..SCL199010-199308

main52119-95J29-06iLH100,RZH100,101..SCL; LH107..SCL199010-199308

LIGHT BROWN M.,21T; LIGHT BROWN M.,21T ,22N

main52119-95J29-08iLH107..SCL199010-199308

WHITE PEARL MICA,042

mainC221695B01iLH120..DX199205-199308

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-26010iKZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133199808-199907

main52535-26020iKZH10#,11#,120,13#,RZH101,111199907-200408

main52535-95J00iLH10#,11#,12#,RZH102,112,124199308-199808

52536RETAINER, FRONT BUMPER SIDE, LH

main52535-26010iLH16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#199907-200501

main52535-26020iKZH10#,11#,120,13#,RZH101,111199907-200408

main52535-95J00iLH10#,11#,12#,140,RZH10#,11#,12#199205-199308

52711MOULDING, FRONT BUMPER

main52711-26010iLH123..06S;KZH10#,11#,LH129,RZH100..CTM,DX199308-199508

main52711-26020iLH123,RZH100..06S,08S;KZH10#,11#,12#,13#,LH129,RZH101199308-199608

main52711-26030iKZH11#,12#,13#,RZH111,133199608-199808

main52711-26040iKZH11#..4FC;KZH10#,12#,13#,RZH101199608-199907

main52711-26060iKZH10#,11#,120,13#,RZH101..HRF,MRF,SRF199907-200408

main52711-95J00iLH100,RZH100,101..CTM198908-199205

main52711-95J01iLH100,107,120,RZH100,101..GCGE,GCGN,SCL,SCM,SCMM198908-199308

52821DUCT, AIR INTAKE, RH

main52821-26010iLH123..06S;KZH10#,11#,12#,13#,LH129,RZH100,101,111,133199308-199608

main52821-26020iKZH10#,11#,12#,13#,RZH101,111,133199608-199907

main52821-95J00iLH100,107,120,RZH100,101..HRF,MRF,SMRF199205-199308

52822DUCT, AIR INTAKE, LH

main52822-26010iLH123..06S;KZH10#,11#,12#,13#,LH129,RZH100,101,111,133199308-199608

main52822-26020iKZH10#,11#,12#,13#,RZH101,111,133199608-199907

main52822-95J00iLH100,107,120,RZH100,101..HRF,MRF,SMRF199205-199308

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

9010508325

main90105-08325

9010512276

main90105-12276

9010908197

main90109-08197

9011908795

main90119-08795

9014960056

main90149-60056

9017906127

main90179-06127

9356615512

main93566-15512

17 parts on this diagram · 6 diagrams in section
