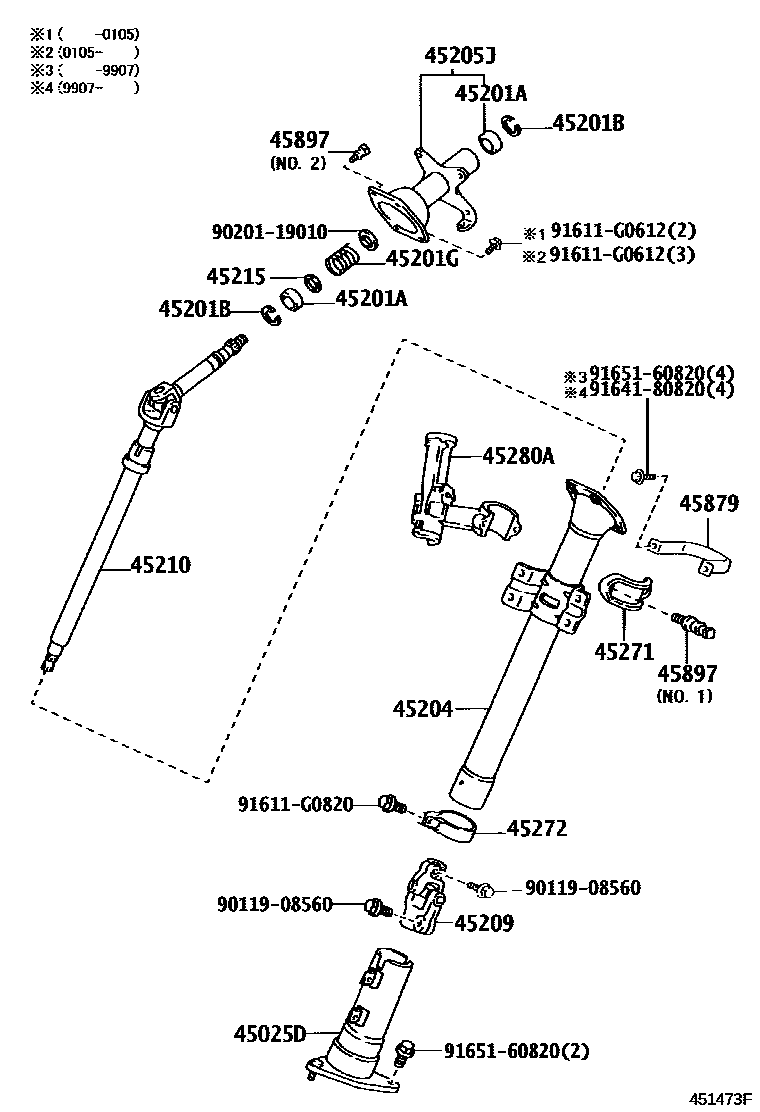

STEERING COLUMN & SHAFT

0001 1������ ������� 0002 1���������� (�� ��������) 0003 1�������� & �������� ������� 0004 1��������� & �������� ������� 0005 1��������� & �������� ������� 0006 1 0007 1 0008 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-26021iRZH100..SCL;LH110,113,119,RZH112..V1,WG;LH100,107,115,117,RZH101,110..07S,08S,10S,15S199004-199205

main45025-26022iKZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S199205-199608

main45025-26040iKZH10#,LH100,107,RZH100,101..SCL199205-199608

main45025-26050iKZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133199808-199905

main45025-26060iKZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133199905-199907

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18008×2iLH16#,17#,18#,RZH102,112,12#,18#..CD,DX; LH184,186,RZH125..GL;KZH10#,11#,120,13#,LH16#,17#,182,188,RZH102,112,18#..SG..(03S,05S,06S,08S,09S,10S)199907-200305

main90363-18017iKZH10#,11#,120,13#,LH16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#..03S,05S,06S,08S,09S,10S,15S; LH16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#..CD,DX200305-200501

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-16002×2iLH100,102,107,113,119,RZH100,101..(05S,07S,08S)..4FC198908-199008

main90520-17042×2iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

main90520-20047iKZH10#,LH100,107,RZH100,101..SCL199106-199907

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-26080iLH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW198908-199205

main45204-26081iLH16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#..CD,DX199907-200501

main45204-26090iLH102,109,113,119,125,RZH102,112..GL,SGL;LH100,107,110,117,120,140,RZH100,101,110..06S,08S,09S,10S198908-199205

main45204-26091iLH113..5D..GL;LH113..09S..GL;LH113..V1..SRF..4D..(05S,06S);LH102,109,119,125,RZH102,112..GL,SGL;LH100,107,110,117,120,140,RZH100,101,110..06S,08S,09S,10S199205-199308

main45204-26100iLH100,RZH100..(07S,08S)..4FC;LH102,107,113,119,RZH101..(05S,08S)..4FC198908-199008

main45204-26120iKZH10#,RZH101..SCL199308-199907

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-26120iLH100,102,109,11#,12#,RZH100,102,11#,12#..CD,DX198908-199005

main45205-26121iLH10#,11#,12#,RZH102,112,124..CD,DX199308-199808

main45205-26140iLH11#..5D..GL;LH113..09S..GL;LH10#,125,RZH102,112..GL,SGL;LH119,123..4D..(05S,06S,08S);LH113..V1..SRF..4D..(05S,06S);KZH10#,11#,12#,13#,LH129,RZH100,101,111,133..03S,06S,08S,09S,10S199408-199608

main45205-26180iKZH10#,12#,RZH100,101..08S,10S199308-199808

main45205-26200iLH16#,17#,18#,RZH102,112,12#..CD,DX199808-199907

main45205-26230iLH184,186,RZH125..GL;KZH10#,11#,12#,13#,LH16#,17#,182,188,RZH10#,11#,133..03S,05S,06S,08S,09S,10S199808-199907

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-26010iRZH101..08S;LH100,102,113..05S,07S,08S;LH107,119,RZH100..(05S,07S,08S)..4FC199008-199106

main45209-26020iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#..03S,05S,06S,08S,09S,10S,15S199907-200501

45210SHAFT ASSY, STEERING MAIN

main45210-26050iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#..03S,05S,06S,08S,09S,10S,15S199907-200501

main45210-26070iRZH101..08S;LH100,102,113..05S,07S,08S;LH107,119,RZH100..(05S,07S,08S)..4FC199008-199106

main45210-26071iKZH10#,RZH101..SCL200201-200408

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iLH107,119..5F;RZH100..08S..5F;LH10#,110,113,115,117,12#,140,RZH10#,11#,12#..CD,CTM,DX,GL,SCL,SW199008-199106

45271CLAMP, STEERING COLUMN, UPPER

main45271-26010iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S198908-199907

45272CLAMP, STEERING COLUMN, LOWER

main45272-26010iLH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S198908-199308

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-26150iLH100,102,107,113,119,120,123,RZH10#,112..(05S,06S,08S,09S,10S)..4FC198908-199205

main45280-26151iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#..03S,05S,06S,08S,09S,10S,15S199907-200501

main45280-26160iLH100..08S..5F199008-199106

main45280-26170iLH100,102,107,113,119,RZH100,101..(05S,08S)..4FC198908-199106

main45280-26180iLH100,107,RZH100,101..SCL198908-199205

main45280-26181iKZH10#,RZH101..SCL199907-200408

main45280-26191iLH10#,11#,12#,140,RZH100,102,11#,12#..5F198908-199308

45879BRACKET, STEERING COLUMN UPPER SUPPORT, NO.2

main45879-26020iLH162,17#,RZH102,112..CD,DX;KZH13#,LH10#,11#,12#,168,18#,RZH12#,133199608-199907

main45879-26030iRZH101..08S;LH100,102,113..05S,07S,08S;LH107,119,RZH100..(05S,07S,08S)..4FC199008-199106

main45879-26040iKZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S199808-199907

main45879-26050iKZH10#,RZH101..SCL199907-200408

45897BOLT, STEERING LOCK SET

main45897-12020×2iRZH102..V1..5D..4FC..DX; RZH112..V2..5D;RZH112..V1..SRF..DX;RZH102,124..(COM,V1)..DX; RZH112..V2..5D;RZH112..V1..SRF..DX;RZH102..4D..4FC..DX;RZH102,124..(COM,V1)..5F..DX199907-200308

main45897-12030×2iLH16#,17#,18#,RZH102,112,12#,18#..CD,DX199907-200105

main45897-26030iKZH10#,LH100,107,RZH100,101..SCL198908-199907

9011908560

main90119-08560

9020119010

main90201-19010

91611G0612

main91611-G0612

91611G0820

main91611-G0820

9164180820

main91641-80820

9165160820

main91651-60820

20 parts on this diagram · 8 diagrams in section
