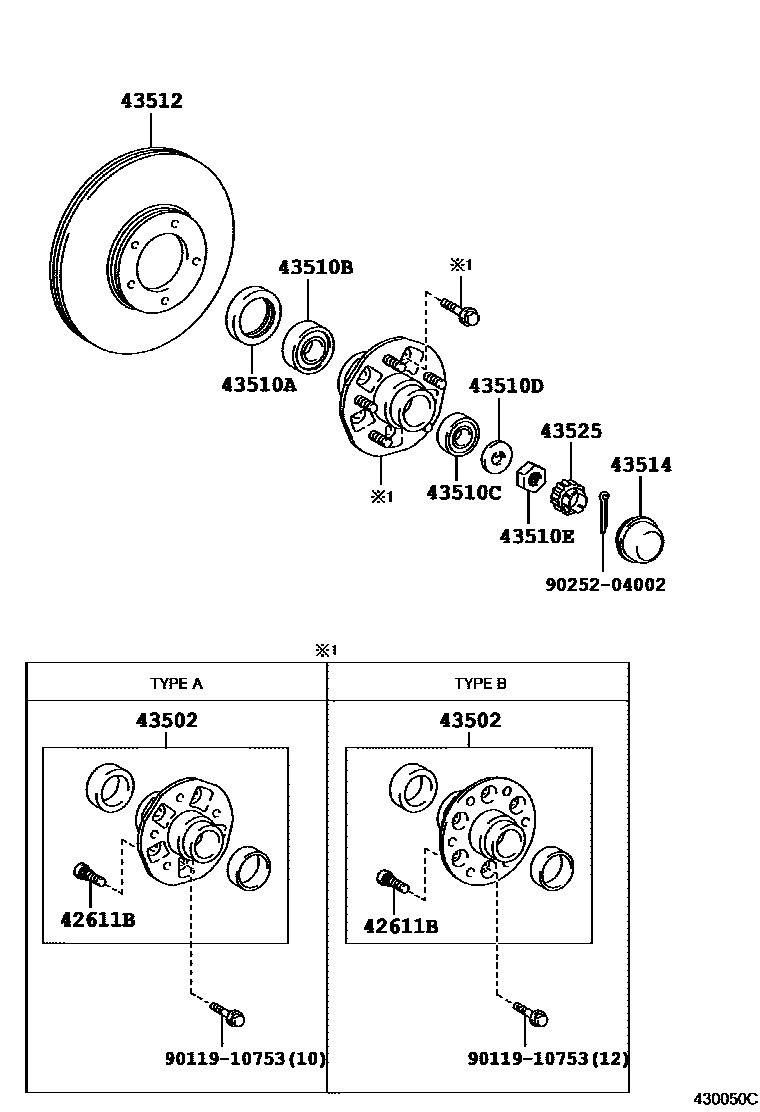

FRONT AXLE HUB

0001 1��(ABS) 0002 1��(ABS) 0003 1��(ABS) 0004 1��(ABS)

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iKZH100,110,120,132,LH162,172,182,184,RZH10#,11#,12#,18#,TRH102,112,12#..2WD198908-200501

main90942-02049iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-200408

43502HUB SUB-ASSY, FRONT AXLE

main43502-26050iKZH132,RZH133198908-199907

main43502-26070iLH103,113,123,RZH102,112199608-200501

main43503-26010iKZH100,110,120,132,RZH101,111..2WD199308-200408

main43503-26040iLH162,172,182,184,RZH102,112,12#199808-200501

main43503-29015iKZH106,116,126,138199308-199612

main43503-29025iKZH106,116,126,138,LH168,178,186,188199612-200408

main43511-26070iLH168,178,186,188..CD,DX,GL,SGLE200211-200408

main43511-35905iLH107,109,117,119,129198908-199308

main43511-39015iLH178..CD,DX;KZH138,LH109,119,129,168,186,188199308-200211

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50005iKZH100,110,120,132,LH162,172,182,184,RZH10#,11#,12#,18#,TRH102,112,12#..2WD198908-200501

main90311-66001iKZH106,116,126,LH107,109,117,119,129198908-199508

main90311-66003iKZH106,116,126,138,LH109,119,129,168,178,186,188199508-200408

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90080-36064iKZH106,116,120,138,LH168,178,186,188..4WD199308-200408

main90368-34001iKZH100,110,120,132,LH162,172,182,184,RZH10#,11#,12#,18#,TRH102,112,12#..2WD198908-200501

main90368-49084iLH107,109,117,119,129198908-199308

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90080-36067iKZH106,116,126,138,LH109,119,129,168,178,186,188199308-200408

main90368-21001iKZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133198908-200501

main90368-45087iLH107,109,117,119,129198908-199308

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20007iKZH100,110,120,132,LH162,172,182,184,RZH10#,11#,12#,18#,TRH102,112,12#..2WD198908-200501

main90214-42030iKZH106,116,120,138,LH168,178,186,188..4WD198908-200408

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iKZH100,110,120,132,LH162,172,182,184,RZH10#,11#,12#,18#,TRH102,112,12#..2WD198908-200501

43512DISC, FRONT

main43512-26090iLH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#198908-199608

main43512-26100iLH107,109,117,119,129198908-199308

main43512-26120iKZH100,110,120,132,RZH101,111..2WD199308-200408

main43512-26130iKZH106,116,120,138,LH168,178,186,188..4WD199308-200408

main43512-26140iLH103,113,123,RZH102,112199608-200501

43514CAP, FRONT HUB GREASE

main43514-35010iKZH100,110,120,132,LH162,172,182,184,RZH10#,11#,12#,18#,TRH102,112,12#..2WD198908-200501

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iKZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133198908-200501

9011910753

main90119-10753

9025204002

main90252-04002

12 parts on this diagram · 4 diagrams in section
