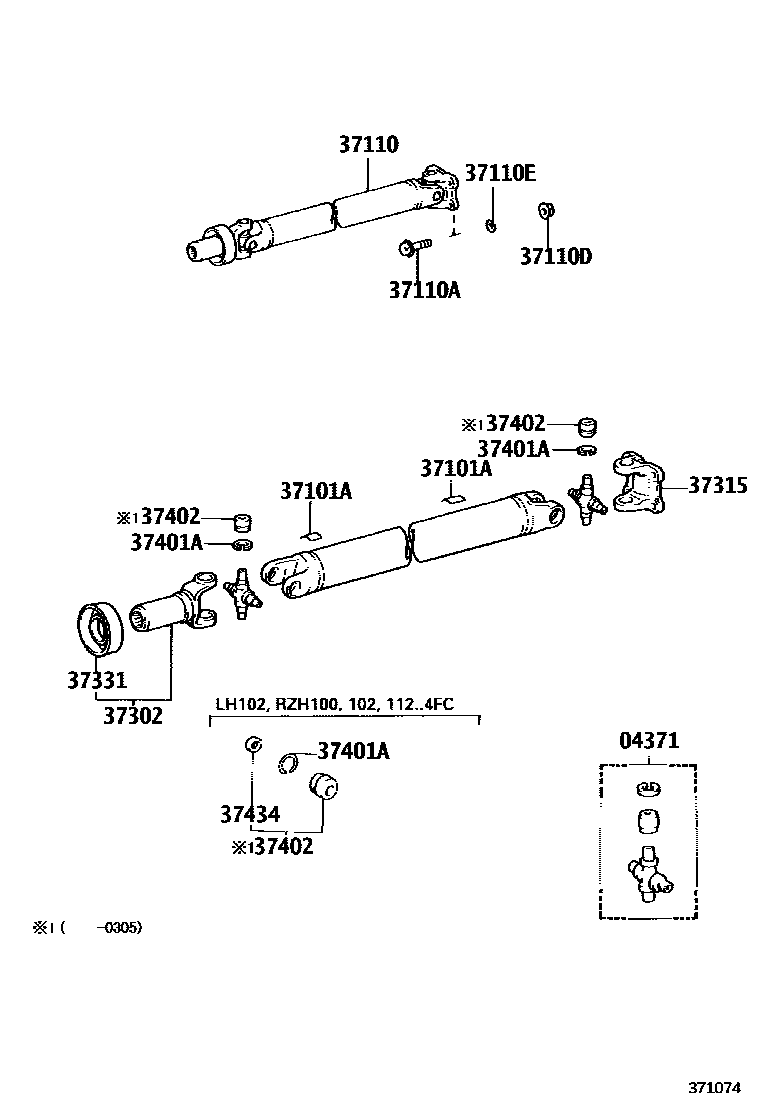

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1 0003 1 0004 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-25010×2iRZH102,112..4FC199907-200308

main04371-30021×3iKZH106,116,126,LH107,109,117,119; KZH120,LH120,123,125,RZH12#; LH102,RZH100,102,112..5F;KZH100,110,LH100,103,110,113,115,140,RZH101,110; LH129198908-199508

main04371-30030×4iLH123,RZH102,112..5F;KZH10#,11#,126,138,LH10#,11#,RZH101,111; LH125,RZH124;KZH120,132,LH123,RZH133..4FC; LH129199508-199608

main04371-30040×2iLH103..4FC;RZH102,112..5F;KZH100,110,LH113,162,172,RZH101,111199711-199907

main04371-30041×2iKZH100,110; KZH120,132..2WD; LH18#,RZH12#,18#; RZH102,112..5F;LH162,172,RZH101,111;KZH106,116,120,138,LH168,178..4WD199907-200305

main04371-60080×4iKZH120..4WD;RZH102,112..5F;KZH10#,11#,138,LH16#,17#,TRH102,112,12#200305-200501

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iLH172,RZH112..4FC;KZH10#,11#,120,13#,LH16#,178,18#,RZH10#,111,12#,18#,TRH102,112,12#199907-200501

main90937-01136iLH172,RZH112..5F200208-200501

main90937-01140iLH172,RZH112..4FC;KZH10#,11#,120,13#,LH16#,178,18#,RZH10#,111,12#,18#,TRH102,112,12#199907-200501

main90937-01147iLH172,RZH112..4FC;KZH10#,11#,120,13#,LH16#,178,18#,RZH10#,111,12#,18#,TRH102,112,12#199907-200501

main90937-01148iLH172,RZH112..4FC;KZH10#,11#,120,13#,LH16#,178,18#,RZH10#,111,12#,18#,TRH102,112,12#199907-200501

main90937-01149iLH172,RZH112..5F200208-200501

main90937-01150iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

main90937-01151iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

main90937-01152iLH172,RZH112..4FC;KZH10#,11#,120,13#,LH16#,178,18#,RZH10#,111,12#,18#,TRH102,112,12#199907-200501

main90937-01153iKZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133199308-199907

main90937-01154iLH172,RZH112..4FC;KZH10#,11#,120,13#,LH16#,178,18#,RZH10#,111,12#,18#,TRH102,112,12#199907-200501

main90937-01155iKZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133199308-199907

main90937-01156iKZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133199308-199907

main90937-01157iLH172,RZH112..4FC;KZH10#,11#,120,13#,LH16#,178,18#,RZH10#,111,12#,18#,TRH102,112,12#199907-200501

main90937-01158iLH172,RZH112..4FC;KZH10#,11#,120,13#,LH16#,178,18#,RZH10#,111,12#,18#,TRH102,112,12#199907-200501

main90937-01184iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

main90937-01191iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

main90937-01192iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90937-01193iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

main90937-01194iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90937-01198iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90937-01199iKZH106,116,126,138,LH109,119,129,168,178,186,188199308-199907

main90937-01200iKZH106,116,126,138,LH109,119,129,168,178,186,188199308-199907

main90937-01290iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

main90937-01291iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90937-01292iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90937-01293iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90937-01294iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90937-01295iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

main90937-01296iKZH106,116,126,138,LH109,119,129,168,178,186,188199308-199907

main90937-01297iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90937-01298iKZH106,116,126,138,LH109,119,129,168,178,186,188199308-199907

main90937-01299iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90937-01300iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90937-01301iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

main90937-01302iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90937-01303iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

main90937-01304iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

37110SHAFT ASSY, PROPELLER

main37110-26151iLH102,RZH100,102..4FC198908-199907

main37110-26180iRZH11#..5F198908-199308

main37110-26260iLH100,102,140,RZH100,102..(V1,WG)..5F..(CBR,DSL,EFI)198908-199308

main37110-26270iLH162,RZH101,TRH102..4FC199907-200408

main37110-26380iLH162,RZH102,TRH102..5F199907-200408

main37110-26390iLH100..08S..5F198908-199308

main37110-26400iLH110,113,115,172,RZH112..5F..(DSL,EFI)198908-199907

main37110-26410iLH113,172,RZH111..4FC198908-199907

main37110-26420iRZH112..4FC199907-200308

main37110-26430iLH107,109..5F198908-199508

main37110-26450iLH117,119..5F198908-199508

main37110-26460iLH107..4FC198908-199308

main37110-26470iLH119..4FC198908-199508

main37110-26480iLH129198908-199508

main37110-26490iLH123,125,182,184,RZH122,124..5F198908-199907

main37110-26500iLH120..5F198908-199308

main37110-26510iLH182,184,RZH125,183,TRH12#..4FC199907-200501

main37110-26590iLH100..4FC199010-199308

main37110-26650iKZH100..5F199308-199907

main37110-26660iKZH110..5F199308-199907

main37110-26670iKZH100..4FC199308-199907

main37110-26680iKZH106..5F199308-199907

main37110-26690iKZH116..5F199308-199907

main37110-26700iKZH126199308-199907

main37110-26710iKZH106..4FC199308-199907

main37110-26720iKZH120,132..2WD199907-200408

main37110-26740iKZH110199907-200408

main37110-26800iLH168199907-200408

main37110-26810iLH178..5F199907-200408

main37110-26820iLH178..4FC199907-200408

main37110-26830iKZH116199907-200408

main37110-26840iKZH120,138..4WD199907-200408

main37110-26850iLH129,186,188199508-199907

main37110-26870iLH172,RZH112,TRH112..5F200208-200408

37110ABOLT (FOR PROPELLER SHAFT)

main90105-10085×4iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

main90105-10424×4iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#199912-200402

main90105-10466×4iKZH10#,11#,120,13#,LH16#,17#,18#,TRH102,112,12#200403-200501

37110DNUT (FOR PROPELLER SHAFT)

main90178-10006×4iKZH100,110,120,132,LH162,172,182,184,RZH10#,11#,12#,18#,TRH102,112,12#..2WD; KZH106,116,120,138,LH168,178,186,188..4WD199912-200402

main90178-10007×4iKZH100,110,120,132,LH162,172,182,184,TRH102,112,12#..2WD200403-200501

main90179-10059×8iKZH100,110,120,132,LH162,172,182,184,RZH10#,11#,12#..2WD; KZH106,116,120,138,LH168,178,186,188..4WD199907-199911

37110EWASHER (FOR PROPELLER SHAFT)

main90204-10002×4iKZH100,110,120,132,LH162,172,182,184,RZH10#,11#,12#..2WD; KZH106,116,120,138,LH168,178,186,188..4WD199907-199911

main90560-10101×8iKZH100,110,120,132,LH162,172,182,184,RZH10#,11#,12#,18#,TRH102,112,12#..2WD; KZH106,116,120,138,LH168,178,186,188..4WD199912-200402

main90560-10102×8iKZH106,116,120,138,LH168,178,186,188..4WD200403-200408

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-24010iKZH100,110,120,132..2WD199907-200408

main37302-26010iLH107,109,119,129198908-198912

main37302-26011iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main37302-35010iLH102,RZH100,102,112..4FC198908-199907

main37302-35030iLH100..4FC..SCMM..TD;LH100..(07S,09S)..(DSL,TD);LH102,110,115,125,140,RZH100,102,110,112,122..5F;LH103,113,123,162,172,182,184,RZH101,111,124,125,133198908-199907

main37302-35050iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-35040iLH107,109,117,119,120,123,125,RZH12#198908-199308

main37315-35050iLH102,RZH100,102,112..4FC198908-199907

main37315-35070iLH186,188; RZH102,112..5F;KZH100,110,LH162,172,RZH101,111,TRH102,112200006-200408

37331COVER, SLIDING SHAFT DUST

main37331-24010iLH100..08S..5F;LH100..4FC..TDE;KZH100,110,120,132,LH120198908-199907

main37331-30010iLH100..4FC..SCMM..TD;LH100..(07S,09S)..(DSL,TD);LH102,103,110,113,115,123,125,140,162,172,182,184,RZH10#,11#,12#,133198908-199907

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-24030×4iRZH102,112..4FC200106-200308

main90520-24031×4iRZH102,112..4FC200106-200308

main90520-24032×4iRZH102,112..4FC200106-200308

main90520-24033×4iRZH102,112..4FC200106-200308

main90520-24034×4iRZH102,112..4FC200106-200308

main90520-24035×4iRZH102,112..4FC200106-200308

main90520-24036×4iRZH102,112..4FC200106-200308

main90520-24037×4iRZH102,112..4FC200106-200308

main90520-25039×8iLH172,RZH112..5F200208-200501

main90520-25040×8iRZH102..5F..DX;LH172..4FC..(CD,DX,SGL);KZH100,110,120,132,LH162,182,184,RZH101,111,12#..(CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL)..2WD200008-200501

main90520-25041×8iLH172,RZH112..5F200208-200501

main90520-25042×8iLH172,RZH112..5F200208-200501

main90520-25043×8iRZH102..5F..DX;LH172..4FC..(CD,DX,SGL);KZH100,110,120,132,LH162,182,184,RZH101,111,12#..(CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL)..2WD200008-200501

main90520-25044×8iLH172,RZH112..5F200208-200501

main90520-25045×8iLH172,RZH112..5F200208-200501

main90520-25046×8iLH172,RZH112..5F200208-200501

main90520-25047×8iRZH102..5F..DX;LH172..4FC..(CD,DX,SGL);KZH100,110,120,132,LH162,182,184,RZH101,111,12#..(CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL)..2WD200008-200501

main90520-25048×8iRZH102..CD;RZH18#,TRH102,112,122;KZH106,116,120,138,LH168,178,186,188..4WD;LH162,172,182,TRH124..(05S,15S)..(DX,GL,SGLE)200006-200501

main90520-25049×8iRZH102..5F..DX;LH172..4FC..(CD,DX,SGL);KZH100,110,120,132,LH162,182,184,RZH101,111,12#..(CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL)..2WD200008-200501

main90520-25050×8iLH172,RZH112..5F200208-200501

main90520-25051×8iRZH102..CD;RZH18#,TRH102,112,122;KZH106,116,120,138,LH168,178,186,188..4WD;LH162,172,182,TRH124..(05S,15S)..(DX,GL,SGLE)200006-200501

main90520-25052×8iRZH102..CD;RZH18#,TRH102,112,122;KZH106,116,120,138,LH168,178,186,188..4WD;LH162,172,182,TRH124..(05S,15S)..(DX,GL,SGLE)200006-200501

main90520-25053×8iRZH102..CD;RZH18#,TRH102,112,122;KZH106,116,120,138,LH168,178,186,188..4WD;LH162,172,182,TRH124..(05S,15S)..(DX,GL,SGLE)200006-200501

main90520-25054×8iLH172,RZH112..5F200208-200501

main90520-25055×8iRZH102..CD;RZH18#,TRH102,112,122;KZH106,116,120,138,LH168,178,186,188..4WD;LH162,172,182,TRH124..(05S,15S)..(DX,GL,SGLE)200006-200501

main90520-25056×8iRZH102..5F..DX;LH172..4FC..(CD,DX,SGL);KZH100,110,120,132,LH162,182,184,RZH101,111,12#..(CD,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL)..2WD200008-200501

main90520-25057×8iRZH102..CD;RZH18#,TRH102,112,122;KZH106,116,120,138,LH168,178,186,188..4WD;LH162,172,182,TRH124..(05S,15S)..(DX,GL,SGLE)200006-200501

main90520-25058×8iRZH102..CD;RZH18#,TRH102,112,122;KZH106,116,120,138,LH168,178,186,188..4WD;LH162,172,182,TRH124..(05S,15S)..(DX,GL,SGLE)200006-200501

main90520-26038×12iLH12#,RZH12#198908-199308

main90520-26040×20iKZH106,116,126,138,LH109,119; KZH120,132,LH123,125,RZH124,133; LH129; RZH102,112..5F;KZH100,110,LH103,113,RZH101,111199608-199711

main90520-26041×4iKZH106,116,126,138,LH109,119; KZH120,132,LH123,125,RZH124,133; LH129; RZH102,112..5F;KZH100,110,LH103,113,RZH101,111199608-199711

main90520-26042×4iKZH106,116,126,138,LH109,119; KZH120,132,LH123,125,RZH124,133; LH129; RZH102,112..5F;KZH100,110,LH103,113,RZH101,111199608-199711

main90520-26043×20iKZH106,116,126,138,LH109,119; KZH120,132,LH123,125,RZH124,133; LH129; RZH102,112..5F;KZH100,110,LH103,113,RZH101,111199608-199711

main90520-26044×12iKZH106,116,126,138,LH109,119; KZH120,132,LH123,125,RZH124,133; LH129; RZH102,112..5F;KZH100,110,LH103,113,RZH101,111199608-199711

main90520-26045×12iKZH106,116,126,138,LH109,119; KZH120,132,LH123,125,RZH124,133; LH129; RZH102,112..5F;KZH100,110,LH103,113,RZH101,111199608-199711

main90520-26046×20iKZH106,116,126,138,LH109,119; KZH120,132,LH123,125,RZH124,133; LH129; RZH102,112..5F;KZH100,110,LH103,113,RZH101,111199608-199711

main90520-26050×8iKZH106,116,126,138,LH109,119,168,178; RZH102,112..5F;KZH100,110,LH103,113,162,172,RZH101,111; RZH124..4FC;LH123,125,RZH133199711-199907

main90520-26051×12iKZH100,110; LH18#,RZH12#; RZH102,112..5F;KZH106,116,120,13#,LH16#,17#,RZH101,111199907-200008

main90520-26052×4iKZH106,116,126,138,LH109,119,168,178; KZH120,132,LH123,125,182,184,RZH12#,133; RZH102,112..5F;KZH100,110,LH103,113,162,172,RZH101,111199711-199907

main90520-26053×8iKZH106,116,126,138,LH109,119,168,178; KZH120,132,LH123,125,182,184,RZH12#,133; RZH102,112..5F;KZH100,110,LH103,113,162,172,RZH101,111199711-199907

main90520-26054×12iKZH106,116,126,138,LH109,119,168,178; KZH120,132,LH123,125,182,184,RZH12#,133; RZH102,112..5F;KZH100,110,LH103,113,162,172,RZH101,111199711-199907

main90520-26055×12iKZH106,116,126,138,LH109,119,168,178; KZH120,132,LH123,125,182,184,RZH12#,133; RZH102,112..5F;KZH100,110,LH103,113,162,172,RZH101,111199711-199907

main90520-26056×4iKZH100,110; LH18#,RZH12#; RZH102,112..5F;KZH106,116,120,13#,LH16#,17#,RZH101,111199907-200008

main90520-26057×12iKZH106,116,126,138,LH109,119,168,178; KZH120,132,LH123,125,182,184,RZH12#,133; RZH102,112..5F;KZH100,110,LH103,113,162,172,RZH101,111199711-199907

main90520-26058×4iKZH106,116,126,138,LH109,119,168,178; KZH120,132,LH123,125,182,184,RZH12#,133; RZH102,112..5F;KZH100,110,LH103,113,162,172,RZH101,111199711-199907

main90520-26059×4iKZH100,110; LH18#,RZH12#; RZH102,112..5F;KZH106,116,120,13#,LH16#,17#,RZH101,111199907-200008

main90520-26062×4iKZH100,110; LH18#,RZH12#; RZH102,112..5F;KZH106,116,120,13#,LH16#,17#,RZH101,111199907-200008

main90520-26063×12iKZH100,110; LH18#,RZH12#; RZH102,112..5F;KZH106,116,120,13#,LH16#,17#,RZH101,111199907-200008

main90520-26064×4iKZH100,110; LH18#,RZH12#; RZH102,112..5F;KZH106,116,120,13#,LH16#,17#,RZH101,111199907-200008

main90520-26065×12iKZH100,110; LH18#,RZH12#; RZH102,112..5F;KZH106,116,120,13#,LH16#,17#,RZH101,111199907-200008

main90520-26066×8iKZH100,110; LH18#,RZH12#; RZH102,112..5F;KZH106,116,120,13#,LH16#,17#,RZH101,111199907-200008

main90520-26067×8iKZH106,116,126,138,LH109,119199806-199808

main90520-26068×4iKZH100,110; LH18#,RZH12#; RZH102,112..5F;KZH106,116,120,13#,LH16#,17#,RZH101,111199907-200008

main90520-26069×12iKZH120,132,LH12#,182,184,RZH12#,133; RZH102,112..5F;KZH100,110,LH103,113,162,RZH101,111199806-199907

main90521-29070×8iLH102,RZH100,102,112..4FC198908-199508

main90521-29071×4iRZH102,112..4FC199907-200106

main90521-29072×4iRZH102,112..4FC199907-200106

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-25010×8iRZH100,102,112..4FC199308-199508

main37402-25020×4iRZH102,112..4FC199907-200308

main37402-30011×20iKZH106,116,126,138,LH109,119,168,178; KZH120,132,LH123,125,182,184,RZH12#,133; LH129,186,188; RZH102,112..5F;KZH100,110,LH103,113,162,172,RZH101,111199608-199907

main37402-30021×4iKZH106,116,126,138,LH109,119,168,178; KZH120,132,LH123,125,182,184,RZH12#,133; LH129,186,188; RZH102,112..5F;KZH100,110,LH103,113,162,172,RZH101,111199608-199907

37434SEAL, UNIVERSAL JOINT SPIDER BEARING

main37434-25010×16iLH102,RZH100,102,112..4FC198908-199308

12 parts on this diagram · 4 diagrams in section
