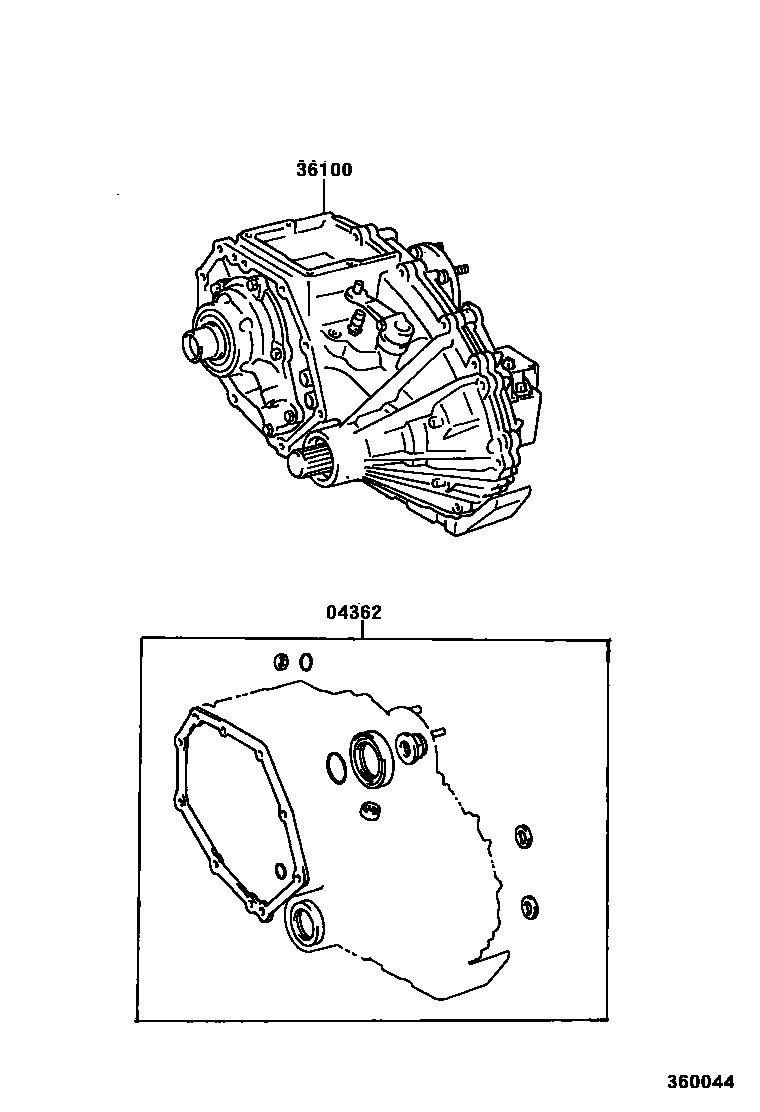

TRANSFER ASSEMBLY & GASKET KIT

04362GASKET KIT, TRANSFER OVERHAUL

main04362-26010iKZH106,116,120,138,LH178,186,188..4FC..4WD200307

main04362-26020iLH168,178,186,188..5F200307

main04362-28030iLH107,109,117,119,129198908-199508

main04362-28040iKZH106,116,126199308-199503

main04362-28041iKZH106,116,120,138,LH178,186,188..4FC..4WD199907-200307

main04362-28051iLH168,178,186,188..5F199907-200307

36100TRANSFER ASSY

main36100-26040iLH107..5F..SCMM198908-198912

main36100-26041iLH107..5F..SCMM198912-199001

main36100-26051iLH107..4FC198908-199001

main36100-26070iLH107..4FC..SCMM198908-198912

main36100-26071iLH107..4FC199001-199308

main36100-26080iLH119..4FC198908-198912

main36100-26081iLH119,129..4FC198912-199508

main36100-26090iLH109,119,129..5F198908-198912

main36100-26091iLH109,117,119,129..5F198912-199508

main36100-26100iLH107..5F198908-198912

main36100-26101iLH107..5F198912-199001

main36100-26130iKZH106..SCL199308-199408

main36100-26160iKZH106,116,126,138199508-199609

main36100-26161iKZH106,116,126,138199609-199907

main36100-28171iKZH106,116,120,138,LH178,186,188..4FC..4WD199907-200408

main36100-28181iLH109,119,129,168,178,186,188..5F199508-199907

main36100-28220iKZH106,116,126199408-199508

2 parts on this diagram · 1 diagram in section
