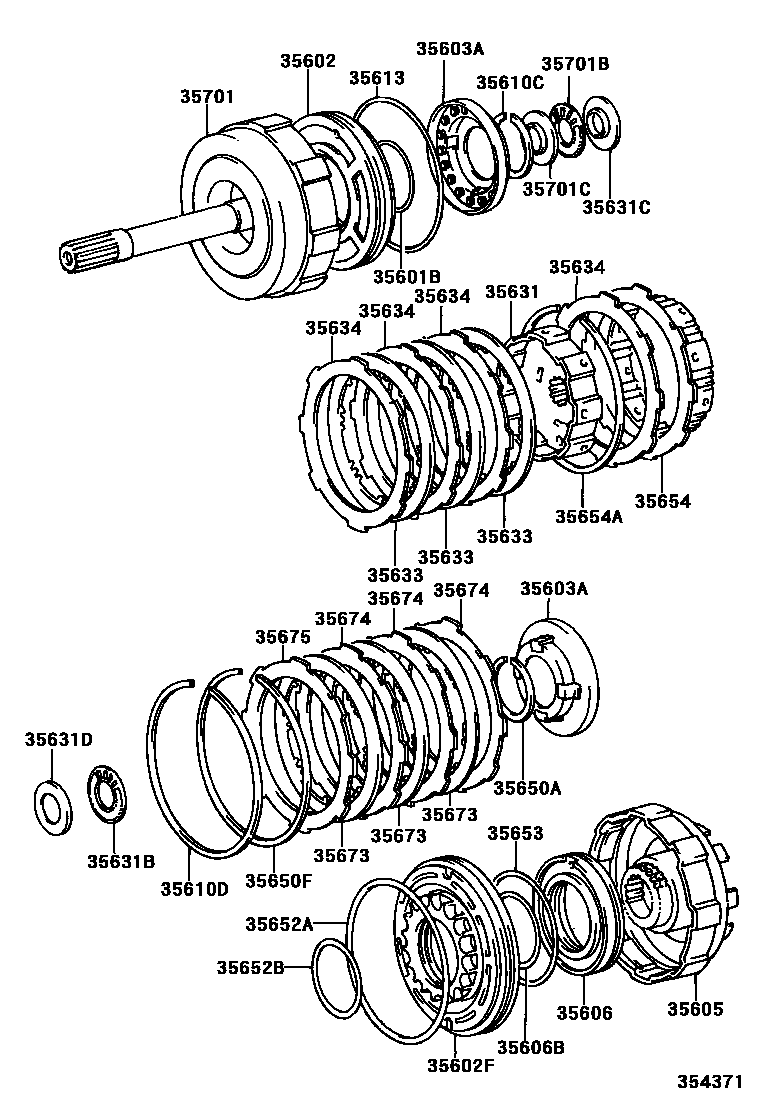

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1A44DE,A45DL,A45DF,A45DE 0003 1A340E,A340F 0004 1A45DE

35601BRING, O (FOR FRONT CLUTCH DRUM)

main90301-56007iLH162,17#,18#,RZH10#,11#,125,133..4FC199808-199907

main90301-57188iLH100,102,103,107,113,119,123,129,RZH10#,111,112,124,133..4FC..(CBR,DSL,EFI,TD)198908-199808

35602PISTON SUB-ASSY, FRONT CLUTCH

main35602-14012iKZH10#,11#,120,13#..4FC199308-199907

main35602-22030iTRH12#..4FC200308-200501

main35602-30042iRZH102,112..4FC199907-200308

main35602-30050iRZH101,111199907-200208

main35602-30062iLH100,120..4FC199010-199308

35602FPISTON SUB-ASSY, REAR CLUTCH, NO.2

main35602-30041iTRH102,112..4FC200308-200408

35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN

main35603-22010iLH103,11#,123,129,162,17#,18#..4FC199608-199810

main35603-22020iRZH102,112,125,183..4FC199907-200308

main35603-22030iRZH101,111199907-200208

main35603-22040iTRH102,112..4FC200308-200408

main35603-30011iKZH10#,11#,120,13#199907-200408

35605DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR

main35605-22011iTRH12#..4FC199907-200501

35606PISTON SUB-ASSY, REAR CLUTCH

main35606-22010iRZH101,111,125,133199810-199907

main35606-30021iRZH102,112,125,183..4FC199907-200308

35606BRING (FOR REAR CLUTCH PISTON INNER)

main90301-56007iRZH101,111199907-200208

main90301-57188iLH100,102,103,107,113,119,123,129,RZH10#,111,112,124,133..4FC..(CBR,DSL,EFI,TD)198908-199808

35610CRING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)

main90520-39261iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

35610DRING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH)

main90520-99012iRZH101,111199907-200208

main90521-99139iLH100,102,107,113,119,123,RZH10#,112..4FC..(CBR,DSL,EFI,TD)198908-199206

35613RING, CLUTCH PISTON OIL SEAL, OUTER

main90301-99016iLH100,102,103,107,113,119,123,129,RZH10#,111,112,124,133..4FC..(CBR,DSL,EFI,TD)198908-199808

main90301-99058iLH162,17#,18#,RZH10#,11#,125,133..4FC199808-199907

35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)

main35631-30050iLH100,102,103,107,113,119,123,129,RZH10#,111,112,133..4FC..(CBR,DSL,EFI,TD)198908-199604

main35631-43010iTRH12#..4FC199907-200501

35631BBEARING, THRUST(FOR FRONT CLUTCH HUB)

main90374-28014iRZH102,112,125,183..4FC199907-200308

35631CRACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT)

main35789-22050iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

35631DRACE, THRUST BEARING(FOR FRONT CLUTCH HUB REAR)

main35789-22020iLH100,102,103,107,113,119,123,129,RZH10#,111,112,133..4FC..(CBR,DSL,EFI,TD)198908-199604

main35789-43010iRZH101,111199907-200208

35633DISC, CLUTCH (FOR FRONT CLUTCH)

main35677-22080×4iTRH102,112..4FC200308-200408

main35677-24010×4iLH100,107,RZH100,101,111,133..4FC..(DSL,EFI,TD)198908-199604

main35677-28010×5iRZH125,183199907-200308

main35677-30030×4iRZH102,112..4FC199309-199608

main35677-30160×4iRZH102,112..4FC199907-200308

main35677-35010×5iRZH101,111,125,133199604-199907

35634PLATE, FRONT CLUTCH

main35634-22040×4iRZH102,112..4FC; RZH125,183199907-200308

main35634-30070iLH100,107,RZH100,101,111,125,133..4FC..(DSL,EFI,TD); LH102,103,113,119,123,129,162,17#,18#,RZH102,112,124..4FC198908-199907

main35634-30080iLH100,RZH101..4FC..(EFI,TD)198908-199308

main35634-30090iRZH101,111,125,133199604-199907

35650ARING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING)

main90520-39261iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

35650FRING, SHAFT SNAP

main90521-99139iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

35652ARING (FOR REAR CLUTCH OUTER)

main90301-99016iLH100,102,103,107,113,119,123,129,RZH10#,111,112,124,133..4FC..(CBR,DSL,EFI,TD)198908-199808

main90301-99058iTRH12#..4FC199907-200501

35652BRING (FOR REAR CLUTCH PISTON INNER)

main90301-56007iTRH12#..4FC199907-200501

main90301-57188iLH100,102,103,107,113,119,123,129,RZH10#,111,112,124,133..4FC..(CBR,DSL,EFI,TD)198908-199808

35653RING, REAR CLUTCH OIL SEAL, OUTER

main90301-83001iLH162,17#,18#,RZH10#,11#,125,133..4FC199808-199907

main90301-84184iLH100,102,103,107,113,119,123,129,RZH10#,111,112,124,133..4FC..(CBR,DSL,EFI,TD)198908-199808

35654HUB, REAR CLUTCH

main35654-30010iRZH101,111199907-200208

35654ARING, HOLE SNAP (FOR REAR CLUTCH HUB)

main90521-99012iRZH101,111,125,133199604-199907

main90521-99146iLH162,17#,18#..4FC; TRH102,112..4FC199907-200408

35673DISC, REAR CLUTCH

main35677-22080×3iLH162,17#,18#..4FC199810-199907

main35677-30030×3iRZH10#,11#,133..4FC199309-199608

main35677-30160×3iLH103,11#,123,129,162,17#,18#,RZH102,112,124..4FC199608-199810

35674PLATE, REAR CLUTCH

main35634-22040×3iLH102,103,113,119,123,129,RZH102,112..4FC198908-199608

main35634-30070×3iLH100,107,RZH100,101,111,125,133..4FC..(DSL,EFI,TD)198908-199907

35675FLANGE, REAR CLUTCH

main35675-22010iLH103,11#,123,129,162,17#,18#,RZH101,111,125,133..4FC199608-199810

main35675-22120iRZH102,112,125,183..4FC199907-200308

main35675-22130iLH162,17#,18#,TRH102,112..4FC199907-200408

main35675-22140iLH162,17#,18#,TRH102,112..4FC199907-200408

main35675-30020iLH100,107,RZH100,101,111,125,133..4FC..(DSL,EFI,TD)198908-199907

main35675-30030iLH162,17#,18#,RZH10#,11#,125,133..4FC199810-199907

35701SHAFT SUB-ASSY, INPUT

main35701-22050iLH100,120..4FC199010-199308

main35701-30042iLH100,102,107,113,119,123,RZH10#,112..4FC..(CBR,DSL,EFI,TD)198908-199206

main35701-30043iLH162,17#,18#..4FC; TRH102,112..4FC199907-200408

main35701-30051iRZH125,183199907-200308

main35701-60030iKZH10#,11#,120,13#199907-200408

35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)

main90374-23012iTRH12#..4FC200308-200501

main90374-25005iKZH100,110,120,132..4FC; KZH106,116,138..4FC199508-199608

35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)

main35789-22010iRZH101,111199907-200208

main35789-30110iKZH10#,11#,120,13#199907-200408

29 parts on this diagram · 3 diagrams in section
