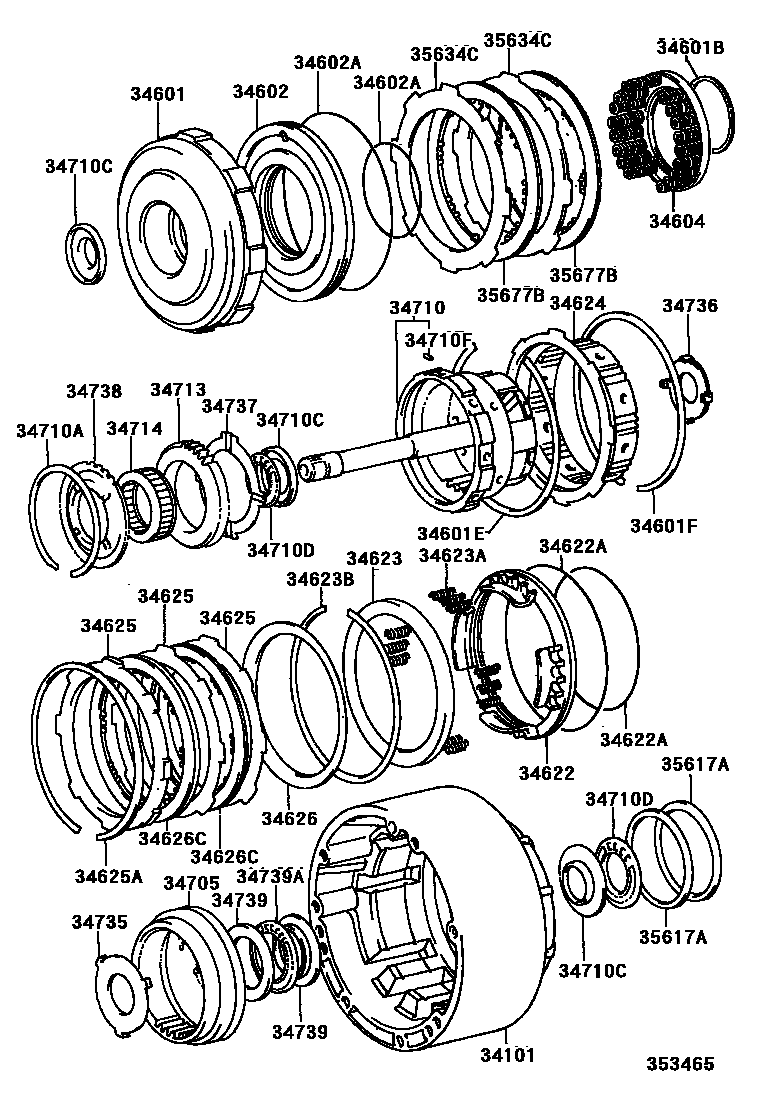

OVERDRIVE GEAR (ATM)

0001 1A45DL,A45DF 0004 1A45DL 0005 1A45DL 0006 1A44DE,A45DE,A45DF 0008 1A340E 0009 1A340E,A340F 0010 1A45DE

34101CASE SUB-ASSY, OVERDRIVE

main34101-22020iTRH12#..4FC199907-200501

main34101-28010iLH103,11#,123,129,RZH10#,11#,124,133..4FC199801-199805

main34101-30062iLH100,102,103,107,113,119,123,129,RZH10#,111,112,124,133..4FC..(CBR,DSL,EFI,TD)198908-199705

main34101-43010iLH103,11#,123,129..4FC199705-199801

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-28010iTRH12#..4FC199907-200501

main34601-30022iLH100..4FC198908-199010

main34601-30030iKZH10#,11#,120,13#,LH100,120..4FC199010-199907

34601BRING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH)

main90520-52262iRZH102,112,125,183..4FC199907-200308

34601ERING, HOLE SNAP, NO.1 (FOR OVERDRIVE)

main90521-99146iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

34601FRING, HOLE SNAP, NO.2 (FOR OVERDRIVE)

main90521-99001iLH162,17#,18#,TRH102,112..4FC199907-200408

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-22010iTRH102,112..4FC200308-200408

main34602-30011iLH162,17#,18#..4FC199907-200408

main34602-30020iKZH10#,11#,120,13#,LH100,120..4FC199010-199907

main34602-30030iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-56007iLH162,17#,18#,RZH10#,11#,125,183,TRH102,112,12#..4FC199907-200501

main90301-57188iLH100,102,103,107,113,119,123,129,RZH10#,111,112,124,133..4FC..(CBR,DSL,EFI,TD)198908-199808

main90301-65005iKZH10#,11#,120,13#,LH100,120..4FC199010-199707

main90301-65006iKZH10#,11#,120,13#..4FC199707-199907

main90301-99016iLH100,102,103,107,113,119,123,129,RZH10#,111,112,124,133..4FC..(CBR,DSL,EFI,TD)198908-199808

main90301-99036iKZH10#,11#,120,13#,LH100,120..4FC199010-199707

main90301-99058iLH162,17#,18#,RZH10#,11#,125,133..4FC199808-199907

main90301-99086iKZH10#,11#,120,13#199907-200408

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-22010iTRH12#..4FC199907-200501

main34604-30010iKZH10#,11#,120,13#199907-200408

34622PISTON, OVERDRIVE BRAKE

main34622-22020iTRH102,112..4FC200308-200408

main34622-30030iKZH106,116,120,138..4WD199907-200408

main34622-30040iRZH102,112,125,183..4FC199907-200308

main34622-30070iKZH100,110,120,132..4FC199406-199907

main34622-35010iLH100,120..4FC199010-199303

main34622-35020iKZH100,120..4FC199308-199406

main34622-60020iLH100,120..4FC199303-199308

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99008iLH100,102,103,107,113,119,123,129,RZH10#,111,112,124,133..4FC..(CBR,DSL,EFI,TD)198908-199808

main90301-99009iLH100,102,103,107,113,119,123,129,RZH10#,111,112,124,133..4FC..(CBR,DSL,EFI,TD)198908-199808

main90301-99035iLH100,120..4FC199010-199303

main90301-99037iKZH106,116,138..4FC199308-199907

main90301-99063iKZH100,110,120,132,LH100,120..4FC199303-199707

main90301-99064iKZH100,110,120,132,LH100,120..4FC199303-199707

main90301-99087iKZH106,116,120,138..4WD199907-200408

main90301-99088iKZH100,110,120,132..2WD199907-200408

main90301-99090iKZH100,110,120,132..2WD199907-200408

main90301-99103iLH162,17#,18#,RZH10#,11#,125,183,TRH102,112,12#..4FC199907-200501

main90301-99111iLH162,17#,18#,RZH10#,11#,125,133..4FC199808-199907

34623SEAT, OVERDRIVE BRAKE RETURN SPRING

main34623-30020iRZH101,111199907-200208

34623ASPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90501-10671×12iLH162,17#,182,188..SGLE199907-200408

main90501-11023×16iRZH101,111,133198908-199608

34623BRING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90521-99004iRZH101,111199907-200208

34624HUB, OVERDRIVE BRAKE

main34624-26010iRZH101,111199907-200208

main34624-32010iLH102,107,113,119,123,RZH10#,112..4FC198908-199205

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-22020×2iTRH102,112..4FC200308-200408

main34625-22030iKZH10#,11#,120,13#199907-200408

main34625-22040iKZH10#,11#,120,13#199907-200408

main34625-22050iKZH10#,11#,120,13#199907-200408

main34625-22060iKZH10#,11#,120,13#199907-200408

main34625-26010×3iLH102,103,113,119,123,129,RZH102,112..4FC198908-199608

main34625-30040iLH100,120..4FC199010-199112

main34625-30050iLH100,120..4FC199010-199112

main34625-30060iLH100,120..4FC199010-199112

main34625-30070iLH100,120..4FC199010-199112

main34625-30080iLH100,120..4FC199010-199112

main34625-30090iLH100,120..4FC199010-199112

main34625-30110iKZH106,116,120,138..4WD199907-200408

main34625-30120iKZH10#,11#,120,13#,LH100,120..4FC199112-199907

main34625-30130iKZH10#,11#,120,13#199907-200103

main34625-30140iKZH10#,11#,120,13#199907-200007

main34625-30150iKZH10#,11#,120,13#,LH100,120..4FC199112-199907

main34625-30160iKZH10#,11#,120,13#,LH100,120..4FC199112-199907

main34625-30170iKZH10#,11#,120,13#,LH100,120..4FC199112-199907

main34625-30180iKZH10#,11#,120,13#,LH100,120..4FC199112-199907

main34625-50020iKZH10#,11#,120,13#199907-200408

main34625-50030iKZH10#,11#,120,13#199907-200408

main34625-50040iKZH10#,11#,120,13#199907-200408

34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

main90521-99004iLH162,17#,18#,TRH102,112..4FC199907-200408

main90521-99027iKZH10#,11#,120,13#199907-200408

34626PLATE, OVERDRIVE BRAKE CUSHION

main34626-30050iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

34626CDISC, CLUTCH (FOR OVERDRIVE)

main35677-30040×2iLH100,102,103,107,113,119,123,129,RZH100,102,112..4FC..(CBR,DSL,EFI,TD); RZH101,111,133198908-199608

main35677-43010×3iLH103,11#,123,129,162,17#,18#..4FC; RZH10#,11#,12#,133..4FC199608-199907

34705GEAR SUB-ASSY, OVERDRIVE PLANETARY RING

main34705-30021iTRH12#..4FC199907-200501

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-14011iLH100..4FC198908-199010

main34710-22030iKZH10#,11#,120,13#..4FC199308-199907

main34710-22031iKZH10#,11#,120,13#199907-200408

main34710-28020iLH162,17#,18#..4FC199907-200408

main34710-28030iTRH12#..4FC200308-200501

main34710-30030iLH100,120..4FC199010-199308

34710ARING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR)

main90521-99003iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main34739-30031iLH100..4FC198908-199010

main34739-30041iLH162,17#,18#,TRH102,112..4FC199907-200408

main35789-22010iRZH101,111199907-200208

main35789-30050iKZH10#,11#,120,13#,LH100,120..4FC199010-199907

main35789-30052iKZH10#,11#,120,13#199907-200408

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-23012iLH103,11#,123,129,162,17#,18#,RZH10#,11#,12#,133..4FC199309-199907

main90374-24001iLH100..4FC198908-199010

main90374-25005iKZH10#,11#,120,13#,LH100,120..4FC199010-199907

main90374-28008iKZH10#,11#,120,13#,LH100,120..4FC199010-199906

main90374-31005iKZH10#,11#,120,13#..4FC199906-199907

main90374-31008iKZH10#,11#,120,13#199907-200408

main90374-37003iRZH102,112,125,183..4FC199907-200308

34710FPIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90250-03024×4iLH100,102,103,107,113,119,123,129,RZH10#,112..4FC..(CBR,DSL,EFI,TD)198908-199508

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-28010iTRH12#..4FC199907-200501

main34713-30020iLH100..4FC198908-199010

main34713-32010iKZH10#,11#,120,13#,LH100,120..4FC199010-199907

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main35791-28010iLH162,17#,18#,TRH102,112..4FC199907-200408

main35791-30030iLH100..4FC198908-199010

main35791-50010iKZH10#,11#,120,13#199907-200408

34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1

main34735-30020iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2

main34736-30010iLH162,17#,18#,TRH102,112..4FC199907-200408

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-28010iLH102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC198908-199907

main34737-30020iLH100..4FC198908-199010

main34737-30030iKZH10#,11#,120,13#,LH100,120..4FC199010-199907

34738WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4

main34738-28010iLH102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC198908-199907

main34738-30020iLH100..4FC198908-199010

34739RACE, THRUST BEARING(FOR OVERDRIVE)

main34739-30020iLH103,11#,123,129,RZH100,102,112..4FC; RZH101199308-199508

main35789-22030iRZH101,111199907-200208

34739ABEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE)

main90374-28014iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-16010×2iLH100,102,103,107,113,119,123,129,RZH10#,111,112,124,133..4FC..(CBR,DSL,EFI,TD)198908-199705

main35617-30020×2iKZH10#,11#,120,13#,LH100,120..4FC199010-199907

main35617-43010×2iRZH101,111199907-200208

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main34616-30010×2iKZH10#,11#,120,13#,LH100,120..4FC199010-199907

main34634-30010iLH100,107,RZH100,101,111,125,133..4FC..(DSL,EFI,TD)198908-199907

main35634-22040×2iLH102,103,113,119,123,129,RZH102,112,124..4FC198908-199907

main35634-30080×3iRZH102,112,125,183..4FC199907-200308

35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)

main34633-30010×3iLH100,120..4FC199010-199308

main34633-60010×3iKZH10#,11#,120,13#199907-200408

main35677-24010×2iLH102,103,113,119,123,129,RZH102,112..4FC198908-199608

main35677-30120iLH100,107,RZH100,101..4FC..(DSL,EFI,TD)198908-199206

main35677-30140iLH107,RZH100,101,111,125,133..4FC199208-199907

main35677-30160×2iLH103,11#,123,129,RZH102,112,124..4FC199608-199907

35 parts on this diagram · 7 diagrams in section
