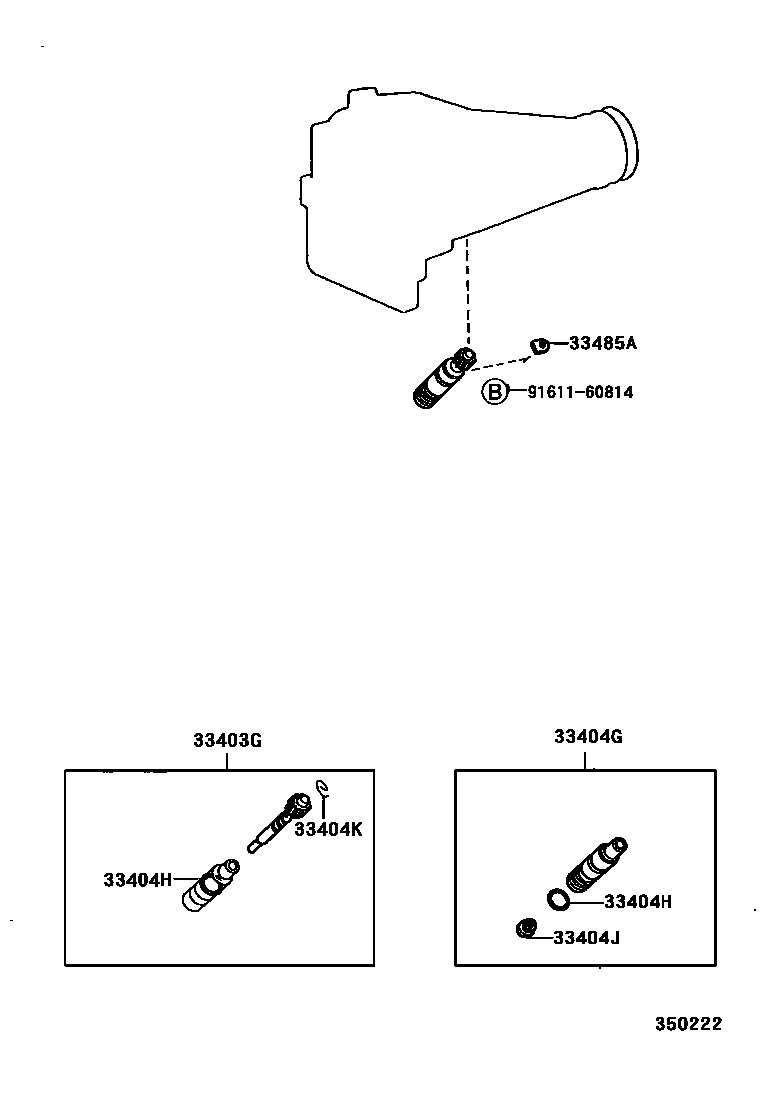

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A44DE,A45DL,A45DF,A45DE,A340F0005 1A340F,A45DF 0006 1A45DF,A45DE,A45DL 0008 1A45DF,A45DE,A45DL 0009 1

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29245iLH100,113,123,RZH102,112..4FC198908-199308

main33403-29295iKZH106..4FC199508-199907

main33403-29305iKZH106,116..4FC199308-199808

main33403-29375iLH178,188..4FC199608-200408

main33403-29465iKZH116,138..4FC199608-199907

main33403-29485iLH186..4FC199308-200408

main33403-39195iLH102..4FC198908-199308

main33403-39205iRZH101;RZH100..(07S,08S)..4FC198908-199308

main33482-29075iLH119..4FC198908-199308

main33482-29085iLH119,129..4FC199508-199608

main33482-29095iLH107..4FC198908-199001

main33482-29105iLH120..4FC199010-199308

main33482-29145iLH107..4FC..SCMM198908-199001

main33482-29145iLH107..4FC199001-199308

main33482-29165iRZH101..SCL199308-199408

main33482-29195iKZH106,116,120,138..4WD199907-200408

main33482-29205iKZH100,120..(08S,09S,10S)..4FC199308-199907

main33482-29215iRZH100,101,111,125,133..4FC199308-200308

main33482-29255iKZH100..SCL199308-199408

main33482-29265iKZH106..SCL199308-199408

main33482-39315iRZH100..(08S,09S)..4FC198908-199308

main33482-39395iLH103,113,123,162,172,182,184,RZH102,112,124..4FC199308-200501

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iLH100,102,113,120,123,RZH10#,112..4FC198908-199308

main33404-35010iLH119..4FC198908-200408

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iLH100,102,113,120,123,RZH10#,112..4FC198908-199308

main90301-18018iKZH106,116,120,138..4WD198908-200408

main90301-20004iKZH106..SCL199308-199408

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iKZH106..4FC198908-200408

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iLH100,102,107,113,123,RZH10#,112..4FC198908-199907

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iLH107..4FC198908-200408

9161160814

main91611-60814

7 parts on this diagram · 5 diagrams in section
