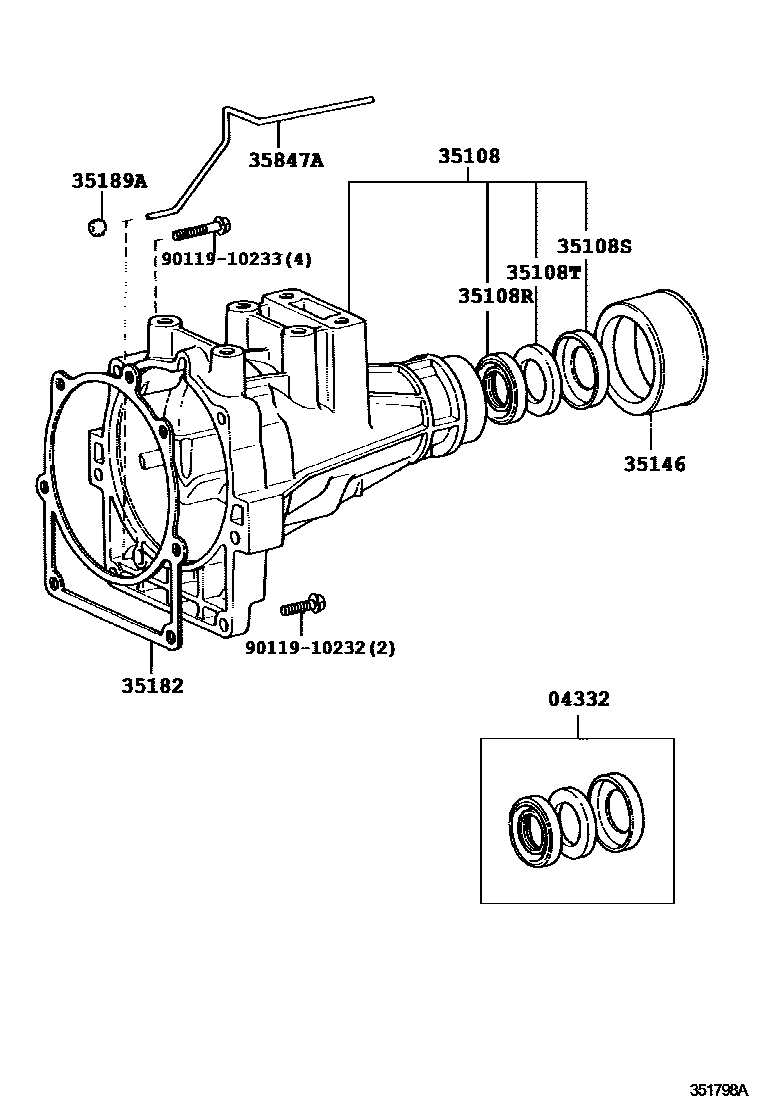

EXTENSION HOUSING (ATM)

0001 1A44DE,A45DL,A45DE 0003 1A45DF 0004 1A340E 0005 1A340F 0006 1A45DE

04332SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)

main04332-30020iLH103,113,123,RZH10#,112..4FC199308-199508

sub04332-30030

main04332-30030iLH100,102,113,123,RZH10#,112..4FC..(CBR,DSL,EFI,TD)198908-199808

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-25010iTRH12#..4FC200308-200501

main35108-26014iLH102,113,123,RZH102,112..4FC198908-199308

main35108-26020iRZH100,101..4FC..SCMM198908-199010

main35108-26020iRZH100,101,111,125,133..4FC199308-199907

main35108-26031iLH100,RZH100,101..4FC..(EFI,TD)198908-199308

main35108-26040iLH100,120..4FC199010-199308

main35108-26050iKZH100,110,120,132..2WD199308-199911

main35108-26070iKZH100,110,120,132..2WD199911-200408

main35108-28010iRZH102,112,125,183..4FC199308-200408

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-38030iLH102,103,113,123,RZH10#,112..4FC198908-199508

sub90311-38032

main90311-38032iTRH12#..4FC198908-200501

main90311-40001iKZH100,110,120,132,LH100,120..4FC199010-200408

35108SRETAINER, EXTENSION HOUSING DUST SEAL (ATM)

main33145-30010iRZH102,112,125,183..4FC198908-200501

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iLH100,102,103,113,123,162,172,182,184,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-200501

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30010iKZH100,120,LH100,102,103,113,120,123,RZH10#,112..4FC..(CBR,DSL,EFI,TDE)198908-199411

sub33146-30020

main33146-30020iRZH100,101..4FC..SCMM198908-199010

main33146-30020iKZH100,110,120,132,LH103,113,123,162,172,182,184,RZH10#,11#,12#,133..4FC199411-200501

35182GASKET, EXTENSION HOUSING (ATM)

main35182-22010iLH100,107,113,119,123,RZH10#,112..4FC..(CBR,DSL,EFI,TD)198908-199012

sub35182-28010

main35182-28010iLH100,102,120..4FC..(DSL,TDE)198910-200501

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iRZH101,111198908-200501

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-25010iTRH102,112..4FC200308-200501

main35847-30020iKZH100,110,120,132,LH100,102,103,113,120,123,162,172,182,184,RZH10#,111,112,124,125,133..4FC198908-200408

9011910232

main90119-10232

9011910233

main90119-10233

11 parts on this diagram · 5 diagrams in section
