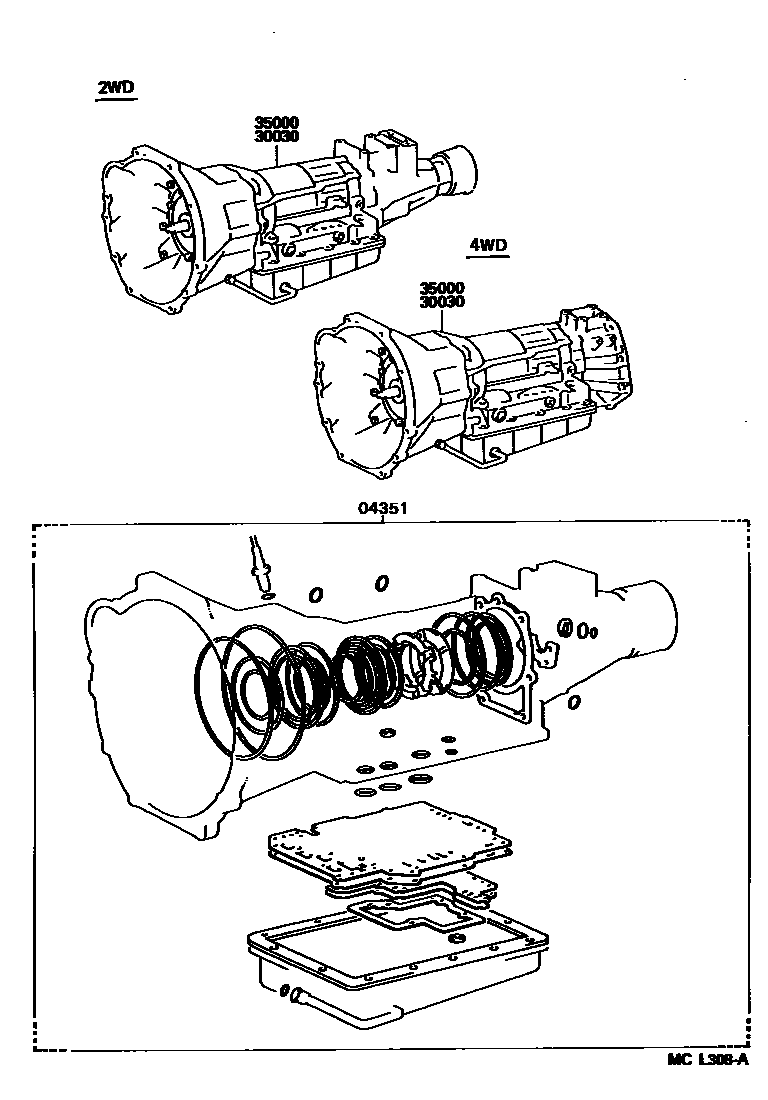

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A44DE,A45DL,A45DF,A45DE 0004 1A45DL 0005 1A340E,A340F

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-26040iRZH10#,11#,125,183..4FC199907-200308

main04351-26050iLH162,17#,18#..4FC199907-200007

main04351-26060iKZH10#,11#,120,13#199907-200210

main04351-26061iKZH10#,11#,120,13#200210-200307

main04351-26070iLH162,172,182,184..4FC200007-200307

main04351-26080iLH178,186,188..4FC200007-200307

main04351-26090iTRH102,112,12#..4FC200308-200501

main04351-28020iLH103,113,123,162,17#,18#,RZH102,112,124..4FC199508-199907

main04351-28030iLH119,129..4FC199508-199808

main04351-30093iLH100,120..4FC199010-199308

main04351-30120iLH100,107,RZH100,101,111,125,133..4FC..(DSL,EFI,TD)198908-199907

main04351-30170iKZH10#,11#,120,13#..4FC199308-199907

main04351-71010iLH162,172,182,184..4FC200308-200310

main04351-71110iLH162,172,182,184..4FC200310-200408

30030TRANSMISSION ASSY, REBUILT

main30030-26470iLH119..4FC198908-199308

main30030-26480iLH107..4FC198908-199308

main30030-26490iRZH100..(08S,09S)..4FC198908-199308

main30030-26500iRZH100..(07S,08S)..4FC198908-199308

main30030-26530iLH100..4FC198908-199010

main30030-26550iRZH102,112..4FC198908-199308

main30030-26620iLH102..4FC198908-199308

main30030-26640iLH113,123..4FC198908-199308

main30030-26660iRZH101198908-199308

main30030-26670iRZH101..SCMM198908-199010

main30030-26700iLH100..4FC199010-199308

main30030-26730iKZH100,110,120,132..4FC199408-199608

main30030-26740iLH120..4FC199010-199308

main30030-26750iKZH100..SCL199308-199408

main30030-26770iKZH106,116,138..4FC199308-199608

main30030-26790iRZH102,112..4FC199308-199608

main30030-26860iLH103,113,123..4FC199308-199608

main30030-26870iLH119,129..4FC199308-199608

main30030-26880iRZH100..4FC199308-199508

main30030-26890iRZH101199408-199508

main30030-2F010iRZH101..SCL199308-199408

main30030-2F070iRZH101,111,133199508-199608

main30030-2F110iRZH102,112,124..4FC199608-199907

main30030-2F130iRZH101,111,125,133199608-199907

main30030-2F150iLH103,113,123..4FC199608-199808

main30030-2F160iLH119,129..4FC199608-199808

main30030-2F170iKZH100,110,120,132..4FC199608-199907

main30030-2F180iKZH106,116,138..4FC199608-199907

main30030-2F330iLH162,172,182,184..4FC199808-199907

main30030-2F340iLH178,186,188..4FC199808-199907

main30030-2F350iKZH100,110,120,132..2WD199907-200408

main30030-2F370iKZH106,116,120,138..4WD199907-200408

main30030-2F390iRZH125,183199907-200308

main30030-2F410iRZH102,112..4FC199907-200308

main30030-2F420iLH162,172,182,184..4FC199907-200408

main30030-2F430iLH178,186,188..4FC199907-200408

main30030-2F630iTRH102,112..4FC200308-200408

35000TRANSMISSION ASSY, AUTOMATIC

main35000-26470iLH119..4FC198908-199308

main35000-26480iLH107..4FC198908-199308

main35000-26490iRZH100..(08S,09S)..4FC198908-199308

main35000-26500iRZH100..(07S,08S)..4FC198908-199308

main35000-26510iRZH100..4FC..SCMM198908-199010

main35000-26520iRZH100..4FC..SCMM198908-199010

main35000-26530iLH100..4FC198908-199010

main35000-26550iRZH102,112..4FC198908-199308

main35000-26620iLH102..4FC198908-198910

main35000-26621iLH102..4FC198910-199308

main35000-26640iLH113,123..4FC198908-199308

main35000-26660iRZH101198908-199308

main35000-26670iRZH101..SCMM198908-199010

main35000-26700iLH100..4FC199010-199308

main35000-26730iKZH100,120..(08S,09S,10S)..4FC199308-199408

main35000-26740iLH120..4FC199010-199308

main35000-26750iKZH100..SCL199308-199408

main35000-26770iKZH106,116,138..4FC199308-199608

main35000-26790iRZH102,112..4FC199308-199608

main35000-26860iLH103,113,123..4FC199308-199608

main35000-26870iLH119,129..4FC199308-199608

main35000-26880iRZH100..4FC199308-199508

main35000-26890iRZH101..08S199308-199408

main35000-2F010iRZH101..SCL199308-199408

main35000-2F070iRZH101,111,133199508-199608

main35000-2F110iRZH102,112,124..4FC199608-199907

main35000-2F130iRZH101,111,125,133199608-199907

main35000-2F150iLH103,113,123..4FC199608-199808

main35000-2F160iLH119,129..4FC199608-199808

main35000-2F170iKZH100,110,120,132..4FC199608-199907

main35000-2F180iKZH106,116,138..4FC199608-199907

main35000-2F330iLH162,172,182,184..4FC199808-199907

main35000-2F340iLH178,186,188..4FC199808-199907

main35000-2F350iKZH100,110,120,132..2WD199907-200408

main35000-2F370iKZH106,116,120,138..4WD199907-200408

main35000-2F390iRZH125,183199907-200308

main35000-2F410iRZH102,112..4FC199907-200308

main35000-2F420iLH162,172,182,184..4FC199907-200408

main35000-2F430iLH178,186,188..4FC199907-200408

main35000-2F630iTRH102,112..4FC200308-200408

3 parts on this diagram · 3 diagrams in section
