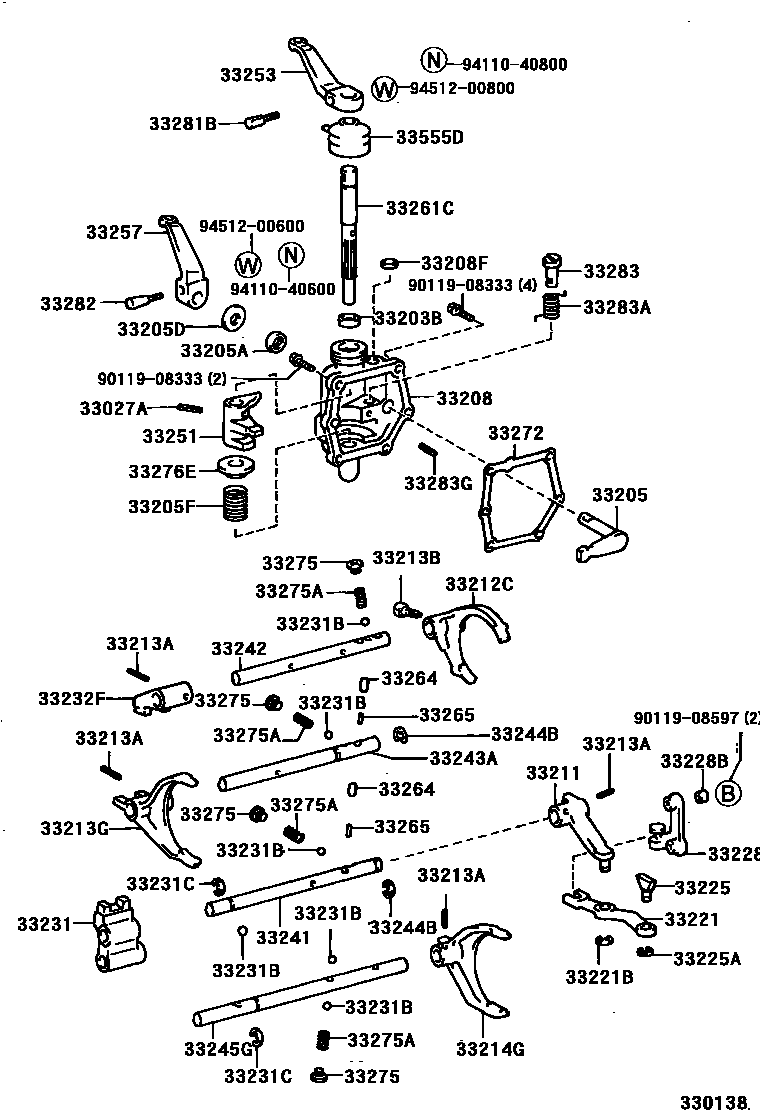

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1G55 0002 1G52,G55 0003 1R350 0004 1R350,R351F

33027APIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET)

main90254-05001iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F199907-200501

main90254-05016iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199907

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-18002iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F199907-200501

main90311-20006iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199907

33205SHAFT SUB-ASSY, SELECT LEVER

main33262-25040iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199907

main33262-28020iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-199907

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F199907-200501

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main94612-11300iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-199907

33205FSPRING, COMPRESSION(FOR SELECT RETURN)

main90501-18044iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F199907-200501

main90501-19022iKZH10#,11#,12#,LH100,120..5F..TDE199103-199907

main90501-20074iLH100,120..5F..(TD,TDE)198908-199103

33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT

main33207-25010iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199907

main33271-28010iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-199907

33208FPLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING)

main96411-41200iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F199907-200501

33211FORK, REVERSE SHIFT

main33211-28010iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-199907

main33211-35030iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199405

main33211-35050iKZH10#,11#,12#..5F199405-199907

33212CFORK, GEAR SHIFT, NO.1

main33212-26030iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-199907

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199405

main90254-05016iKZH10#,11#,12#..5F199405-199907

33213BBOLT(FOR SHIFT FORK SET)

main90105-06077×3iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199405

main90105-06143×2iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)199304-199907

33213GFORK, GEAR SHIFT, NO.2

main33213-25020iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199907

sub33213-25021

main33213-28011iLH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI)198908-199209

sub33364-26020

main33220-26010iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)199209-199907

33214GFORK, GEAR SHIFT, NO.3

main33214-26020iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)199305-199907

main33214-28010iLH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI)198908-199305

sub33395-26020

main33214-35030iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199405

main33230-26010iKZH10#,11#,12#..5F199405-199907

sub33230-26011

33221ARM, REVERSE SHIFT

main33221-28010iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-199907

main33221-35030iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199405

main33221-35050iKZH10#,11#,12#..5F199405-199907

33221BRING, E(FOR REVERSE SHIFT ARM)

main96160-01000iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F199907-200501

33225SHOE, SHIFT ARM

main33225-35030iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-199907

main33225-35040iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199405

33225ARING, SHAFT SNAP(FOR SHIFT ARM SHOE)

main96160-00800iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F199907-200501

33228BRACKET, REVERSE SHIFT ARM

main33228-28010iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-199907

main33228-35010iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199405

main33228-35030iKZH10#,11#,12#..5F199405-199907

33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)

main90253-11001×2iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F199907-200501

33231HEAD, REVERSE SHIFT

main33231-25020iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199405

main33231-28010iLH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI)198908-199210

sub33364-26020

main33231-28020iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)199210-199907

33231BBALL, REVERSE SHIFT RESTRICT

main90360-10003×6iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-199907

33231CRING(FOR REVERSE SHIFT HEAD)

main90520-12003×2iLH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI)198908-199012

main90520-12006×2iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)199012-199907

33232FHEAD, GEAR SHIFT, NO.1

main33232-26010×2iKZH10#,11#,12#..5F199405-199907

main33232-28010iLH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI)198908-199210

sub33364-26020

main33232-28020iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)199210-199907

33241SHAFT, REVERSE SHIFT FORK

main33244-28011iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-199907

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-25030iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199405

main33242-26020iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-199907

main33242-26030iKZH10#,11#,12#..5F199405-199907

sub33242-25040

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-25020iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199405

main33243-26050iKZH10#,11#,12#..5F199405-199907

main33243-35051iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-199907

33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)

main90520-12003×2iLH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI)198908-199012

main90520-12006×2iLH162,172,182,184,RZH102,112,124,182..5F199907-200111

33245GSHAFT, GEAR SHIFT FORK, NO.4

main33245-0W020iTRH12#..5F200408-200412

main33245-25030iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199405

main33245-26010iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F199907-200501

main33245-26030iLH10#,11#,12#,RZH102,112,124..5F199510-199608

main33245-28011iLH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI)198908-199304

sub33395-26020

main33245-35090iKZH10#,11#,12#..5F199405-199907

33251LEVER, SHIFT & SELECT

main33251-26050iKZH10#,11#,12#..5F199405-199907

main33251-28011iLH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI)198908-199103

main33251-28012iLH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI)199103-199210

main33251-28030iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)199210-199907

main33251-35090iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199405

33253LEVER, SHIFT OUTER, NO.1

main33253-26050iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-199907

main33253-26070iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199907

33257LEVER, SELECT OUTER

main33257-26090iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199907

main33257-26100iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F199907-200501

33261CSHAFT, SHIFT & SELECT LEVER

main33261-28011iLH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI)198908-199210

main33261-28030iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)199210-199907

main33261-35110iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199907

sub33261-35111

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90360-10003×6iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199405

main90361-10002iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-199907

main90361-10003iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F199907-200501

33265PIN, SHIFT INTERLOCK, NO.2

main90250-05020×2iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-199907

main90250-05029×2iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199405

33272GASKET, SHIFT LEVER SHAFT HOUSING

main33272-28010iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-199907

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main90341-12008×4iLH10#,11#,12#,16#,17#,18#,RZH102,112,124..5F199806-199907

main90341-12014×4iLH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI)198908-199405

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14062×3iLH10#,11#,123,125,129,RZH100,102,11#,12#..5F..(CBR,DSL,EFI)198908-198912

main90501-14096×4iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199405

main90501-14123iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-199907

main90501-14132×3iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F199907-200501

main90501-16143×3iKZH10#,11#,12#..5F199405-199907

33276ESEAT, SELECT SPRING, NO.1

main33276-25021iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199907

main33276-28011iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-199907

33281BPIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33281-16020iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F199907-200501

33282PIN, LEVER LOCK, NO.2

main33282-35010iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F199907-200501

main33282-57010iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199907

33283PIN, REVERSE RESTRICT, NO.1

main33283-26010iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199907

main33283-27010iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-199907

33283ASPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)

main90504-10008iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-199907

main90504-10009iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199907

33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)

main90254-04015iKZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F198908-199907

33555DBOOT, SHIFT LEVER

main33555-25020iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199907

main33555-28010iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-199907

9011908333

main90119-08333

9011908597

main90119-08597

9411040600

main94110-40600

9411040800

main94110-40800

9451200600

main94512-00600

9451200800

main94512-00800

51 parts on this diagram · 4 diagrams in section
