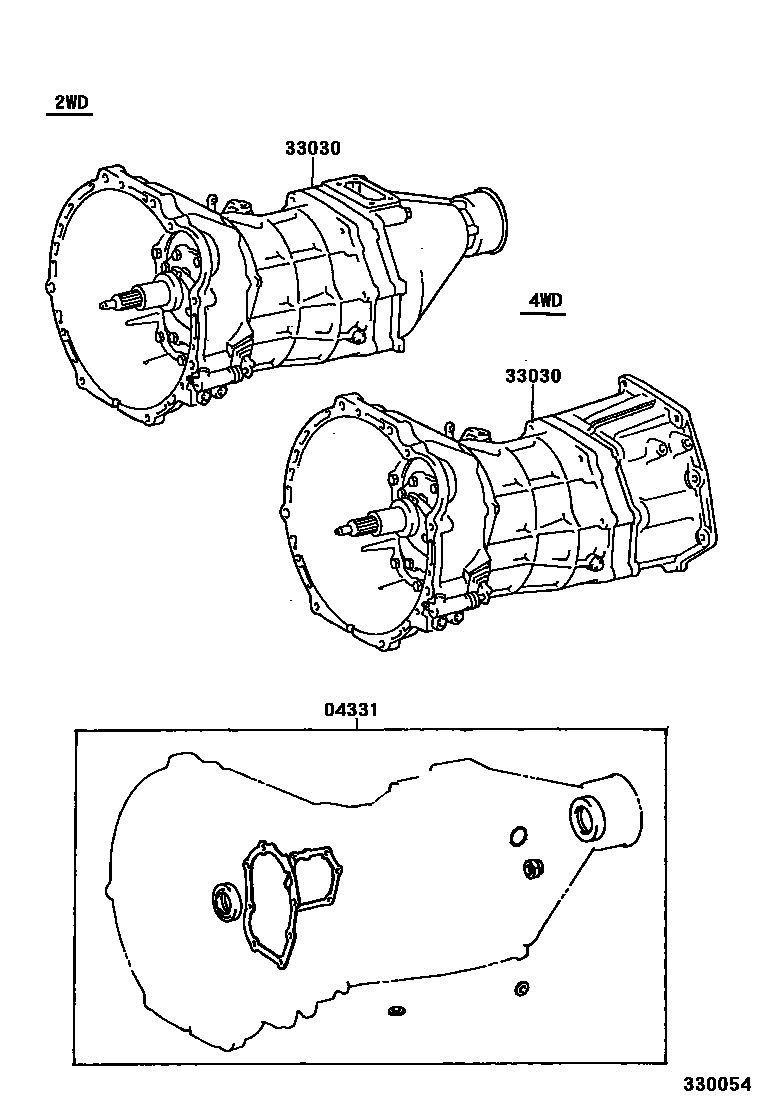

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1G52,G55 0002 1G52,G55 0003 1R350,R351F

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-26020iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199405

main04331-26060iKZH100,110..5F199508-199907

main04331-26070iKZH106,116,126..5F199508-199907

main04331-35170iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F199907-200501

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-0W630iRZH102,112,124..5F199805-199806

main33030-0W631iRZH102,112,124..5F199806-199907

main33030-0W640iLH103,113,123,125..5F199805-199806

main33030-0W641iLH103,113,123,125,162,172,182,184..5F199806-199907

main33030-26581iLH168,178,186,188..5F199907-200408

main33030-26591iLH107..5F198908-199308

main33030-26601iRZH100,110..5F198908-199508

main33030-26621iRZH100..5F..SCMM198908-199010

main33030-26631iRZH102,112,12#..5F198908-199608

main33030-26671iLH140;LH100,102,110..(03S,09S,10S)..DSL198908-199205

main33030-26681iLH102..5F198908-199205

main33030-26691iLH113,115,123,125..5F198908-199205

main33030-26701iLH102..5F199205-199308

main33030-26740iLH100,120..5F..TD198908-199008

main33030-26741iLH100,120..5F..(TD,TDE)199008-199308

main33030-26751iLH100..5F..SCMM199008-199010

main33030-26830iKZH100,110,120..5F199308-199405

main33030-26840iKZH106,116,126..5F199308-199405

main33030-26860iKZH100,110,120..5F199405-199508

main33030-26870iKZH106,116,126..5F199405-199508

main33030-2F130iKZH100,110..5F199508-199907

main33030-2F140iKZH106,116,126..5F199508-199907

main33030-2F150iRZH102,112,124..5F199608-199907

main33030-2F160iLH103,113,123,125,162,172,182,184..5F199608-199907

2 parts on this diagram · 3 diagrams in section
