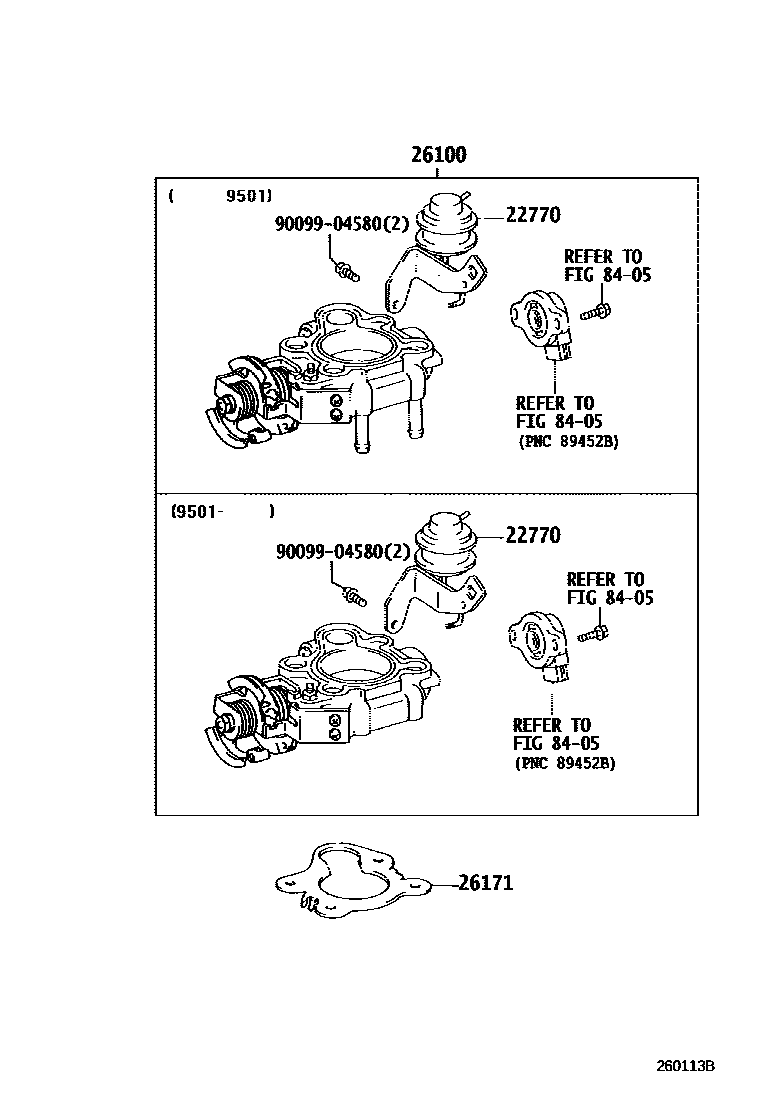

VENTURI

0001 1 0002 1 0003 1 0004 1 0005 1

22770ACTUATOR, IDEL UP

main26133-54211i2LTE..LH100,120199010-199308

main26133-54260i5L..LH16#,17#,18#199808-199907

main26133-67010i1KZTE..KZH10#,11#,12#,13#199308-199907

26100VENTURI ASSY

main26100-54160i3L..LH107,117198908-199308

main26100-54210i2LTE..LH100,120199010-199308

main26100-54260i5L..LH16#,17#,18#199907-200408

main26100-67010i1KZTE..KZH10#,11#,12#199308-199501

main26100-67020i1KZTE..KZH10#..(07S,08S)..4FC199308-199501

main26100-67040i1KZTE..KZH10#,11#,12#,13#199501-199907

main26100-67050i1KZTE..KZH10#..(07S,08S)..4FC199501-199709

main26100-67110i1KZTE..KZH10#,11#,120,13#199907-200408

26171GASKET, VENTURI

main17116-54021i5L..LH16#,17#,18#199907-200008

main17116-54030i5L..LH16#,17#,18#200008-200408

main26171-67010i1KZTE..KZH10#,11#,12#,13#199308-199907

main26171-67030×2i1KZTE..KZH10#,11#,120,13#199907-200408

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

9009904580

main90099-04580

5 parts on this diagram · 5 diagrams in section
