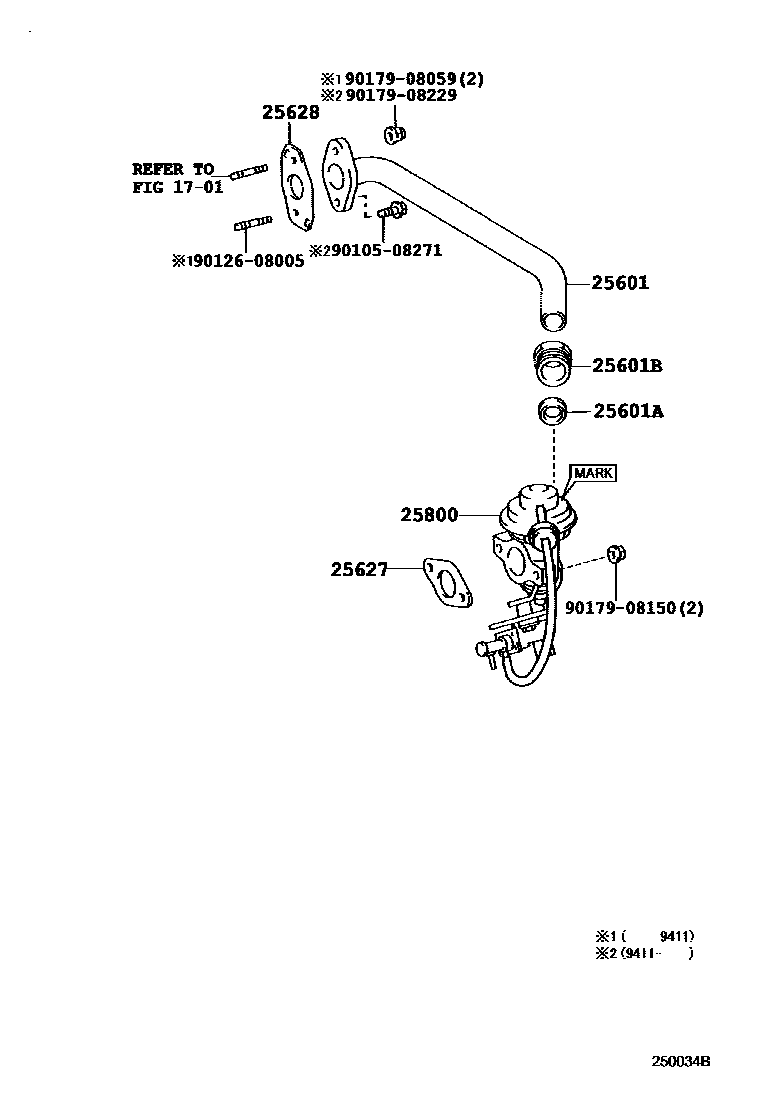

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-54061i2L,3L..LH100,107,110,117,140198908-199308

main25601-54080i2LT#..LH100,120198908-199308

main25601-67010i1KZTE..KZH10#,11#,12#,13#199308-199907

main25601-67030i1KZTE..KZH10#,11#,120,13#199907-200408

main25611-75010i2RZE..RZH101198908-199508

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-25001i2L,2LT#,3L..LH100,107,110,117,120,140198908-199308

main90410-25001i1KZTE..KZH10#,11#,12#199308-199406

main90410-26001i1KZTE..KZH10#,11#,12#,13#199406-199907

main90410-26001i1KZTE..KZH10#,11#,120,13#199907-200408

25601BNUT, UNION, EGR PIPE, NO.1

main90402-33001i2L,2LT#,3L..LH100,107,110,117,120,140198908-199308

main90402-33001i1KZTE..KZH10#,11#,12#199308-199406

main90402-33002i1KZTE..KZH10#,11#,12#,13#199406-199907

main90402-33002i1KZTE..KZH10#,11#,120,13#199907-200408

25627GASKET, EGR VALVE

main25627-54011i2L,2LT#,3L..LH100,107,110,117,120,140198908-199308

main25627-67010i1KZTE..KZH10#,11#,120,13#199308-200405

main25627-67030i1KZTE..KZH10#,11#,120,13#200405-200408

main25627-75010i2RZE..RZH101198908-199508

25628GASKET, EGR INLET

main25628-54012i2L,2LT#,3L..LH100,107,110,117,120,140198908-199308

main25628-67010i1KZTE..KZH10#,11#,12#,13#199308-200408

main25628-67020i1KZTE..KZH10#,11#,12#,13#199608-199708

sub25628-67010

main89466-20020i2RZE..RZH101198908-199508

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-54090i2L..LH100,110,140198908-199308

main25800-54100i3L..LH107,117198908-199308

main25800-54110i2LT..LH100,120198908-199010

main25800-54140i2LTE..LH100,120199010-199308

main25800-67020i1KZTE..KZH10#,11#,12#199308-199406

sub25800-67021

main25800-67021i1KZTE..KZH10#,11#,12#,13#199406-199907

main25800-67050i1KZTE..KZH10#,11#,120,13#199907-200408

9010508271

main90105-08271

9012608005

main90126-08005

9017908059

main90179-08059

9017908150

main90179-08150

9017908229

main90179-08229

12 parts on this diagram · 5 diagrams in section
