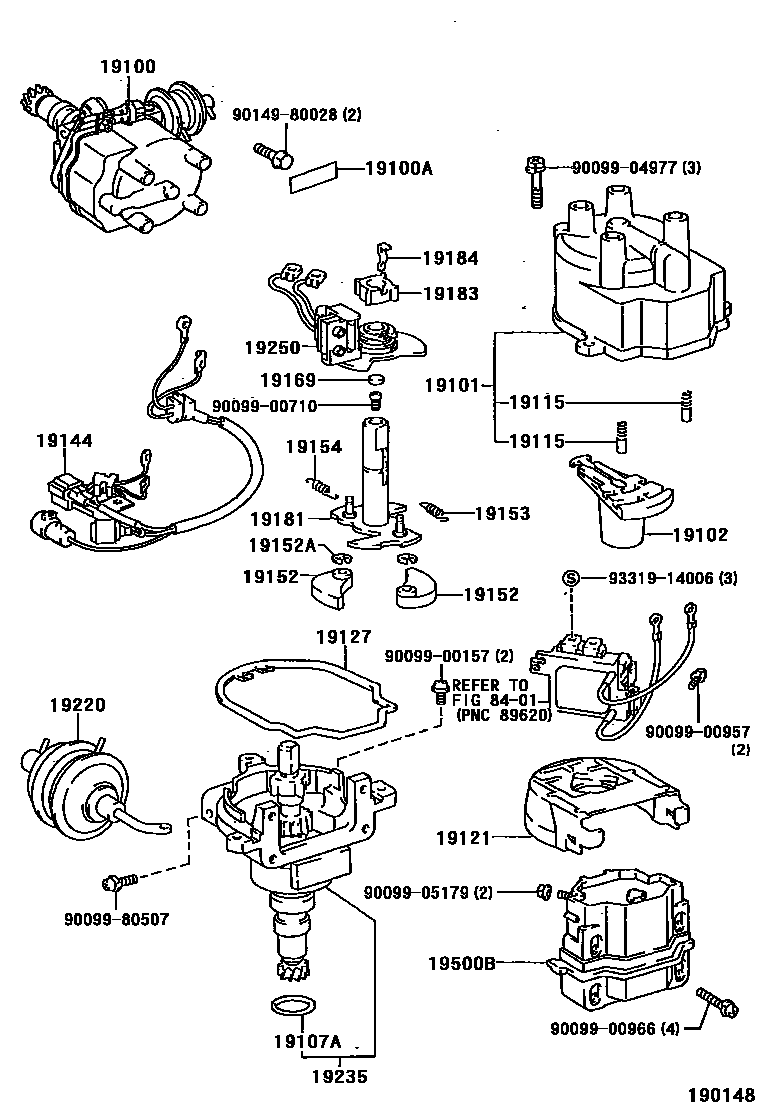

DISTRIBUTOR

0001 1 0002 1

19100DISTRIBUTOR ASSY

main19020-75010i1RZ..RZH102,112,12#198908-199205

main19020-75011i1RZ..RZH102,112,12#199205-199308

main19020-75030i1RZE..RZH100,110198908-199205

main19020-75031i1RZE,2RZE..RZH10#,11#,12#,133199508-199907

main19050-75010i2RZE..RZH101198908-199205

main19050-75011i2RZE..RZH101199205-199508

19100ATAPE, SEALING

main90919-24004i1RZ#,2RZE..RZH10#,11#,12#198908-199312

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-75010i1RZE,2RZE..RZH10#,11#,12#,18#199907-200308

main19101-75040i1RZ#,2RZE..RZH10#,11#,12#198908-199205

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i1RZ#,2RZE..RZH10#,11#,12#198908-199205

main19102-16010i1RZ#,2RZE..RZH10#,11#,12#,133199205-199907

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14091i1RZ#,2RZE..RZH10#,11#,12#198908-199508

main90099-14127i1RZE,2RZE..RZH10#,11#,124,133199508-199602

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010×2i1RZE,2RZE..RZH10#,11#,12#,18#199907-200308

19121COVER, DUST PROOF

main19121-11080i1RZ#,2RZE..RZH10#,11#,12#,133198908-199907

19127PACKING, DUST PROOF

main19127-15120i1RZ#,2RZE..RZH10#,11#,12#,133198908-199907

19144LEAD, DISTRIBUTOR BREAKER

main19144-75010i2RZE..RZH101198908-199309

main19144-75011i1RZ..RZH102,112,12#198908-199308

main19144-75030i1RZE..RZH100,102,11#,124198908-199508

main19144-75060i2RZE..RZH101199309-199508

19152WEIGHT, GOVERNOR

main19152-15160×2i1RZ..RZH102,112,12#198908-199308

19152ARING, SNAP(FOR GOVERNOR WEIGHT)

main90099-07122×2i1RZ..RZH102,112,12#198908-199308

19153SPRING, GOVERNOR, A

main19153-75020i1RZ..RZH102,112,12#198908-199308

19154SPRING, GOVERNOR, B

main19154-75020i1RZ..RZH102,112,12#198908-199308

19169STOPPER, CAM GREASE

main19169-63011i1RZ..RZH102,112,12#198908-199308

19181ROTOR, DISTRIBUTOR, SIGNAL

main19181-75010i1RZ..RZH102,112,12#198908-199308

19183ROTOR, SIGNAL

main19183-15010i1RZ..RZH102,112,12#198908-199308

19184SPRING, ROTOR SET

main19184-63010i1RZ..RZH102,112,12#198908-199308

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-75010i1RZ..RZH102,112,12#198908-199308

19235HOUSING, DISTRIBUTOR

main19235-75010i2RZE..RZH101198908-199508

main19235-75030i1RZE..RZH100,102,11#,124198908-199508

main19235-75040i1RZ..RZH102,112,12#198908-199308

19250GENERATOR ASSY, SIGNAL

main19251-16100i1RZ..RZH102,112,12#198908-199308

19500BCOIL ASSY, IGNITION

main90919-02163i2RZE..RZH101198908-199508

main90919-02164i1RZ#..RZH100,102,11#,12#198908-199508

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9009900157

main90099-00157

9009900710

main90099-00710

9009900957

main90099-00957

9009900966

main90099-00966

9009904977

main90099-04977

9009905179

main90099-05179

9009980507

main90099-80507

9014980028

main90149-80028

9331914006

main93319-14006

31 parts on this diagram · 2 diagrams in section
