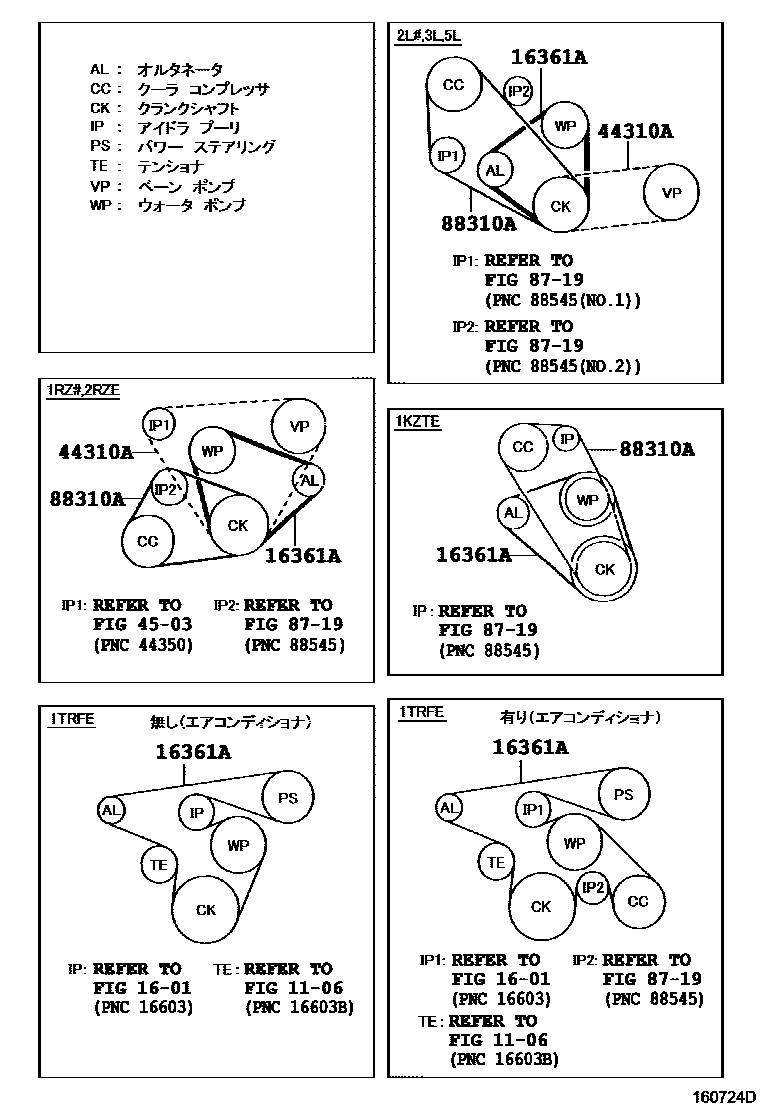

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02209i2L,2LT#,3L..LH100,102,103,110,113,115,120,123,125,140198908-199604

main90916-02211i5L..LH162,172,182,184199907-200408

main90916-02235i3L..LH107,109,117,119,129198908-199604

main90916-02238i1RZ#,2RZE..RZH10#,11#,12#198908-199009

main90916-02297i1RZ..RZH12#..06S,15S199001-199009

main90916-02336i1RZE,2RZE..RZH10#,11#,12#,18#199907-200308

main90916-02338i1RZ..RZH12#..06S,15S199009-199308

main90916-02385i1KZTE..KZH10#,11#,120,13#199907-200408

main90916-02427i3L,5L..LH109,119,129,168,178,186,188199604-199907

main90916-02639i1TRFE..TRH102,112,12#..CD,DX,GL200406-200501

main90916-02640i1TRFE..TRH102,112,12#..CD,DX,GL; 1TRFE..TRH102,112,122..SGL,SGLE200308-200501

main99367-C1870i1TRFE..TRH102,112,12#..CD,DX,GL200308-200405

44310ABELT, V(FOR VANE PUMP)

main90916-02262iLH100,102,110,113,115,120,123,125,140198908-199308

main99332-00850iLH162,172..5F..CD200012-200408

main99332-01120iRZH10#,11#,12#,133199808-199907

main99332-51120iRZH10#,11#,12#,133198908-199808

main99364-00770iLH103,113,123,125199308-199508

main99364-20770iLH103,113,123,125,162,172,182,184199508-199907

main99364-30770iLH162,172,182,184199907-200408

main99364-30830iLH168,178,186,188199907-200408

main99364-50830iLH107,109,117,119,129198908-199608

main99364-80830iLH109,119,129,168,178,186,188199608-199907

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02287iRZH102,112,18#..CD,DX199907-200308

main90916-02354iRZH102,112,183..SGLE200108-200308

main90916-02390iKZH10#,11#,12#,13#199308-199706

main90916-02465iLH172..09S;LH172,182..HRF..06S199808-199907

main90916-02528iLH162,172,182..05S200012-200408

main90916-02529iLH178,188..SGLE200010-200408

main90916-02530iLH172..09S199907-200408

main99332-01230iLH102,113;LH123..06S198908-199308

main99332-01235iLH117,129;LH119..09S;LH109,119..GL,SGL199010-199102

L=1235

main99332-01240iLH123..4FC;LH123..09S;LH102..GL,SGL;LH113..5D..GL;LH113..V1..SRF..4D..(DX,GL,SGL);LH100,110,115,120,125,140..CTM,DX,GL,SCM,SCMM,SW199207-199308

main99332-01245iLH107,117198908-199102

L=1245

main99332-11230iLH172,182..09S199907-200408

main99332-11235iLH168,178..03S,06S; LH178,184..09S,15S199907-200408

main99332-11240iLH162,172..SRF..5D..DX;LH172,182,184..HRF..4D..(DX,GL); LH162,182..DX;LH172..SRF..DX;LH172..HRF..4D199907-200408

main99332-11245iLH168,178,188..DX,SGLE; LH178..SGL199907-200408

main99332-61240iLH184199808-199907

main99364-00860iRZH102,112,122198908-198910

L=860

main99364-31170iKZH10#,11#,120,13#199907-200408

main99364-70880iRZH100,101..07S,08S199102-199308

main99364-80880iRZH102,112..GL;RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,SCM,SCMM)199102-199308

main99364-90880iRZH112..SRF..SG;RZH112..HRF..4D;RZH10#,111,12#,18#..SG199907-200308
