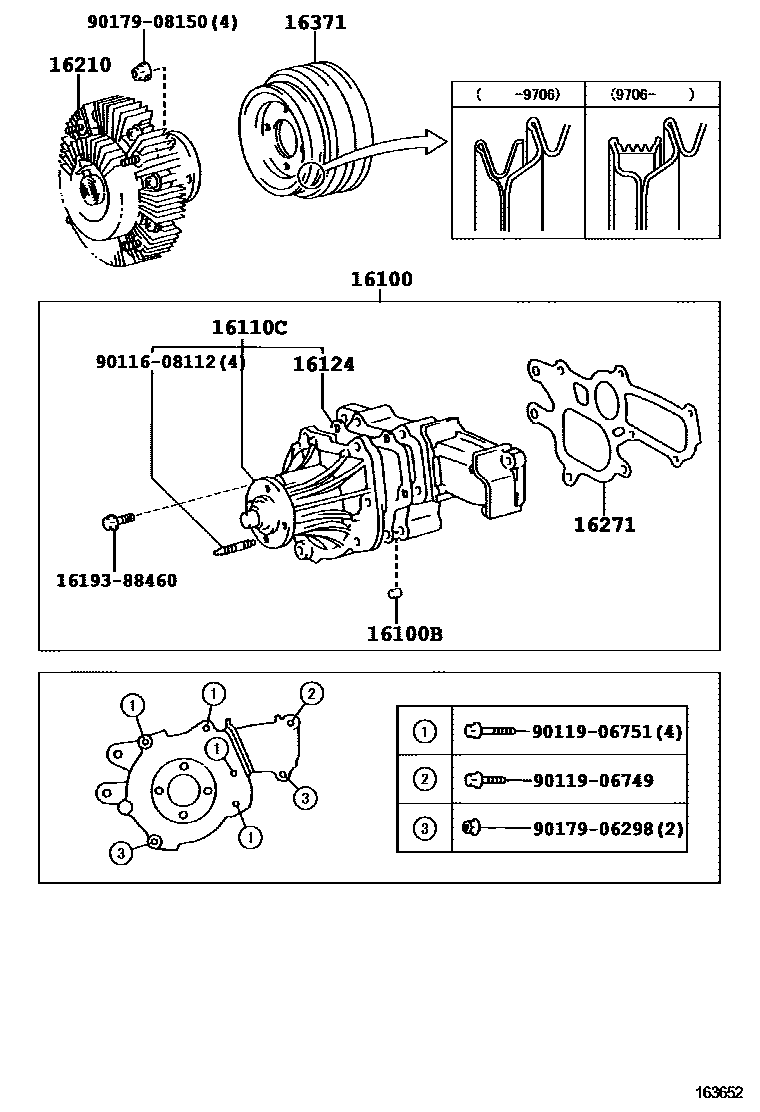

WATER PUMP

0001 1 0002 1 0003 1 0004 1

16100PUMP ASSY, ENGINE WATER

main16100-09092i5L..LH162,172,182,184200210-200401

sub16100-59257

main16100-09102i5L..LH162,172,182,184200210-200401

sub16100-59257

main16100-59155i2L,2LT#,3L..LH10#,11#,12#,140198908-199701

sub16100-59255

main16100-59255i5L..LH16#,17#,18#199701-200008

sub16100-59256

main16100-59257i5L..LH16#,17#,18#200008-200408

main16100-69355i1KZTE..KZH10#,11#,120,13#199308-200005

sub16100-69356

main16100-69356i1KZTE..KZH10#,11#,120,13#200005-200408

sub16100-69357

main16100-79155i1RZ#,2RZE..RZH10#,11#,12#198908-199508

sub16100-79455

main16100-79265i1RZE,2RZE..RZH10#,11#,12#,133199508-200308

sub16100-79455

main16100-79445i1TRFE..TRH102,112,12#200308-200501

16100BPIN, RING(FOR WATER PUMP SET)

main16159-70040i1KZTE..KZH10#,11#,12#,13#199308-200408

16110CPUMP ASSY, WATER, W/O COVER

main16110-69045i1KZTE..KZH10#,11#,120,13#199308-200408

16124GASKET, WATER PUMP COVER

main16124-67010i1KZTE..KZH10#,11#,120,13#199308-200408

main16124-75010i1RZ#,2RZE..RZH10#,11#,12#198908-199305

sub16124-75020

main16124-75020i1RZ#,2RZE..RZH10#,11#,12#199305-199508

main16124-75030i1RZE,2RZE..RZH10#,11#,12#,133199508-200308

16210COUPLING ASSY, FLUID

main16210-54170i2L#,3L..LH100,107,110,120198908-199004

sub16210-54200

main16210-54180i2L,3L..LH102,103,109,113,115,119,123,125,129198908-199808

main16210-54200i2L,2LT#,3L..LH100,107,110,117,120,140199004-199308

main16210-54200i5L..LH162,172..5F..CD200012-200408

main16210-54220i5L..LH16#,17#,18#199808-200408

main16210-67010i1KZTE..KZH10#,11#,120,13#199308-200408

main16210-75010i1RZE..RZH102,112,124198908-200012

main16210-75020i1RZE..RZH100,110198908-199308

main16210-75030i2RZE..RZH101,111,125,133198908-200308

main16210-75070i1RZE..RZH102,112,124,182200012-200308

main16210-75090i1TRFE..TRH102,112,12#200308-200501

16271GASKET, WATER PUMP

main16271-54020i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#198908-200008

sub16271-54030

main16271-54030i5L..LH16#,17#,18#200008-200408

main16271-67020i1KZTE..KZH10#,11#,120,13#199308-200408

16371PULLEY, FAN

main16371-05010i5L..LH16#,17#,18#200304-200408

main16371-54030i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#198908-200408

main16371-54030i5L..LH16#,17#,18#200304-200408

main16371-67020i1KZTE..KZH10#,11#,12#,13#199308-199706

main16371-67030i1KZTE..KZH10#,11#,12#,13#199706-200408

main16371-75010i1RZ#,2RZE..RZH10#,11#,12#,133198908-199907

sub16371-75020

main16371-75020i1RZE,2RZE..RZH10#,11#,12#,18#199907-200308

main16371-75040i1TRFE..TRH102,112,12#200308-200501

1619388460BOLT, STUD(FOR WATER PUMP COVER)

main16193-88460

9011608112

main90116-08112

9011906749

main90119-06749

9011906751

main90119-06751

9017906298

main90179-06298

9017908150

main90179-08150

13 parts on this diagram · 4 diagrams in section
