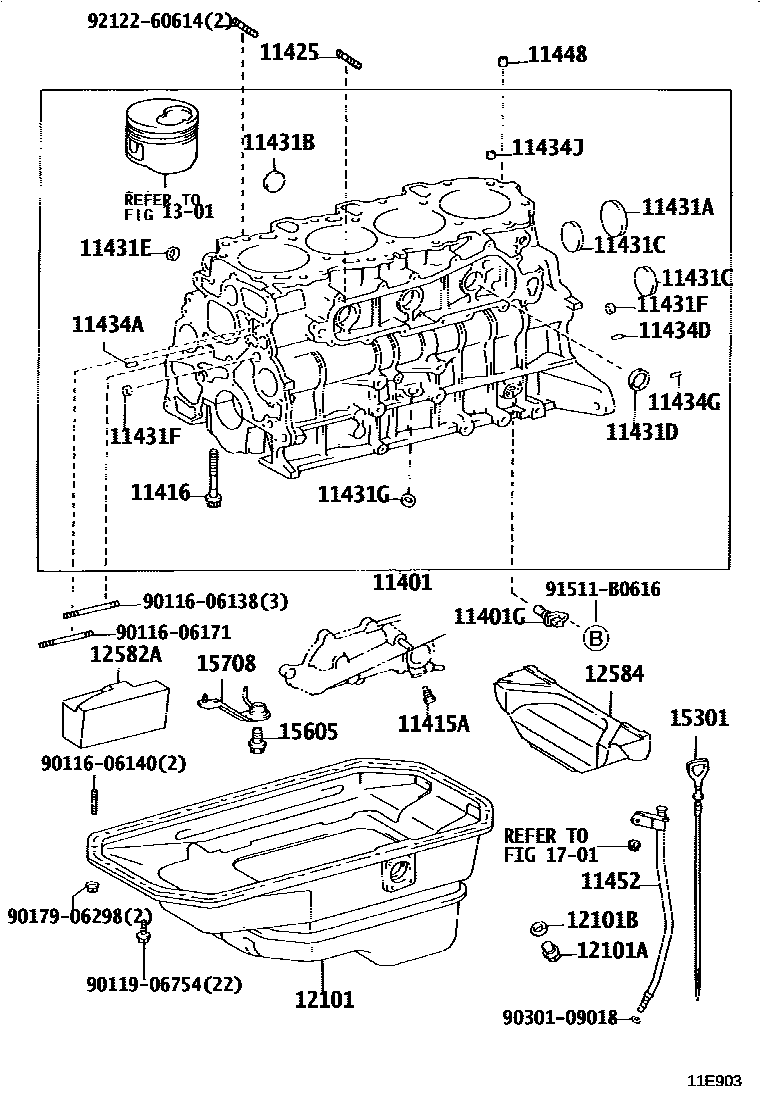

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-59345i2L..LH100,102,110,140198908-199104

sub11401-59347

main11401-59347i2L..LH100,102,110,140199104-199308

main11401-59355i2LT..LH100,120198908-199010

sub11401-59357

main11401-59365i3L..LH107,109,113,115,117,119,123,125,129198908-199102

sub11401-59505

main11401-59495i2LTE..LH100,120199010-199104

sub11401-59497

main11401-59497i2LTE..LH100,120199104-199308

main11401-59505i3L..LH103,107,109,113,115,117,119,123,125,129199102-199808

main11401-59645i5L..LH16#,17#,18#199808-200408

sub11401-59817

main11401-69545i1KZTE..KZH10#,11#,12#199308-199503

sub11401-69546

sub13572-67041

sub13581-67041

sub90105-10398

main11401-69546i1KZTE..KZH10#,11#,12#,13#199503-199604

sub11401-69547

main11401-69547i1KZTE..KZH10#,11#,12#,13#199604-199608

sub11401-69705

main11401-69705i1KZTE..KZH10#,11#,12#,13#199608-199907

sub11401-69706

main11401-69835i1KZTE..KZH10#,11#,120,13#199907-199912

sub11401-69836

main11401-69836i1KZTE..KZH10#,11#,120,13#199912-200005

sub11401-69837

sub32909-26150

sub32921-26300

sub32921-26310

sub32922-26290

sub32922-26300

sub82715-26161

sub82729-26080

sub91162-61216

sub91162-61220

sub91619-61216

sub91619-61250

sub94130-61200

main11401-69837i1KZTE..KZH10#,11#,120,13#200005-200109

sub11401-69838

sub15708-30010

main11401-69838i1KZTE..KZH10#,11#,120,13#200109-200202

sub11401-69839

main11401-69839i1KZTE..KZH10#,11#,120,13#200202-200403

sub11401-80766

main11401-79475i1RZ#..RZH100,102,112,12#198908-198911

sub11401-79535

sub13101-75010

main11401-79485i2RZE..RZH101198908-198911

sub11401-79545

sub13101-75020

main11401-79535i1RZ#..RZH100,102,112,12#198911-199305

sub11401-79536

main11401-79536i1RZ#..RZH100,102,112,122,124199305-199904

sub11401-79537

main11401-79537i1RZE..RZH102,112,124,182199904-200308

sub11401-79538

main11401-79545i2RZE..RZH101198911-199307

sub11401-79546

main11401-79546i2RZE..RZH101199307-199508

sub11401-79725

sub13101-75080

main11401-79725i2RZE..RZH101,111,125,133199508-199904

sub11401-79726

main11401-79726i2RZE..RZH101,111,125,133199904-200308

sub11401-79727

main11401-80059i1TRFE..TRH102,112,12#200308-200401

sub11401-80719

main11401-80719i1TRFE..TRH102,112,12#200401-200402

sub11401-80749

main11401-80737i1KZTE..KZH10#,11#,120,13#200403-200408

sub11401-80766

main11401-80749i1TRFE..TRH102,112,12#200402-200501

sub11401-80811

11401GSENSOR, CRANK POSITION

main90919-05005i1KZTE..KZH10#,11#,120,13#199308-200408

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90345-53030i3L..LH10#,11#,12#199402-199803

main90910-09075i1RZE,2RZE..RZH10#,11#,12#,133199905-200501

sub90910-09129

main90910-09091i1RZ#,2RZE..RZH10#,11#,12#,133198908-200308

main90910-09110i3L,5L..LH10#,11#,12#,16#,17#,18#199803-200408

main96431-53828i2L,2LT#,3L..LH10#,11#,12#,140199006-199402

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-53030i2L#,3L..LH10#,11#,12#198908-199006

main90910-09087i3L,5L..LH10#,11#,12#,16#,17#,18#198908-200501

main96432-23814i2L,2LT#,3L..LH10#,11#,12#,140199006-199402

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02061i5L..LH16#,17#,18#198908-200408

main90910-02092i1RZ#,2RZE..RZH10#,11#,12#,133198908-200501

sub90910-02179

main90910-02113i1KZTE..KZH10#,11#,12#,13#199308-200408

11425BOLT, STUD(FOR OIL FILTER)

main90116-06141i1KZTE..KZH10#,11#,12#,13#199308-199905

sub90116-06171

main90116-06171i1KZTE..KZH10#,11#,120,13#199905-200408

main90116-08157i2L,2LT#,3L..LH10#,11#,12#,140198908-199511

main92112-60825i3L..LH10#,11#,12#199511-199705

main92112-80825i3L,5L..LH10#,11#,12#,16#,17#,18#199705-200408

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-42500i5L..LH16#,17#,18#198908-200408

main96411-43000i1RZ#,2RZE..RZH10#,11#,12#198908-199308

main96411-63000i1RZE,2RZE..RZH10#,11#,12#,18#199308-200501

main96411-64500i1KZTE..KZH10#,11#,120,13#199308-200408

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43500i1RZ#,2RZE..RZH10#,11#,12#198908-200408

main96411-63500i1KZTE..KZH10#,11#,12#,13#199308-200501

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-44000i1KZTE..KZH10#,11#,12#,13#198908-199510

main96411-45000i5L..LH16#,17#,18#198908-200408

main96411-64000i1KZTE..KZH10#,11#,120,13#199308-200501

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main90331-35002i1KZTE..KZH10#,11#,12#199308-199310

main90331-35004i1KZTE..KZH10#,11#,120,13#199310-200408

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main96411-62000i1KZTE..KZH10#,11#,12#,13#199308-200408

11431FPLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)

main96411-41800i1KZTE..KZH10#,11#,12#199308-199411

main96411-61800i1KZTE..KZH10#,11#,12#,13#199411-200408

11431GPLUG, TIGHT

main90331-14006i1KZTE..KZH10#,11#,12#,13#199603-200408

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120i1KZTE..KZH10#,11#,12#,13#199308-200408

main90253-11001i2L,2LT#,3L..LH10#,11#,12#,140198908-199012

main90253-11021i5L..LH16#,17#,18#199012-200408

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i1TRFE..TRH102,112,12#198908-200501

main90250-06068i1KZTE..KZH10#,11#,120,13#199308-200408

main90250-10113i1TRFE..TRH102,112,12#200406-200407

main90253-11001i2L,2LT#,3L..LH10#,11#,12#,140198908-199012

main90253-11021i2L#,3L,5L..LH10#,11#,12#,140,16#,17#,18#199012-200408

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113i3L,5L..LH10#,11#,12#,16#,17#,18#199502-200408

main90250-10192i1KZTE..KZH10#,11#,120,13#198908-200408

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-15001i1TRFE..TRH102,112,12#200312-200501

main90253-15016i1KZTE..KZH10#,11#,12#,13#198908-200408

11448ORIFICE, CYLINDER BLOCK OIL

main11448-54020i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#198908-200408

main11448-67010i1KZTE..KZH10#,11#,12#,13#199308-200408

11452GUIDE, OIL LEVEL GAGE

main11409-75010i1RZ#,2RZE..RZH10#,11#,12#198908-199308

sub11409-75020

main11409-75020i1RZE,2RZE..RZH10#,11#,12#,18#199308-200308

main11409-75070i1TRFE..TRH102,112,12#200308-200407

sub11409-75071

main11409-75071i1TRFE..TRH102,112,12#200407-200501

main11452-54090i2L,2LTE,3L,5L..LH10#,11#,12#,140,16#,17#,18#198908-200408

main11452-54100i2LT..LH100,120198908-199010

main11452-67020i1KZTE..KZH10#,11#,12#,13#199308-200408

12101PAN SUB-ASSY, OIL

main12101-54180i2L#,3L..LH100,102,110,113,115,120,123,125198908-199005

sub12101-54182

sub90341-12012

sub90430-12027

main12101-54182i2L,2LT#,3L..LH100,102,103,110,113,115,120,123,125,140199005-199808

sub12101-54183

main12101-54183i5L..LH162,172,182,184199808-200105

sub12101-54184

main12101-54184i5L..LH162,172,182,184200105-200408

main12101-54190i3L..LH107,109,119,129198908-199005

sub12101-54192

sub90341-12012

sub90430-12027

main12101-54192i3L..LH107,109,117,119,129199005-199505

sub12101-54193

main12101-54193i3L..LH109,119,129199505-199704

sub12101-54194

main12101-54194i3L..LH109,119,129199704-199705

sub12101-54195

main12101-54195i5L..LH168,178,186,188199705-200009

sub12101-54196

main12101-54196i5L..LH168,178,186,188200009-200308

sub12101-54197

main12101-54197i5L..LH168,178,186,188200308-200408

main12101-67050i1KZTE..KZH100,110,120199308-199508

sub12101-67090

sub15104-67060

sub15149-67010

main12101-67060i1KZTE..KZH106,116,120,138..4WD199308-200408

main12101-67090i1KZTE..KZH100,110,120,132199508-200108

sub12101-67091

main12101-67091i1KZTE..KZH100,110,120,132..2WD200108-200312

sub12101-67092

main12101-67092i1KZTE..KZH100,110,120,132..2WD200312-200408

sub12101-30120

main12101-75010i1RZ#,2RZE..RZH10#,11#,12#,133198908-200308

main12101-75140i1TRFE..TRH102,112,12#200308-200501

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#198908-200501

main90341-12026i1RZE,2RZE..RZH10#,11#,12#,133199309-199907

sub90341-12012

main90341-18089i2L#,3L..LH10#,11#,12#198908-199005

sub90033-41020

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12020i1RZ#,2RZE..RZH10#,11#,12#198908-198912

sub90430-12028

main90430-12027i1RZ#,2RZE..RZH10#,11#,12#198912-199309

sub90430-12031

main90430-12031i1RZE,2RZE..RZH10#,11#,12#,133199308-200501

main90430-18013i2L#,3L..LH10#,11#,12#198908-198909

sub90430-18023

main90430-18026i2L#,3L..LH10#,11#,12#198909-199005

12582AINSULATOR, CYLINDER BLOCK, NO.2

main12582-67010i1KZTE..KZH10#,11#,12#,13#199308-200408

12584INSULATOR, CYLINDER BROCK, NO.4

main12584-54011i5L..LH162,172,182,184..4FC198908-200408

main12584-54030i3L,5L..LH107,119,129,178,186,188..4FC198908-200408

main12584-67010i1KZTE..KZH106,116,126,138199308-200408

main12584-67020i1KZTE..KZH100,110,120199308-199508

main12584-67030i1KZTE..KZH100,110,120,132199508-200408

1301

15301GAGE SUB-ASSY, OIL LEVEL

main15301-54080i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#198908-200408

main15301-67010i1KZTE..KZH106,116,120,138..4WD199308-200408

main15301-67020i1KZTE..KZH100,110,120,132199308-200408

main15301-75010i1RZ#,2RZE..RZH10#,11#,12#,133198908-199705

sub15301-75011

main15301-75011i1RZE,2RZE..RZH10#,11#,12#,18#199705-200308

main15301-75091i1TRFE..TRH102,112,12#200308-200501

15605VALVE SUB-ASSY, OIL CHECK

main15605-54010i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#198908-200408

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-30010i1KZTE..KZH10#,11#,120,13#200106-200307

sub15708-30011

main15708-30011i1KZTE..KZH10#,11#,120,13#200307-200408

main15708-54060i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#198908-200408

main15708-67010i1KZTE..KZH10#,11#,12#,13#199308-200106

sub15708-30010

main15708-75010i1TRFE..TRH102,112,12#200308-200501

sub15708-75020

1701

9011606138

main90116-06138

9011606140

main90116-06140

9011606171

main90116-06171

9011906754

main90119-06754

9017906298

main90179-06298

9030109018

main90301-09018

91511B0616

main91511-B0616

9212260614

main92122-60614

37 parts on this diagram · 8 diagrams in section
