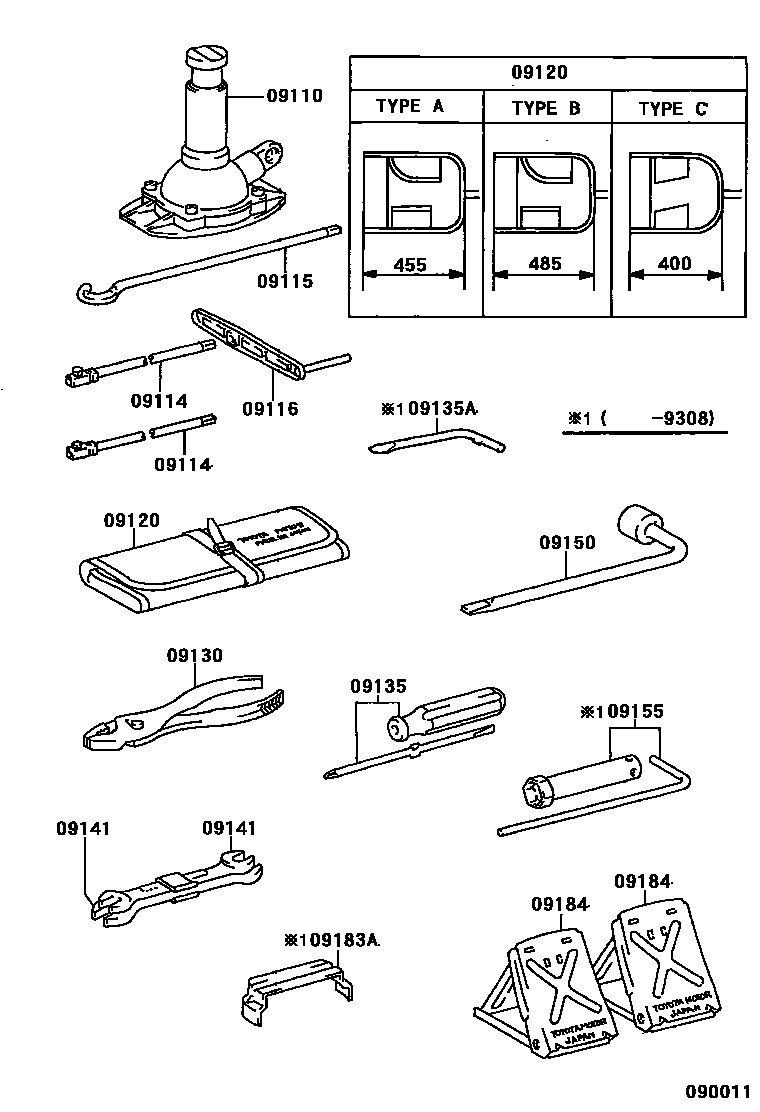

STANDARD TOOL

09110JACK ASSY

main09110-26050iKZH100,110,120,132,LH103,113,123,125,RZH10#,11#,124,133199608-199808

main09110-26080iKZH106,116,126,138,LH109,119,129199608-199808

main09111-26110iKZH100,110,120,132,LH162,172,182,184,RZH10#,11#,12#,18#,TRH102,112,12#..2WD199907-200501

main09111-26120iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main09111-95J00iKZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12#,133..COM,V1,WG198908-199608

main09111-95J01iKZH106,116,126,138,LH107,109,117,119,129198908-199608

main09111-95J02iLH102,103,113,RZH112..V2198908-199608

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-28010×2iKZH10#,11#,LH16#,17#,18#,TRH102,112; KZH120,13#,RZH101,12#..DX,GCGE,GCGN,SCM,SCMM199907-200408

main09114-60050×2iLH10#,11#,12#,140,RZH10#,11#,12#198908-199210

09115ROD SUB-ASSY, JACK HANDLE

main09115-28030iKZH10#,11#,LH16#,17#,18#,TRH102,112; KZH120,13#,RZH101,12#..DX,GCGE,GCGN,SCM,SCMM199907-200408

09116LEVER, JACK HANDLE

main09116-35041iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

09120BAG, TOOL

main09120-12011iTRH12#200308

main09120-26021iKZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124199308-199405

main09120-28010iLH107,109,117,119,129198908-199308

09130PLIERS

main99913-11500iRZH124..5F;KZH10#,116,LH123..(06S,08S,10S)..4FC;KZH110,12#,13#,LH125,129,184,186,RZH101,133..DX,GCGE,GCGN,SCM,SCMM199608-199907

09135DRIVER, SCREW

main99915-10700iLH123..4FC;KZH11#,12#,LH125,129,RZH124..DX,GCGE,GCGN199308-199508

09135ABIT, SCREW DRIVER

main09135-95J00iLH100,107,RZH100,101..SCL,SCMM198908-199308

09141SPANNER

main99914-10810iLH10#,11#,12#,140,RZH10#,11#,12#198908-199308

main99914-11214iRZH124..5F;KZH10#,116,LH123..(06S,08S,10S)..4FC;KZH110,12#,13#,LH125,129,184,186,RZH101,133..DX,GCGE,GCGN,SCM,SCMM199608-199907

09150WRENCH, HUB NUT BOX

main09150-35020iLH10#,11#,12#,140,RZH10#,11#,12#198908-199308

main09150-40010iKZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133199308-199907

09155WRENCH, SPARK PLUG

main09155-41010iRZH10#,11#,12#198908-199308

09183AREPLACER, WHEEL CAP

main09183-35010iLH107,109,117,119,129198908-199308

main09183-60020iLH109,119,129199308-199508

09184STOPPER, WHEEL

main09184-00010×2iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

13 parts on this diagram · 1 diagram in section
