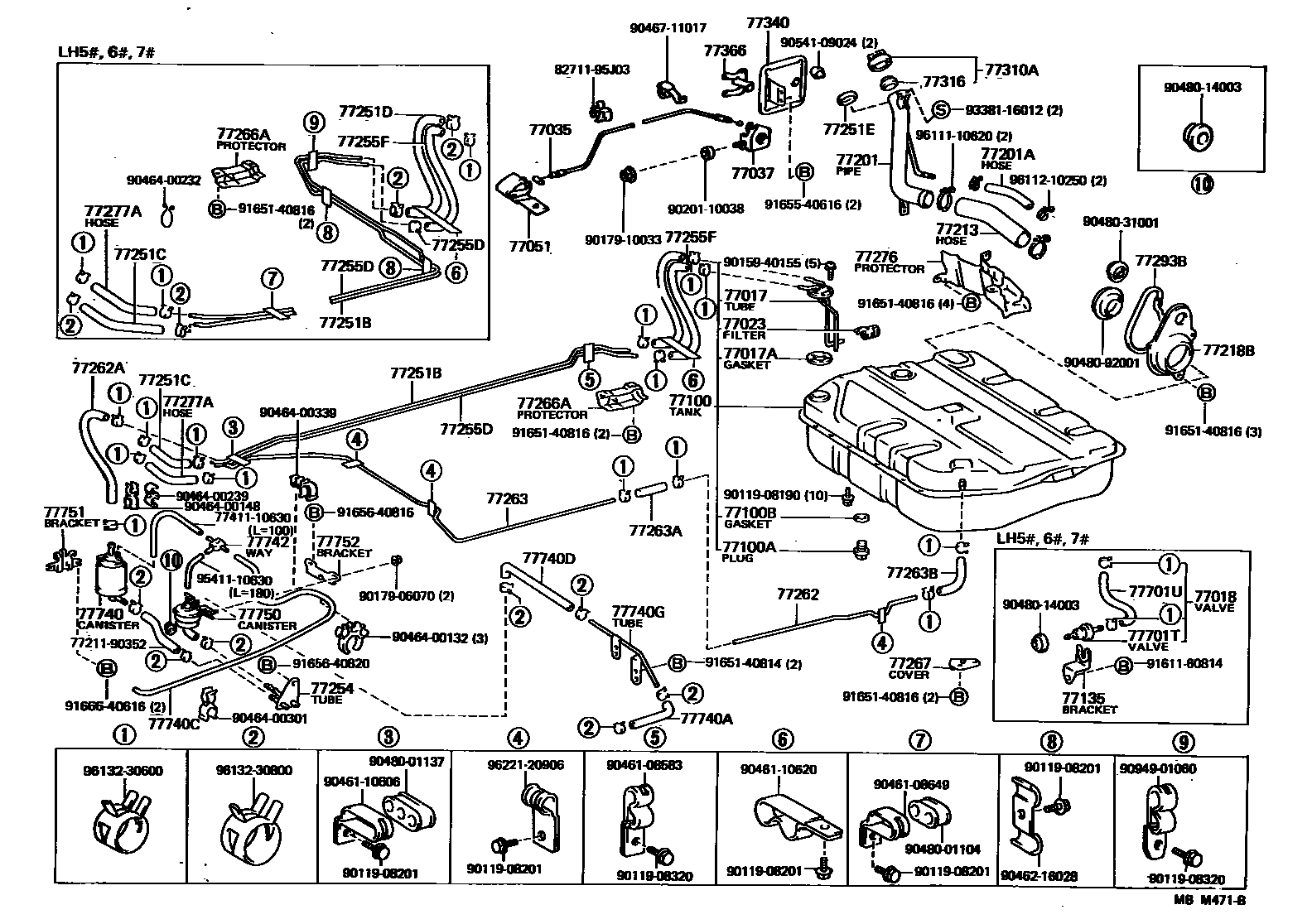

FUEL TANK & TUBE
77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77017AGASKET, FUEL TANK VENT
77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77023FILTER SUB-ASSY, FUEL SUCTION TUBE
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
sub77037-90K00
77051LEVER SUB-ASSY, FUEL LID OPEN
77100TANK ASSY, FUEL
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77135BRACKET, CHECK VALVE
77201PIPE SUB-ASSY, FUEL TANK INLET
main77201-26040iLH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77213HOSE, FUEL TANK SUB INLET
main77213-26040iLH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908
77218BPLATE, FUEL INLET PIPE LOWER SHIELD
main77218-95J00iLH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908
77251BTUBE, FUEL MAIN
77251CHOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77251ESHIELD, FUEL TANK INLET PIPE
77254TUBE, FUEL EMISSION, NO.1
77255DTUBE, FUEL RETURN
77255FHOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
sub95338-06030
77262TUBE, FUEL EMISSION, NO.2
77262AHOSE, FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE)
77263TUBE, FUEL TANK TO CANISTER, NO.3
77263AHOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER NO.3 TUBE)
sub95337-06020
77266APROTECTOR, FUEL TUBE, NO.1
main77266-26010iLH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908
77267COVER, FUEL EVAPORATIVE TUBE
main77267-26020iLH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908
77276PROTECTOR, FUEL HOSE
77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
77293BPACKING, FUEL INLET PIPE LOWER SHIELD PLATE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77340DOOR ASSY, FUEL INLET BOX
main77340-95J00iLH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S)198708-198908
77366SPRING, FUEL FILLER OPENING LID HINGE
77701TVALVE, CHECK (FOR MAIN FUEL TANK)
77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77740CHOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
sub90999-92006
77740DHOSE, FUEL, NO.4(FOR CHARCOAL CANISTER)
77740GTUBE, FUEL, NO.2(FOR CHARCOAL CANISTER)
77742WAY, 3(FOR CANISTER)
77750CANISTER ASSY, CHARCOAL
77751BRACKET, CHARCOAL CANISTER BASE
77752BRACKET, CHARCOAL CANISTER SUPPORT
7721190352PIPE, FUEL TANK INLET
main77211-90352
7741110630PROTECTOR, FUEL INLET BOX
main77411-10630
8271195J03WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-95J03
9011908190
main90119-08190
9011908201
main90119-08201
9011908320
main90119-08320
9015940155
main90159-40155
9017906070
main90179-06070
9017910033
main90179-10033
9020110038
main90201-10038
9046108583
main90461-08583
9046108649
main90461-08649
9046110606
main90461-10606
9046110620
main90461-10620
9046216028
main90462-16028
9046400132
main90464-00132
9046400148
main90464-00148
9046400232
main90464-00232
9046400239
main90464-00239
9046400301
main90464-00301
9046400339
main90464-00339
9046711017
main90467-11017
9048001104
main90480-01104
9048001137
main90480-01137
9048014003
main90480-14003
9048031001
main90480-31001
9048092001
main90480-92001
9054109024
main90541-09024
9094901060
main90949-01060
9161160814
main91611-60814
9165140814
main91651-40814
9165140816
main91651-40816
9165540616
main91655-40616
9165640816
main91656-40816
9165640820
main91656-40820
9166640616
main91666-40616
9338116012
main93381-16012
9541110630
main95411-10630
9611110620
main96111-10620
9611210250
main96112-10250
9613230600
main96132-30600
9613230800
main96132-30800
9622120906
main96221-20906
90 parts on this diagram · 4 diagrams in section
