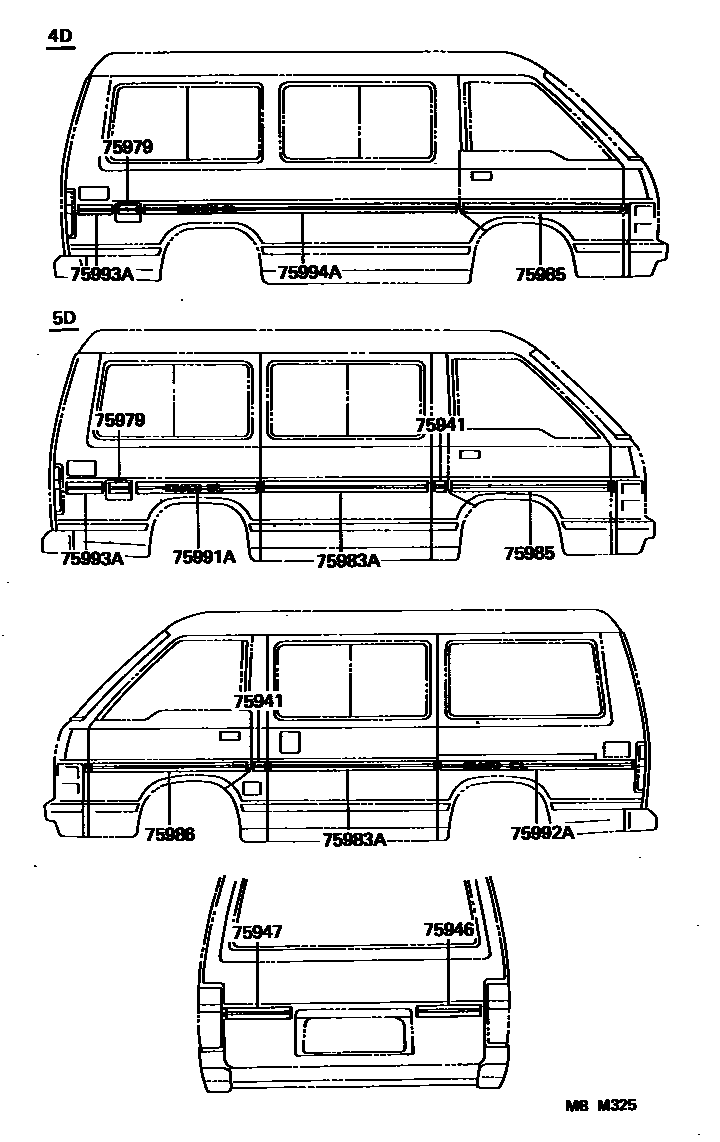

BODY STRIPE

0001 1 0002 1 0003 1 0004 1 0005 1������ ��-� EX 0006 1������ ��-� EX 0007 1

75941STRIPE, CENTER PILLAR, RH

main75941-95J14iLH56,66..V4D..DX; LH56,66..V5D..DX198708-198908

main75941-95J15×2iLH56,66..V4D..GL..05S; LH56,66..V5D..GL198708-198908

main75941-95J18-01iLH51,YH51..07S198708-198908

BRACK & GOLD,21H

main75941-95J19-03iLH51..4FC..08S; YH51..08S;LH51..5F..08S198708-198908

GRAY,23H ,4D2

main75941-95J19-04iLH51..4FC..08S; YH51..08S;LH51..5F..08S198708-198908

BLUE,148 ,20H ,8E1

main75941-95J21-03iLH51,6#..SGL198708-198908

SILVER & BLUE & RED,045 ,148 ,22H

main75941-95J24-02iYH57198708-198908

RED,23H ,4D2

main75941-95J24-04iYH57198708-198908

BLUE,148 ,20H ,8E1

main75941-95J27-03iLH51,61,YH50,51,61..V5D..05S; LH51,61,YH50,61..V4D..GL198708-198908

SILVER/RED,22H

main75941-95J28-06iLH51..08S..TD; YH51..MRF..4FC..08S198801-198805

main75941-95J29iLH51..08S..TD; YH51..MRF..4FC..08S198805-198809

main75941-95J30iLH51..08S..TD; YH51..MRF..4FC..08S198809-198901

main75941-95J31iLH51..08S..TD; YH51..MRF..4FC..08S198901-198902

main75941-95J34iLH51..08S..TD; YH51..MRF..4FC..08S198904-198905

75946STRIPE, BACK DOOR, RH

main75946-95J14iLH56,66..GL..05S198708-198908

main75946-95J17-01iLH51,YH51..07S198708-198908

BLACK,21H

main75946-95J18-03iLH51..4FC..08S; YH51..08S;LH51..5F..08S198708-198908

GRAY,23H ,4D2

main75946-95J18-04iLH51..4FC..08S; YH51..08S;LH51..5F..08S198708-198908

BLUE,148 ,20H ,8E1

main75946-95J20-03iLH51,6#..SGL198708-198908

SILVER & BLUE & RED,045 ,148 ,22H

main75946-95J22-02iYH57198708-198908

RED,23H ,4D2

main75946-95J22-04iYH57198708-198908

BLUE,BLUE,148 ,20H ,8E1

main75946-95J25-03iLH51,61,YH50,51,61..GL198708-198908

SILVER/RED,22H

main75946-95J26-06iLH51..08S..TD; YH51..MRF..4FC..08S198801-198805

main75946-95J27iLH51..08S..TD; YH51..MRF..4FC..08S198805-198809

main75946-95J28iLH51..08S..TD; YH51..MRF..4FC..08S198809-198901

main75946-95J29iLH51..08S..TD; YH51..MRF..4FC..08S198901-198902

main75946-95J34iLH51..08S..TD; YH51..MRF..4FC..08S198904-198905

75947STRIPE, BACK DOOR, LH

main75947-95J14iLH56,66..GL..05S198708-198908

main75947-95J17-01iLH51,YH51..07S198708-198908

BLACK & GOLD,21H

main75947-95J18-03iLH51..4FC..08S; YH51..08S;LH51..5F..08S198708-198908

GRAY,23H ,4D2

main75947-95J18-04iLH51..4FC..08S; YH51..08S;LH51..5F..08S198708-198908

BLUE,148 ,20H ,8E1

main75947-95J20-03iLH51,6#..SGL198708-198908

SILVER & BLUE & RED,045 ,148 ,22H

main75947-95J22-02iYH57198708-198908

RED,23H ,4D2

main75947-95J22-04iYH57198708-198908

BLUE,148 ,20H ,8E1

main75947-95J25-03iLH51,61,YH50,51,61..GL198708-198908

SILVER/RED,22H

main75947-95J26-06iLH51..08S..TD; YH51..MRF..4FC..08S198801-198805

main75947-95J27iLH51..08S..TD; YH51..MRF..4FC..08S198805-198809

main75947-95J28iLH51..08S..TD; YH51..MRF..4FC..08S198809-198901

main75947-95J29iLH51..08S..TD; YH51..MRF..4FC..08S198901-198902

main75947-95J34iLH51..08S..TD; YH51..MRF..4FC..08S198904-198905

75979STRIPE, FUEL FILLER OPENING LID

main76993-95J14iLH56,66..DX198708-198908

main76993-95J15iLH56,66..GL..05S198708-198908

main76993-95J18-01iLH51,YH51..07S198708-198908

BLACK & GOLD,21H

main76993-95J19-03iLH51..4FC..08S; YH51..08S;LH51..5F..08S198708-198908

GRAY,23H ,4D2

main76993-95J19-04iLH51..4FC..08S; YH51..08S;LH51..5F..08S198708-198908

BLUE,148 ,20H ,8E1

main76993-95J21-03iLH51,6#..SGL198708-198908

SILVER & BLUE & RED,045 ,148 ,22H

main76993-95J24-02iYH57198708-198908

RED,23H ,4D2

main76993-95J24-04iYH57198708-198908

BLUE,148 ,20H ,8E1

main76993-95J28-03iLH51,61,YH50,51,61..GL198708-198908

SILVER/RED,22H

main76993-95J29-06iLH51..08S..TD; YH51..MRF..4FC..08S198801-198805

main76993-95J30iLH51..08S..TD; YH51..MRF..4FC..08S198805-198809

main76993-95J31iLH51..08S..TD; YH51..MRF..4FC..08S198809-198901

main76993-95J32iLH51..08S..TD; YH51..MRF..4FC..08S198901-198902

main76993-95J33iLH51..08S..TD; YH51..MRF..4FC..08S198904-198905

75983ASTRIPE, SLIDE DOOR

main75983-95J16iLH56,66..V4D..DX; LH56,66..V5D..DX198708-198908

main75983-95J17×2iLH56,66..V4D..GL..05S; LH56,66..V5D..GL198708-198908

main75983-95J20-01iLH51,YH51..07S198708-198908

BLACK & GOLD,21H

main75983-95J21-03iLH51..4FC..08S; YH51..08S;LH51..5F..08S198708-198908

GRAY,23H ,4D2

main75983-95J21-04iLH51..4FC..08S; YH51..08S;LH51..5F..08S198708-198908

BLUE,148 ,20H ,8E1

main75983-95J23-03iLH51,6#..SGL198708-198908

SILVEL & BLUE & RED,045 ,148 ,22H

main75983-95J26-02iYH57198708-198908

RED & WHITE,4D2

main75983-95J26-04iYH57198708-198908

BLUE,148 ,20H ,8E1

main75983-95J26-12iYH57198708-198908

RED & SILVE,23H

main75983-95J29-03iLH51,61,YH50,51,61..V5D..05S; LH51,61,YH50,61..V4D..GL198708-198908

SILVER/RED,22H

main75983-95J30-06iLH51..08S..TD; YH51..MRF..4FC..08S198801-198805

main75983-95J31iLH51..08S..TD; YH51..MRF..4FC..08S198805-198809

main75983-95J32iLH51..08S..TD; YH51..MRF..4FC..08S198805-198809

main75983-95J33iLH51..08S..TD; YH51..MRF..4FC..08S198809-198901

main75983-95J34iLH51..08S..TD; YH51..MRF..4FC..08S198809-198901

main75983-95J35iLH51..08S..TD; YH51..MRF..4FC..08S198901-198902

main75983-95J36iLH51..08S..TD; YH51..MRF..4FC..08S198901-198902

main75983-95J39iLH51..08S..TD; YH51..MRF..4FC..08S198904-198905

main75983-95J41iLH51..08S..TD; YH51..MRF..4FC..08S198904-198905

75985STRIPE, FRONT DOOR, RH

main75985-95J16iLH56,66..DX198708-198908

main75985-95J17iLH56,66..GL..05S198708-198908

main75985-95J20-01iLH51,YH51..07S198708-198908

BLACK & GOLD,21H

main75985-95J21-03iLH51..4FC..08S; YH51..08S;LH51..5F..08S198708-198908

GRAY,23H ,4D2

main75985-95J21-04iLH51..4FC..08S; YH51..08S;LH51..5F..08S198708-198908

BLUE,148 ,20H ,8E1

main75985-95J23-03iLH51,6#..SGL198708-198908

SILVER & BLUE & RED,045 ,148 ,22H

main75985-95J26-02iYH57198708-198908

RED,23H ,4D2

main75985-95J26-04iYH57198708-198908

BLUE,148 ,20H ,8E1

main75985-95J29-03iLH51,61,YH50,51,61..GL198708-198908

SILVER/RED,22H

main75985-95J30-06iLH51..08S..TD; YH51..MRF..4FC..08S198801-198805

main75985-95J31iLH51..08S..TD; YH51..MRF..4FC..08S198805-198809

main75985-95J32iLH51..08S..TD; YH51..MRF..4FC..08S198805-198809

main75985-95J33iLH51..08S..TD; YH51..MRF..4FC..08S198809-198901

main75985-95J34iLH51..08S..TD; YH51..MRF..4FC..08S198809-198901

main75985-95J35iLH51..08S..TD; YH51..MRF..4FC..08S198901-198902

main75985-95J36iLH51..08S..TD; YH51..MRF..4FC..08S198901-198902

main75985-95J44iLH51..08S..TD; YH51..MRF..4FC..08S198904-198905

main75985-95J45iLH51..08S..TD; YH51..MRF..4FC..08S198904-198905

75986STRIPE, FRONT DOOR, LH

main75986-95J16iLH56,66..DX198708-198908

main75986-95J17iLH56,66..GL..05S198708-198908

main75986-95J20-01iLH51,YH51..07S198708-198908

BLACK & GOLD,21H

main75986-95J21-03iLH51..4FC..08S; YH51..08S;LH51..5F..08S198708-198908

GRAY,23H ,4D2

main75986-95J21-04iLH51..4FC..08S; YH51..08S;LH51..5F..08S198708-198908

BLUE,148 ,20H ,8E1

main75986-95J23-03iLH51,6#..SGL198708-198908

SILVER & BLUE & RED,045 ,148 ,22H

main75986-95J26-02iYH57198708-198908

RED,23H ,4D2

main75986-95J26-04iYH57198708-198908

BLUE,148 ,20H ,8E1

main75986-95J29-03iLH51,61,YH50,51,61..GL198708-198908

SILVER/RED,22H

main75986-95J30-06iLH51..08S..TD; YH51..MRF..4FC..08S198801-198805

main75986-95J31iLH51..08S..TD; YH51..MRF..4FC..08S198805-198809

main75986-95J32iLH51..08S..TD; YH51..MRF..4FC..08S198805-198809

main75986-95J33iLH51..08S..TD; YH51..MRF..4FC..08S198809-198901

main75986-95J34iLH51..08S..TD; YH51..MRF..4FC..08S198809-198901

main75986-95J35iLH51..08S..TD; YH51..MRF..4FC..08S198901-198902

main75986-95J36iLH51..08S..TD; YH51..MRF..4FC..08S198901-198902

main75986-95J44iLH51..08S..TD; YH51..MRF..4FC..08S198904-198905

main75986-95J45iLH51..08S..TD; YH51..MRF..4FC..08S198904-198905

75991ASTRIPE, QUARTER, RH

main75991-95J06iLH56..V5D..DX198708-198908

main75991-95J07iLH66..V5D..DX198708-198908

main75991-95J08iLH56..V5D..GL198708-198908

main75991-95J09iLH66..V5D..GL198708-198908

main75991-95J16-03iLH61,YH61..V5D..05S198708-198908

SILVER/RED,22H

main75991-95J17-03iLH51,YH50,51..V5D..05S198708-198908

SILVER/RED,22H

75992ASTRIPE, QUARTER, LH

main75992-95J24iLH56..DX198708-198908

main75992-95J25iLH66..DX198708-198908

main75992-95J26iLH56..GL198708-198908

main75992-95J27iLH66..GL..05S198708-198908

main75992-95J30-01iYH51..07S198708-198908

BLACK & GOLD,21H

main75992-95J31-01iLH51..07S198708-198908

BLACK & GOLD,21H

main75992-95J32-03iLH51..4FC..08S; LH51..5F..TD198708-198908

GRAY,23H ,4D2

main75992-95J32-04iLH51..4FC..08S; LH51..5F..TD198708-198908

BLUE,148 ,20H ,8E1

main75992-95J33-03iLH51,YH51..08S..(CBR,DSL)198708-198908

GRAY,23H ,4D2

main75992-95J33-04iLH51,YH51..08S..(CBR,DSL)198708-198908

BLUE,148 ,20H ,8E1

main75992-95J37-03iLH6#..SGL198708-198908

SILVER & BLUE & RED,045 ,148 ,22H

main75992-95J38-03iLH51..SGL198708-198908

SILVER & BLUE & RED,045 ,148 ,22H

main75992-95J43-02iYH57198708-198908

RED,23H ,4D2

main75992-95J43-04iYH57198708-198908

BLUE,148 ,20H ,8E1

main75992-95J51-03iLH61,YH61..GL198708-198908

SILVER/RED,22H

main75992-95J52-03iLH51,YH50,51..GL198708-198908

SILVER/RED,22H

main75992-95J53-06iLH51..08S..TD; YH51..MRF..4FC..08S198801-198805

main75992-95J54iLH51..08S..TD; YH51..MRF..4FC..08S198805-198809

main75992-95J55iLH51..08S..TD; YH51..MRF..4FC..08S198805-198809

main75992-95J56iLH51..08S..TD; YH51..MRF..4FC..08S198809-198901

main75992-95J57iLH51..08S..TD; YH51..MRF..4FC..08S198809-198901

main75992-95J58iLH51..08S..TD; YH51..MRF..4FC..08S198901-198902

main75992-95J59iLH51..08S..TD; YH51..MRF..4FC..08S198901-198902

main75992-95J62iLH51..08S..TD; YH51..MRF..4FC..08S198904-198905

main75992-95J63iLH51..08S..TD; YH51..MRF..4FC..08S198904-198905

75993ASTRIPE, QUARTER, REAR RH

main75993-95J19iLH56..DX198708-198908

main75993-95J20iLH66..DX198708-198908

main75993-95J21iLH56..GL198708-198908

main75993-95J22iLH66..GL..05S198708-198908

main75993-95J25-01iLH51,YH51..07S198708-198908

BLACK & GOLD,21H

main75993-95J26-03iLH51..4FC..08S; YH51..08S;LH51..5F..08S198708-198908

GRAY,23H ,4D2

main75993-95J26-04iLH51..4FC..08S; YH51..08S;LH51..5F..08S198708-198908

BLUE,148 ,20H ,8E1

main75993-95J29-03iLH6#..SGL198708-198908

SILVER & BLUE & RED,045 ,148 ,22H

main75993-95J30-03iLH51..SGL198708-198908

SILVER & BLUE & RED,045 ,148 ,22H

main75993-95J35-02iYH57198708-198908

RED,23H ,4D2

main75993-95J35-04iYH57198708-198908

BLUE,148 ,20H ,8E1

main75993-95J39-03iLH61,YH61..GL198708-198908

SILVER/RED,22H

main75993-95J40-03iLH51,YH50,51..GL198708-198908

SILVER/RED,22H

main75993-95J41-06iLH51..08S..TD; YH51..MRF..4FC..08S198801-198805

main75994-95J47iLH51..08S..TD; YH51..MRF..4FC..08S198805-198809

main75994-95J48iLH51..08S..TD; YH51..MRF..4FC..08S198809-198901

main75994-95J49iLH51..08S..TD; YH51..MRF..4FC..08S198901-198902

main75994-95J56iLH51..08S..TD; YH51..MRF..4FC..08S198904-198905

75994ASTRIPE, QUARTER EXTENSION

main75993-95J42iLH51..08S..TD; YH51..MRF..4FC..08S198805-198809

main75993-95J43iLH51..08S..TD; YH51..MRF..4FC..08S198805-198809

main75993-95J44iLH51..08S..TD; YH51..MRF..4FC..08S198809-198908

main75993-95J45iLH51..08S..TD; YH51..MRF..4FC..08S198809-198901

main75993-95J46iLH51..08S..TD; YH51..MRF..4FC..08S198901-198902

main75993-95J47iLH51..08S..TD; YH51..MRF..4FC..08S198901-198902

main75993-95J52iLH51..08S..TD; YH51..MRF..4FC..08S198904-198905

main75993-95J53iLH51..08S..TD; YH51..MRF..4FC..08S198904-198905

main75994-95J18iLH56..V4D..DX198708-198908

main75994-95J19iLH66..V4D..DX198708-198908

main75994-95J20iLH56..V4D..GL198708-198908

main75994-95J21iLH66..V4D..GL..05S198708-198908

main75994-95J24-01iYH51..07S198708-198908

BLACK & GOLD,21H

main75994-95J25-01iLH51..07S198708-198908

BLACK & GOLD,21H

main75994-95J26-03iLH51..4FC..08S; LH51..5F..TD198708-198908

GRAY,23H ,4D2

main75994-95J26-04iLH51..4FC..08S; LH51..5F..TD198708-198908

BLUE,148 ,20H ,8E1

main75994-95J27-03iLH51,YH51..08S..(CBR,DSL)198708-198908

GRAY,23H ,4D2

main75994-95J27-04iLH51,YH51..08S..(CBR,DSL)198708-198908

BLUE,148 ,20H ,8E1

main75994-95J31-03iLH6#..SGL198708-198908

SILVER & BLUE & RED,045 ,148 ,22H

main75994-95J32-03iLH51..SGL198708-198908

SILVER & BLUE & RED,045 ,148 ,22H

main75994-95J37-02iYH57198708-198908

RED & WHITE,4D2

main75994-95J37-04iYH57198708-198908

BLUE,148 ,20H ,8E1

main75994-95J37-12iYH57198708-198908

RED & SILVER,23H

main75994-95J40-06iLH51..08S..TD; YH51..MRF..4FC..08S198801-198805

main75994-95J44-03iLH61,YH61..V4D..GL198708-198908

SILVER/RED,22H

main75994-95J45-03iLH51,YH50..V4D..GL198708-198908

SILVER/RED,22H

11 parts on this diagram · 7 diagrams in section
