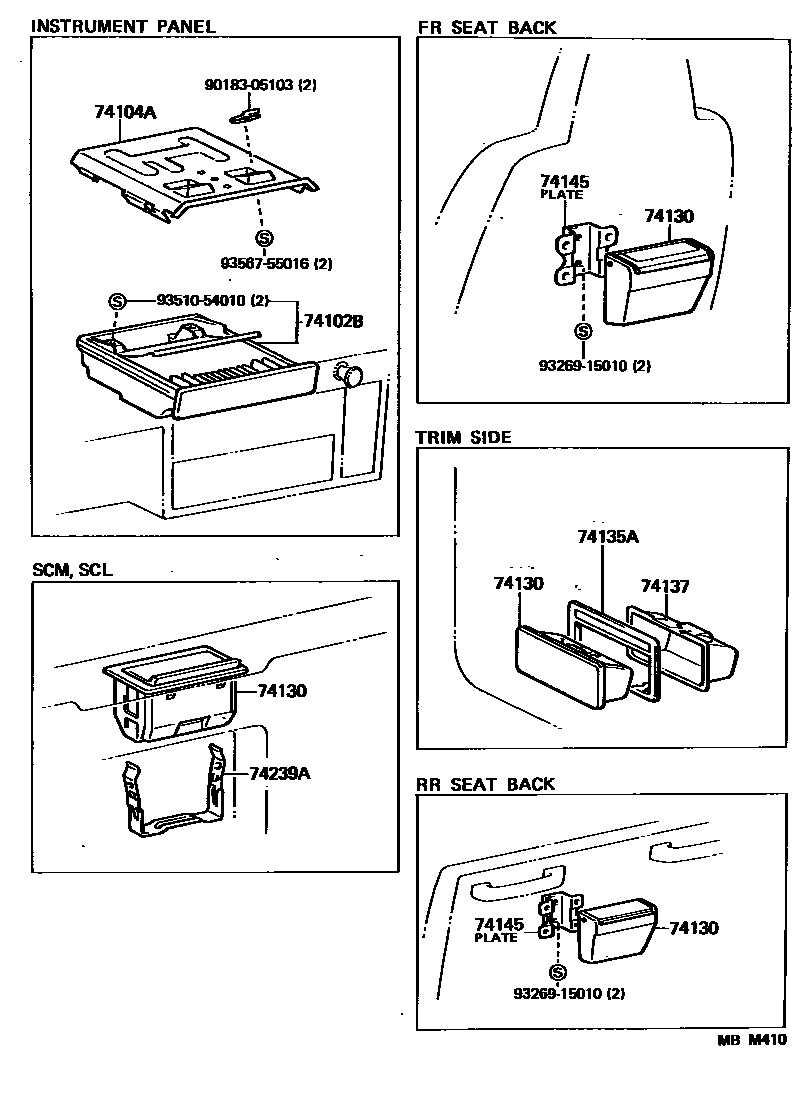

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-95J00iLH5#,6#,71,YH50,51,52,6#,71..CD,DX198708-198908

main74104-95J01iLH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,71,YH50,51,57,61..CTM,GL,SCL,SCM,SGL; LH71..10S198708-198908

74130RECEPTACLE ASSY, REAR ASH

main74105-10010-26iLH5#,6#,YH50,61..V4D..DX;LH71,YH51,71..MTM..(DX,GL);LH51,61,YH61..(COM,WG)..DX; YH52,62198708-198908

BROWN,TRIM4#,TRIM SIDE

main74105-10010-34iLH51,66,YH51..(CTM,SGL)..(08S,09S);LH5#,6#,YH50,61..V4D..(GL,SGL)..(05S,09S)198708-198709

BLUE,TRIM8#,TRIM SIDE

main74130-16020-16iLH51,YH51,57..08S198708-198908

BROWN,TRIM4#,TRIM SIDE

main74130-16020-24iLH51,YH51,57..08S198708-198908

BLUE,TRIM8#,TRIM SIDE

main74130-95J00-04iLH5#,6#,YH50,51,61..V5D..GL198708-198908

BLUE,TRIM8#,FR SEAT BACK

main74130-95J00-16iLH5#,6#,YH50,61..V5D..DX198708-198908

BROWN,TRIM4#,FR SEAT BACK

main74130-95J01-06×2iLH61,71,YH61..10S; LH61,71,YH71..15S198708-198908

BROWN,TRIM4#,RR SEAT BACK

main74130-95J02-06iLH51,YH51..07S198708-198808

BROWN,TRIM4#,TRIM SIDE

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-10030iLH66..(DX,SGL)..08S;LH51,61,YH61..(COM,WG)..(CTM,DX);LH5#,6#,YH50,61..V4D..(05S,06S,09S);LH71,YH51,71..(4HC,5F,5H)..(CTM,DX,GL); YH52,62198708-198908

74137RETAINER, REAR ASH RECEPTACLE, INNER RH

main74137-10030iLH66..(DX,SGL)..08S;LH51,61,YH61..(COM,WG)..(CTM,DX);LH5#,6#,YH50,61..V4D..(05S,06S,09S);LH71,YH51,71..(4HC,5F,5H)..(CTM,DX,GL); YH52,62198708-198908

74145PLATE, REAR ASH RECEPTACLE

main74145-90B00iLH5#,6#,YH50,51,61..V5D..(05S,06S); LH61,71,YH61..10S; LH61,71,YH71..15S198708-198908

FR SEAT BACK; RR SEAT BACK

74239AHOLDER, REAR ASH RECEPTACLE

main74239-22020iLH51,YH51,57..07S,08S198708-198908

9018305103

main90183-05103

9326915010

main93269-15010

9351054010

main93510-54010

9356755016

main93567-55016

11 parts on this diagram · 1 diagram in section
