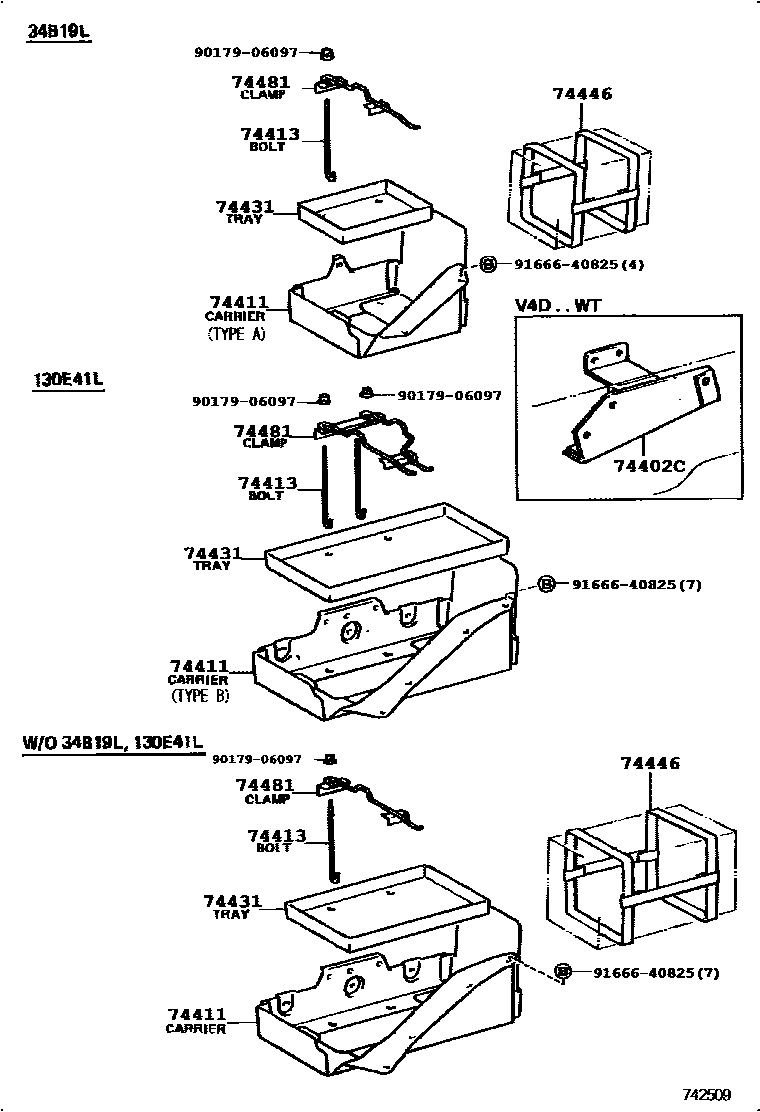

BATTERY CARRIER

0001 1 0002 1

74402CBRACKET SUB-ASSY, BATTERY CARRIER, REAR

main74402-95J00iLH61,YH61..V4D..WT198708-198908

74411CARRIER, BATTERY

main74403-95J00iLH56,66..V4D..DX..05S198709-198801

main74403-95J01iLH51..VSP; LH61..VSP..ST; LH71..10S198808-198908

main74410-95J00iYH50,52,6#,71..V4D..(CD,DX)198708-198908

main74410-95J01iYH50,61..V4D..GL;LH66..(DX,SGL)..08S;LH51,61,YH61,71..COM,WG;LH5#,6#..V4D..(03S,05S,06S,09S);LH71,YH51,57..06S,07S,08S,09S,10S,15S198708-198908

74413BOLT, BATTERY CLAMP

main74451-95J00×2iLH56,66..05S;LH51,61,71..WG;LH66..(DX,SGL)..08S; LH61..03S..ST;LH51,71..COM,V;LH61..(COM,V)..(DX,GL,SGL); LH61..03S..WT; YH71..15S; YH71..VSG198808-198908

main74451-95J01×2iLH56..V4D..DX; LH66..V4D..DX..05S198709-198801

74431TRAY, BATTERY

main74431-95J00iLH5#..VSG; LH51,61..VSP; LH51..07S,09S; LH51..08S; LH56..V4D..DX; LH61..10S,15S; LH66..DX..08S; LH66..GL,SGL; LH66..V4D..DX..05S; LH66..V5D..DX; LH71..10S; LH71..5H; YH71..15S; YH71..VSG198808-198908

main74431-95J01iYH61..WT;YH61..V4D..03S;YH50,52,62..03S;YH61..V5D..5H..ST;YH61,71..HRF..VSG..ST198708-198808

main74431-95J02iYH50,52,6#,71..VSG..(CD,DX)198708-198908

74446BAND, BATTERY

main74446-95A02iLH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S198708-198908

74481CLAMP, BATTERY HOLD DOWN

main74404-95J00iYH50,52,6#,71..(4HC,5H)..(CD,DX)198708-198908

main74404-95J01iLH5#; LH61..03S..WT; LH61..10S,15S; LH61..VSG; LH61..VSP..ST; LH66,71198708-198808

main74404-95J02iYH61..WT;YH61..V4D..03S;YH50,52,62..03S;YH61..V5D..5H..ST;YH61,71..HRF..VSG..ST; YH71..15S198708-198808

main74404-95J03iLH56,66..V4D..DX..05S198709-198801

main74404-95J05iLH51,61..VSP..ST; LH56,66..V4D..DX..05S198801-198908

main74404-95J06iLH51,61..VSP..ST; LH56..V4D..DX; LH66..V4D..DX..05S198808-198908

9017906097

main90179-06097

9166640825

main91666-40825

8 parts on this diagram · 2 diagrams in section
