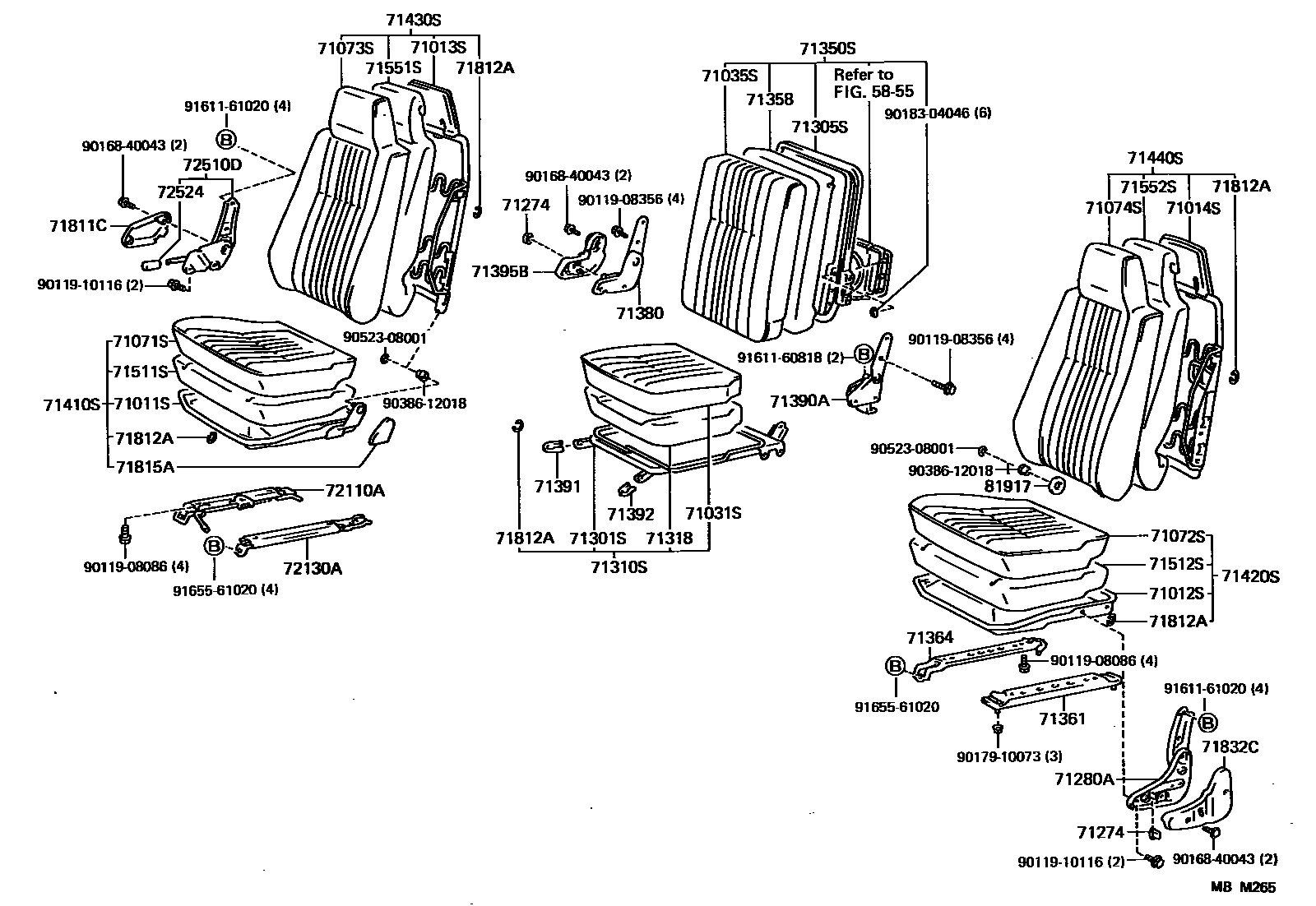

SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1

5855CONSOLE BOX & BRACKET

→ Go to FIG 58-55

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-95J01iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL198708-198908

main71011-95J04iLH51,YH51..07S198708-198908

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71012-95J04iLH5#,6#,YH50,51,61..(CTM,GL)..(05S,09S)198708-198908

main71012-95J05iLH51,6#,YH51,57..SCM,SGL198708-198908

main71012-95J08-06iLH71;LH5#,6#,YH50,51,52,6#,71..CD,DX198708-198908

BROWN,TRIM4#

main71012-95J10-06iLH51,YH51..07S198708-198908

BROWN,TRIM4#

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-95J00iLH51,YH51..07S198708-198908

main71150-95J00iLH51,61,71,YH51,61,71..(COM,WG)..(DX,GL)198708-198908

main71150-95J01iLH51,6#,YH51,57..CTM,SCM,SGL198708-198908

main71150-95J07iLH5#,6#,71,YH50,52,6#,71..V..(CD,DX)198708-198908

main71150-95J08iLH5#,6#,YH50,51,61..GL..(05S,09S)198708-198908

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-95J00iLH51,YH51..07S198708-198908

main71160-95J01iLH5#,6#,YH50,51,61..(CTM,GL)..(05S,09S)198708-198908

main71160-95J02iLH51,6#,YH51,57..SCM,SGL198708-198908

main71160-95J10iLH71;LH5#,6#,YH50,51,52,6#,71..CD,DX198708-198908

71031SCOVER SUB-ASSY, CENTER SEAT CUSHION

main71031-95J13-06iLH51,61,71,YH50,52,6#,71..V..(CD,DX)198708-198908

BROWN,TRIM4#

main71031-95J14-06iLH61,71,YH71..DX..15S198708-198908

BROWN,TRIM4#

main71031-95J15-14iLH61,YH61..GL..09S198708-198908

BLUE,TRIM8#

main71031-95J16-16iLH71..GL;LH51,YH51..DX..09S198708-198908

BROWN,TRIM4#

main71097-95J01-04iLH51,YH51..CTM198708-198908

BLUE,TRIM8#

71035SCOVER, FRONT SEATBACK, CENTER

main71035-95J17-06iLH51,61,71,YH50,52,6#,71..V..(CD,DX)198708-198908

BROWN,TRIM4#

main71035-95J18-06iLH61,71,YH71..DX..15S198708-198908

BROWN,TRIM4#

main71035-95J19-14iLH61,YH61..GL..09S198708-198908

BLUE,TRIM8#

main71035-95J20-16iLH71..GL;LH51,YH51..DX..09S198708-198908

BROWN,TRIM4#

main71095-95J01-04iLH51,YH51..CTM198708-198908

BLUE,TRIM8#

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-95J33-06iYH61..10S198708-198908

main71071-95J34-14iLH5#,6#,YH50,51,61..GL..(05S,09S)198708-198908

BLUE,TRIM8#

main71071-95J49-16iLH51,YH51..DX..09S198708-198908

BROWN,TRIM4#

main71071-95J50-06iLH61,71,YH61,71..DX..(10S,15S)198708-198908

BROWN,TRIM4#

main71071-95J51-16iLH71..GL198708-198908

BROWN,TRIM4#

main71071-95J59-06iLH5#,6#,71,YH50,52,6#,71..V..(CD,DX)198708-198908

BROWN,TRIM4#

main71071-95J60-04iLH51,YH51..CTM198708-198908

BLUE,TRIM8#

main71071-95J61-04iLH51,YH51,57..08S198708-198908

BLUE,TRIM8#

main71071-95J61-06iLH51,YH51,57..08S198708-198908

BROWN,TRIM4#

main71071-95J62-06iLH51,YH51..07S198708-198908

BROWN,TRIM4#

main71071-95J63-06iLH51,YH51..07S198708-198908

main71071-95J64-04iLH51,6#..SGL198708-198908

BLUE,TRIM8#

main71071-95J72-06iLH51..08S..TD; YH51..MRF..4FC..08S198801-198805

main71071-95J73-04iLH51..08S..TD; YH51..MRF..4FC..08S198805-198809

main71071-95J74-06iLH51..08S..TD; YH51..MRF..4FC..08S198809-198901

main71071-95N07-04iLH51..08S..TD; YH51..MRF..4FC..08S198901-198904

main71071-95N12-06iLH51..08S..TD; YH51..MRF..4FC..08S198904-198908

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-95J39-06iYH61..10S198708-198908

main71072-95J40-16iLH71..GL198708-198908

BROWN,TRIM4#

main71072-95J41-14iLH5#,6#,YH50,51,61..GL..(05S,09S)198708-198908

BLUE,TRIM8#

main71072-95J56-16iLH51,YH51..DX..09S198708-198908

BROWN,TRIM4#

main71072-95J57-06iLH61,71,YH61,71..DX..(10S,15S)198708-198908

BROWN,TRIM4#

main71072-95J65-06iLH5#,6#,71,YH50,52,6#,71..V..(CD,DX)198708-198908

BROWN,TRIM4#

main71072-95J66-04iLH51,YH51..CTM198708-198908

BLUE,TRIM8#

main71072-95J67-04iLH51,YH51,57..08S198708-198908

BLUE,TRIM8#

main71072-95J67-06iLH51,YH51,57..08S198708-198908

BROWN,TRIM4#

main71072-95J68-06iLH51,YH51..07S198708-198908

BROWN,TRIM4#

main71072-95J69-04iLH51,6#..SGL198708-198908

BLUE,TRIM8#

main71072-95J78-06iLH51..08S..TD; YH51..MRF..4FC..08S198801-198805

main71072-95J79-04iLH51..08S..TD; YH51..MRF..4FC..08S198805-198809

main71072-95J80-06iLH51..08S..TD; YH51..MRF..4FC..08S198809-198901

main71072-95N12-04iLH51..08S..TD; YH51..MRF..4FC..08S198901-198904

main71072-95N14-06iLH51..08S..TD; YH51..MRF..4FC..08S198904-198908

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-95J57-14iLH5#,6#,YH50,51,61..GL..(05S,09S)198708-198908

BLUE,TRIM8#

main71073-95N04-06iLH5#,6#,71,YH50,52,6#,71..V..(CD,DX)198708-198908

BROWN,TRIM4#

main71073-95N05-04iLH51,YH51..CTM198708-198908

BLUE,TRIM8#

main71073-95N06-04iLH51,YH51,57..08S198708-198908

BLUE,TRIM8#

main71073-95N06-06iLH51,YH51,57..08S198708-198908

BROWN,TRIM4#

main71073-95N07-06iLH51,YH51..07S198708-198908

BROWN,TRIM4#

main71073-95N08-06iLH51,YH51..07S198708-198908

main71073-95N09-04iLH51,6#..SGL198708-198908

BLUE,TRIM8#

main71073-95N13-06iLH61,71,YH61,71..DX..(10S,15S)198708-198908

BROWN,TRIM4#

main71073-95N14-06iLH71..GL198708-198908

BROWN,TRIM4#

main71073-95N15-06iLH51,YH51..DX..09S198708-198908

BROWN,TRIM4#

main71073-95N16-06iYH61..10S198708-198908

main71073-95N25-06iLH51..08S..TD; YH51..MRF..4FC..08S198801-198805

main71073-95N26-04iLH51..08S..TD; YH51..MRF..4FC..08S198805-198809

main71073-95N27-06iLH51..08S..TD; YH51..MRF..4FC..08S198809-198901

main71073-95N63-04iLH51..4FC..08S; YH51..MRF..4FC..08S198901-198904

main71073-95N69-06iLH51..08S..TD; YH51..MRF..4FC..08S198904-198908

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-95J73-14iLH5#,6#,YH50,51,61..GL..(05S,09S)198708-198908

BLUE,TRIM8#

main71074-95N19-06iLH5#,6#,71,YH50,52,6#,71..V..(CD,DX)198708-198908

BROWN,TRIM4#

main71074-95N20-04iLH51,YH51..CTM198708-198908

BLUE,TRIM8#

main71074-95N21-04iLH51,YH51,57..08S198708-198908

BLUE,TRIM8#

main71074-95N21-06iLH51,YH51,57..08S198708-198908

BROWN,TRIM4#

main71074-95N22-06iLH51,YH51..07S198708-198908

BROWN,TRIM4#

main71074-95N23-04iLH51,6#..SGL198708-198908

BLUE,TRIM8#

main71074-95N27-06iLH61,71,YH61,71..DX..(10S,15S)198708-198908

BROWN,TRIM4#

main71074-95N28-06iLH71..GL198708-198908

BROWN,TRIM4#

main71074-95N29-06iLH51,YH51..DX..09S198708-198908

BROWN,TRIM4#

main71074-95N30-06iYH61..10S198708-198908

main71074-95N41-06iLH51..08S..TD; YH51..MRF..4FC..08S198801-198805

main71074-95N42-04iLH51..08S..TD; YH51..MRF..4FC..08S198805-198809

main71074-95N43-06iLH51..08S..TD; YH51..MRF..4FC..08S198809-198901

main71074-95N73-04iLH51..08S..TD; YH51..MRF..4FC..08S198901-198904

main71074-95N75-06iLH51..08S..TD; YH51..MRF..4FC..08S198904-198908

71274KNOB, FRONT SEAT HINGE

main71274-95J00-14iLH51,61,YH51,61..(CTM,GL)..09S198708-198908

BLUE,TRIM8#

main71274-95J00-16iLH71;LH5#,6#,YH50,51,52,6#,71..CD,DX198708-198908

BROWN,TRIM4#

71280AHINGE ASSY, FRONT SEATBACK, LH

main71280-95J00iLH71;LH5#,6#,YH50,51,52,6#,71..CD,DX198708-198908

71301SFRAME SUB-ASSY, CENTER SEAT CUSHION

main71301-95J03iLH51,61,71,YH50,51,52,6#,71..4HC,5H198708-198908

71305SFRAME SUB-ASSY, CENTER SEATBACK

main71305-95J00iLH51,61,71,YH50,51,52,6#,71..(4HC,5H)..(CD,DX,GL)198708-198908

main71305-95J01iLH51,YH51..CTM198708-198908

71310SCUSHION ASSY, FRONT SEAT, CENTER

main71310-95J14-06iLH51,61,71,YH50,52,6#,71..V..(CD,DX)198708-198908

BROWN,TRIM4#

main71310-95J15-06iLH61,71,YH71..DX..15S198708-198908

BROWN,TRIM4#

main71310-95J16-14iLH61,YH61..GL..09S198708-198908

BLUE,TRIM8#

main71310-95J17-16iLH71..GL;LH51,YH51..DX..09S198708-198908

BROWN,TRIM4#

main71310-95J21-04iLH51,YH51..CTM198708-198908

BLUE,TRIM8#

71318PAD, CENTER SEAT CUSHION

main71318-95J03iLH51,61,71,YH50,51,52,6#,71..4HC,5H198708-198908

71350SBACK ASSY, FRONT SEAT, CENTER

main71350-95J14-06iLH51,61,71,YH50,52,6#,71..V..(CD,DX)198708-198908

BROWN,TRIM4#

main71350-95J15-06iLH61,71,YH71..DX..15S198708-198908

BROWN,TRIM4#

main71350-95J16-14iLH61,YH61..GL..09S198708-198908

BLUE,TRIM8#

main71350-95J17-16iLH71..GL;LH51,YH51..DX..09S198708-198908

BROWN,TRIM4#

main71350-95J21-04iLH51,YH51..CTM198708-198908

BLUE,TRIM8#

71358PAD, CENTER SEATBACK

main71358-95J04iLH51,61,71,YH50,51,52,6#,71..4HC,5H198708-198908

71361BRACKET, FRONT SEAT SET, NO.1

main71361-95J01iLH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S)198708-198908

71364BRACKET, FRONT SEAT SET, NO.4

main71364-95J00iLH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S)198708-198908

71380HINGE ASSY, CENTER SEAT, RH

main71380-95J03iLH51,61,71,YH50,51,52,6#,71..4HC,5H198708-198908

71390AHINGE ASSY, CENTER SEAT, LH

main71390-95J02-04iLH61,YH61..GL..09S;LH51,61,71,YH51,71..(COM,WG)..5H..(DX,GL)198708-198908

BLUE,TRIM4#,8#

main71390-95J02-06iLH51,61,71,YH50,52,6#,71..V..(CD,DX)198708-198908

BROWN,TRIM4#

main71390-95J03-04iLH51,YH51..CTM198708-198908

BLUE,TRIM8#

71391COVER, CENTER SEAT CUSHION BRACKET, RH

main71391-95J02-04iLH51,61,YH51,61..(CTM,GL)..09S198708-198908

BLUE,TRIM8#

main71391-95J02-06iLH61,YH61..(4HC,5H)..(CD,DX);LH51,71,YH50,51,52,62,71..(4HC,5H)..(CD,DX,GL)198708-198908

BROWN,TRIM4#

71392COVER, CENTER SEAT CUSHION BRACKET, LH

main71392-95J02-04iLH51,61,YH51,61..(CTM,GL)..09S198708-198908

BLUE,TRIM8#

main71392-95J02-06iLH61,YH61..(4HC,5H)..(CD,DX);LH51,71,YH50,51,52,62,71..(4HC,5H)..(CD,DX,GL)198708-198908

BROWN,TRIM4#

71395BCOVER, CENTER SEAT HINGE, RH

main71395-95J00-14iLH51,61,YH51,61..(CTM,GL)..09S198708-198908

BLUE,TRIM8#

main71395-95J00-16iLH61,YH61..(4HC,5H)..(CD,DX);LH51,71,YH50,51,52,62,71..(4HC,5H)..(CD,DX,GL)198708-198908

BROWN,TRIM4#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-95J35-06iLH61,71,YH61,71..DX..(10S,15S)198708-198908

BROWN,TRIM4#

main71410-95J36-06iYH61..10S198708-198908

main71410-95J37-14iLH5#,6#,YH50,51,61..GL..(05S,09S)198708-198908

BLUE,TRIM8#

main71410-95J52-16iLH51,YH51..DX..09S198708-198908

BROWN,TRIM4#

main71410-95J53-16iLH71..GL198708-198908

BROWN,TRIM4#

main71410-95J60-06iLH5#,6#,71,YH50,52,6#,71..V..(CD,DX)198708-198908

BROWN,TRIM4#

main71410-95J61-04iLH51,YH51..CTM198708-198908

BLUE,TRIM8#

main71410-95J62-04iLH51,YH51,57..08S198708-198908

BLUE,TRIM8#

main71410-95J62-06iLH51,YH51,57..08S198708-198908

BROWN,TRIM4#

main71410-95J63-06iLH51,YH51..07S198708-198908

BROWN,TRIM4#

main71410-95J64-06iLH51,YH51..07S198708-198908

main71410-95J65-04iLH51,6#..SGL198708-198908

BLUE,TRIM8#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-95J41-06iLH61,71,YH61,71..DX..(10S,15S)198708-198908

BROWN,TRIM4#

main71420-95J42-06iYH61..10S198708-198908

main71420-95J43-16iLH71..GL198708-198908

BROWN,TRIM4#

main71420-95J44-14iLH5#,6#,YH50,51,61..GL..(05S,09S)198708-198908

BLUE,TRIM8#

main71420-95J59-16iLH51,YH51..DX..09S198708-198908

BROWN,TRIM4#

main71420-95J66-06iLH5#,6#,71,YH50,52,6#,71..V..(CD,DX)198708-198908

BROWN,TRIM4#

main71420-95J67-04iLH51,YH51..CTM198708-198908

BLUE,TRIM8#

main71420-95J68-04iLH51,YH51,57..08S198708-198908

BLUE,TRIM8#

main71420-95J68-06iLH51,YH51,57..08S198708-198908

BROWN,TRIM4#

main71420-95J69-06iLH51,YH51..07S198708-198908

BROWN,TRIM4#

main71420-95J70-04iLH51,6#..SGL198708-198908

BLUE,TRIM8#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71401-95J51-14iLH5#,6#,YH50,51,61..GL..(05S,09S)198708-198908

BLUE,TRIM8#

main71401-95J88-06iLH5#,6#,71,YH50,52,6#,71..V..(CD,DX)198708-198908

BROWN,TRIM4#

main71401-95N00-04iLH51,YH51..CTM198708-198908

BLUE,TRIM8#

main71401-95N01-04iLH51,YH51,57..08S198708-198908

BLUE,TRIM8#

main71401-95N01-06iLH51,YH51,57..08S198708-198908

BROWN,TRIM4#

main71401-95N02-06iLH51,YH51..07S198708-198908

BROWN,TRIM4#

main71401-95N03-06iLH51,YH51..07S198708-198908

main71401-95N04-04iLH51,6#..SGL198708-198908

BLUE,TRIM8#

main71401-95N08-06iLH61,71,YH61,71..DX..(10S,15S)198708-198908

BROWN,TRIM4#

main71401-95N09-06iLH71..GL198708-198908

BROWN,TRIM4#

main71401-95N10-06iLH51,YH51..DX..09S198708-198908

BROWN,TRIM4#

main71401-95N11-06iYH61..10S198708-198908

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71402-95J57-14iLH5#,6#,YH50,51,61..GL..(05S,09S)198708-198908

BLUE,TRIM8#

main71402-95N03-06iLH5#,6#,71,YH50,52,6#,71..V..(CD,DX)198708-198908

BROWN,TRIM4#

main71402-95N04-04iLH51,YH51..CTM198708-198908

BLUE,TRIM8#

main71402-95N05-04iLH51,YH51,57..08S198708-198908

BLUE,TRIM8#

main71402-95N05-06iLH51,YH51,57..08S198708-198908

BROWN,TRIM4#

main71402-95N06-06iLH51,YH51..07S198708-198908

BROWN,TRIM4#

main71402-95N07-04iLH51,6#..SGL198708-198908

BLUE,TRIM8#

main71402-95N11-06iLH61,71,YH61,71..DX..(10S,15S)198708-198908

BROWN,TRIM4#

main71402-95N12-06iLH71..GL198708-198908

BROWN,TRIM4#

main71402-95N13-06iLH51,YH51..DX..09S198708-198908

BROWN,TRIM4#

main71402-95N14-06iYH61..10S198708-198908

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-95J00iLH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..03S,05S,06S,09S,10S,15S198708-198908

main71511-95J04iLH51,YH51,57..08S198708-198908

main71511-95J05iLH51,YH51..07S198708-198908

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-95J00iLH51,6#..SGL198708-198908

main71511-95J02iLH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S)198708-198908

main71511-95J04iLH51,YH51,57..08S198708-198908

main71511-95J05iLH51,YH51..07S198708-198908

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-95J00iLH71;LH5#,6#,YH50,51,52,6#,71..CD,DX198708-198908

main71551-95J02iLH66..SGL..08S;LH5#,6#,YH50,51,61..(CTM,GL,SGL)..(05S,09S)198708-198908

main71551-95J09iLH51,YH51,57..08S198708-198908

main71551-95J11iLH51,YH51..07S198708-198908

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-95J02iLH51,6#..SGL198708-198908

main71551-95J03iLH71;LH5#,6#,YH50,51,52,6#,71..CD,DX198708-198908

main71551-95J04iLH5#,6#,YH50,51,61..(CTM,GL)..(05S,09S)198708-198908

main71551-95J09iLH51,YH51,57..08S198708-198908

main71551-95J12iLH51,YH51..07S198708-198908

71811CCOVER, RECLINING ADJUSTER, RH

main71811-95J00-14iLH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL198708-198908

BLUE,TRIM8#

main71811-95J00-16iLH51,61..VSP; LH51,YH51,57..07S,08S198708-198908

main71811-95J01-06iLH71;LH5#,6#,YH50,51,52,6#,71..CD,DX198708-198908

BROWN,TRIM4#

71812CLIP (FOR FRONT SEAT CUSHION COVER)

main71812-30010×6iLH61,71,YH61..10S; LH61,71,YH71..15S198708-198908

71812ARING, HOG, SMALL (FOR FRONT SEAT)

main90468-18071×96iLH5#,6#,71,YH50,51,52,6#,71..CD,DX; LH51,61,71,YH50,51,52,6#,71..4HC,5H; LH51,YH51,57..08S; LH51,YH51..07S; LH61..10S; LH66..SGL..08S;LH5#,6#,YH50,51,61..(CTM,GL,SGL)..(05S,09S); LH71..GL198708-198908

71815ACOVER, FRONT SEAT CUSHION HINGE, RH

main71815-95J00-14iLH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL198708-198908

BLUE,TRIM8#

main71815-95J00-16iLH71;LH5#,6#,YH5#,6#,71..CD,DX,SCL,SCM198708-198908

BROWN,TRIM4#

71832CCOVER, FRONT LH SEAT HINGE

main71832-95J00-06iLH71;LH5#,6#,YH50,51,52,6#,71..CD,DX198708-198908

BROWN,TRIM4#

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-95J02iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL198708-198908

main72110-95J04iLH51,YH51..07S198708-198908

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-95J01iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL198708-198908

72510DADJUSTER ASSY, RECLINING SEAT, OUTER RH

main72510-95J00-06iLH5#,6#,71,YH50,51,52,6#,71..CD,DX; LH71..GL198708-198908

main72510-95J01-14iLH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL198708-198908

BLUE,TRIM8#

main72510-95J01-16iLH51,61..VSP; LH51,YH51,57..08S198708-198908

main72510-95J04-06×3iLH71..GL198708-198908

main72510-95J05-06iLH51,YH51..07S198708-198908

BROWN,TRIM4#

72524HANDLE, RECLINING ADJUSTER RELEASE

main72525-95J00-14iLH51,YH51,57..CTM,SCM198708-198908

BLUE,TRIM8#

main72525-95J00-16iLH71;LH5#,6#,YH5#,6#,71..CD,DX,SCL,SCM198708-198908

BROWN,TRIM4#

81917WASHER, LEATHER

main81917-95J00-06iLH5#,6#,71,YH50,52,6#,71..V..(CD,DX)198708-198908

BROWN,TRIM4#

main81917-95J00-14iLH5#,6#,YH50,51,61..GL..(05S,09S)198708-198908

BLUE,TRIM8#

main81917-95J00-26iLH51,61,71,YH51,61,71..(COM,WG)..(DX,GL)198708-198908

BROWN,TRIM4#

9011908086

main90119-08086

9011908356

main90119-08356

9011910116

main90119-10116

9016840043

main90168-40043

9017910073

main90179-10073

9018304046

main90183-04046

9038612018

main90386-12018

9052308001

main90523-08001

9161160818

main91611-60818

9161161020

main91611-61020

9165561020

main91655-61020

55 parts on this diagram · 18 diagrams in section
