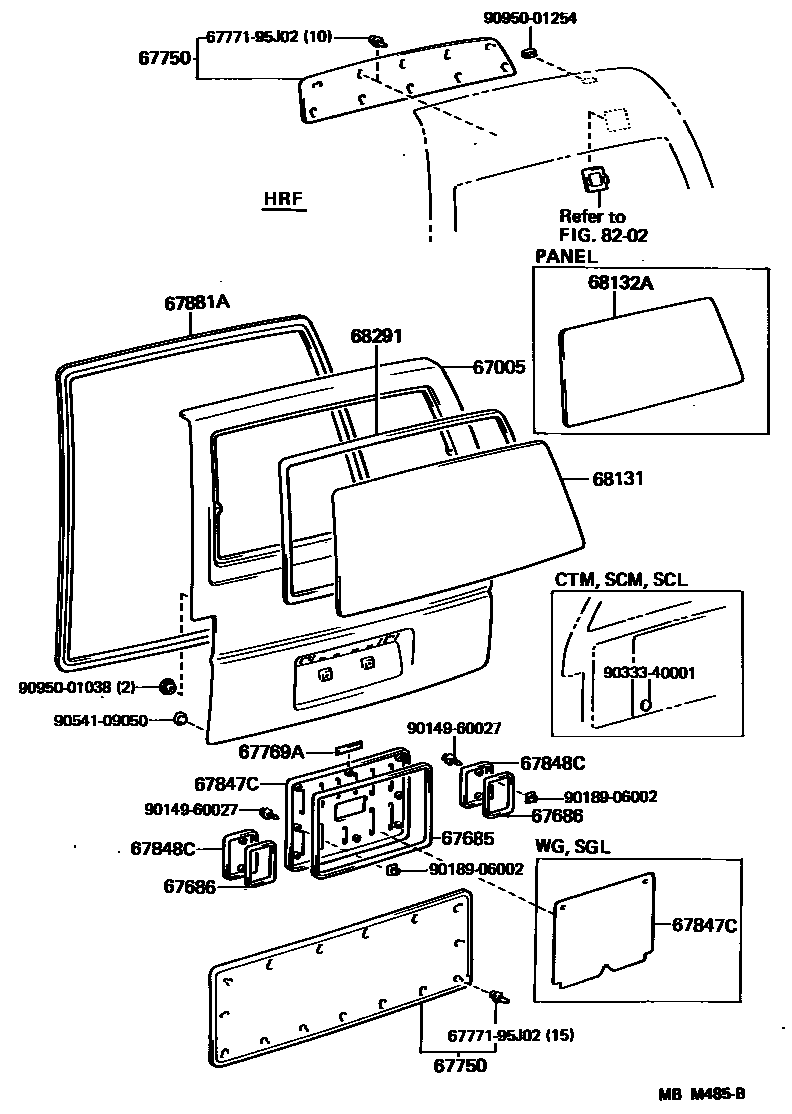

BACK DOOR PANEL & GLASS

67005PANEL SUB-ASSY, BACK DOOR

main67005-95J51iLH61,71,YH61,71..HRF..VSG198708-198908

main67005-95J52iLH61,71..HRF..VSG; YH61,71..HRF..VSG198808-198908

main67005-95J53iLH71,YH71..DX..(10S,15S)198708-198908

main67005-95J54iLH71..10S; LH71..DX..15S; LH71..GL198708-198908

main67005-95J84iYH71..15S198708-198908

main67005-95J86iLH66..V4D..DX..05S198708-198908

main67005-95N01iLH5#,6#,YH50,52,6#..(COM,V)..SRF..(CD,DX); YH61..10S198708-198908

main67005-95N02iLH5#,6#..(COM,V)..SRF..(CD,DX); YH50,52,6#..SRF..VSG..(CD,DX); YH61..10S198808-198908

main67005-95N03iLH51,61,YH51,61..WG..DX198708-198908

main67005-95N04iLH51,6#..SGL; LH51,61,YH51,61..WG..DX198708-198908

main67005-95N05iLH51,YH51,57..CTM,SCM198708-198908

main67005-95N06iLH51,YH51..07S; LH51,YH51..MRF..08S198708-198908

67685PACKING, BACK DOOR SERVICE HOLE, NO.1

main67685-95J00×2iLH66..DX..08S;LH51,61,YH51,61..(COM,V)..(CD,DX,GL);LH56,66,71,YH50,52,62,71..(CD,DX,GL)..(03S,05S,06S,09S,10S,15S); YH61..10S198708-198908

67686PACKING, BACK DOOR SERVICE HOLE, NO.2

main67526-95A00×2iLH66..DX..08S;LH51,61,YH51,61..(COM,V)..(CD,DX,GL);LH56,66,71,YH50,52,62,71..(CD,DX,GL)..(03S,05S,06S,09S,10S,15S); YH61..10S198708-198908

67750BOARD ASSY, BACK DOOR TRIM

main67750-90C00-06iLH71,YH71..10S,15S198708-198908

BROWN,TRIM4#

main67750-95J00-14iLH51,YH51..CTM198708-198709

BLUE,TRIM8#

main67750-95J00-16iLH51,61,YH51,61..WG..DX198708-198908

BROWN,TRIM4#

main67750-95J01-14iLH51,YH51,57..08S198708-198908

BLUE,TRIM8#

main67750-95J01-26iLH51,YH51,57..07S,08S198708-198908

BROWN,TRIM4#

main67750-95J05-04iLH51,6#..SGL198708-198908

BLUE,TRIM8#

67769APLATE, BACK DOOR SERVICE HOLE

main67769-95J01iLH66..GL..05S;LH66..V5D..DX;LH66..DX..08S;LH56,71,YH50,52,62,71;LH51,61,YH51,61..(COM,V)..(CD,DX,GL); LH66..V4D..DX..05S; YH51,61..WG;LH66,YH57..SCM,SGL;LH61..(DX,SGL)..(05S,10S);LH51..(CTM,DX,SCL,SCM,SGL)..(05S,07S,08S,09S)198708-198908

67847CCOVER, BACK DOOR SERVICE HOLE, NO.1

main67847-95J01iLH71..10S; YH61..10S198708-198908

main67847-95J02iYH51,61..WG;LH66,YH57..SCM,SGL;LH61..(DX,SGL)..(05S,10S);LH51..(CTM,DX,SCL,SCM,SGL)..(05S,07S,08S,09S)198708-198908

main67847-95J04iLH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)198708-198908

67848CCOVER, BACK DOOR SERVICE HOLE, NO.2

main67848-95J00×2iLH66..DX..08S;LH51,61,YH51,61..(COM,V)..(CD,DX,GL);LH56,66,71,YH50,52,62,71..(CD,DX,GL)..(03S,05S,06S,09S,10S,15S); YH61..10S198708-198908

67881AWEATHERSTRIP, BACK DOOR

main67881-90C00iLH66..V4D..DX..05S198708-198808

main67881-95J07-06iLH71..10S; LH71..GL198708-198908

main67881-95J08iLH5#,6#,YH50,51,52,6#..SRF..(CD,DX)198708-198908

main67881-95J11-04iLH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL198708-198908

BLUE,TRIM8#

main67881-95J11-06iLH51,YH51,57..07S,08S198708-198908

BROWN,TRIM4#

68131GLASS, BACK DOOR

main68131-94353iLH66..V4D..DX..05S198708-198908

main68131-95J00iLH5#,6#,71,YH50,51,52,6#,71..CD,DX198708-198908

main68131-95J01iLH51,61,YH51,61..WG..DX; LH71..10S198709-198808

main68131-95J02iLH61..10S198709-198908

main68131-95J03iLH66..V4D..DX..05S; LH71..GL;LH51,6#,YH51,57..CTM,SCM,SGL198708-198908

main68131-95J04iLH51,YH51,57..08S; LH51,YH51..07S; LH71..10S198708-198908

main68131-95J06iLH61..10S198708-198908

main68131-95J08iLH51..08S..TD; YH51..MRF..4FC..08S198901-198902

68132APANEL, BACK DOOR WINDOW

main68132-95J00iLH51,61..VSP198708-198908

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-95J00iLH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX); YH61..10S198708-198908

main68291-95J01iLH66..SGL..08S;LH61,71,YH61..10S;LH51,YH50,51,57..05S,07S,08S,09S;LH56,6#,71,YH61..(GL,SGL)..(05S,09S,15S)198708-198908

main68291-95J02iLH51,61..VSP198708-198908

8202WIRING & CLAMP

→ Go to FIG 82-02

6777195J02WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-95J02

9014960027

main90149-60027

9018906002

main90189-06002

9033340001

main90333-40001

9054109050

main90541-09050

9095001038

main90950-01038

9095001254

main90950-01254

19 parts on this diagram · 1 diagram in section
