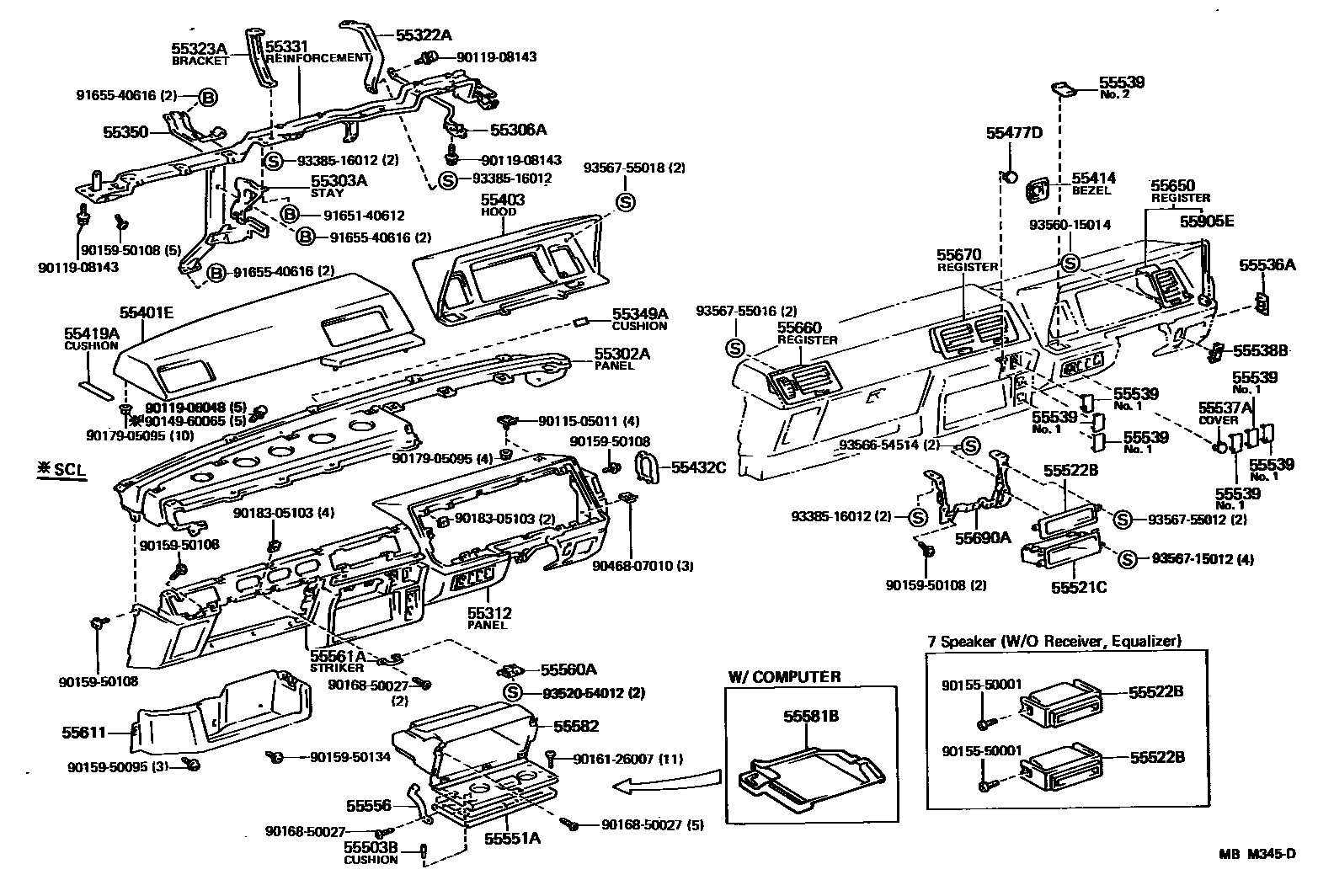

INSTRUMENT PANEL & GLOVE COMPARTMENT

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-95J00-06iLH71..5H;LH5#,6#,YH50,52,6#,71..(COM,V)..(CD,DX)198708-198908

BROWN,TRIM4#

main55302-95J00-14iLH5#,6#,YH50,51,61..GL..(05S,09S)198708-198908

BLUE,TRIM8#

main55302-95J01-14iLH51,6#,YH51,57..CTM,SCM,SGL198708-198709

BLUE,TRIM8#

main55302-95J01-16iLH51,61,71,YH51,57,61..WG..(DX,SCL,SCM)198708-198908

BROWN,TRIM4#

55303ASTAY SUB-ASSY, INSTRUMENT PANEL

main55303-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

55312PANEL, INSTRUMENT, LOWER

main55312-95J03-04iLH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL198708-198709

BLUE,TRIM8#

main55312-95J03-06iLH71;LH5#,6#,YH5#,6#,71..CD,DX,SCL,SCM198708-198908

BROWN,TRIM4#

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55322-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

55323ABRACKET, INSTRUMENT PANEL, NO.3

main55323-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

55331REINFORCEMENT, INSTRUMENT PANEL

main55307-95J02iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

55349ACUSHION, INSTRUMENT PANEL

main55349-95702×2iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

55350BRACE ASSY, INSTRUMENT PANEL

main55350-95J02iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-95J05-06iLH71..5H;LH5#,6#,YH50,52,6#,71..(COM,V)..(CD,DX)198708-198908

BROWN,TRIM4#

main55401-95J05-14iLH5#,6#,YH50,51,61..GL..(05S,09S)198708-198908

BLUE,TRIM8#

main55401-95J06-24iLH51,6#,YH51,57..CTM,SCM,SGL198708-198709

BLUE,TRIM8#

main55401-95J06-26iLH51,61,71,YH51,57,61..WG..(DX,SCM)198708-198908

BROWN,TRIM4#

main55401-95J11-04iLH51..08S..TD; YH51..MRF..4FC..08S198901-198904

main55401-95J11-06iLH51,YH51..07S198708-198908

BROWN,TRIM4#

55403HOOD SUB-ASSY, METER

main55403-95J07-01iLH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..03S,05S,06S,09S,10S,15S198708-198908

BLACK,TRIM4#,8#

main55403-95J09-01iLH51,YH51,57..08S198708-198908

BLACK,TRIM4#,8#

main55403-95J10-06iLH51,YH51..07S198708-198908

BROWN,TRIM4#

55414BEZEL, CIGAR LIGHTER HOLE

main55414-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

55419ACUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-14020×3iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

55432CDOOR, RESERVOIR TANK

main55432-95J00-24iLH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL198708-198709

BLUE,TRIM8#

main55432-95J00-26iLH71;LH5#,6#,YH5#,6#,71..CD,DX,SCL,SCM198708-198908

BROWN,TRIM4#

55477DCOVER, CIGARETTE LIGHTER HOLE

main55477-95010-01iYH61..10S198708-198908

55503BCUSHION(FOR GLOVE COMPARTMENT)

main90541-03015×2iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

55521CCOVER, STEREO OPENING

main55521-22020iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

55522BCOVER, RADIO TUNER OPENING

main55522-20040iYH61..10S198708-198908

55536ACOVER, LONG PARKING SWITCH HOLE

main55536-95J00-04iLH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL198708-198709

BLUE,TRIM8#

main55536-95J00-06iLH71;LH5#,6#,YH5#,6#,71..CD,DX,SCL,SCM198708-198908

BROWN,TRIM4#

55537ACOVER, THROTTLE KNOB HOLE

main55537-95010-01iYH5#,6#,71198708-198908

BLACK,TRIM4#,8#

55538BCOVER, RHEOSTAT LIGHT HOLE

main55538-95J00-06iLH5#,6#,71,YH5#,6#,71..(HRF,SRF)..(CD,DX,SCM)198708-198908

BROWN,TRIM4#

main55538-95J00-24iLH51,6#,YH51,57..SRF..(SCM,SGL)198708-198709

BLUE,TRIM8#

55539COVER, SPARE SWITCH HOLE

main55539-95J00-01iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

NO.1,BLACK(TRIM4,8),BLACK

main55539-95J01iLH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..03S,05S,06S,09S,10S,15S198708-198908

NO.2

55551ADOOR, GLOVE COMPARTMENT, OUTER

main55551-95J00-14iLH66..SGL..08S;LH5#,6#,YH50,51,61..(CTM,GL,SGL)..(05S,09S)198708-198709

BLUE,TRIM8#

main55551-95J00-16iLH71;LH5#,6#,YH50,51,52,6#,71..CD,DX198708-198908

BROWN,TRIM4#

main55551-95J02-04iLH51,YH51,57..08S198708-198908

BLUE,TRIM8#

main55551-95J02-06iLH51,YH51,57..07S,08S198708-198908

BROWN,TRIM4#

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-14080iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-95704-04iLH66..SGL..08S;LH5#,6#,YH50,51,61..(CTM,GL,SGL)..(05S,09S)198708-198908

BLUE,TRIM8#

main55560-95704-06iLH71;LH5#,6#,YH50,51,52,6#,71..CD,DX198708-198908

BROWN,TRIM4#

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

55581BBOX, SEAL, UPPER

main55581-95J00iLH51..09S..TD;LH51,61,71..WG..(4FC,5F,5H)198708-198908

55582COMPARTMENT, GLOVE DOOR, INNER

main55582-95J00iLH51..V;LH66,YH61..03S,05S,06S,09S,10S;LH51,66..(4HC,5F)..(CTM,DX,SGL)..(08S,09S)..DSL;LH56,61,71,YH5#,62,71..03S,05S,06S,07S,08S,09S,15S198708-198908

main55582-95J02iLH51..09S..TD;LH51,61,71..WG..(4FC,5F,5H)198708-198908

55611TRAY, INSTRUMENT PANEL UNDER

main55611-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-95J04iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-95J08-04iLH66..SGL..08S;LH5#,6#,YH50,51,61..(GL,SGL)..(05S,09S)198708-198908

BLUE,TRIM8#

main55660-95J08-06iLH71..5H;LH5#,6#,YH50,52,6#,71..(COM,V)..(CD,DX)198708-198908

BROWN,TRIM4#

main55660-95J09-04iLH51,YH51,57..CTM,SCM198708-198709

BLUE,TRIM8#

main55660-95J09-06iLH51,61,71,YH51,57,61..WG..(DX,SCL,SCM)198708-198908

BROWN,TRIM4#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-95J00-06iLH71..5H;LH5#,6#,YH50,52,6#,71..(COM,V)..(CD,DX)198708-198908

BROWN,TRIM4#

main55670-95J00-14iLH66..SGL..08S;LH5#,6#,YH50,51,61..(GL,SGL)..(05S,09S)198708-198908

BLUE,TRIM8#

main55670-95J01-14iLH51,YH51,57..CTM,SCM198708-198709

BLUE,TRIM8#

main55670-95J01-16iLH51,61,71,YH51,57,61..WG..(DX,SCL,SCM)198708-198908

BROWN,TRIM4#

55690ARETAINER ASSY, INSTRUMENT

main55690-95J00iYH61..10S198708-198908

55905EKNOB SUB-ASSY, CONTROL

main55905-12050-01iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

BLACK,TRIM4#,8#

9011505011

main90115-05011

9011906048

main90119-06048

9011908143

main90119-08143

9014960065

main90149-60065

9015550001

main90155-50001

9015950095

main90159-50095

9015950108

main90159-50108

9015950134

main90159-50134

9016126007

main90161-26007

9016850027

main90168-50027

9017905095

main90179-05095

9018305103

main90183-05103

9046807010

main90468-07010

9165140612

main91651-40612

9165540616

main91655-40616

9338516012

main93385-16012

9352054012

main93520-54012

9356015014

main93560-15014

9356654514

main93566-54514

9356715012

main93567-15012

9356755012

main93567-55012

9356755016

main93567-55016

9356755018

main93567-55018

57 parts on this diagram · 1 diagram in section
