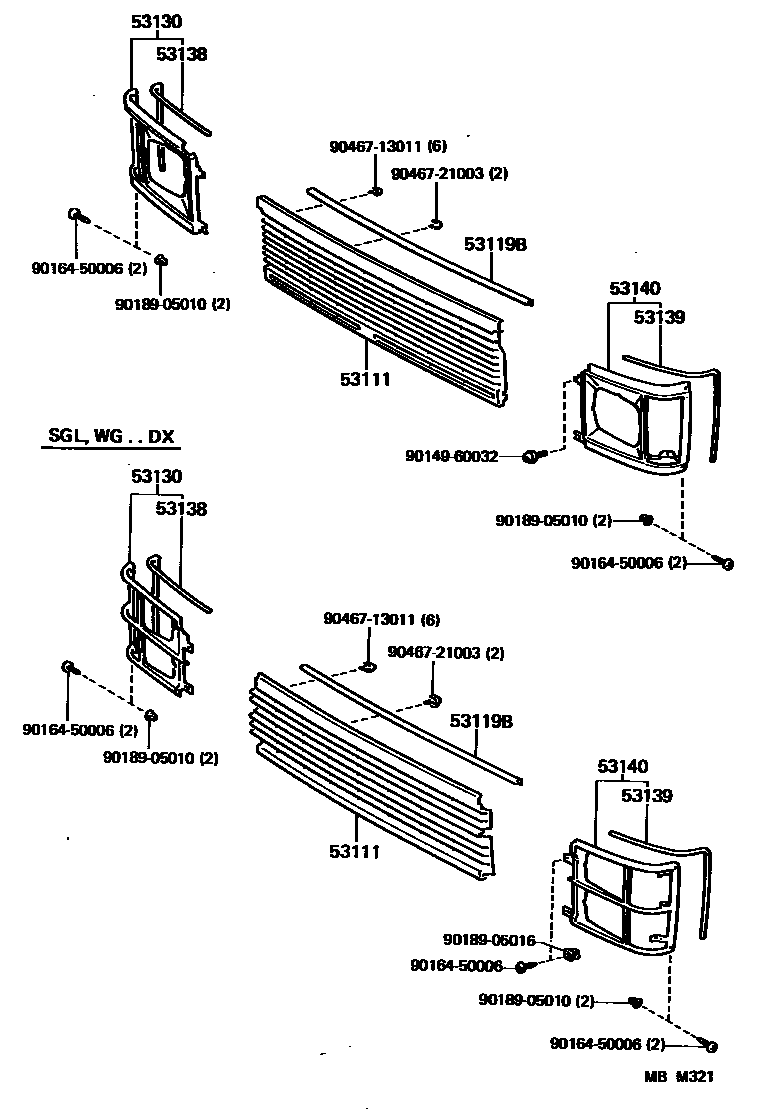

RADIATOR GRILLE

0001 1 0002 1

53111GRILLE, RADIATOR

main53111-95J09iLH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX)198708-198908

main53111-95J10iLH5#,6#,71,YH50,51,61..GL..(05S,09S,15S)198708-198908

main53111-95J11iLH66..SGL;LH71,YH51,61..WG..DX;LH51..(DX,SGL)..(05S,09S);LH61..(DX,SGL)..(05S,10S)198708-198908

main53111-95J14iLH51,YH51..CTM198708-198908

main53111-95J15iLH51,YH51,57..07S,08S198708-198908

53119BPROTECTOR, RADIATOR GRILLE

main53119-95J02iLH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,DX,GL,SGL)..(03S,05S,06S,09S,10S,15S)198708-198908

53130ORNAMENT ASSY, HEADLAMP, RH

main53130-95J05iLH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX)198708-198908

main53130-95J06iLH5#,6#,71,YH50,51,61..GL..(05S,09S,15S)198708-198908

main53130-95J07iLH66..SGL;LH71,YH51,61..WG..DX;LH51..(DX,SGL)..(05S,09S);LH61..(DX,SGL)..(05S,10S)198708-198908

53138PROTECTOR, HEADLAMP DOOR, RH

main53138-95J03iLH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,DX,GL,SGL)..(03S,05S,06S,09S,10S,15S)198708-198908

53139PROTECTOR, HEADLAMP DOOR, LH

main53138-95J03iLH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,DX,GL,SGL)..(03S,05S,06S,09S,10S,15S)198708-198908

53140ORNAMENT ASSY, HEADLAMP, LH

main53140-95J05iLH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX)198708-198908

main53140-95J06iLH5#,6#,71,YH50,51,61..GL..(05S,09S,15S)198708-198908

main53140-95J07iLH66..SGL;LH71,YH51,61..WG..DX;LH51..(DX,SGL)..(05S,09S);LH61..(DX,SGL)..(05S,10S)198708-198908

9014960032

main90149-60032

9016450006

main90164-50006

9018905010

main90189-05010

9018905016

main90189-05016

9046713011

main90467-13011

9046721003

main90467-21003

12 parts on this diagram · 2 diagrams in section
