Toyota HIACE VAN,WAGON — BRAKE TUBE & CLAMP

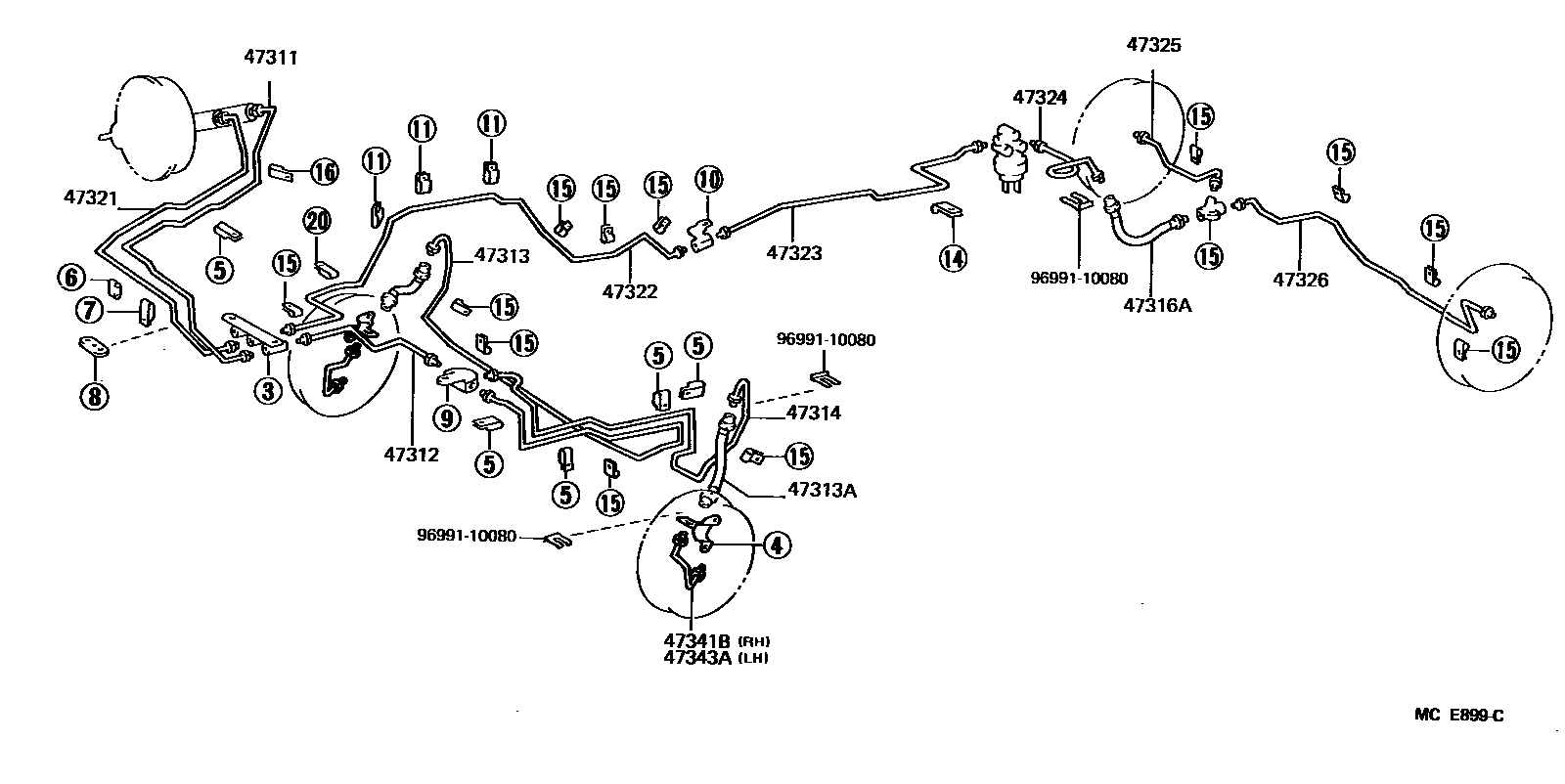

Parts diagram

47311TUBE, FRONT BRAKE, NO.1

47312TUBE, FRONT BRAKE, NO.2

47313TUBE, FRONT BRAKE, NO.3

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

47314TUBE, FRONT BRAKE, NO.4

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47321TUBE, REAR BRAKE, NO.1

47322TUBE, REAR BRAKE, NO.2

47323TUBE, REAR BRAKE, NO.3

47324TUBE, REAR BRAKE, NO.4

47325TUBE, REAR BRAKE, NO.5

47326TUBE, REAR BRAKE, NO.6

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

9699110080

15 parts on this diagram · 7 diagrams in section

BRAKE TUBE & CLAMP for Toyota HIACE VAN,WAGON

This section contains 68 genuine Toyota parts for the BRAKE TUBE & CLAMP system of the Toyota HIACE VAN,WAGON. Key components include: BUSH & BOOT KIT, LOAD SENSING SPRING, VALVE ASSY, PROPORTIONING & BY-PASS, TUBE, FRONT BRAKE, NO.1, WAY, NO.1(FOR FRONT BRAKE TUBE), TUBE, FRONT BRAKE, NO.2.
