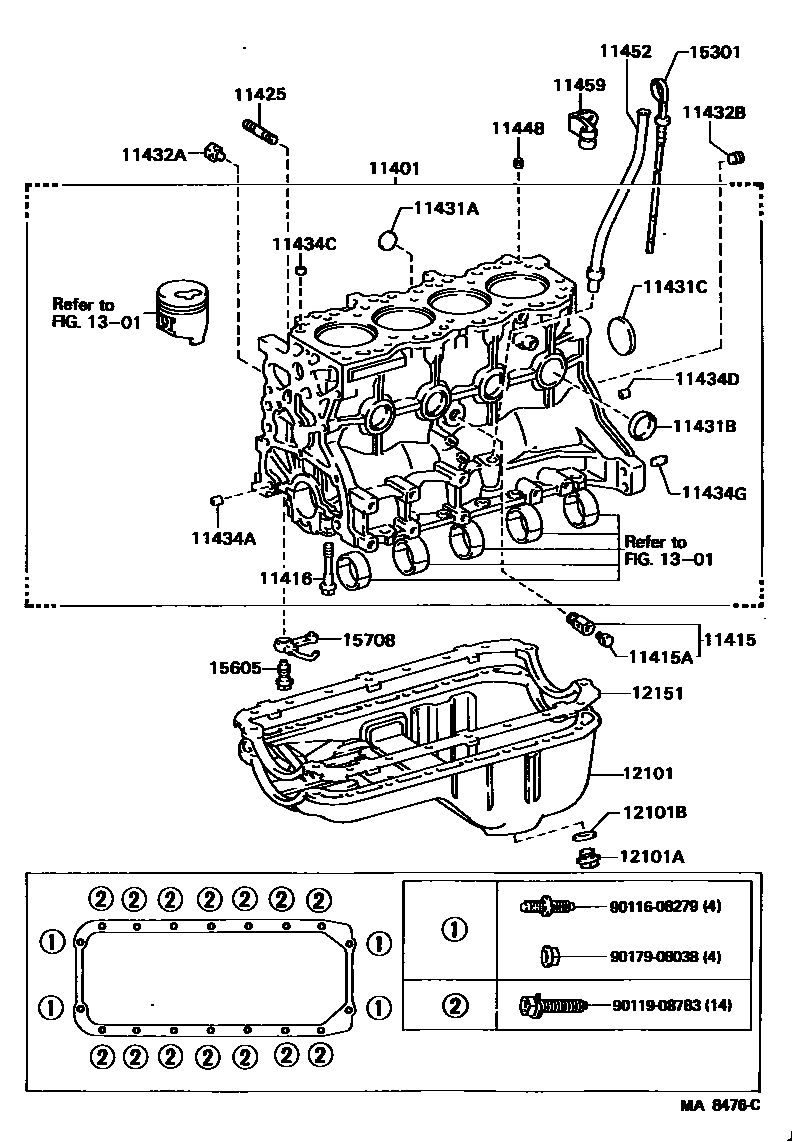

CYLINDER BLOCK

0001 1 0002 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-59167i2LT..LH51198708-198807

sub11401-59168

sub16027-54021

sub16268-54011

sub16269-54011

main11401-59168i2LT..LH51198807-198908

main11401-59246i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198807

sub11401-59247

sub31349-26020

main11401-59247i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198807-198908

main11401-79066i2Y..YH50198708-198908

main11401-79086i2Y..YH50..06S198708-198908

sub11401-79088

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main96431-53828i2Y,3Y#..YH5#,6#,71198708-198908

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main96432-23814i2Y,3Y#..YH5#,6#,71198708-198908

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02032i2Y,3Y#..YH5#,6#,71198708-198908

main90910-02061i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

11425BOLT, STUD(FOR OIL FILTER)

main90116-08157i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-01800i2Y,3Y#..YH5#,6#,71198708-198908

main96411-42500i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43500i2L#..LH51,61..ATM198708-198908

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-45000i2Y,3Y#..YH5#,6#,71198708-198908

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-51006i2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90344-53002i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198808

main90344-53011i2Y,3Y#..YH5#,6#,71198708-198908

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120i2Y,3Y#..YH5#,6#,71198708-198908

main90253-11001i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-15005i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90253-11001i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10192i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

11448ORIFICE, CYLINDER BLOCK OIL

main11448-54020i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

11452GUIDE, OIL LEVEL GAGE

main11452-54010i2L..LH51..4HC..09S;2L..LH51,61,71..COM,V198708-198908

main11452-54050i2LT..LH51;2L..LH51,61..WG..MTM;2L..LH56,66,71..05S,10S;2L..LH66..(DX,SGL)..08S198708-198908

main11452-71020i2Y,3Y#..YH5#,6#,71198708-198908

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-71011i2Y,3Y#..YH5#,6#,71198708-198908

main90461-10271i2L..LH51..4HC..09S;2L..LH51,61,71..COM,V198708-198908

main90929-01111i2LT..LH51;2L..LH51,61..WG..MTM;2L..LH56,66,71..05S,10S;2L..LH66..(DX,SGL)..08S198708-198908

12101PAN SUB-ASSY, OIL

main12101-54042i2L#..LH51,61,71198708-198808

sub12101-54043

sub90341-12012

sub90430-12027

main12101-54053i2L..LH56,66..05S;2L..LH66..(DX,SGL)..08S198708-198808

sub12101-54054

sub90341-12012

sub90430-12027

main12101-54110i2L#..LH51,61,71198808-198908

sub12101-54112

sub90341-12012

sub90430-12027

main12101-54150i2L..LH56,66..05S;2L..LH66..(DX,SGL)..08S198808-198908

sub12101-54152

sub90341-12012

sub90430-12027

main12101-71021i2Y,3Y#..YH5#,6#,71198708-198908

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2Y,3Y#..YH5#,6#,71198708-198908

main90341-18089i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

sub90033-41020

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12011i2Y,3Y#..YH5#,6#,71198708-198803

sub90430-12019

main90430-12019i2Y,3Y#..YH5#,6#,71198803-198908

sub90430-12028

main90430-18013i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

sub90430-18023

12151GASKET, OIL PAN

main12151-54020i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198807

1301

15301GAGE SUB-ASSY, OIL LEVEL

main15301-54030i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

main15301-71020i2Y,3Y#..YH5#,6#,71198708-198908

15605VALVE SUB-ASSY, OIL CHECK

main15605-54010i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-54010i2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S198708-198908

9011608279

main90116-08279

9011908783

main90119-08783

9017908038

main90179-08038

28 parts on this diagram · 2 diagrams in section
